Carbon Steel DN32-DN3000 Double Sphere Rubber Expansion Joint Flange
- Категории: Pipe Fittings >>>
- Поставщик: Henan,Huayuan,Water,Supply,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Why Choose Us
Product Description
PN16 Twin Sphere Flanged Rubber Flexible Conector Rubber Expansion Joint For Sale

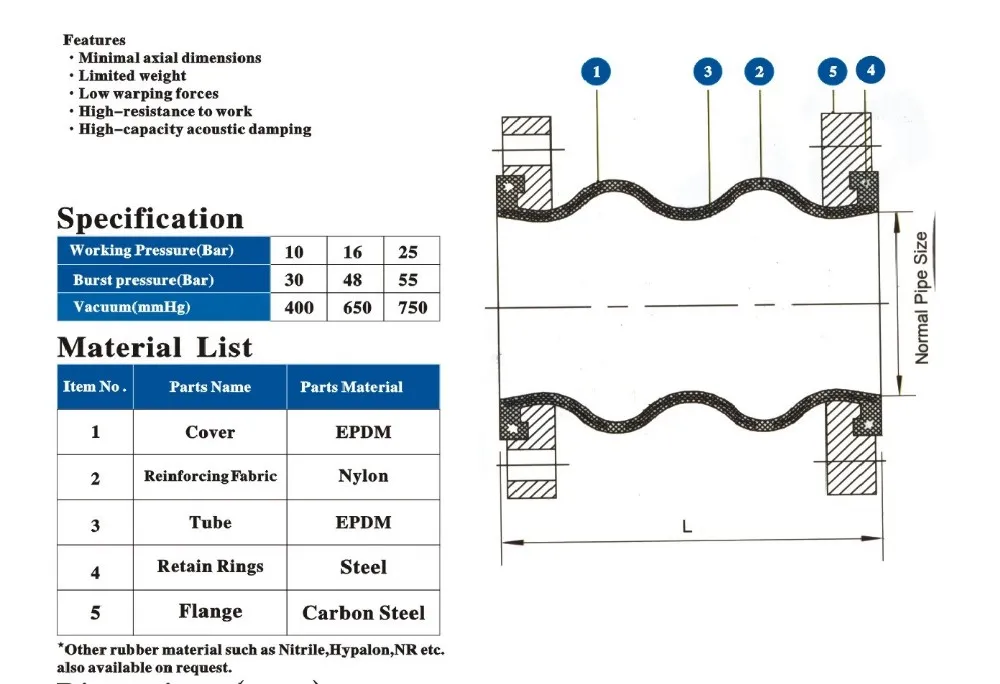

The form: this rubber expansion joint consists of rubber pipe, made of inner glue, multi-layer proofinf and cord fabric and outer glue abd metal woggle joint.
It is applicable for the connection of inlet and outlet pipes of various fancoil sets of air conditionings in the guest rooms of hotels and restaurants.
Twin sphere rubber expansion joint advantage: A: 15 minutes zinc plating, high pressure resistance, high temperature resistance, oil resistance, wear resistance, corrosion resistance, acid and alkali resistance. B:Connect with pump, valve, fire fighting equipment, pipe which vibrate big, pipe which hot and cold change frequently. C: Natural rubber content of forty-seven percent, can continue to use for 15 years without aging. | ||
Nominal Diameter | Neutral Length | Movements | ||||||||
DN | NPS | L | Ext. | Comp. | Lateral. | Angular.(°) | ||||
40 | 1 1/2 | 175 | 30 | 50 | 45 | 35" | ||||
50 | 2 | 175 | 30 | 50 | 45 | 35" | ||||
65 | 2 2/1 | 175 | 30 | 50 | 45 | 35" | ||||
80 | 3 | 175 | 30 | 50 | 45 | 35" | ||||
100 | 4 | 225 | 35 | 50 | 40 | 35" | ||||
125 | 5 | 225 | 35 | 50 | 40 | 35" | ||||
150 | 6 | 225 | 35 | 50 | 40 | 35" | ||||
200 | 8 | 325 | 35 | 50 | 40 | 30" | ||||
250 | 10 | 325 | 35 | 60 | 35 | 30" | ||||
300 | 12 | 325 | 35 | 60 | 35 | 30" | ||||
PN16 Twin Sphere Flanged Rubber Flexible Conector Rubber Expansion Joint For Sale
1. All rubber expansion joints are finshed with retaining flanges, limit rod units are available on special request.
2. Pressures shows are recommended“operating”, test pressure is 1.5time“operating”, burst pressure is 3 time “operating”.
3. Vacuum rating is based on neutral installed length without external load. Products shall not be installed “elongated”on vacuum applications.
4. Do not weld near the expansion joints or weld the steel flanges to the piping after the expansion joints are installed. This will either burn or seriously damage the expansion joints. Huayuan Product Specifications in this catalogues for reference only. Huayuan reserve the right to change design construction, specification and materials without prior notice and without incuring any obligation. Any precise measurements, kindly contact with Huayuan technical service directly.

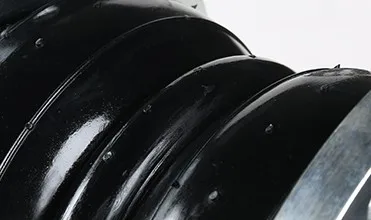

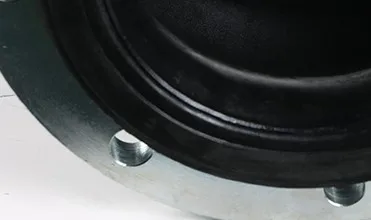

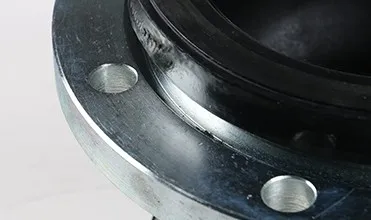

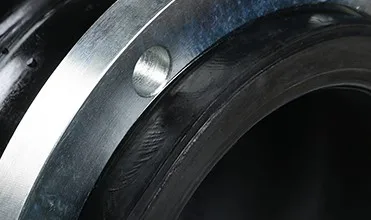

Product Details
PN16 Twin Sphere Flanged Rubber Flexible Conector Rubber Expansion Joint For Sale can be customized DN40-DN600.
PN16 Twin Sphere Flanged Rubber Flexible Conector Rubber Expansion Joint For Sale are all made of high-quality steel, large CNC machining galvanized surface.
PN16 Twin Sphere Flanged Rubber Flexible Conector Rubber Expansion Joint For Sale of raw materials all used in Malayasia and Indonesia's high quality rubber, natural rubber content reached 47%.
PN16 Twin Sphere Flanged Rubber Flexible Conector Rubber Expansion Joint For Sale after surface treatment and inspection of finished products.

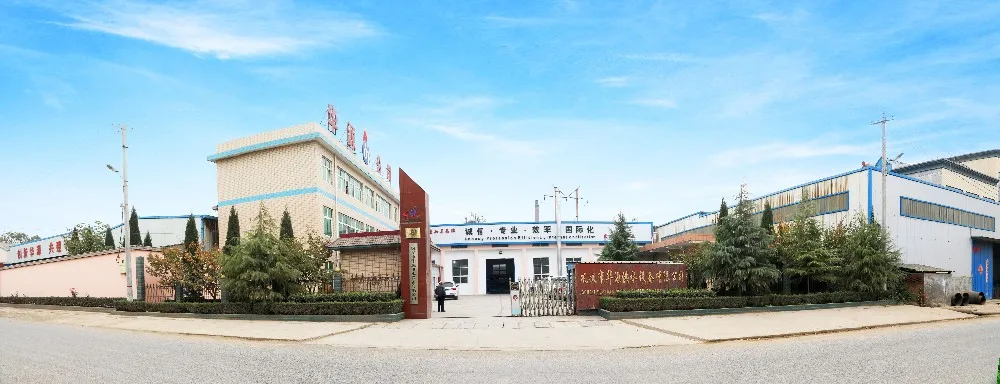

About Us
PN16 Twin Sphere Flanged Rubber Flexible Conector Rubber Expansion Joint For Salehas good comprehensive properties, it is widely used in chemical engineering, construction, water supply, drainage, oil, heavy industry, freezing, sanitation, plumbing, fire protection, power and other basic projects.
Our raw material is imported natural rubber from Malaysia and Indonesia, with a content of fortyseven percent,according to the different materials, it can be made ofacid, alkali resistant, corrosion resistant, oil resistant, high temperature resistant, radiation resistant, wear-resistant, aging resistant and so on.
Certificate&Customer
FAQ
Q: Can you make the product as per client's requirement?
A: Yes, we can make it with your exact requirement.
Q: What are your payment terms?
A: T/T (30% as despot, the rest 70% will be paid before delivery), L/C at sight
Q: Can I visit your factory before the order?
A: Yes, welcome to our factory to check the quality.
Q: Where is your nearest loading port?
A: Shanghai, Qingdao or Tianjin, China.
Q: How can you guarantee the quality or any warranty?
A: If any quality problems during use, all the products can be returned or according to consumer's requests.
Q: Do you accept small quantity order?
A: Of course we do.
Q: Can we choose different material?
A: Yes, the material can be chose according to your requirement.
Q: And what is your shipment and delivery time?
A: By sea or air. Normally 7 to 14 Days for delivery, according to your order quantity.
Q: And what's your packing?
A: Carton cases inside, export wooden cases outside.
