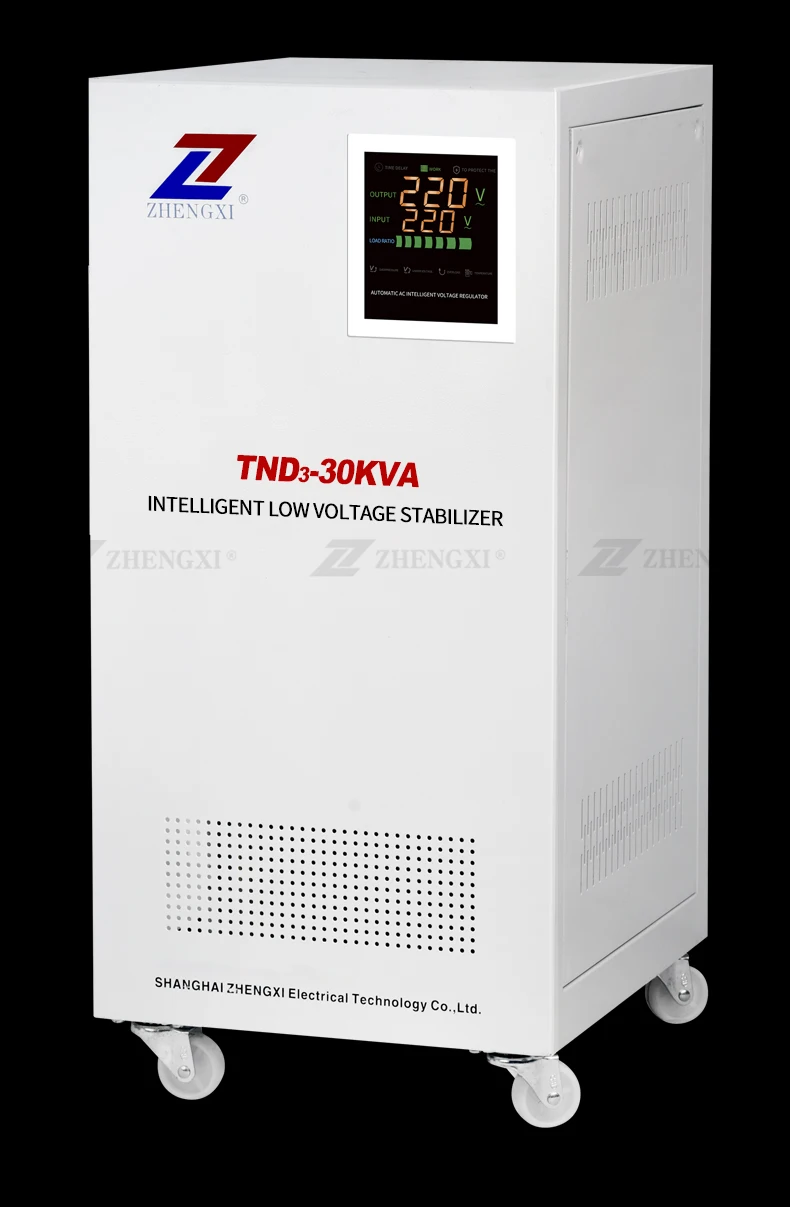

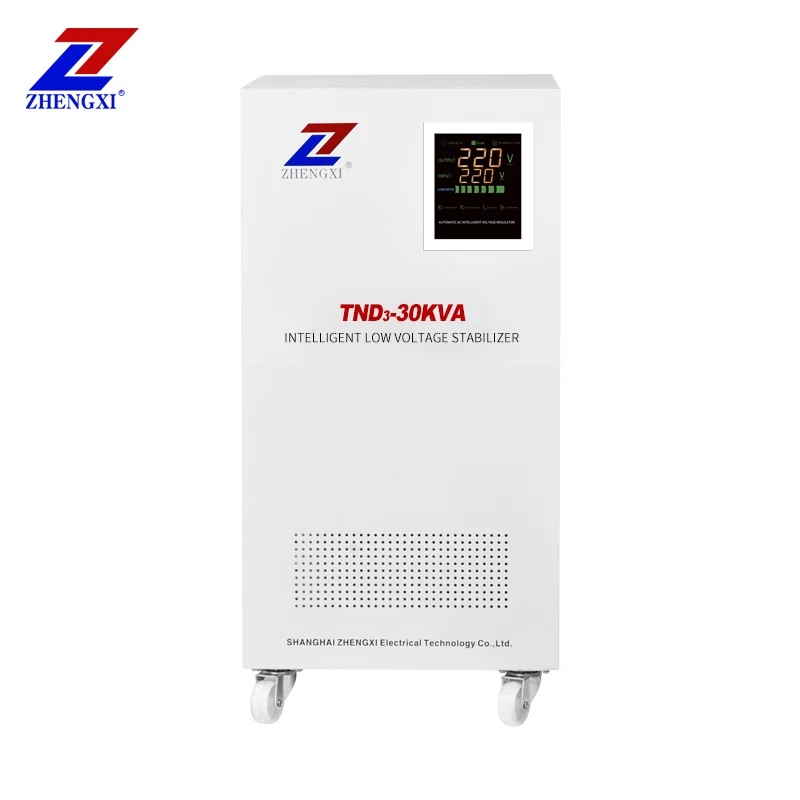

ZX TND3-30KVA однофазный 30KW AC автоматический стабилизатор напряжения тока сервопривода регулятор


Поделиться:

Цена:255,00 $ - 266,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики


.jpg

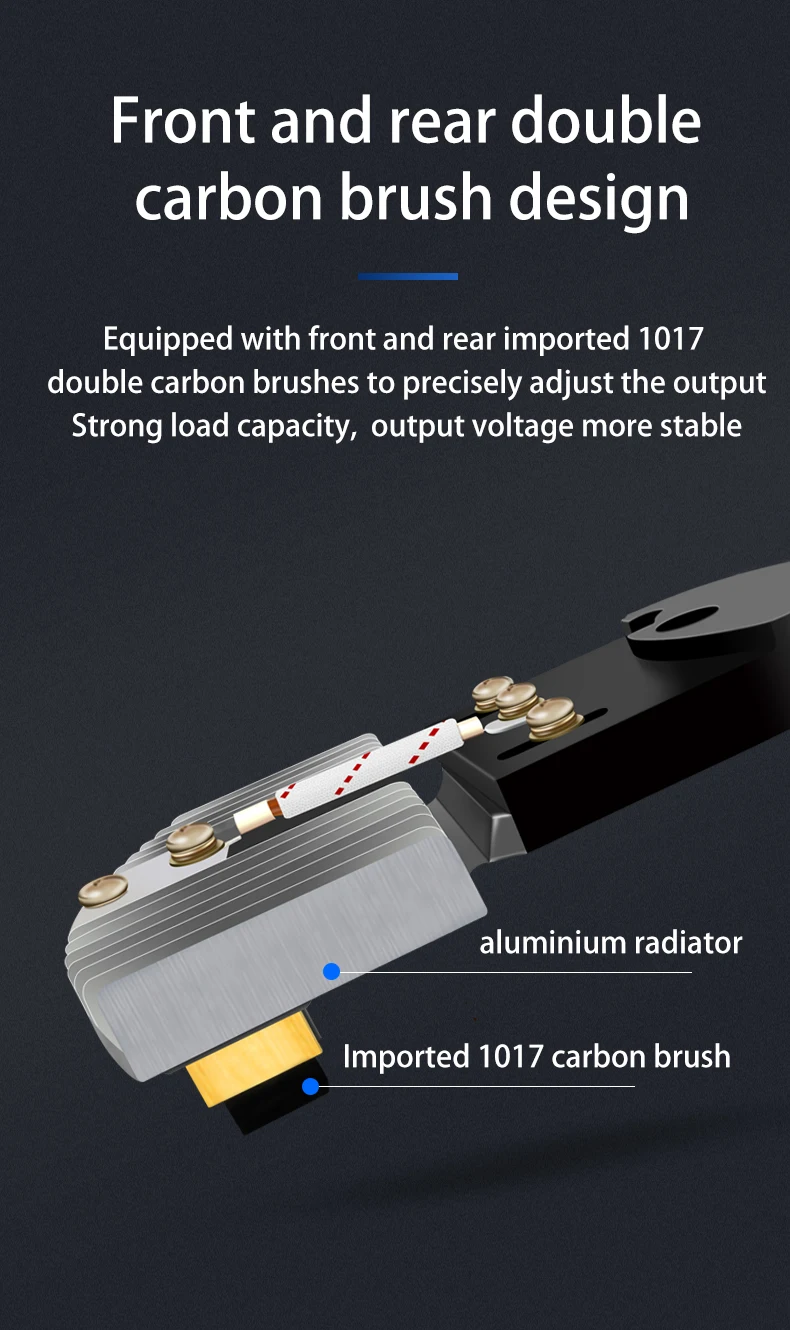

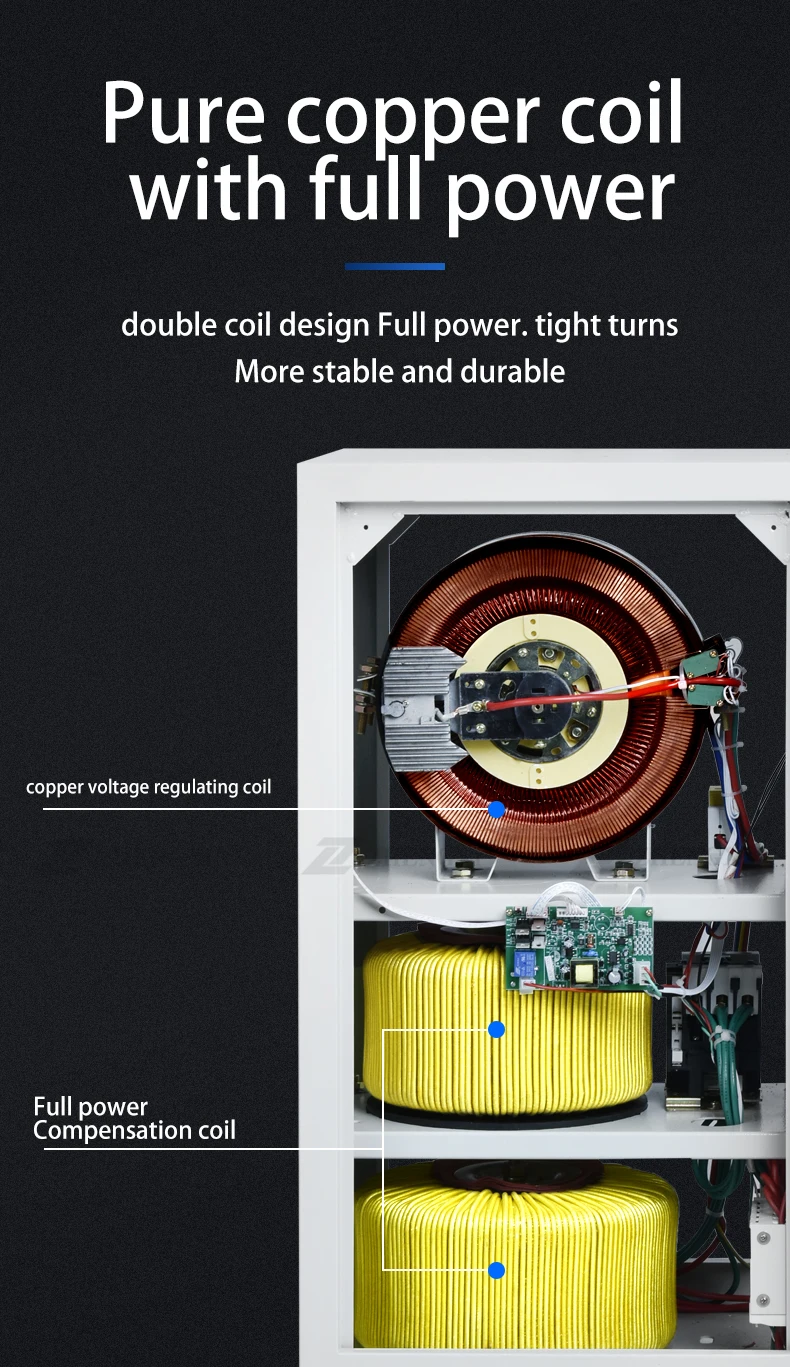

TND Series single-phase high precision automatic AC voltage regulator is composed of contact type auto-coupling voltage regulator, servo motor and automatic control circuit. When the grid voltage is unstable for the load changes, the automatic sampling control circuit sends a signal to drive the servo. The motor adjusts the position of the auto-coupler carbon brush to adjust the output voltage to the rated value and reach a steady state.


 TND3 series high-precision AC voltage regulator has the function of direct power supply. It has many advantages such variety, fully specifications and beautiful appearance. It has the advantages of no waveform distortion, high efficiency, reliable performance, long-term operation, etc. It has short delay, overvoltage and other protection functions. It can add long delay and undervoltage protection according to the needs of users. The product can be widely used in any place of electricity, it is an ideal regulated power supply to ensure the normal operation of your electrical equipment. Suitable for office equipment, test equipment, medical equipment, industrial automatic equipment, household appliances, lighting systems, communication system, etc.


TND3-15KVA normal type  intelligence automatic AC Voltage Regulator stabilizer


Main Technical Parameter


































































Input voltage



Regular models 140V-260/300V, ultra low voltage models 90-260/300V



Output voltage



0.5KVA-5KVA, 220V and 110V     10KVA-50KVA, 220V



Voltage regulation accuracy



220V±3%, 11V±6%



Frequency



50Hz/60Hz



Overvoltage protection value



Output voltage 260V±4V



Undervoltage protection value



Output voltage 186V±4V, regularly not set undervoltage protection



Load power factor



0.8



Adjust time



When the voltage change by10%<1S



Waveform distortion



No additional waveform distortion



Dielectric strength



1500V/1min



Insulation resistance



Single phase >5MΩ



Insulation class



Class E



Working environment



Temperature :-10℃ to +40℃, Humidity: <95%



Effectiveness



>95%



Temperature rise



<60℃


































































































































































Model



Voltage regulation range



Product size



Package dimension



Net weight KGS



Gross weight KGS



TND-0.5KVA



140V-260V



192*172*145mm



228*225*180mm



3.3



3.65



TND-1KVA



140V-260V



208*208*165mm



278*268*217mm



5.4



5.95



TND-1.5KVA



140V-260V



208*208*165mm



278*268*217mm



5.7



6.25



TND-2KVA



140V-260V



240*255*200mm



300*290*255mm



7.4



9.1



TND-3KVA



140V-260V



232*282*230mm



345*290*285mm



11.3



11.8



TND-5KVA



140V-260V



240*310*285mm



285*415*335mm



14.4



15.5



TND-5KVA Ultra low voltage



90V-260V



240*310*285mm



285*415*335mm



16.3



17.4



TND-10KVA



140V-300V



315*340*540mm



355*380*600mm



34.6



38.8



TND-10KVA Ultra low voltage



90V-260V



315*340*540mm



355*380*600mm



39.4



43.6



TND-15KVA



140V-300V



350*400*610mm



395*445*685mm



51.5



57



TND-15KVA Ultra low voltage



80V-300V



350*400*610mm



395*445*685mm



54



59.3



TND-20KVA



140V-300V



350*400*610mm



395*445*685mm



53



58.5



TND-20KVA Ultra low voltage



90V-260V



350*400*780mm



410*460*865mm



75.5



82.5

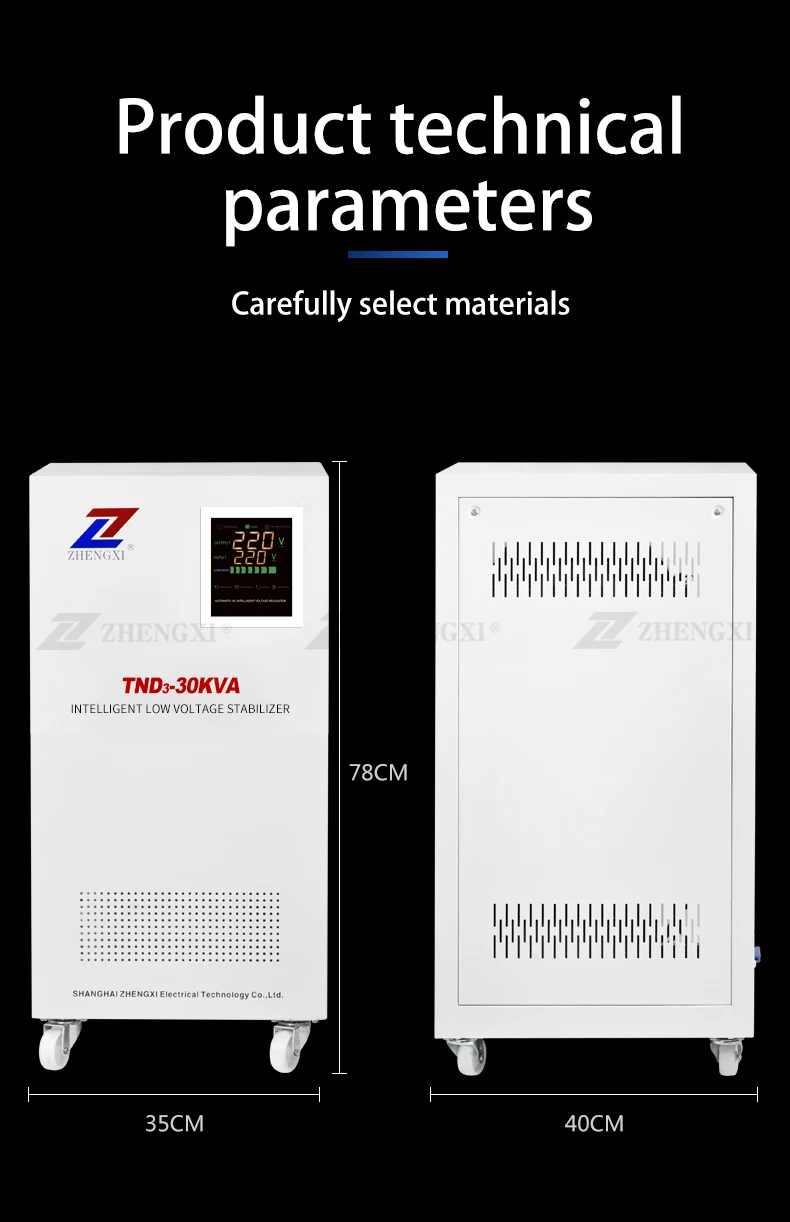

TND-30KVA



140V-300V



350*400*780mm



410*460*865mm



70.5



77.6



TND-30KVA Ultra low voltage



90V-260V



350*400*780mm



410*460*865mm



85



92.1



TND-40KVA



140V-260V



350*400*780mm



410*460*865mm



77.5



84.5



TND-40KVA Ultra low voltage



110V-260V



550*450*1040mm



520*610*1200mm



123



133.5



TND-50KVA Ultra low voltage



110V-260V



550*450*1040mm



520*610*1200mm



133



143.5












.jpg
