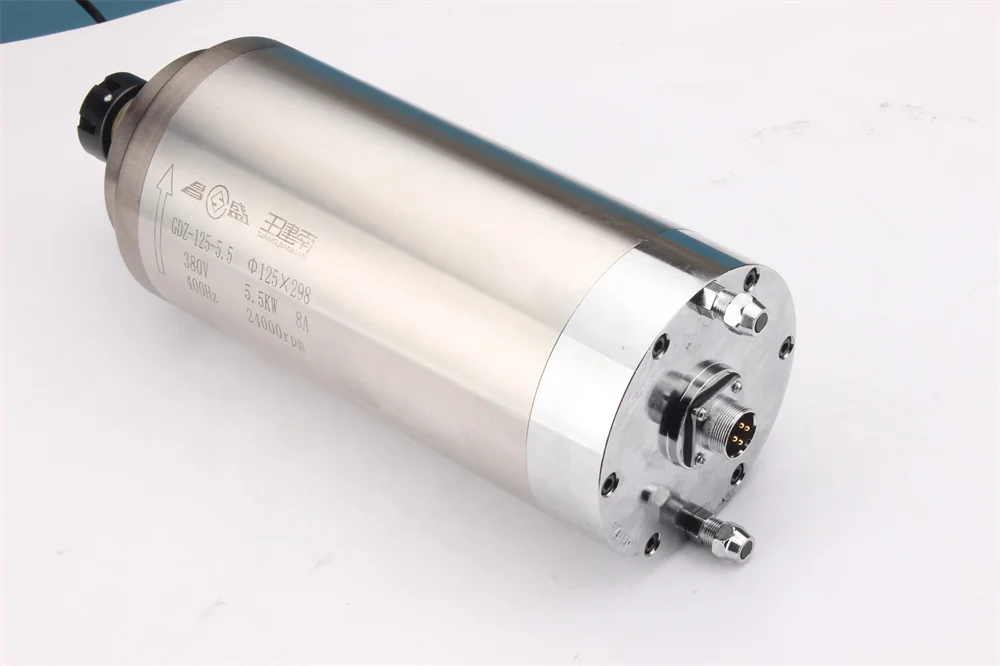

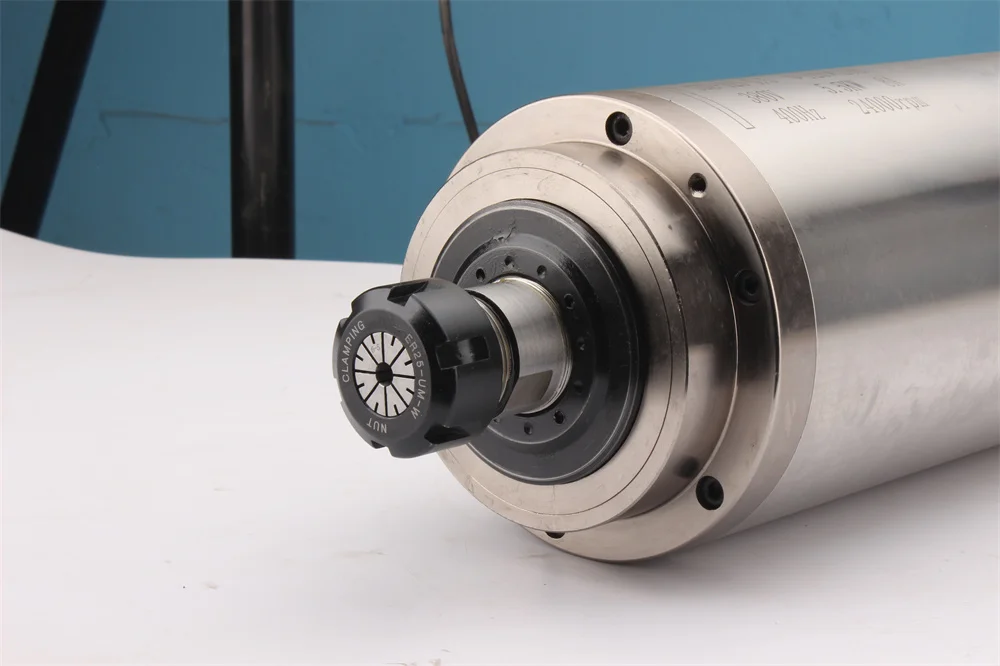

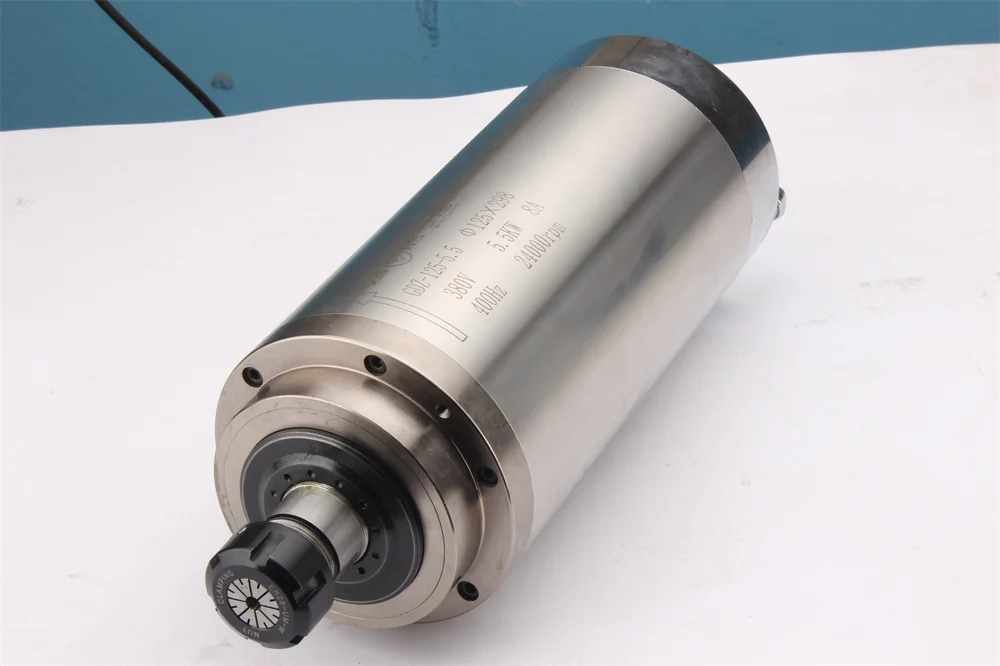

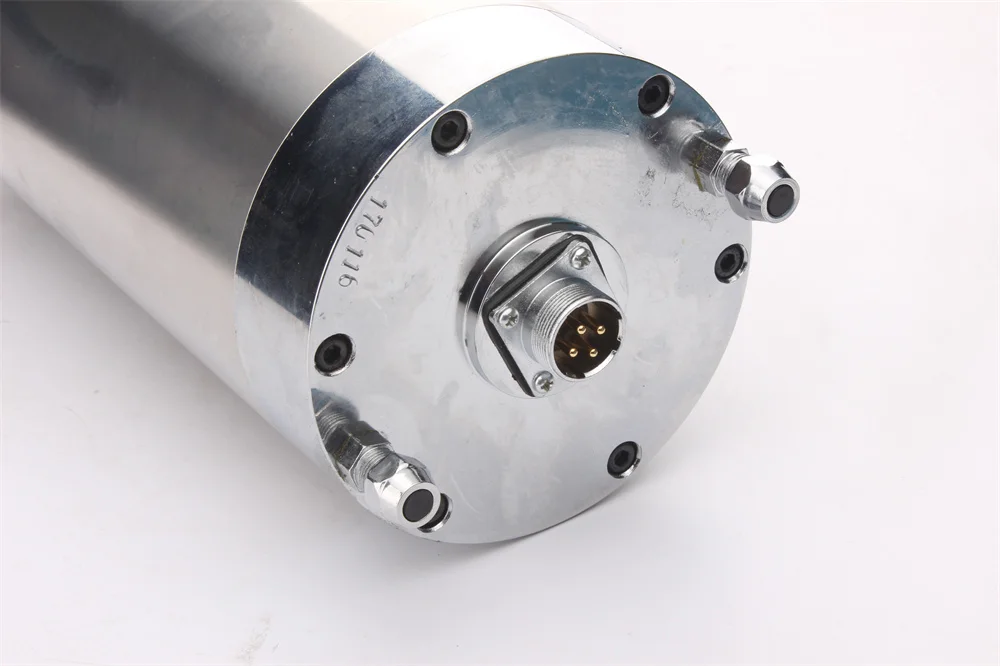

Hot Sale High Speed 18000 Rpm 220v/380v 1.5kw 3.2kw 5.5kw Spindle
- Категории: Machine Tools Accessory >>>
- Поставщик: Jinan,Ruike,International,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Type | Product | Length | Diameter | Chuck model |
Water cooled spindle | 0.8KW | 195mm | Ф65 | ER11 |
1.5KW | 213mm | Ф80 | ER11 | |
2.2KW | 213mm | Ф80 | ER20 | |
2.2KW | 238mm | Ф80 | ER20 | |
3.2KW | 220mm | Ф100 | ER20 | |
5.5KW | 340mm | Ф125 | ER25 |
Fault | Cause of failure | Exclusion method |
The motorized spindle does not operate after startup | No output or wrong setting of frequency converter | Check whether the output setting of the frequency converter is correct |
Plug not connected | Check the plug and wiring | |
Poor plug connection | ||
Stator wire package burnt out | Replace wire package | |
Shut down after several seconds of operation | Water ingress damages the insulation of wire package | Drying wire package |
Edge damage of wire package caused by high temperature | Replace wire package | |
Overcurrent protection caused by phase loss movement | Check the motor wiring | |
Startup time is too short | Extended acceleration time | |
After starting and running for a few seconds, the motor smokes or the shell is hot | The frequency converter has no output voltage and frequency, which is different from the nameplate voltage and frequency of motorized spindle | Check the reference frequency of the frequency converter |
Wrong setting parameters of frequency converter | Reset frequency converter | |
Waterway problem | Check whether the waterway is unblocked | |
Nut looseness during start-up | Wrong direction of rotation | Change the rotation direction according to the nameplate |
High noise and vibration | Serious bearing wear | Replace the bearing |
Damage to part accuracy affects balance | Check dynamic balance | |
Large spindle runout | Replace the spindle | |
Nut looseness during shutdown | Downtime is too short | Extended downtime |
Jinan rico international trade co., LTD., founded in 2021, is a professional foreign trade companies, import and export trade for domestic and foreign trade, cooperative production, transit trade, such as way of business.
Main business: woodworking engraving machine CNC machinery equipment and accessories, equipment and accessories, electrical equipment and accessories, industrial automation control equipment, mechanical equipment, electrical equipment, dust collection equipment, transmission machinery parts, motor, spindle motor, inverter, drives, power switch, mold, electronic products, metal products wholesale, retail; Import and export business
At present, the company increasing the scale of trade, customers throughout the world, with good prestige got the trust of the customers at home and abroad
To promote the modernization construction of our country, promote the economic and technical exchanges with the rest of the world, enhance the friendship with people from different countries made many positive work.
We warmly hope: you I hand in hand, altogether will create the glorious future!
Main business: woodworking engraving machine CNC machinery equipment and accessories, equipment and accessories, electrical equipment and accessories, industrial automation control equipment, mechanical equipment, electrical equipment, dust collection equipment, transmission machinery parts, motor, spindle motor, inverter, drives, power switch, mold, electronic products, metal products wholesale, retail; Import and export business
At present, the company increasing the scale of trade, customers throughout the world, with good prestige got the trust of the customers at home and abroad
To promote the modernization construction of our country, promote the economic and technical exchanges with the rest of the world, enhance the friendship with people from different countries made many positive work.
We warmly hope: you I hand in hand, altogether will create the glorious future!
