SIRON H005-3 24V 110V 220V 16mm 3-step Rotary
- Категории: Rotary Switches >>>
- Поставщик: Shenzhen,Siron,Electrical,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Features

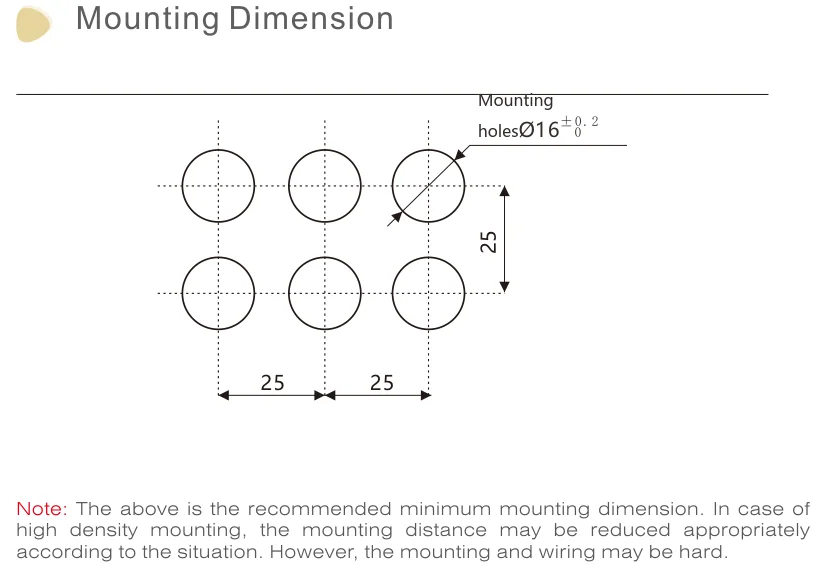

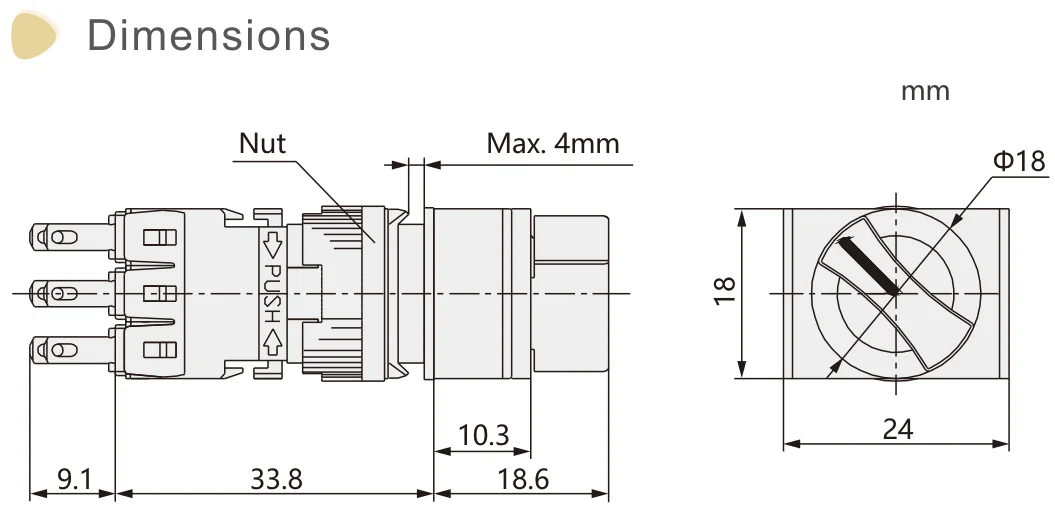

* Diameter of mounting recess: 16mm, External dimension of rectangular box: 18X24mm;
* The switching mechanism uses a sliding cutter which can automatically remove the carbon deposit
from the surface of the contact;
* Operating travel of switch unit: 3mm;
* Max. capacity of button contact up to 2A/250VAC;
* The switching mechanism uses a sliding cutter which can automatically remove the carbon deposit
from the surface of the contact;
* Operating travel of switch unit: 3mm;
* Max. capacity of button contact up to 2A/250VAC;
*Compliance with standards General rules for low-voltage switchgear and control equipment IEC60947-1: 2001 GB 14048.1-2006
Control circuit appliances and switch components IEC60947-5-1: 20031 GB 14048.5-2008
Products Description
Product Paramenters
Contact Rating | ||
Conventional Free Air Thermal Current | 5A | |
Operating Voltage | 24V / 110V / 220V | |
Operating Current | Usage Category: AC 2.0A/ 1.0A/ 0.5A | |
Usage Category: DC 0.7A/ 0.2A/ 0.1A | ||
Contact Material | Silver tin oxide alloy (AgSnO2) | |
Standard Application of Colors | ||||||||

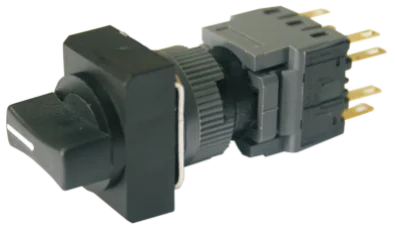

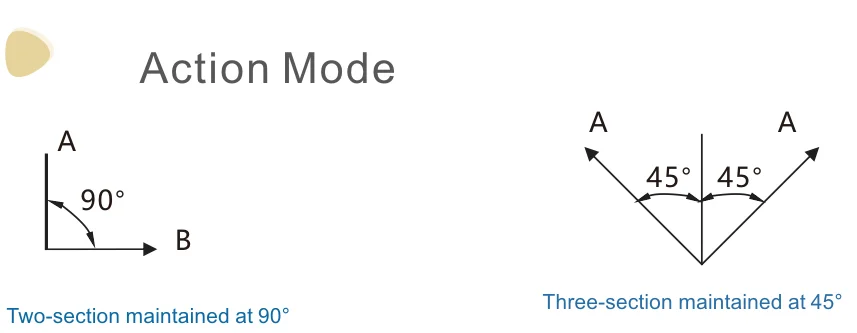

Model :H005-3 | 3-step Rotary Switch | |||||||
Operating Temperature | -25℃~+55℃ (no freezing or condensation, with air circulating freely) | |||||||
Operating Humidity | 45~85%RH (no condensation) | |||||||
Contact Material | Silver tin oxide alloy (AgSnO2), gilding 0.3um | |||||||
Conductive Resistance | ≤50mΩ (initial value) | |||||||
Insulation Resistance | ≥104 mΩ(500VDC) | |||||||
Insulating Strength | AC2500V 50HZ 1minute | |||||||
Vibration Resistance | 50Hz, amplitude 1.2mm | |||||||
Impact Resistance | >10g | |||||||
Mechanical Life | >100,000 times | |||||||
Electric Life | >3,0000 times | |||||||
Operating Travel | Approximately 3mm | |||||||
Head Protection Class | IP40 | |||||||
