Product Description

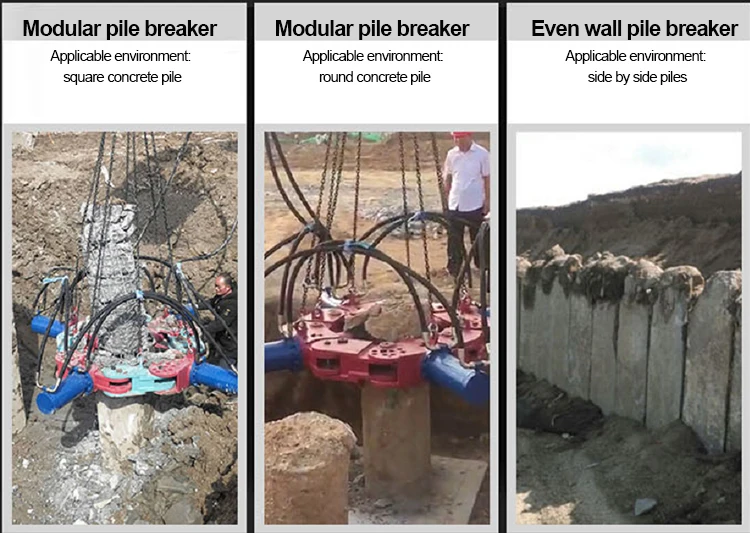

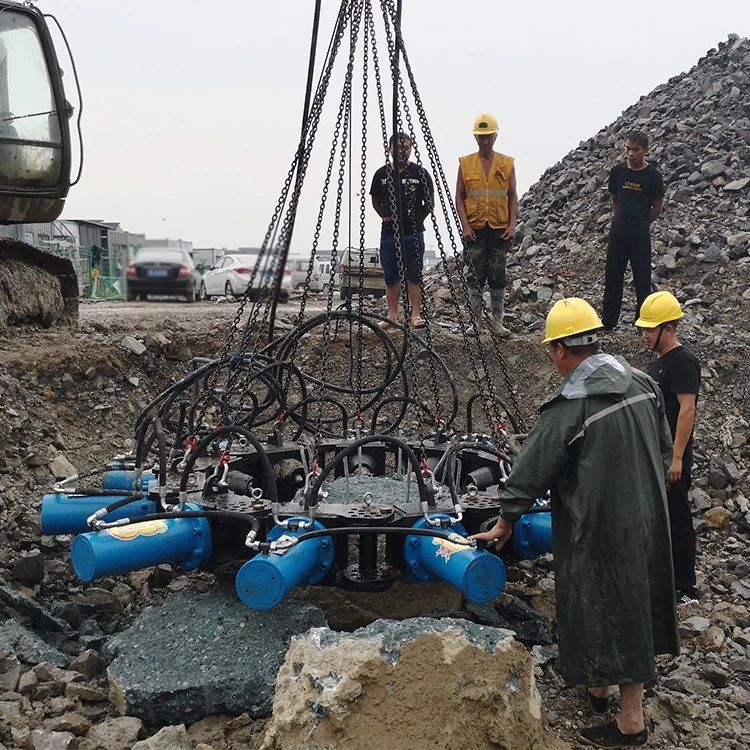

Hydraulic pile breaker: such as cast-in-place pile, prefabricated pile, etc.; from the shape of pile head, it can be divided into round pile breaker and square pile breaker. The pile breaker is widely used in high-speed rail bridges and pile foundation engineering of civil construction. Generally, the round pile cutter is suitable for pile diameters of 250mm-2500mm; the square pile cutter is suitable for pile sides 250-650mm, which can meet all kinds of Requirements for large-scale foundation construction.
Module Number | PCS | 4 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 |
Combination total weight | KG | 1600 | 2640 | 2970 | 3300 | 3630 | 3960 | 4290 | 4620 | 4950 | 5280 | 5610 | 5940 |
Pile diameter range | mm | 400-600 | 600-800 | 800-1000 | 1000-1150 | 1150-1300 | 1300-1500 | 1500-1650 | 1650-1800 | 1800-1970 | 1970-2200 | 2200-2360 | 2360-2500 |
Hydraulic excavator | T | 20T-30T | 30T-40T | Hydraulic system/pump station | |||||||||
Max.Thrust | 300KN | Max. Cylinder required | 20L/min | Machinery Tonnage | ≥20T | Location pin Φ35 | |||||||
Max. Cylinder Trip | 300mm | Chisel diameter | 110mm | Single module weight | 335KG | ||||||||
Max. Cylinder Pressure | 300MPa | Max. Hoist Capacity | ≤500mm | Single module size | 1015*865*340mm | ||||||||
