Product Description
Capacity | 200/400/600KG/H | ||||
Juice content | 70-80% | ||||
Boba diameter | 3-30mm | ||||
Boba weight | 0.2-15g | ||||
Depositing speed | 15-25times/min | ||||

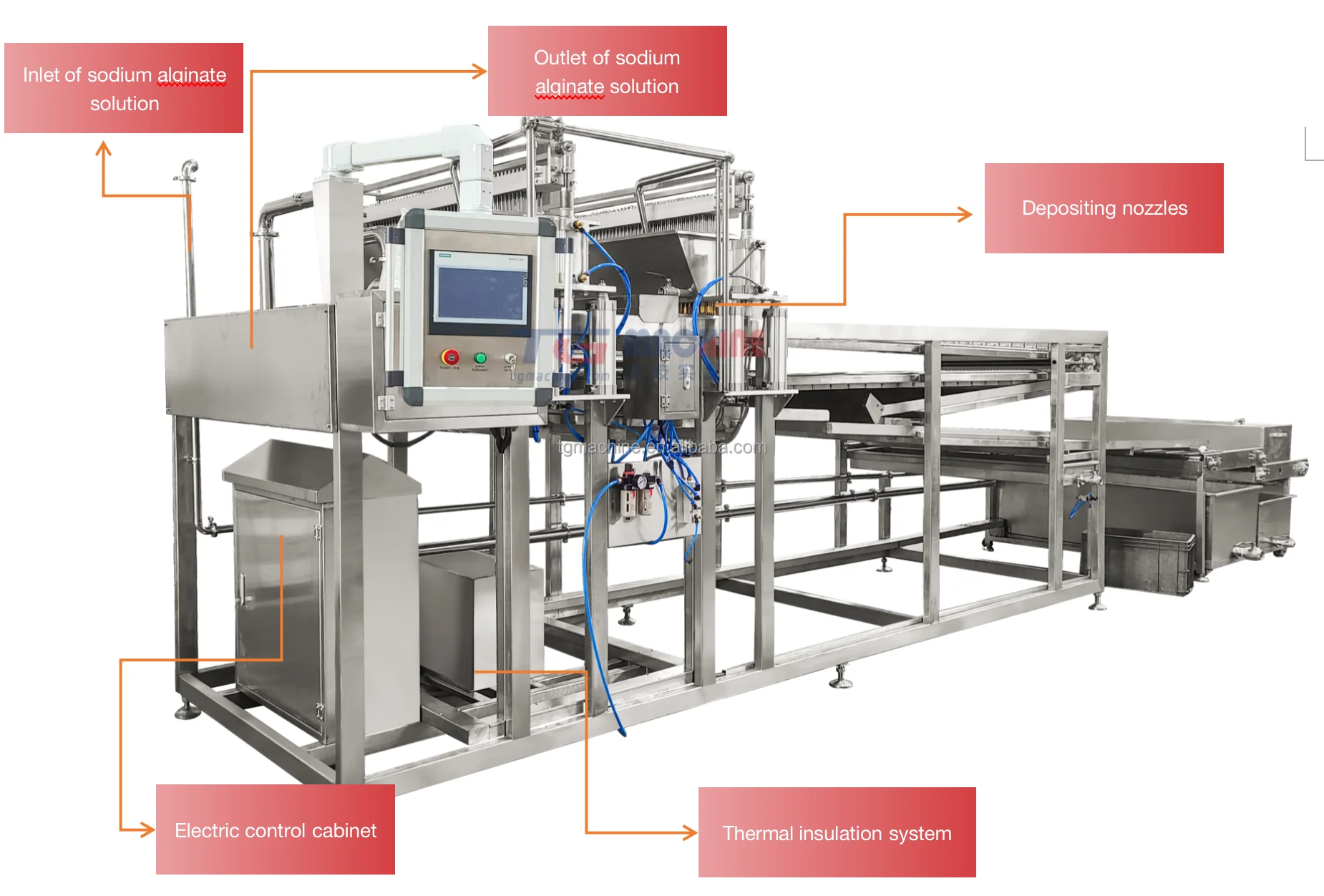

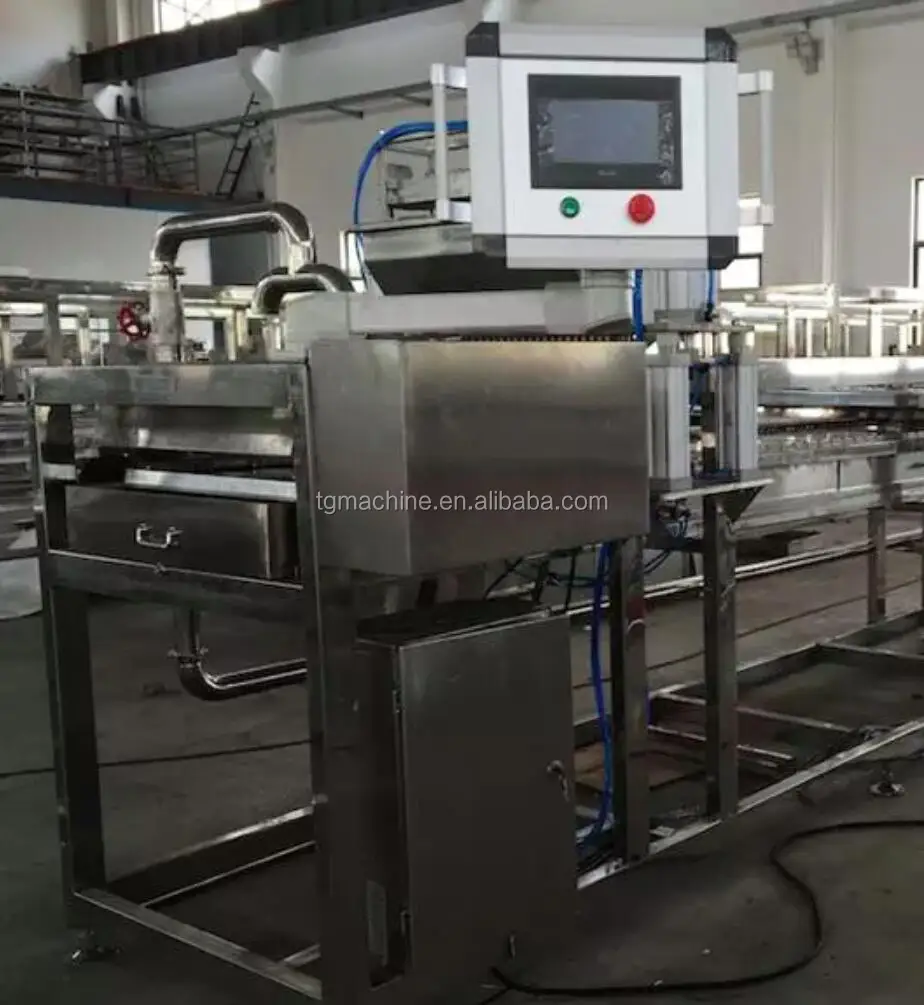

This is one of the main components of the production line. Mainly used for quantitative pouring juice.

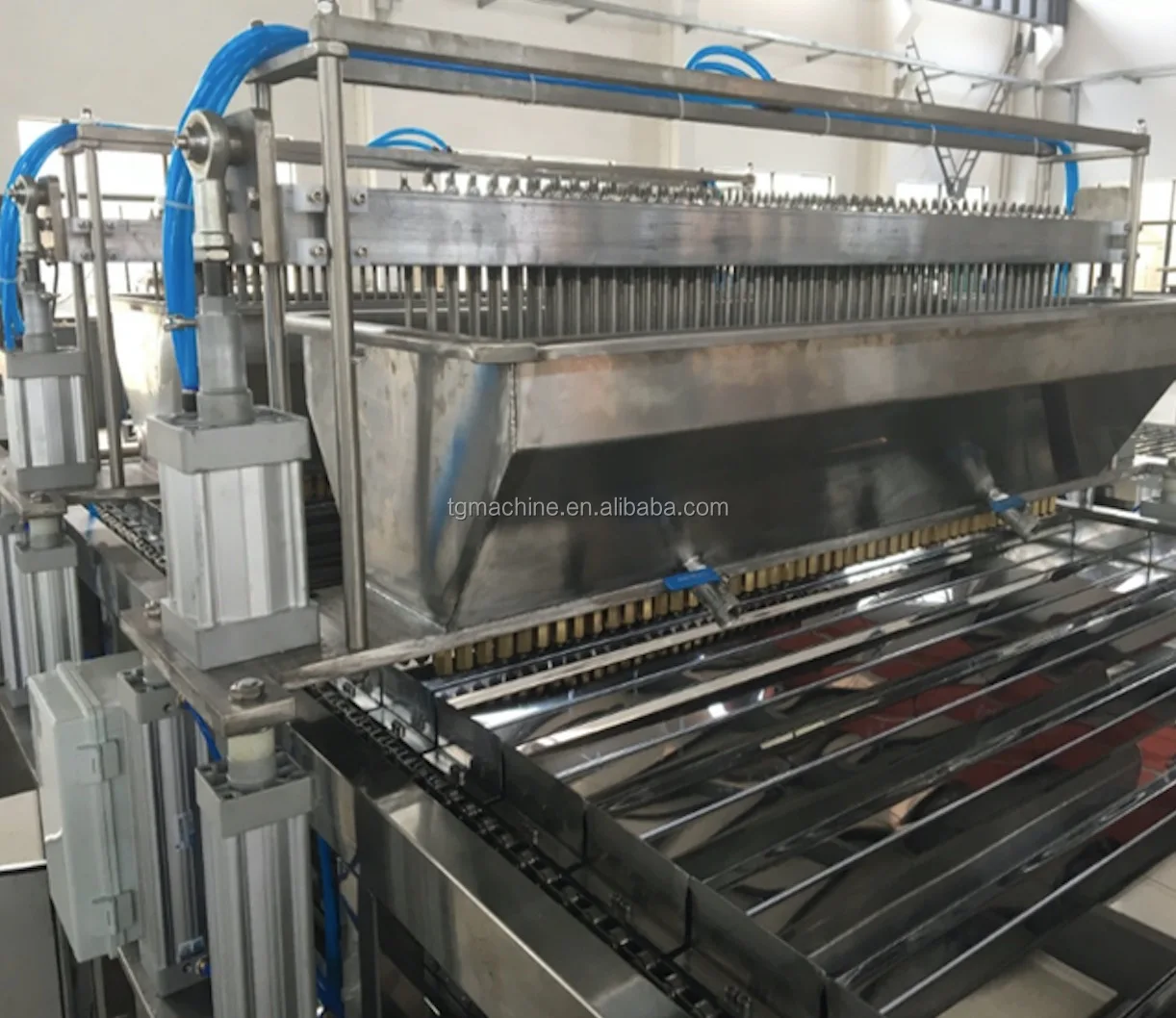

Mainly composed of hopper, injection bar and other components
Mainly composed of hopper, injection bar and other components

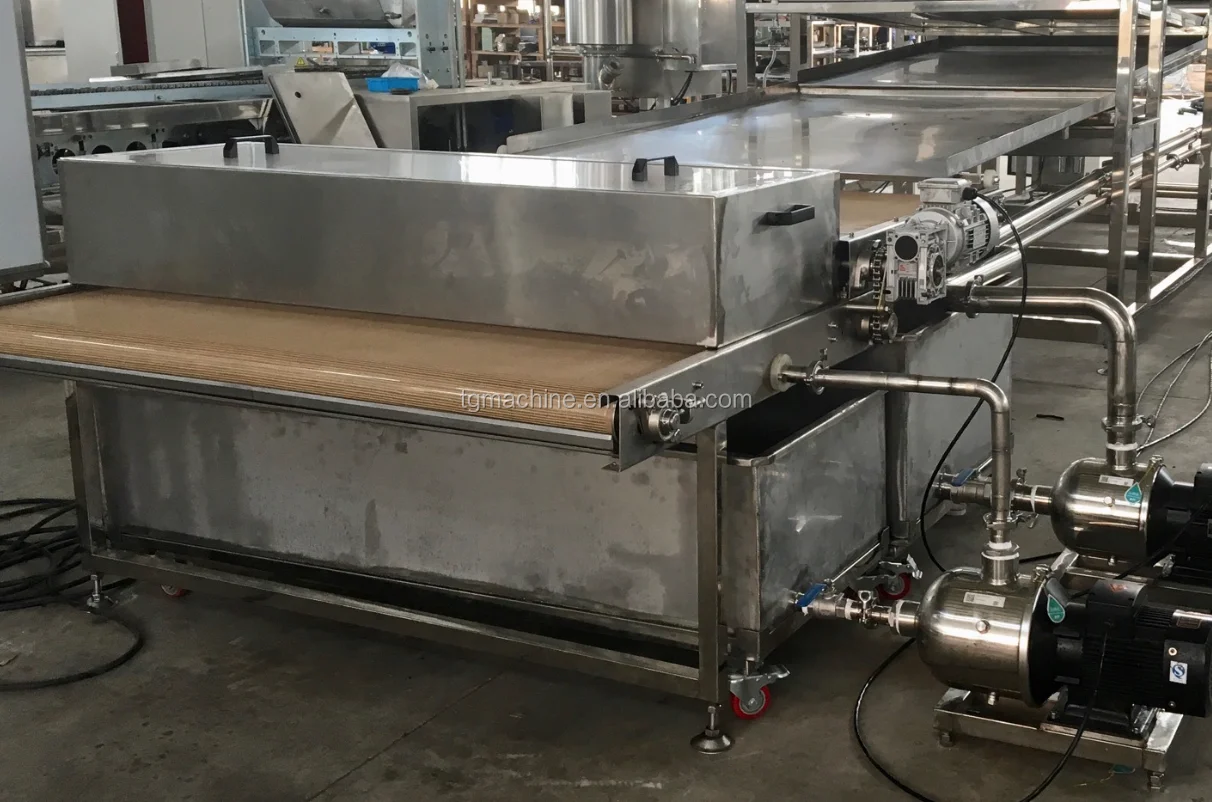

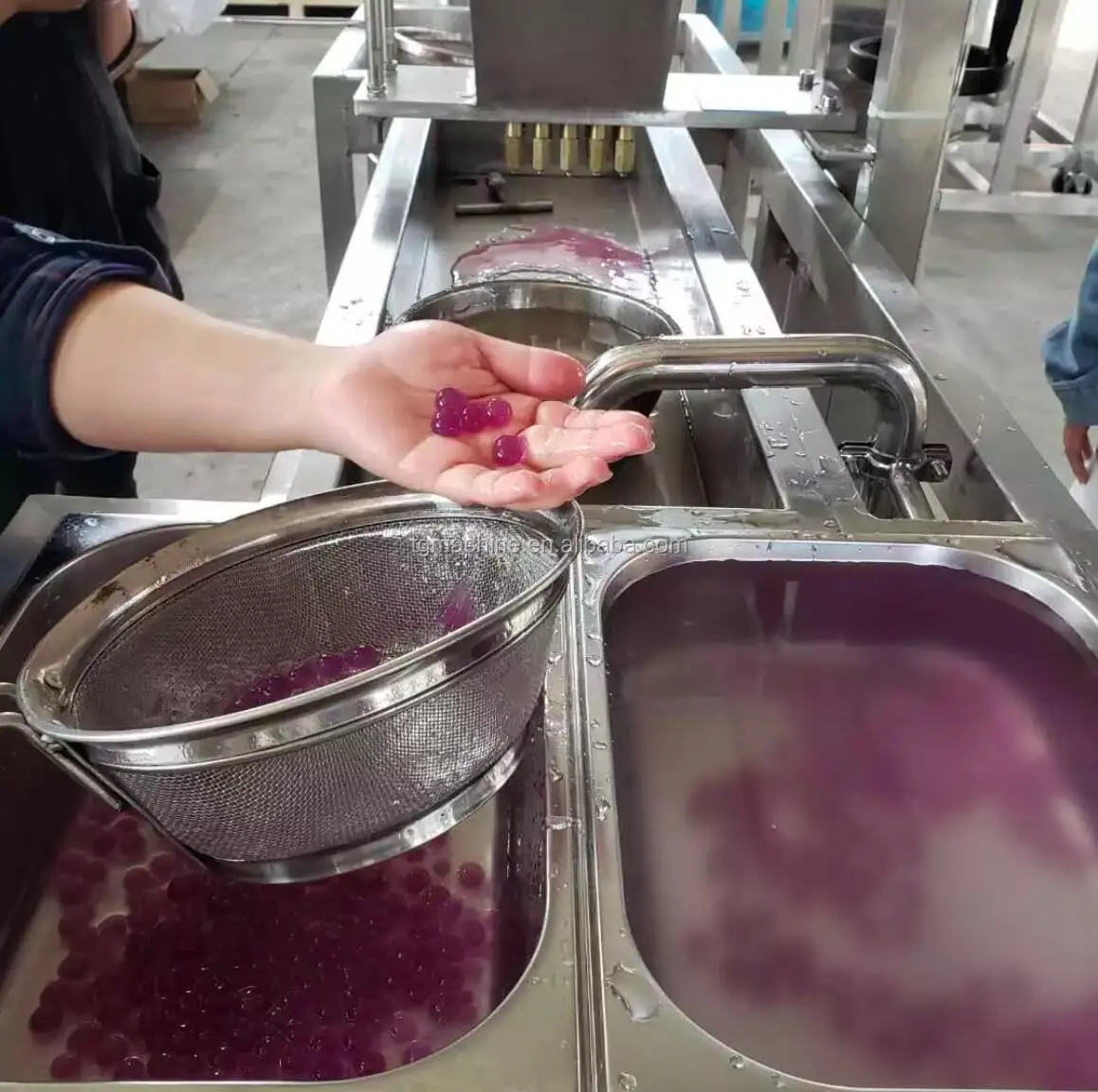

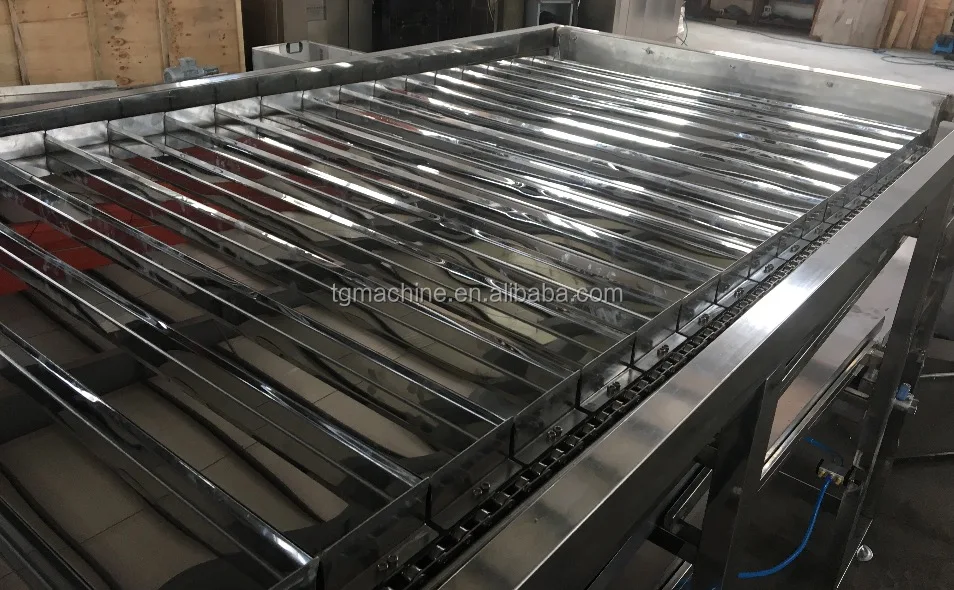

The Popping Boba Forming and Convey System
The system is mainly composed of sodium alginate liquid transport tray and buffer plate.
When the juice drops into the sodium alginate liquid, it will automatically form a spherical shape. At this time, the popping boba cannot be filtered out immediately. It also needs to be immersed in the sodium alginate liquid, so that the filtered popping boba will not be easily broken.
The popping boba are filtered out from the sodium alginate liquid for filling and sterilization. the Sodium alginate liquid continues to be recycled.
Other character of the production line
* PLC/SERVO process control available;
* An Touch screen (HMI) is installed for easy operating;
* The standard production capacity range is from 50 to 100kgs/h;
* The main parts is made of hygienic Stainless Steel SUS304, also can be customized to SUS316.
* Continuous working and materials recycling design to avoid wastage.
*lndividual and Entirety adjust for different size boba making.
* An Touch screen (HMI) is installed for easy operating;
* The standard production capacity range is from 50 to 100kgs/h;
* The main parts is made of hygienic Stainless Steel SUS304, also can be customized to SUS316.
* Continuous working and materials recycling design to avoid wastage.
*lndividual and Entirety adjust for different size boba making.

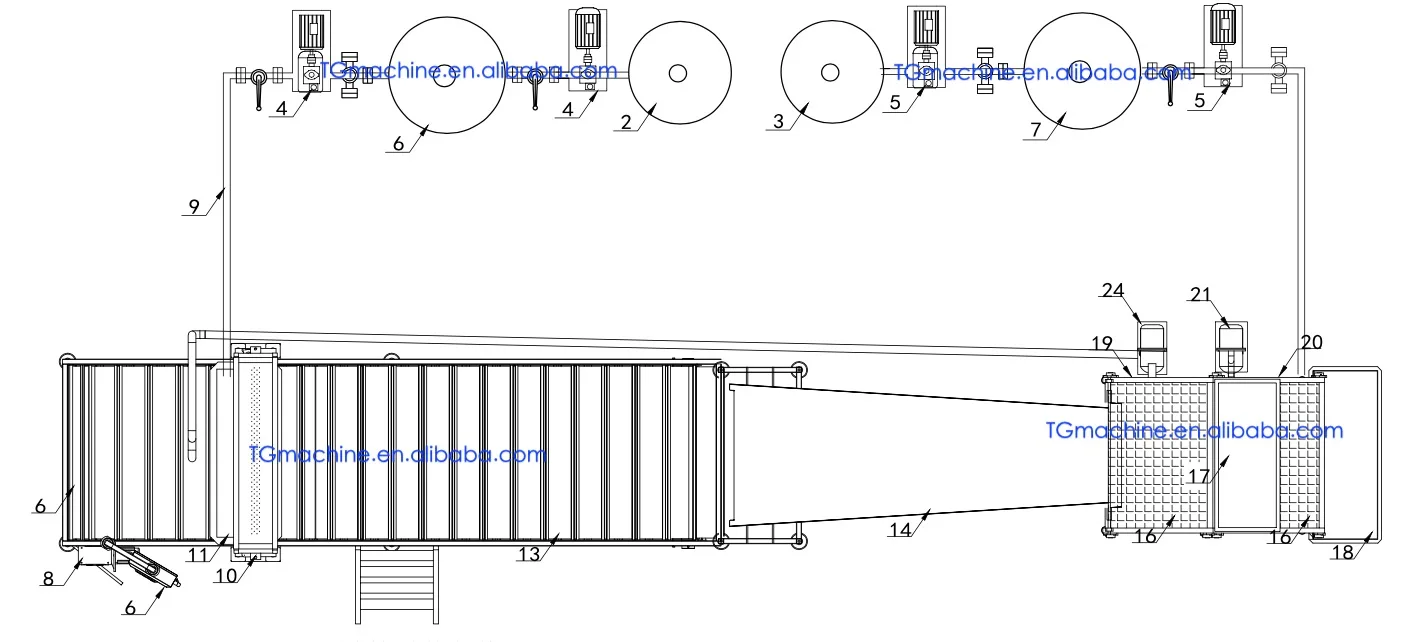

The following drawing is one of the installation drawings.We can design and install according to the layout of the customer's factory.
Recommend Products
Other machine in this line
Cooking machine
It can dissolve sugar and maltose rapidly.It is used to cook the raw material in this line.
Working Temperature: Room Temp.~100℃Volume: according to the output
Cooling tank
This tank is used to reduce the temperature of the liquid after cooking and storage.Connection cold water pipe.The purpose is to make the liquid temperature uniformity, and also you can put the Essence or pigment in it.
Transport pipe
It is used to transport the liquid.
pump is 304 or 316SUS.
Over-pressure protecting design.
Diameter: 1”; Cap.: 3.3 m3/h, 55l/min.; Outlet Pressure: 0.32MPa; Speed: 1420r/min; Motor power: 1.1kW.
Over-pressure protecting design.
Diameter: 1”; Cap.: 3.3 m3/h, 55l/min.; Outlet Pressure: 0.32MPa; Speed: 1420r/min; Motor power: 1.1kW.
Popping Boba Sample
Product packaging
Wooden Packing:
1. Product production is completed, by the quality inspection department to check
2. After inspection qualified, clean for whole machine
3. Packing:
a. Inside the machine put desiccant
b. Add 6 cm thick foam plate around the machine,Then, winding stretch film for reinforcement, and combined with bubble wrap
c. On wood packaging on the outside of the machine, then use metal reinforcement with steel
4. Container: according to different products for reinforcement.
2. After inspection qualified, clean for whole machine
3. Packing:
a. Inside the machine put desiccant
b. Add 6 cm thick foam plate around the machine,Then, winding stretch film for reinforcement, and combined with bubble wrap
c. On wood packaging on the outside of the machine, then use metal reinforcement with steel
4. Container: according to different products for reinforcement.
After Sales Service

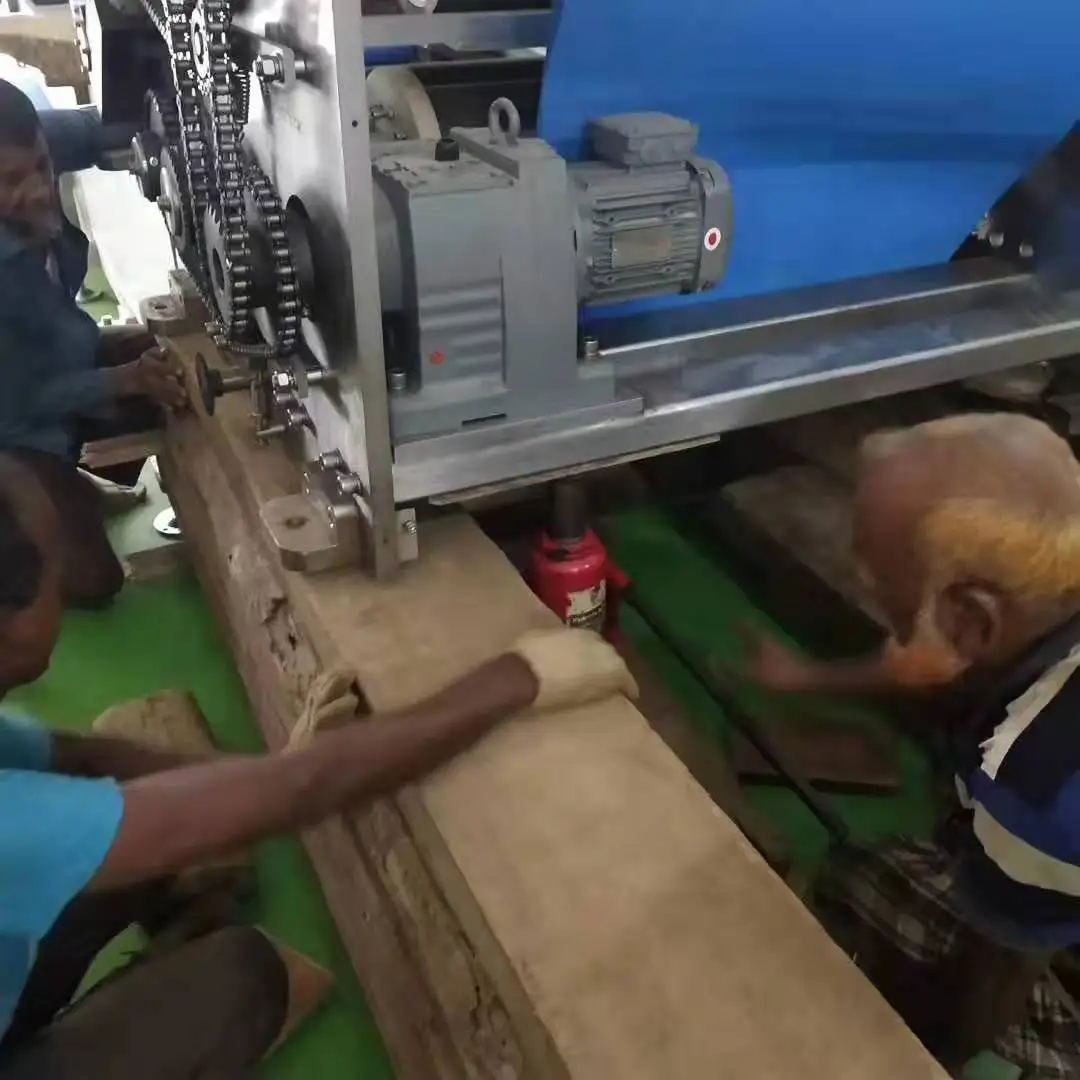

Provide on-site installation and commissioning
