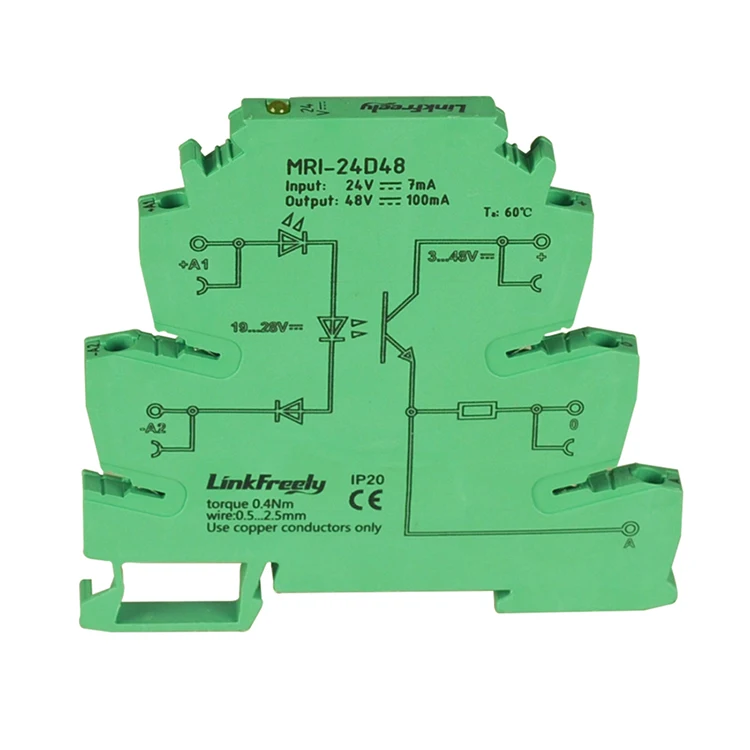

MRI-24D48 Optocoupler Relay Interface Module DC to 24VDC Input 3-48VDC Output Photoelectric Optically Coupled
- Категории: Relays >>>
- Поставщик: Yueqing,Lide,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Characteristics

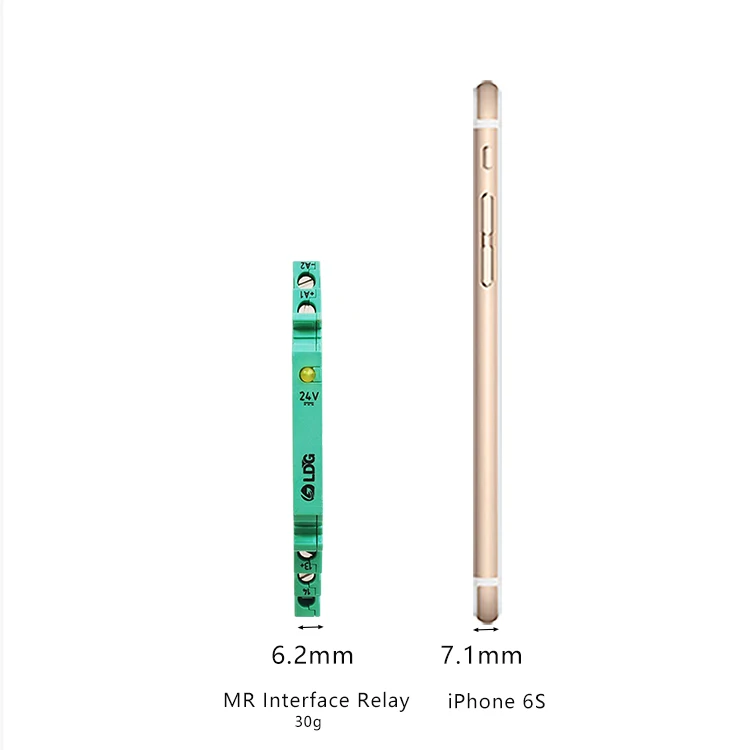

·6.2mm Ultra slim shrinkage volume ,which saves 60% installation space
·Yellow LED working status indicator,clear port mark
·Screw connection, alternative bridge connector for fast connection, convenient 35mm DIN rail compatible with international standard. Bridge connector is sold separately
·Multi-standard voltage input signal: 3.3V,5V,12V,24V,60V,230VAC
·Yellow LED working status indicator,clear port mark
·Screw connection, alternative bridge connector for fast connection, convenient 35mm DIN rail compatible with international standard. Bridge connector is sold separately
·Multi-standard voltage input signal: 3.3V,5V,12V,24V,60V,230VAC
·The operation frequency can reach to 300Hz.No abrasion switch output can be up to 3-48VDC/100mA.
·Internal input/output polarity protection circuit, no electrical wear, long electrical life
·Internal input/output polarity protection circuit, no electrical wear, long electrical life
Product Specifcataion
Model Number: MRI-24D48
Output Current: 100mA
Output Voltage Range: 3-48VDC
Input Voltage Range: 24VDC
Input Current: 7mA
Max.Voltage Drop: ≤0.9V
Transfer Frequency: 300Hz
Switch Electrical Level: "1" signal (H)≥80%,"0" signal (L)≤40%
Input/Output Isolation Voltage: 2.5kV(50Hz,1min)
Ambient Temperature: -20℃～+60℃,-4℉～140℉
Operative Standard: IEC 60664,EN50178,IEC62103
Applicable Wire: (Rigidity)0.2-2.5mm2,(Flexibility) 0.2-2.5mm2,(AWG)24-14
Product Size: 81X6.2X78mm / 3.2/0.2/3.1in
Net weight: Approx.30g/1.2oz
Packing: 10pcs/box(85X70X85mm), 120pcs/CTN (530X155X105mm)
Output Current: 100mA
Output Voltage Range: 3-48VDC
Input Voltage Range: 24VDC
Input Current: 7mA
Max.Voltage Drop: ≤0.9V
Transfer Frequency: 300Hz
Switch Electrical Level: "1" signal (H)≥80%,"0" signal (L)≤40%
Input/Output Isolation Voltage: 2.5kV(50Hz,1min)
Ambient Temperature: -20℃～+60℃,-4℉～140℉
Operative Standard: IEC 60664,EN50178,IEC62103
Applicable Wire: (Rigidity)0.2-2.5mm2,(Flexibility) 0.2-2.5mm2,(AWG)24-14
Product Size: 81X6.2X78mm / 3.2/0.2/3.1in
Net weight: Approx.30g/1.2oz
Packing: 10pcs/box(85X70X85mm), 120pcs/CTN (530X155X105mm)
Product Features

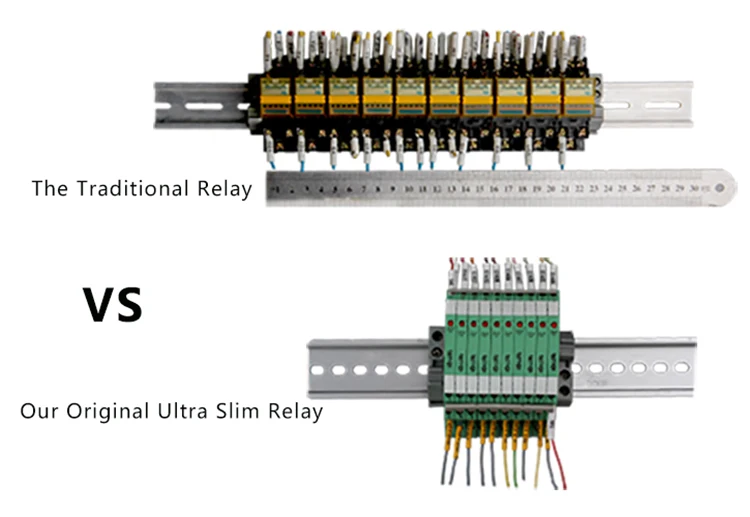

Space Saving
Our ultra slim relay saves 80% of installation space than traditional relay,overall shrinkage volume is suitable for
space-sensitive cabinets,automation equipment,electrical machinery and smart home.
Our ultra slim relay saves 80% of installation space than traditional relay,overall shrinkage volume is suitable for
space-sensitive cabinets,automation equipment,electrical machinery and smart home.
Time Saving

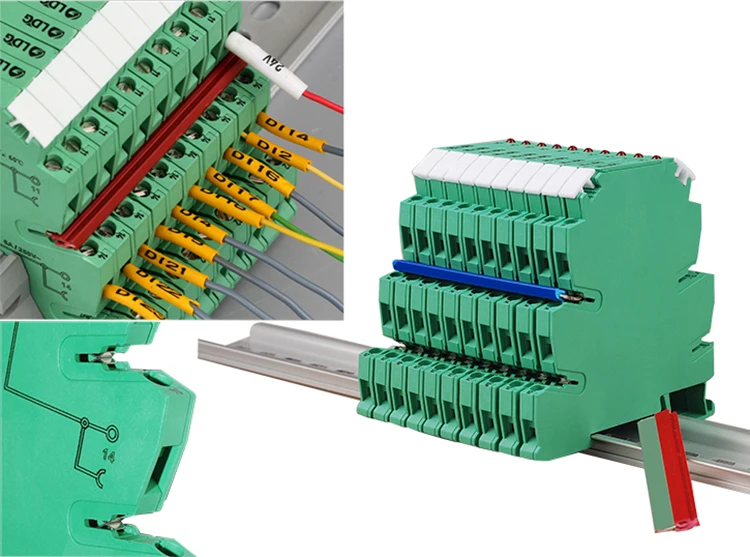

Convenient Connection
·Screw wiring method is compatible with wire 0.14-2.5mm2.
·It can also use the trendy plug-in type fast connector to achieve fast connection which saves 60% time,the blade-shaped fast connector is pluged in the V shaped port,done.
·Screw wiring method is compatible with wire 0.14-2.5mm2.
·It can also use the trendy plug-in type fast connector to achieve fast connection which saves 60% time,the blade-shaped fast connector is pluged in the V shaped port,done.

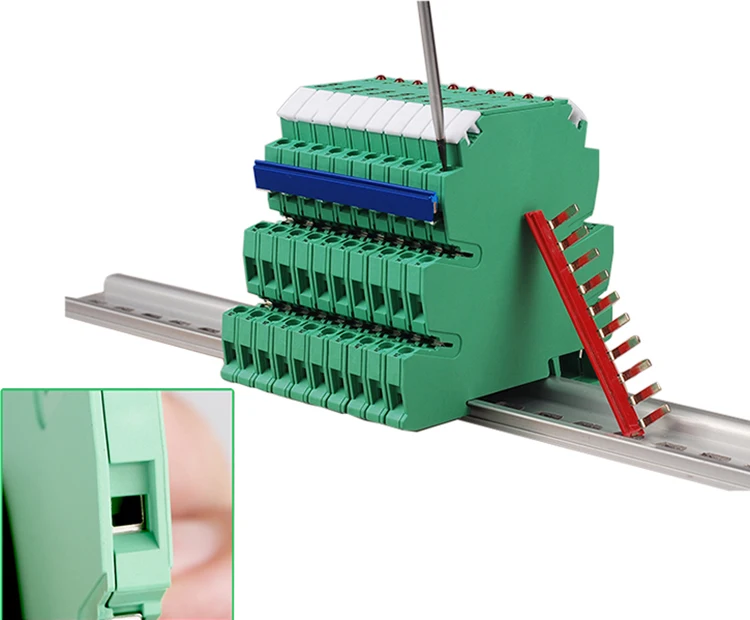

The pin-shaped fast connector is plugged in the cage-type lift port, then use the screw to fasten it.
Reliability
·Integrated novel and original design gives a solid and reliable relay.
·The structure is effective to be dustproof ,defending greasy dirt, anti-corrosive gas,shock resistant,suitable for harsh
environment.
·Built-in protection circuit loop, freewheeling diode, polarity anti reverse connect protection diode, and electric surge
protection parts protect interface module and guarantee its reliability.
·The structure is effective to be dustproof ,defending greasy dirt, anti-corrosive gas,shock resistant,suitable for harsh
environment.
·Built-in protection circuit loop, freewheeling diode, polarity anti reverse connect protection diode, and electric surge
protection parts protect interface module and guarantee its reliability.
Inspiring innovation,omni-directional design;high quality internal relay saves installation time and space for you.
V-0 grade flame-retardant housing,contactless,no mechanical fatigue,long life,low heat ,low loss,field effect transistor output.
V-0 grade flame-retardant housing,contactless,no mechanical fatigue,long life,low heat ,low loss,field effect transistor output.
·To be responsible for our products and customers, every relay goes through strict tests and inspection in our factory, including
high-low temperature test, EMC electromagnetic compatibility, V-0 flame-retardance test, etc.
·MR relays comply with CE, IEC, ISO international standards.
high-low temperature test, EMC electromagnetic compatibility, V-0 flame-retardance test, etc.
·MR relays comply with CE, IEC, ISO international standards.

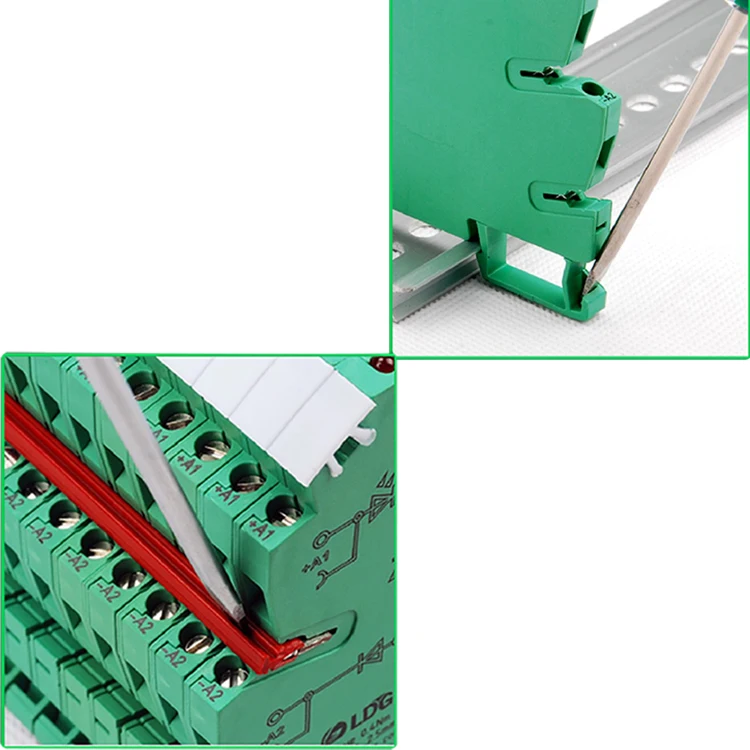

Easy to Install and Disassembly
