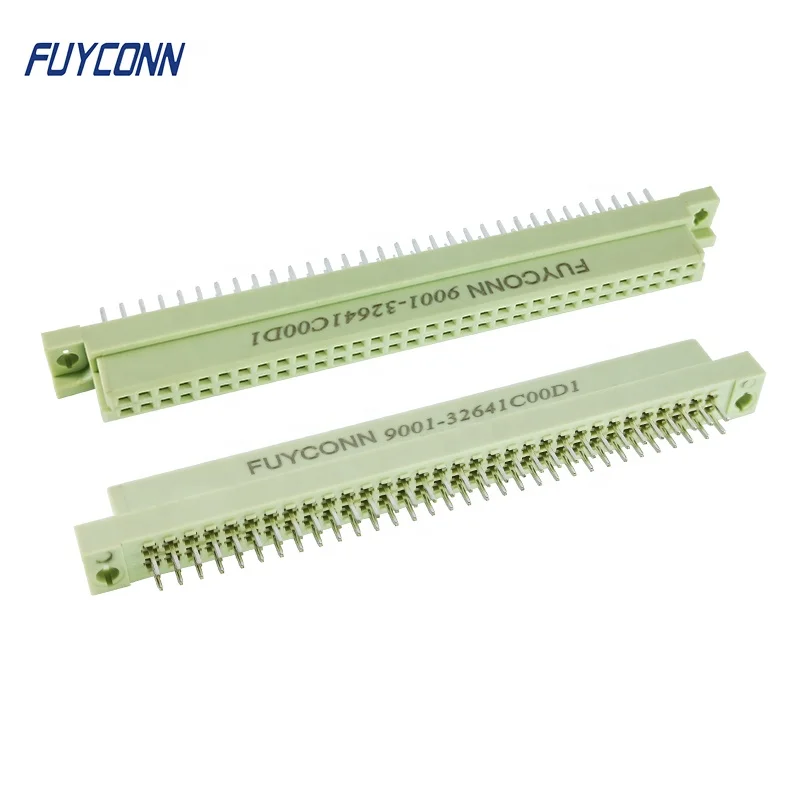

2 rows 64 pin Vertical PCB Female DIN41612 Connector, Straight pcb 2*32pin 64pin Euro 41612 connector with Easy Type Terminals
DIN 41612 is a DIN standard for electrical connectors that are widely used in rack based electrical systems. Standar disation of the connectors is a pre-requisite for open systems, where users expect components from different suppliers to operate together.
The DIN 41612 has been widely accepted as a standard for a variety of interconnection applications in the telecommunications and data markets worldwide. The most widely known use of DIN 41612 connectors is in the VME bus system. 96 pin DIN connectors with three rows(a, b, c) of contacts on 0.100"(2.54mm) square grid are available in wire-wrap or solder tail type terminations.
The DIN 41612 has been widely accepted as a standard for a variety of interconnection applications in the telecommunications and data markets worldwide. The most widely known use of DIN 41612 connectors is in the VME bus system. 96 pin DIN connectors with three rows(a, b, c) of contacts on 0.100"(2.54mm) square grid are available in wire-wrap or solder tail type terminations.
Why Choose Us
1, 16 years Connector production experience
2, R&D engineers with over twenties years' working experience
3, Thousands molds for your choice
4, UL Certificted, ROHS compliant
5, Factory-direct price
6, Free sample within 2 days
7,With short lead time, within one week for normal products.
8, No MOQ, you can try our products and services easily
9,Customer’s Logo can be added on to product and package
10,Plastic Inject workshop, Stamping workshop, Assembly production lines. we are able to control quality, costs, delivery time better than our competitors.
11,Variety payment methods
2, R&D engineers with over twenties years' working experience
3, Thousands molds for your choice
4, UL Certificted, ROHS compliant
5, Factory-direct price
6, Free sample within 2 days
7,With short lead time, within one week for normal products.
8, No MOQ, you can try our products and services easily
9,Customer’s Logo can be added on to product and package
10,Plastic Inject workshop, Stamping workshop, Assembly production lines. we are able to control quality, costs, delivery time better than our competitors.
11,Variety payment methods
Product Description
Product features | |
1. Product Line: | DIN41612 Connector |
2. Product Name | Euro Connector |
3. Connector Gender: | Female Socket |
4. Number of Position: | 64pin |
5. Number of Rows: | 2 rows |
6. Contact Material: | Brass |
7. Contact Plating: | 1U", 3U", 5U", 10U", 15U",30U" |
8. Insulation Material: | PBT |
9. Terminal Type | Vertical / Straight Easy Type |
10.Color | Gray |
11. Connector Type | PCB Straight connector |
12. Pitch | 2.54mm or 5.08mm |
13. PCB Mounting | Board Lock |
Electrical Specifications | |
Current Rating: | 2AMP |
Dielectric Withstanding Voltage: | AC 1000V For 1 minute |
Insulator Resistance: | 1000 MΩ min.at DC500V |
Contact Resistance: | 30mΩ max. at DC 100MA |
Operating Temperature: | -55°C--+105°C |
Application
Eurocard line is available in board-to-board, wire-to-board, ribbon cable-to-board, and high-current connectors. Our Eurocard connectors incorporate internationally accepted design advantages of DIN 41612 and IEC 60603-2 two-piece connectors in a quality design that provides high Signal Integrity (SI) and electrical performance. With a broad portfolio, it is easy to find the right connector type and style to fit your application. Common Bus Systems include STE Bus, CIMBUS, FUTUREBUS, VMEBus, MULTIBUS (II), NUBUS, VXi Bus, and VME 64X.
