Product Description

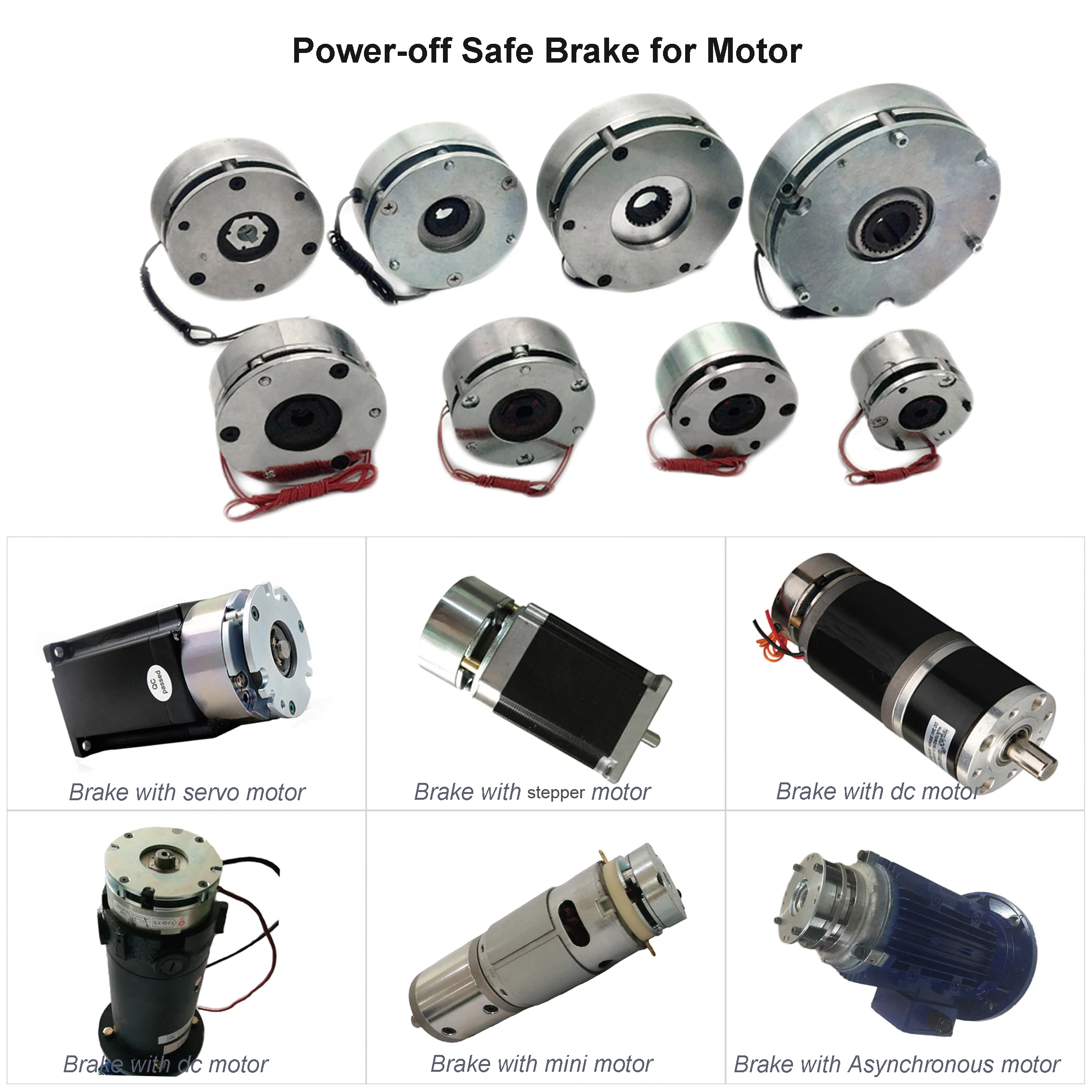

Tianji Manufacture power failure electromagnetic brake power off brake 12v 24v DC electromagnetic brake
Fast loss of electricity electromagnetic brake has the advantages of simple structure, low noise and reliable braking. An ideal performance element in industrial modernization. Loss of power brake with its excellent characteristics to meet the different USES of robots, motors and other different mechanical needs. Widely used in smart manufacturing and industrial robots, TJ-D ultra-thin over-excitation safety brake, ultra-thin design can not only save installation space, but also with over-excitation controller can play its superior characteristics of high torque and low power consumption, effectively reducing brake temperature.
It is compatible with overall general industrial machinery and the rational design offers good performance.
Note:
Because each model weight has a big difference, so it will produce different shipping charge. you are recommended to get only model no. TJ-D-5 on this page. if you need to get other model, please click follow recommend products.
Specification
Installation precautions:
1. The surface of the friction piece and armature shall not be greasy and must be kept clean;
2. Installation can not tilt, to ensure verticality and levelness;
3. The installation bolts should be locked;
4. Voltage 24V power 60W
3. The installation bolts should be locked;
4. Voltage 24V power 60W
Considerations for Selection
1. Flange: can be directly installed on the motor, the installation method is simple, high IP level must be added Dust jacket, dust plate, need to add mounting flange or add groove on the end face of the motor
2. According to the actual demand to determine the torque range, power and size specifications of electromagnetic brake
parameters; The torque of power off brake should be greater than the torque required by the load of the motor.
3. Determine the type of electromagnetic brake, is power off type or power, is dry or wet type
4. Confirm motor power, torque size, installation method, application equipment and machine, send data, etc

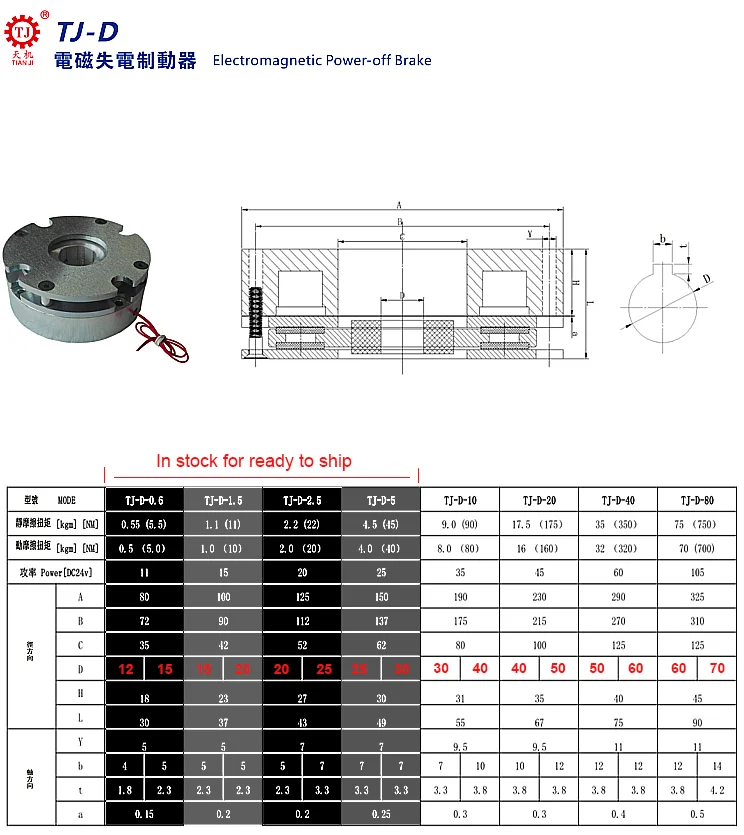

5. The following table shows the parameters of each specification of power off brake
2. According to the actual demand to determine the torque range, power and size specifications of electromagnetic brake
parameters; The torque of power off brake should be greater than the torque required by the load of the motor.
3. Determine the type of electromagnetic brake, is power off type or power, is dry or wet type
4. Confirm motor power, torque size, installation method, application equipment and machine, send data, etc
5. The following table shows the parameters of each specification of power off brake

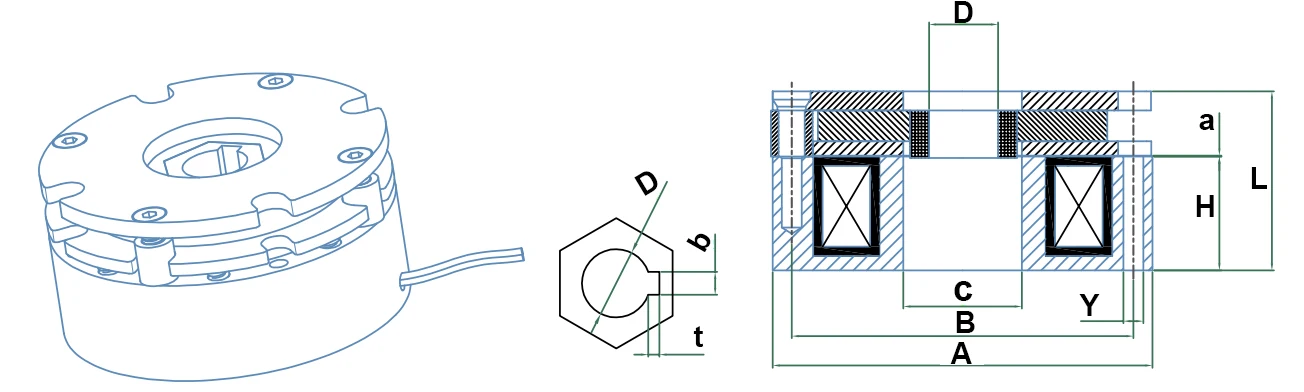

MODE | TJ-D-0.6 | TJ-D-1.5 | TJ-D-2.5 | TJ-D-5 | TJ-D-10 | TJ-D-20 | TJ-D-40 | TJ-D-80 | ||
摩擦扭矩[kgm][NM] | 0.55 (5.5) | 1.1 (11) | 2.2 (22) | 4.5 (45) | 9.0 (90) | 17.5 (175) | 35 (350) | 75 (750) | ||
摩擦扭矩[kgm][NM] | 0.5 (5.0) | 1.0 (10) | 2.0 (20) | 4.0 (40) | 8.0 (80) | 16 (160) | 32 (320) | 70 (700) | ||
功率 Power [DC24V] | 11 | 15 | 20 | 25 | 35 | 45 | 60 | 105 | ||
Diameter direction | A | 80 | 100 | 125 | 150 | 190 | 230 | 290 | 325 | |
B | 72 | 90 | 112 | 137 | 175 | 215 | 270 | 310 | ||
C | 35 | 42 | 52 | 62 | 80 | 100 | 125 | 125 | ||
D | 12 / 15 | 15 / 20 | 20 / 25 | 25 /30 | 30 / 40 | 40 / 50 | 50 / 60 | 60 / 70 | ||
H | 18 | 23 | 27 | 30 | 31 | 35 | 40 | 45 | ||
L | 30 | 37 | 43 | 49 | 55 | 67 | 75 | 90 | ||
轴方向 direction of principal axis | Y | 5 | 5 | 7 | 7 | 9.5 | 9.5 | 11 | 11 | |
b | 4 / 5 | 5 / 5 | 5 / 7 | 7 / 7 | 7 / 10 | 10 / 12 | 12 / 12 | 12 / 14 | ||
t | 1.8 / 2.3 | 2.3 / 2.3 | 2.3 / 3.3 | 3.3 / 3.3 | 3.3 / 3.8 | 3.8 / 3.8 | 3.8 / 3.8 | 3.8 / 4.2 | ||
a | 0.15 | 0.2 | 0.2 | 0.25 | 0.3 | 0.3 | 0.4 | 0.5 | ||
Electromagnetic power failure brake (power failure brake) for electric electromagnetic pull, power failure friction brake type brake, It consists of magnetic hoop, excitation coil, spring, brake disc, armature, spline sleeve, installation screw and so on.
Mainly with the Y series A new YEJ series electromagnetic brake three-phase asynchronous motor is generated. Widely used in metallurgy, construction, Chemical industry, food, stage, elevator, machine tool, packaging, ship and other machinery. Fast parking and accurate positioning, Braking, etc.
Mainly with the Y series A new YEJ series electromagnetic brake three-phase asynchronous motor is generated. Widely used in metallurgy, construction, Chemical industry, food, stage, elevator, machine tool, packaging, ship and other machinery. Fast parking and accurate positioning, Braking, etc.
