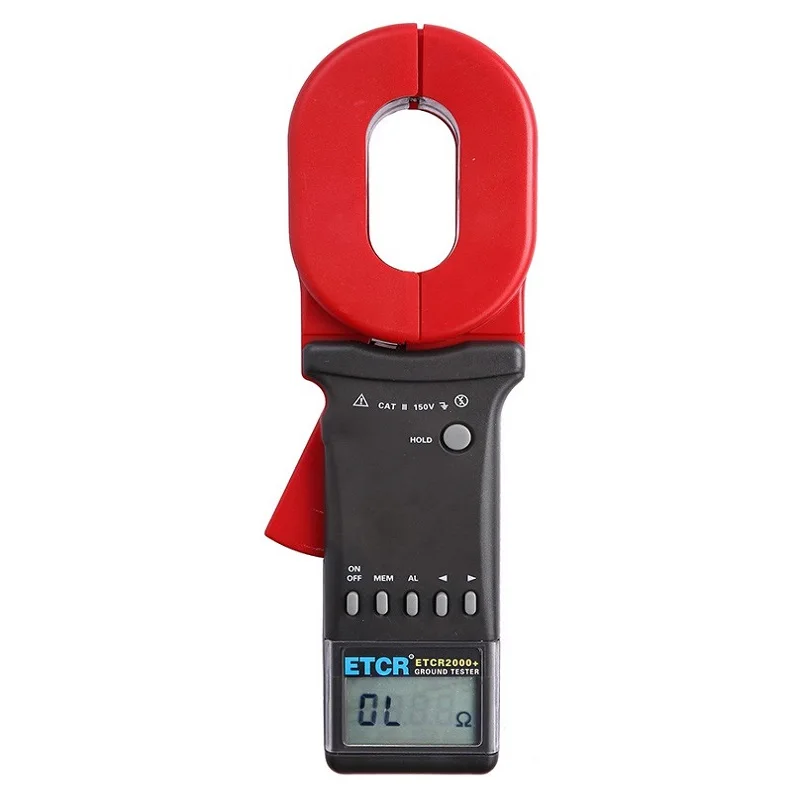

Тестер сопротивления заземления ETCR2000

Цена:240,00 $ - 260,00 $*

Стоимость в USD (на сегодня):Узнать

Количество:

Recommend Products

Products Display

Technical Data

Power Supply	6VDC 4 PCS of LR6 lkaline batteries
Clamp Size	65mm×32mm
LCD display	4 Digits LCD display, Screen L×W: 47mm×28.5mm
Range	0.010Ω~1200Ω
Resolution	0.001Ω
Accuracy	±1%±0.01Ω
Data memory	99 sets
Data upload function	RS232 Interface (Optional)
Auto Power-off	Automatically shut down after 5 minutes
Power consumption	≤50mA, Continuously working for 30 hours
Working environment	-20℃~55℃;20%rh~80%rh
Store the environment	-20℃~60℃;below 90%rh
Alarm threshold setting range	Resistance:1~199Ω
Audible alarm	“Beep-beep-beep” alarm tone, Alarm Symbol Flashing, Press AL key to turn on, turn off and setting
Interference Signal Recognition	“Beep-beep-beep” tone, NOISE symbol blinking
Protection Level	Double insulated
Structural Feature	Clamp CT
Shifting	Automatic shifting
External magnetic field	<40A/m
External electrical field	<1V/m
Single measurement time	0.5 second
Resistance measurement frequency	>1KHz
Measured current frequency	50/60Hz Automatic
Low battery voltage indicator	When the battery voltage is lower than 5.3V, the battery voltage low symbol is displayed
Memory Full Indication	MEM symbol blinks when all 99 sets memory is full
Over Range Indication	Out of range indication “OLΩ”, “L0.01” or “OL A”
Tester Weight	1160g (With batteries)
Clamp Dimension	L×W×T:285mm×85mm×56mm

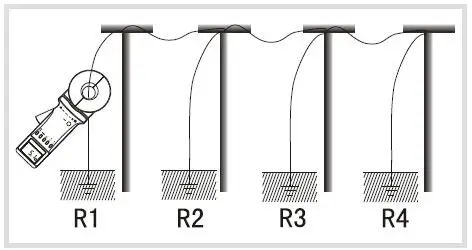

APPLICATION
