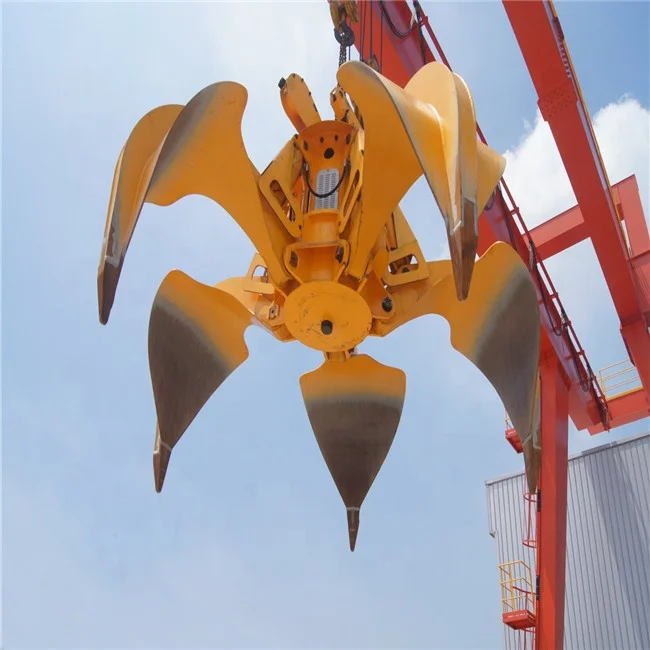

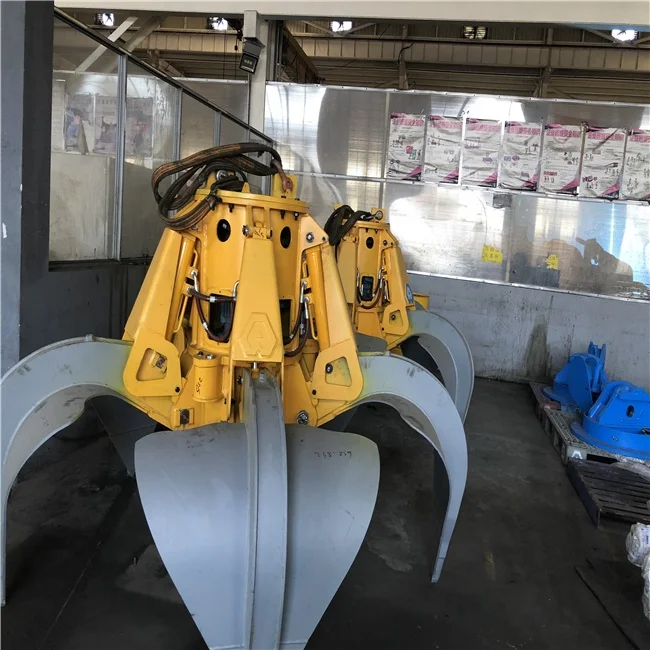

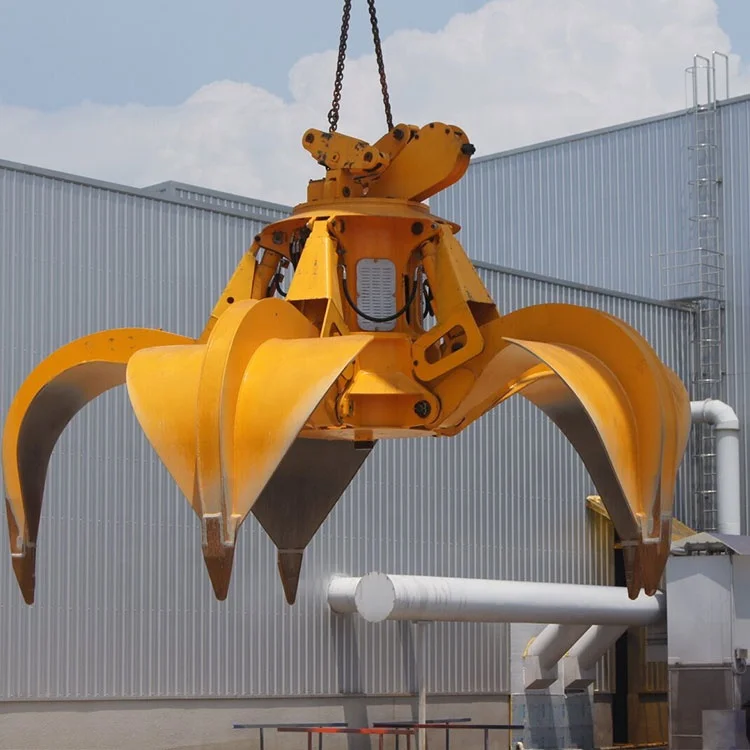

wholesale Custom waste garbage domestic waste electro hydraulic orange peel lotus grab

MOQ	Logo	Color
1pc	Customized	Customized

We had epxerience of this products in several project.

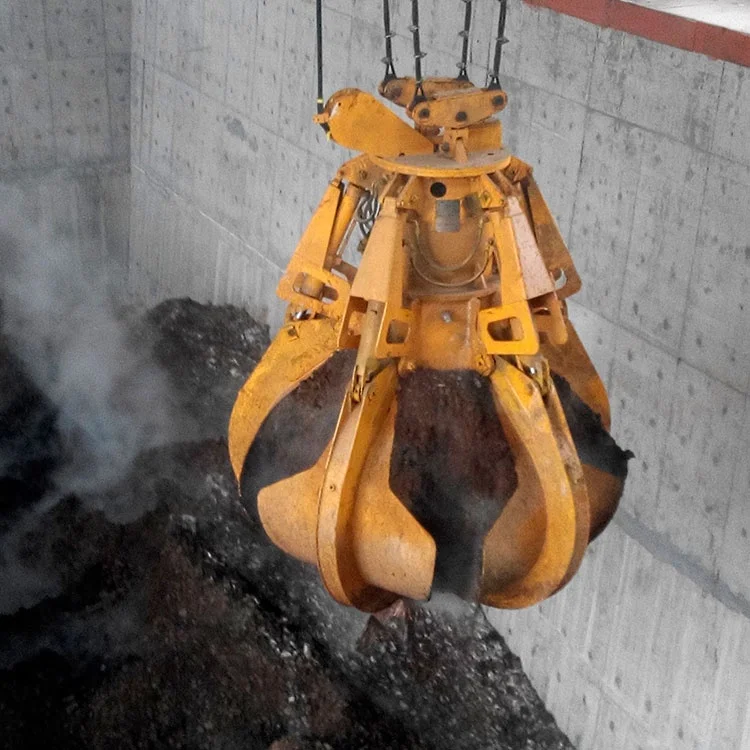

It is suitable for the treatment of domestic waste with a specific gravity of 0.6-1.25t/m3..

Below prepare some related data for reference.


Crane lifting capacity		t	5,0	6,3	8,0	10,0	12,5	16,0
Grab capacity		m³	1,4	1,85	2,5	3,2	4,0	5,0
Number of shells			6	6	6	6	6	6
Dead weight	open	t	2.6	3.2	3.9	4.7	5.8	7.5
	half-open	t	2.7	3.3	4.0	4.8	5.9	7.7
	closed	t	2.8	3.4	4.2	5.0	6.2	8.0

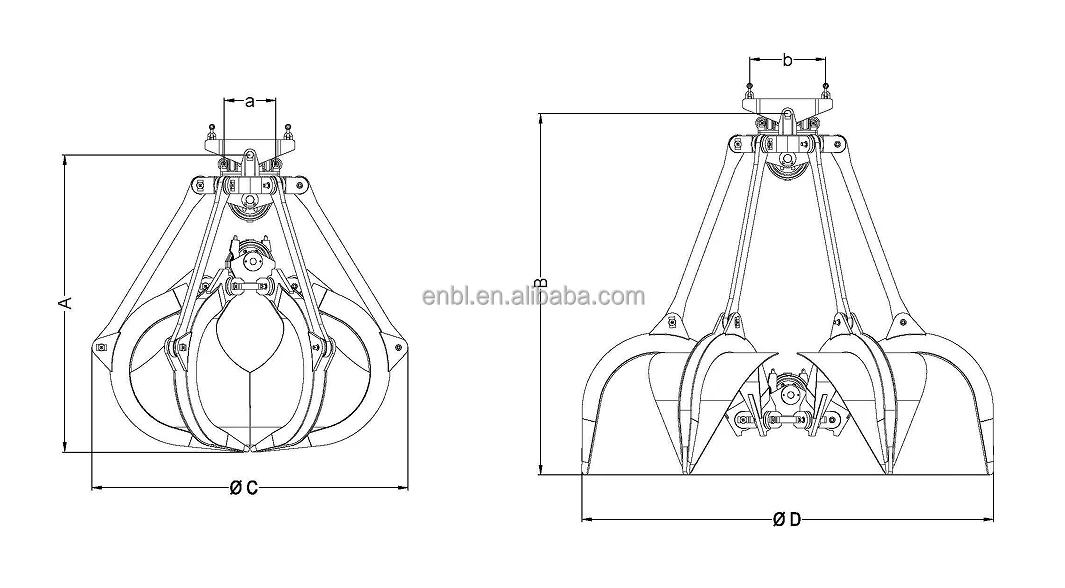

Dimensions	A	mm	2300	2470	2770	3030	3320	3490
	B	mm	2730	2920	3280	3560	3890	4120
	C	mm	2350	2520	2810	2990	3270	3430
	D	mm	3220	3430	3850	4140	4540	4710
	a	mm	300	380	480	480	480	595
	b	mm	650	780	900	900	900	1000
Closing rope stroke 4-fold		mm	6500	5350	6400	7475	7350	7004
Standard diameter of closing ropes		mm	14	18	22	22	16	28
Closing rope-total length to operate		m	12.5	11.7	13.5	13.2	16	16
Dianmeter of closing rope sheaves		mm	280	355	450	450	450	560

Company Information

All grab that we provide, we promise:


Technic support	1, customized design team communicate with customer
	2, customer's special need will take into account during design and produce
	3, communicate well and find the best suitable solution
Quality control (3tests before delivery)	1,Test the parts of the test-bed to test the reliability of components before installation
	2, hour no-load test of the grab, check the pressure and temperature holding performance of the hydraulic system and various performance data of the grab
	3,The grab shall be tested continuously for 8 hours with load to detect the temperature control of the grab and the stability under continuous load (three consecutive days if necessary)
