Промышленный резьбовой 1000wog PT нержавеющая сталь CF8/CF8m PN25 DN15 плавающий обратный клапан/фильтр/шаровой клапан/2 шт. шаровой
- Категории: Vacuum Valves >>>
- Поставщик: Wenzhou,Yu,Tai,Pneumatic,Hydraulic,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

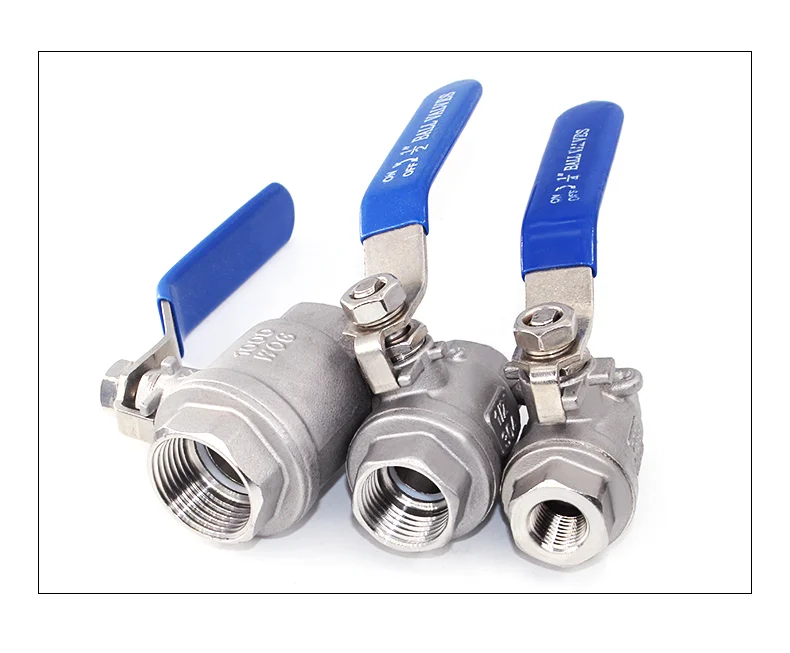

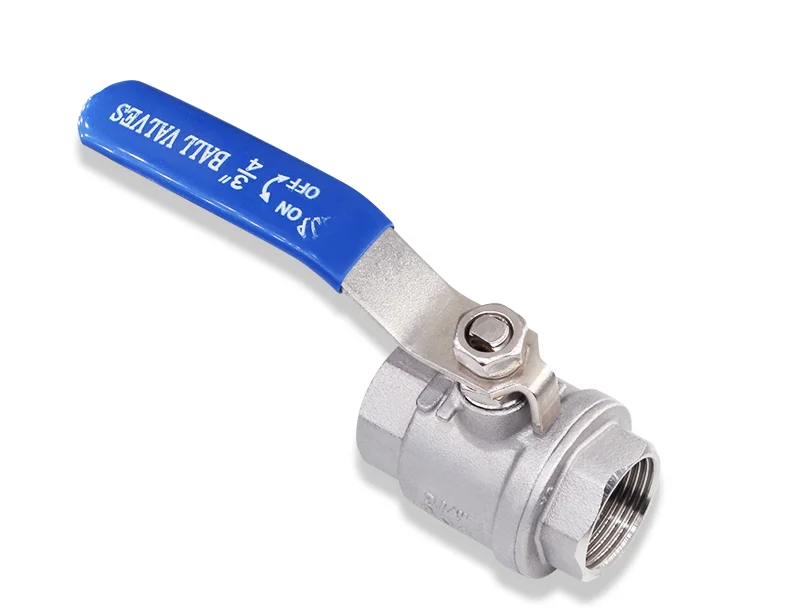

STAINLESS STEEL
TWO-PIECE BALL BALVE
• FULL DIAMETER AND LARGE FLOW
• 304 STAINLESS STEEL VALVE BODY
304 STAINLESS STEEL
GOOD OXIDATION RESISTANCE,CORROSION
RESISTANCE AND RUST PREVENTION
FINE WORKMANSHIP,CLEAR THREAD WITHOUT BURR
• FORGING FORMING SIZE IS ACCORATE,THE SURFACE
IS SMOOTH AND THE RESISTANCE IS SMALL
FULL DIAMETER,LARGE FLOW,MORE UNOBSTRUCTED

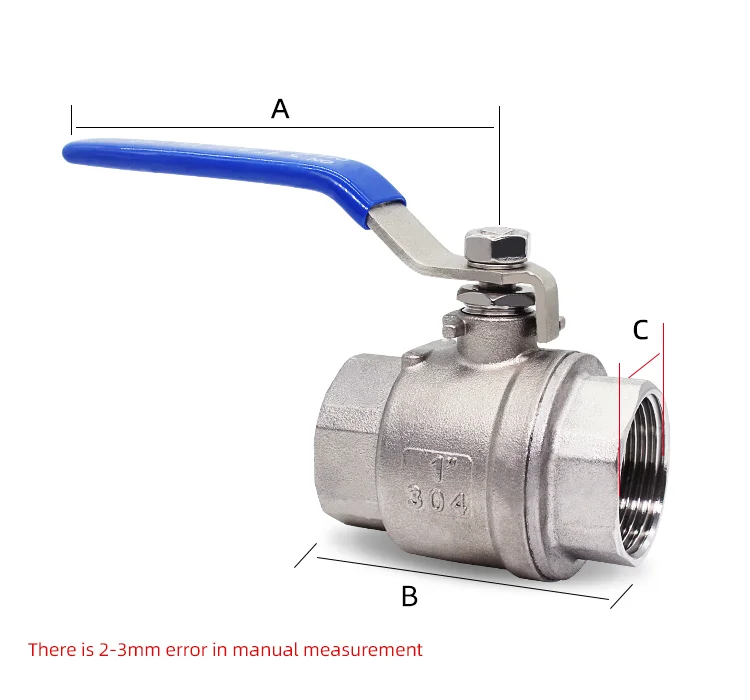

| MODEL | A(mm) | B(mm) | C(mm) | weight |
| 1/4in | 84 | 50 | 12 | 184g |
| 3/8in | 84 | 50 | 16 | 171g |
| 1/2in | 84 | 50 | 20 | 175.3g |
| 3/4in | 94.5 | 55 | 25.5 | 245g |
| 1in | 103.5 | 64.5 | 32 | 290g |
| 1 1/4in | 113.5 | 73.5 | 40.5 | 415.4g |
| 1 1/2in | 123.5 | 86.5 | 46 | 706g |
| 2in | 154.5 | 95 | 58 | 917g |
| 2 1/2in | 187 | 120 | 76 | 1999g |
| 3in | 188 | 140 | 85 | 2968g226 |
| 4in | 226 | 180 | 111 | 4964g |
Company Information
Packaging & Shipping
A small amount of products are packed in cartons and wrapped in waterproof nylon bags
Large quantities of products are transported on pallets and covered with waterproof cloth
FAQ
Q1:What is your quality assurance?
A:We will inspect one by one before delivery.
Q2: How about the lead time?
A:Products in stock, delivery time 2-5 days. Custom products, depending on the quantity of your order, usually take 5-10 days to ship.
Q3:What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q4:Do you accept OEM business?
A:We do OEM
Q5:How about the warranty?
A: 1 year
