Гидравлический шланговый обжимной станок YONG FENG Y120
US $1950-$4100
Оптовая продажа Розничная машина для обжима шлангов dx68 душевая гидравлическая труба обжимной инструмент пресс-машина гидравлического
- Категории: Rubber Product Making Machinery >>>
- Поставщик: Tianjin,Winners,High,Tech,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Hydraulic Hose Crimping Machine
Model: WS51

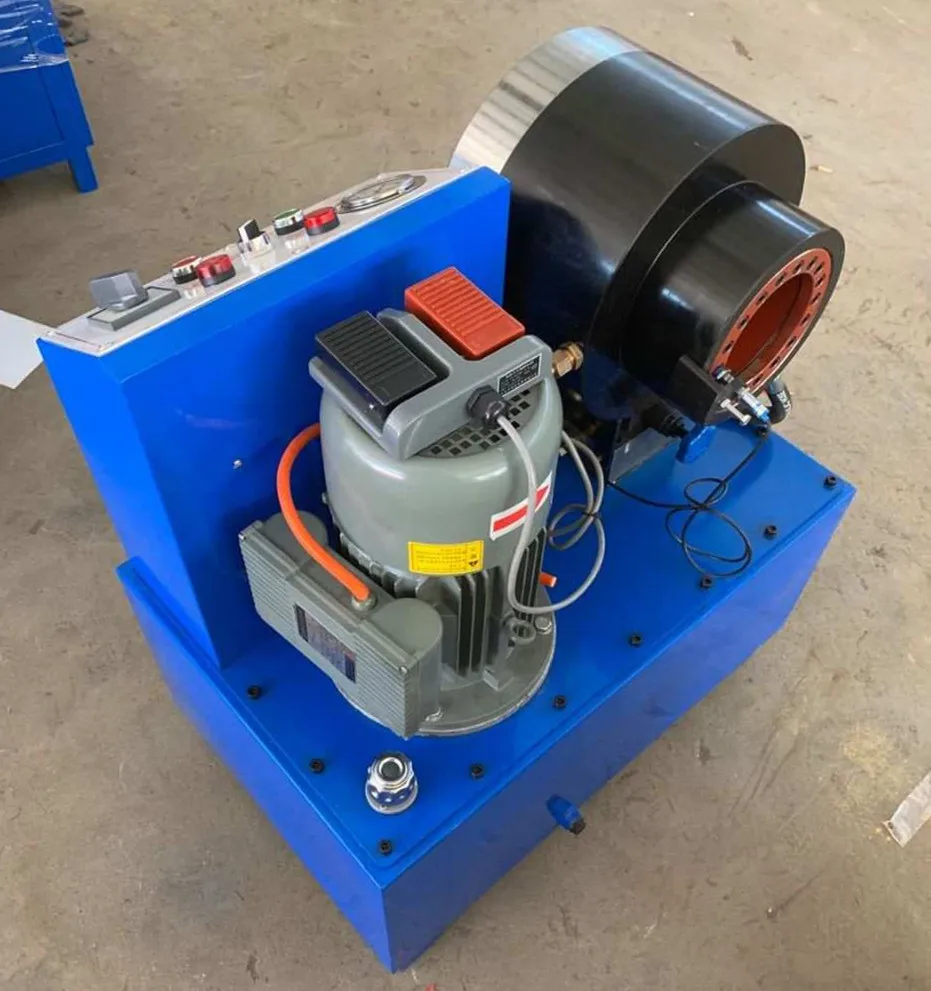

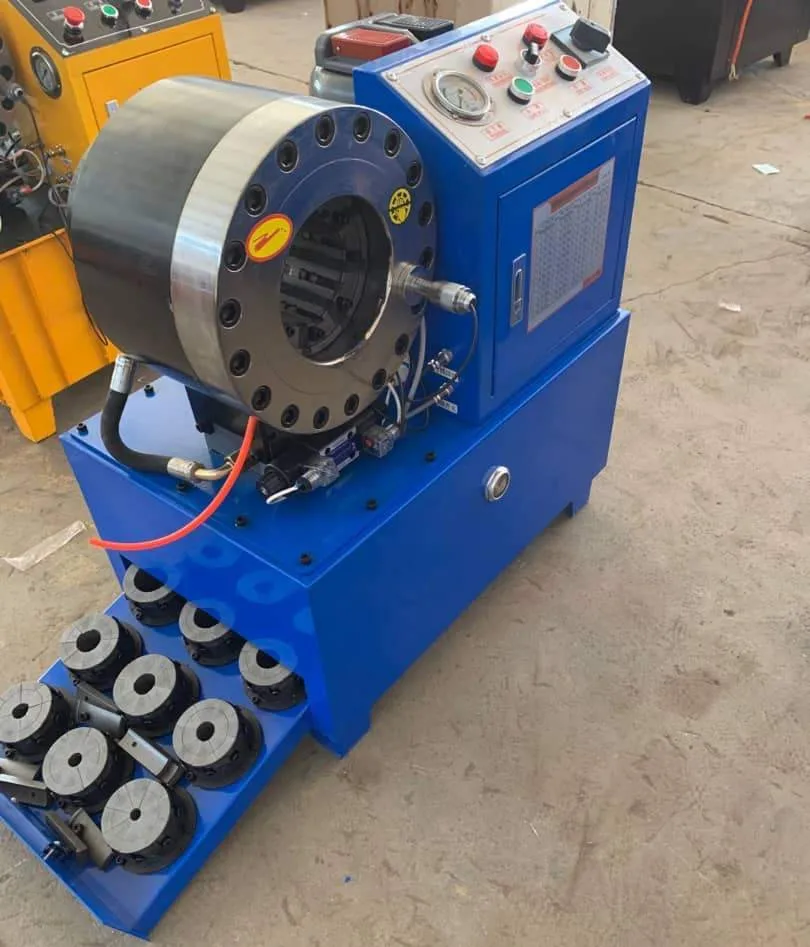

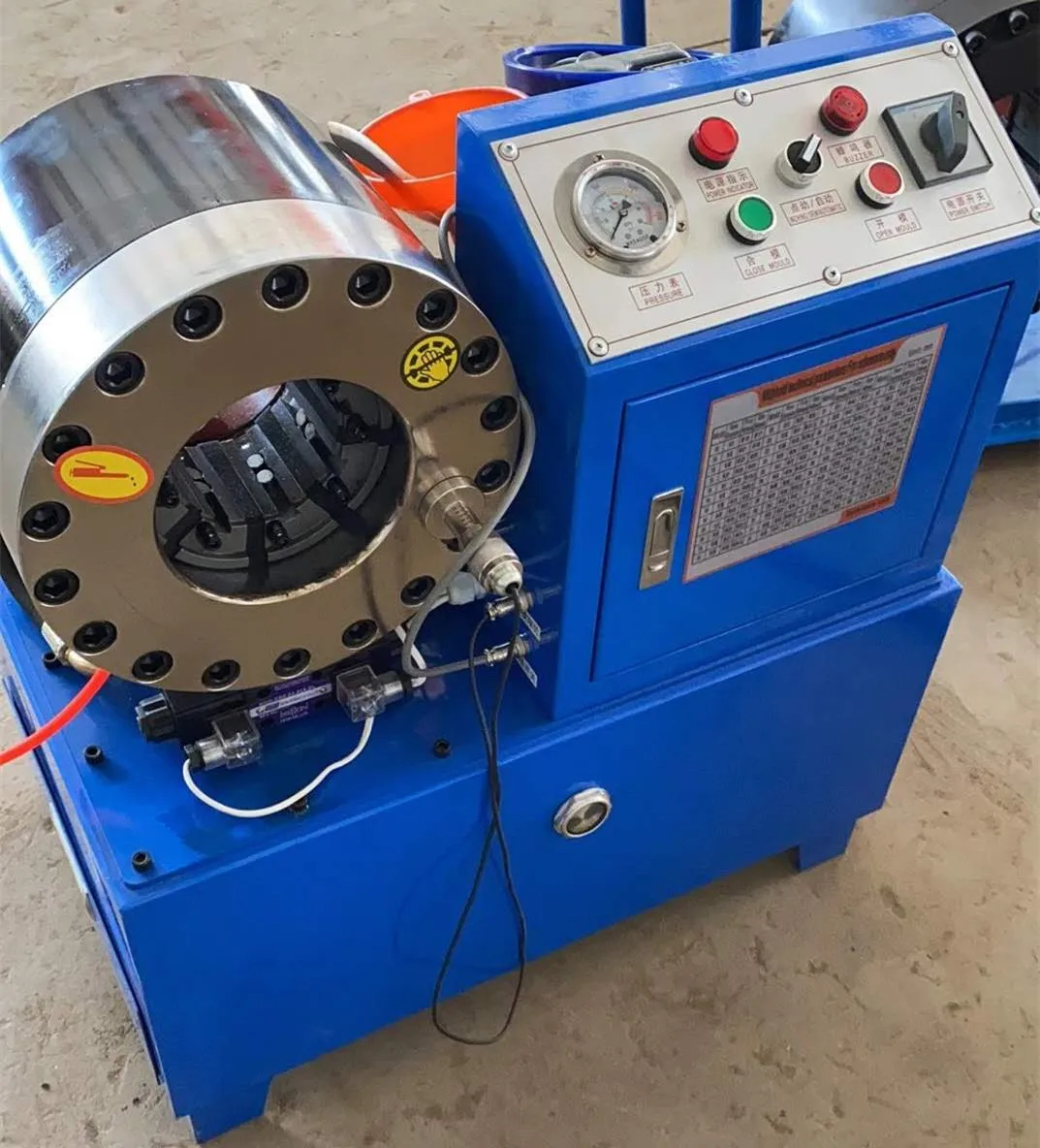

PRODUCT REAL PICTURES
FEATURES AT A GLANCE
Model No.: WS51
☆ Crimping Range: 1/4''-2'' (6-51mm)
☆ Crimping Efficiency: 200pcs/hour
☆ Crimping Accuracy: 0.01mm
☆ Crimping Force: 500Ton

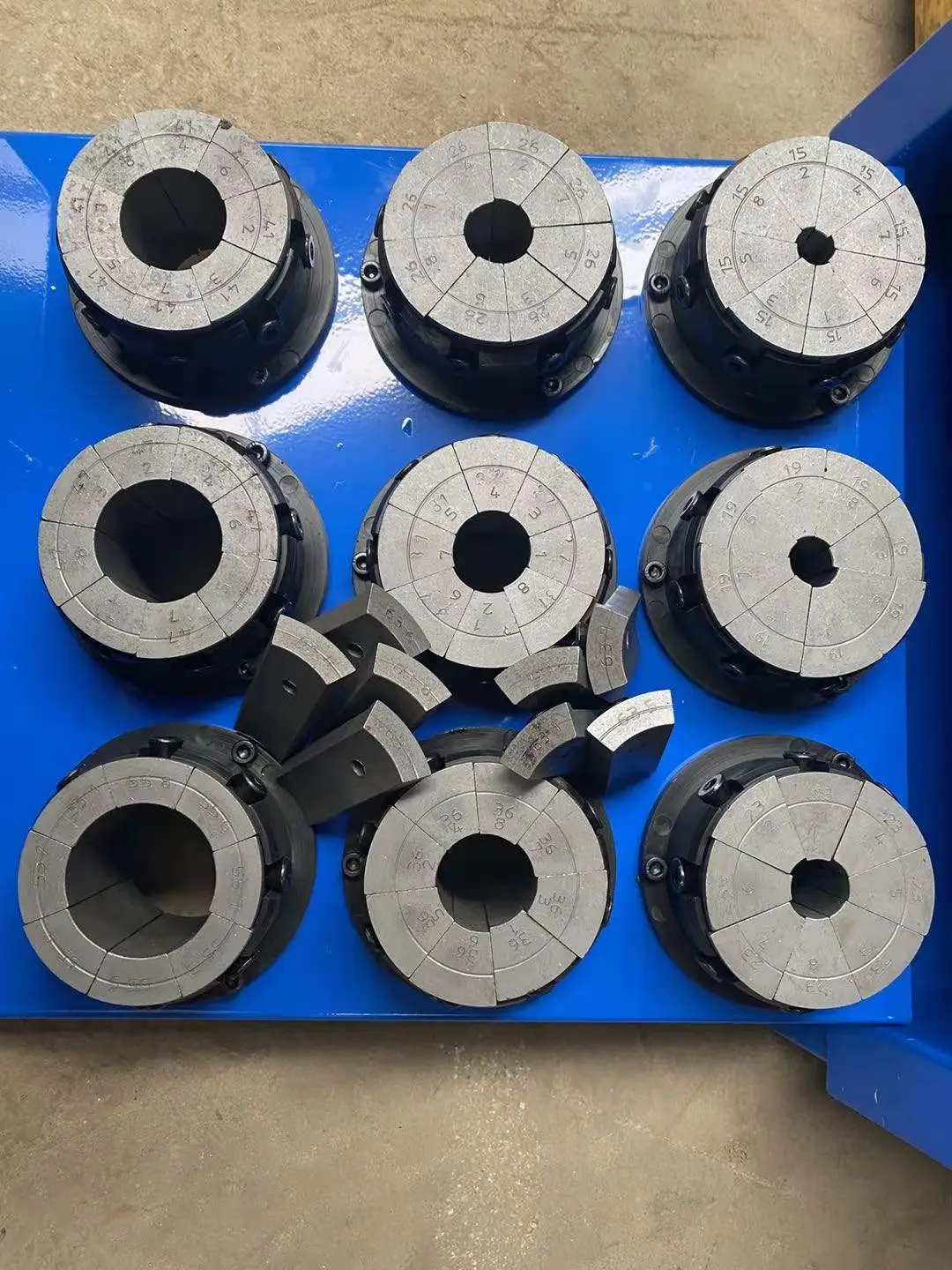

☆ Die Set: Standard dies are 10 sets
as following:
15/19/23/26mm, Length: 60mm
31/36/41mm, Length: 70mm
47/55/63mm, Length: 80mm
☆ Motor Power: 3KW
☆ Pump Oil Displacement: 2.5L
☆ System Pressure: 31.5Mpa
☆ Voltage: 220V/380V/110V/240V
☆ Net Weight: 260Kg
☆ Dimension: 67x43x82cm
If our standard dies does not match what you want, don't worry ! We can adjust and customize dies for you !
Question 1： Can I add dies ? √ Yes，we can add dies for you as per your requirement ;
Question 2： Can I replace some certain dies ? √ Yes， we can replace dies as per your requirement .
PRODUCT SPECIFICATIONS
Item | Data |
Crimping Range | 1/4''-2'' (6-51mm) |
Crimping Efficiency | 200pcs/hour |
Crimping Accuracy | 0.01mm |
Crimping Force | 500Ton |
Die Set | 10 Sets |
Motor Power | 3KW |
Pump Oil Displacement | 2.5L |
System Pressure | 31.5Mpa |
Voltage | 220V/380V/110V/240V |
Net Weight | 260Kg |
Dimension | Dimension: 67x43x82cm |

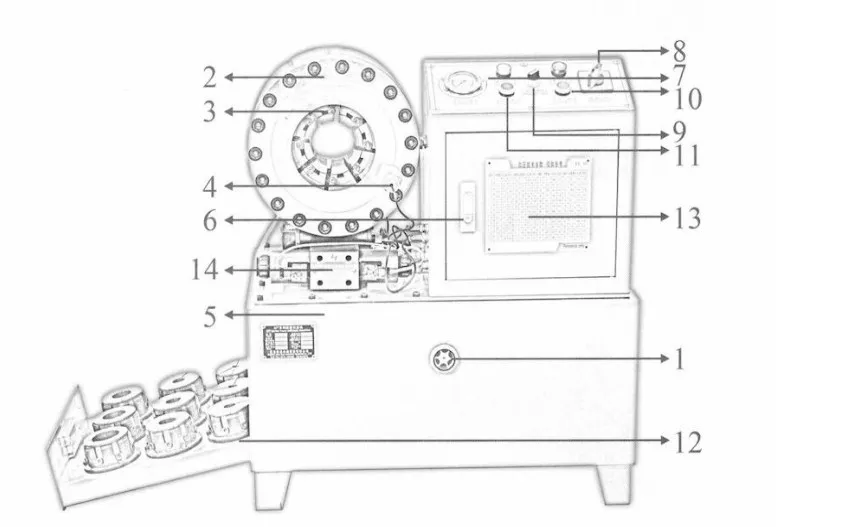

MACHINE CONSTRUCTION
1. Oil Level Guage | 2. Die Set | 3. Mould Base | 4. Micrometer | 5. Fuel Tank |
6. Electric Cabinet Lock | 7. Pressure Guage | 8. Motor Starting Knob | 9.Manual/automatic Switch Knob | 10. Open Mould Button |
11. Close Mould Button | 12. Mould Box | 13. Crimping Data Chart | 14 Solenoid Valve |
PREPARATORY WORK BEFORE INSTALLATION

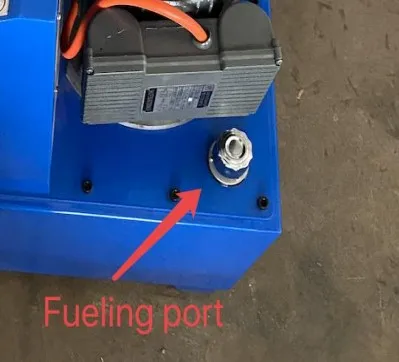

Prepare Hydraulic Oil
Prepare about 60L No.46 hydraulic oil in winter and No.68 in summer.
It is recommended to use No. 46 hydraulic oil in Southeast Asia and the Middle East.
In Africa, No. 68 hydraulic oil is recommended.
It is recommended to use No. 32 hydraulic oil in Russia and Europe.
The European area 46 and 32 are used together (for reference only)
It is recommended to use No. 46 hydraulic oil in Southeast Asia and the Middle East.
In Africa, No. 68 hydraulic oil is recommended.
It is recommended to use No. 32 hydraulic oil in Russia and Europe.
The European area 46 and 32 are used together (for reference only)

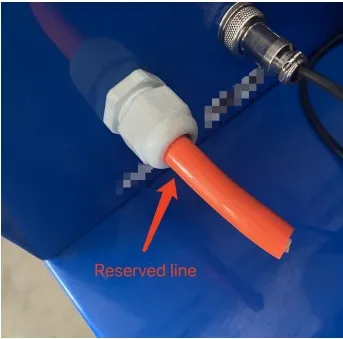

Prepare Electric Cable
Prepare A 6M cable to connect the machine and the general switch.

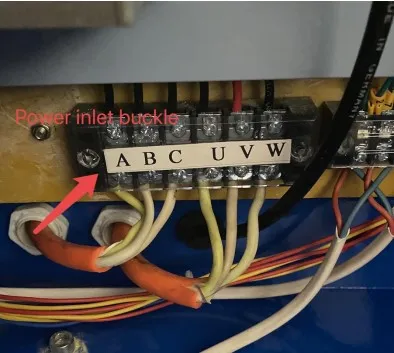

Power Supply Cable Connecting
The working cable of the crimping machine must be equipped with a separate power switch outside the machine, and the input voltage must be stable and accurate.
※ If the purchased machine is 220V single-phase power, the cable should be connected to the two ports A and C;
※ If the optional machine is 380V three-phase power, the cable should be connected to the A and B and C port .
※ If the purchased machine is 220V single-phase power, the cable should be connected to the two ports A and C;
※ If the optional machine is 380V three-phase power, the cable should be connected to the A and B and C port .
SALES AND SERVICE NETWORK
PRODUCT PACKING
Packed With Protective Film
Outside Polywooden Box
