Products Description
Intelligent tensioning system is one of the most advanced prestressed intelligent tensioning systems developed by our company. It is mainly used for precise tensioning or other tensioning systems requiring precise control of oil pressure and jack. Through the solution of "one-click tension", the tension process is automated, and the tension information data is timely transmitted to the supervision and owner supervision through the Internet.
The intelligent tension device adopts the way of wireless connection between the main pump and the auxiliary pump, and the distance between the main and auxiliary pumps can be up to 200M. The secondary pump transmits the sensor signal to the main pump, and the main pump receives the signal and sends the control signal back to the secondary pump to control the oil supply and oil return of the jack, so as to achieve synchronous and precise tensioning construction. At the same time, the main pump will send the tensile parameters to the monitoring computer or related website by wireless transmission.
Product name | Intelligent tension equipment |
The shipping port | Tianjin Port,Qingdao Port,Shanghai Port,Lianyungang Prot |
Packing | Wooden-box package |
Brand | as the customer required |

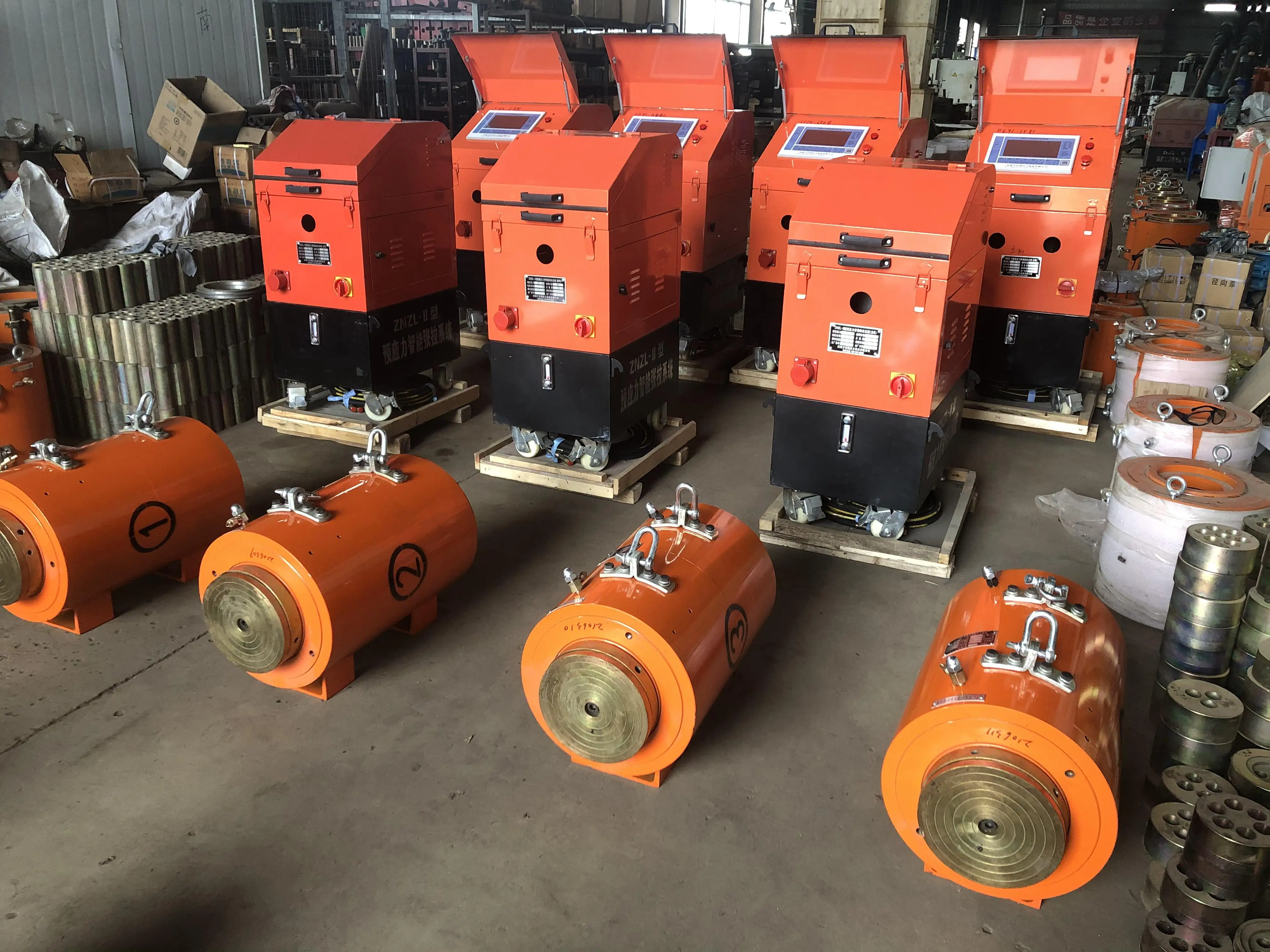

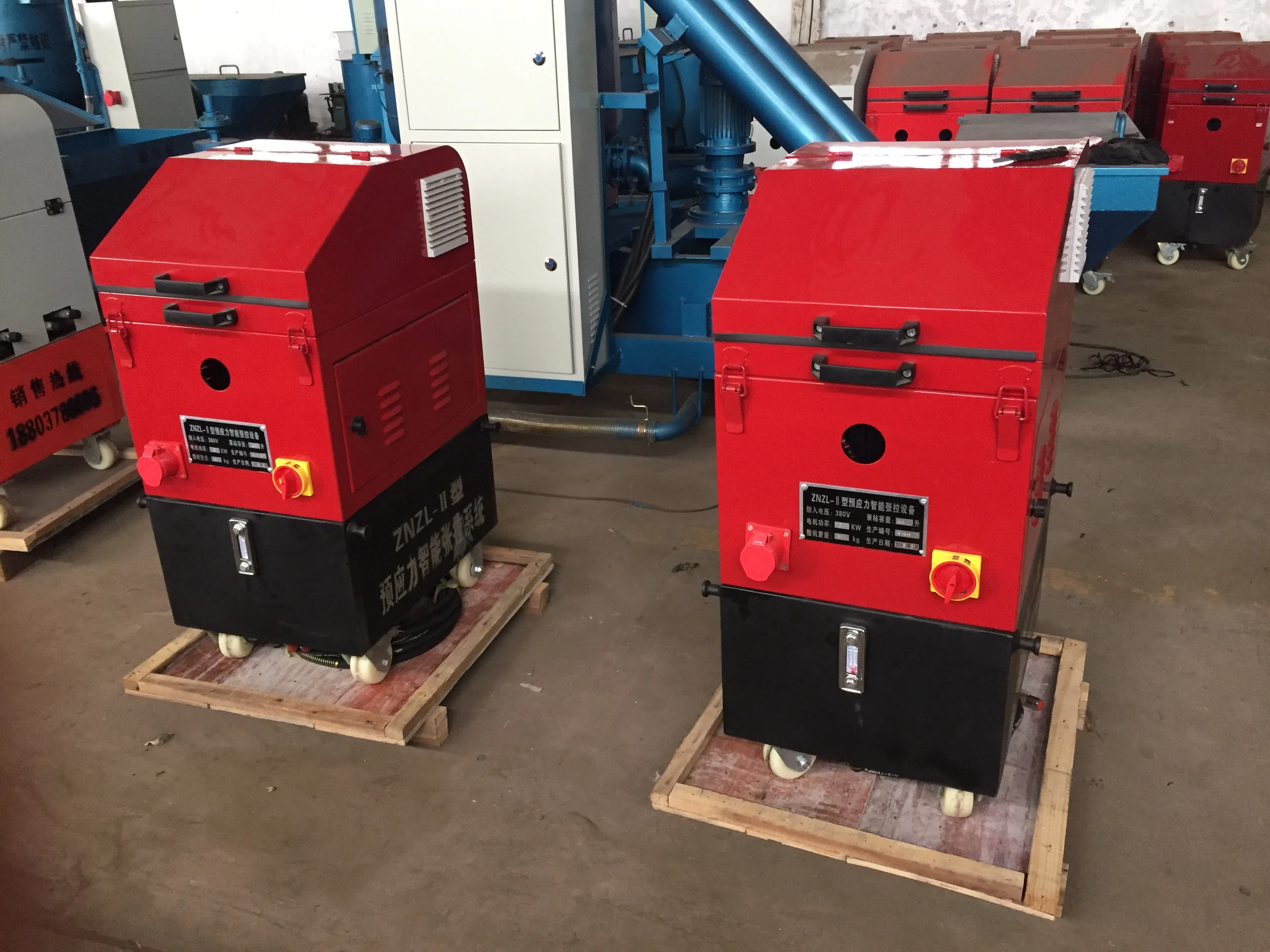

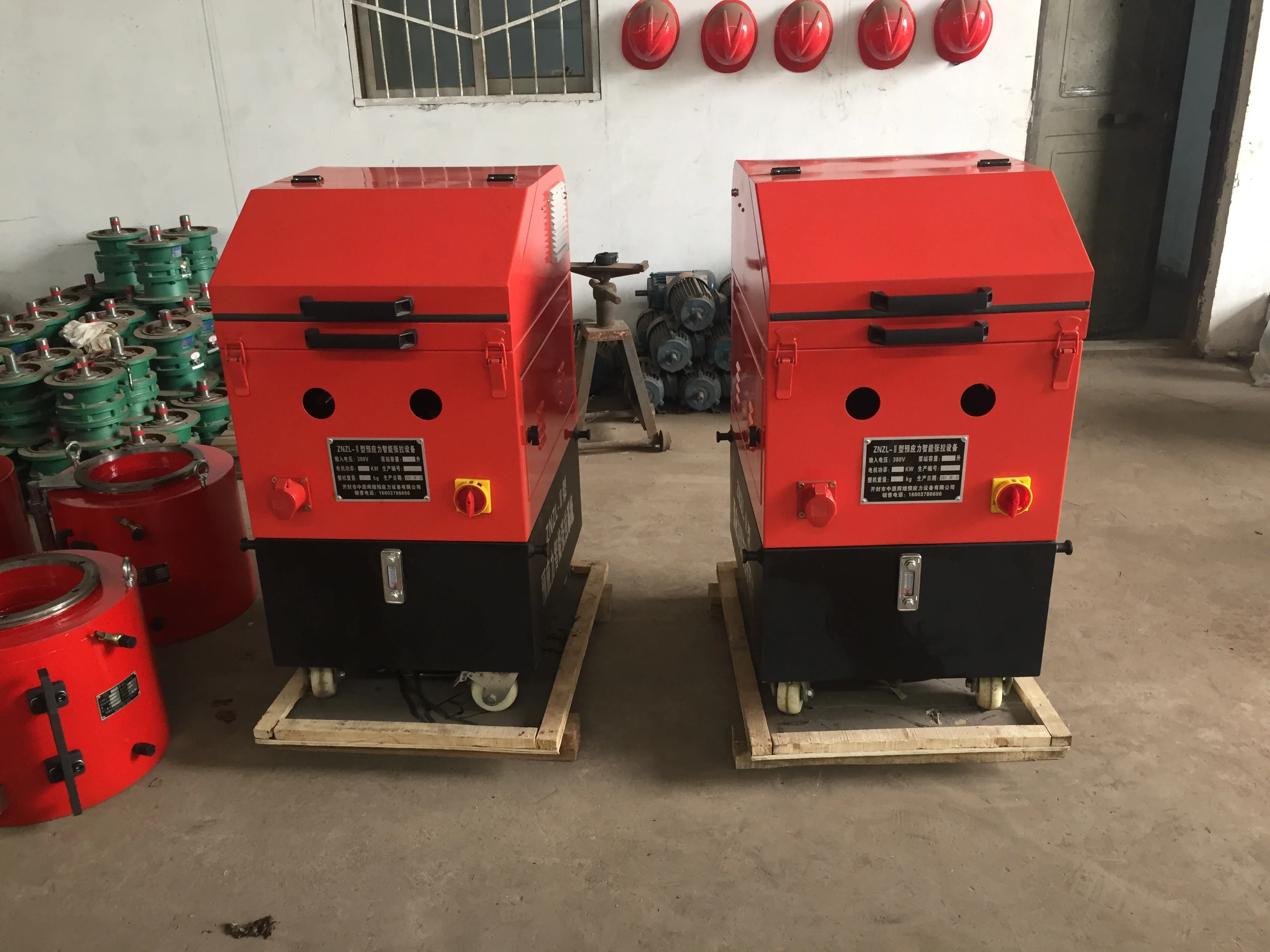

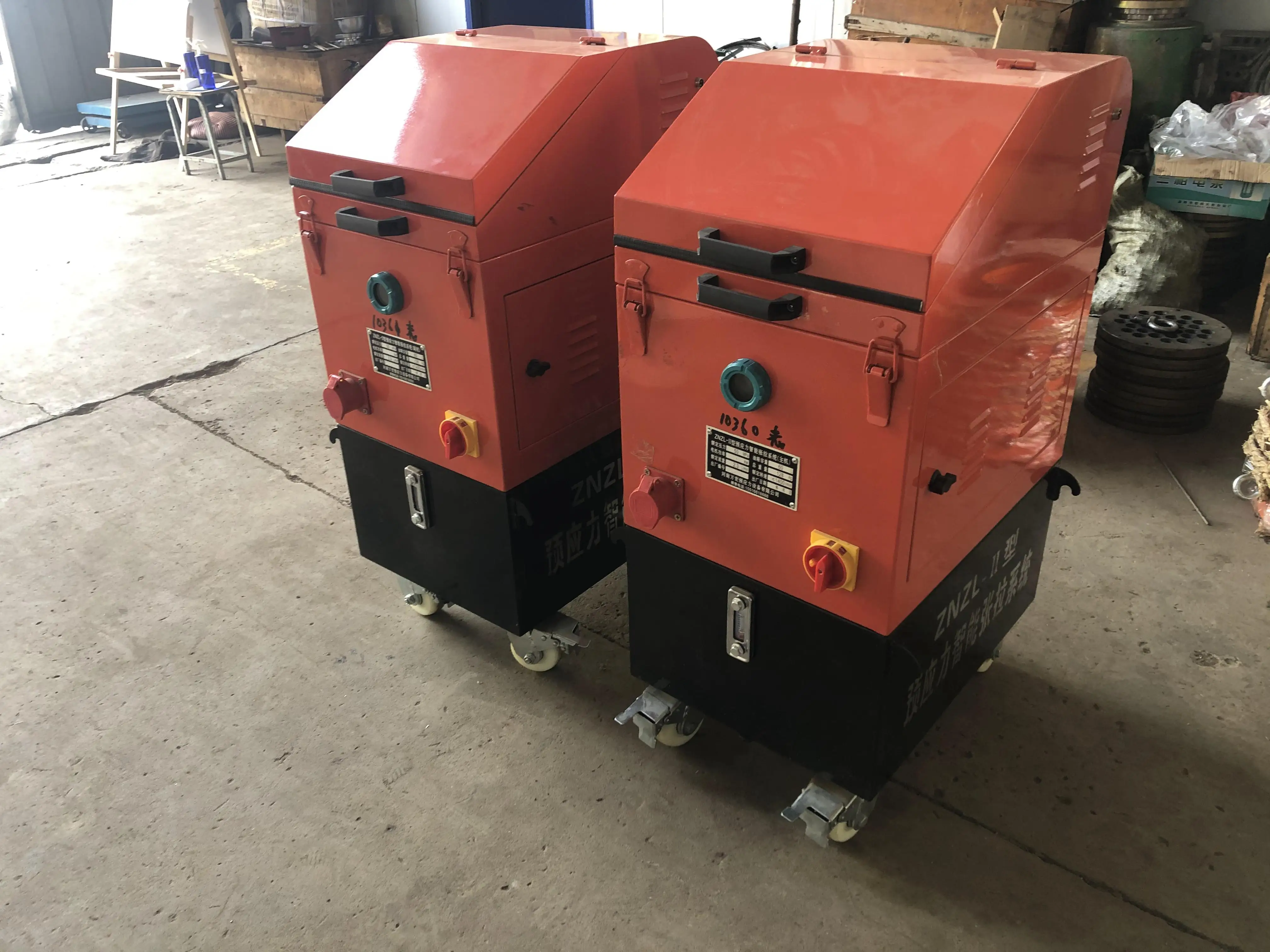

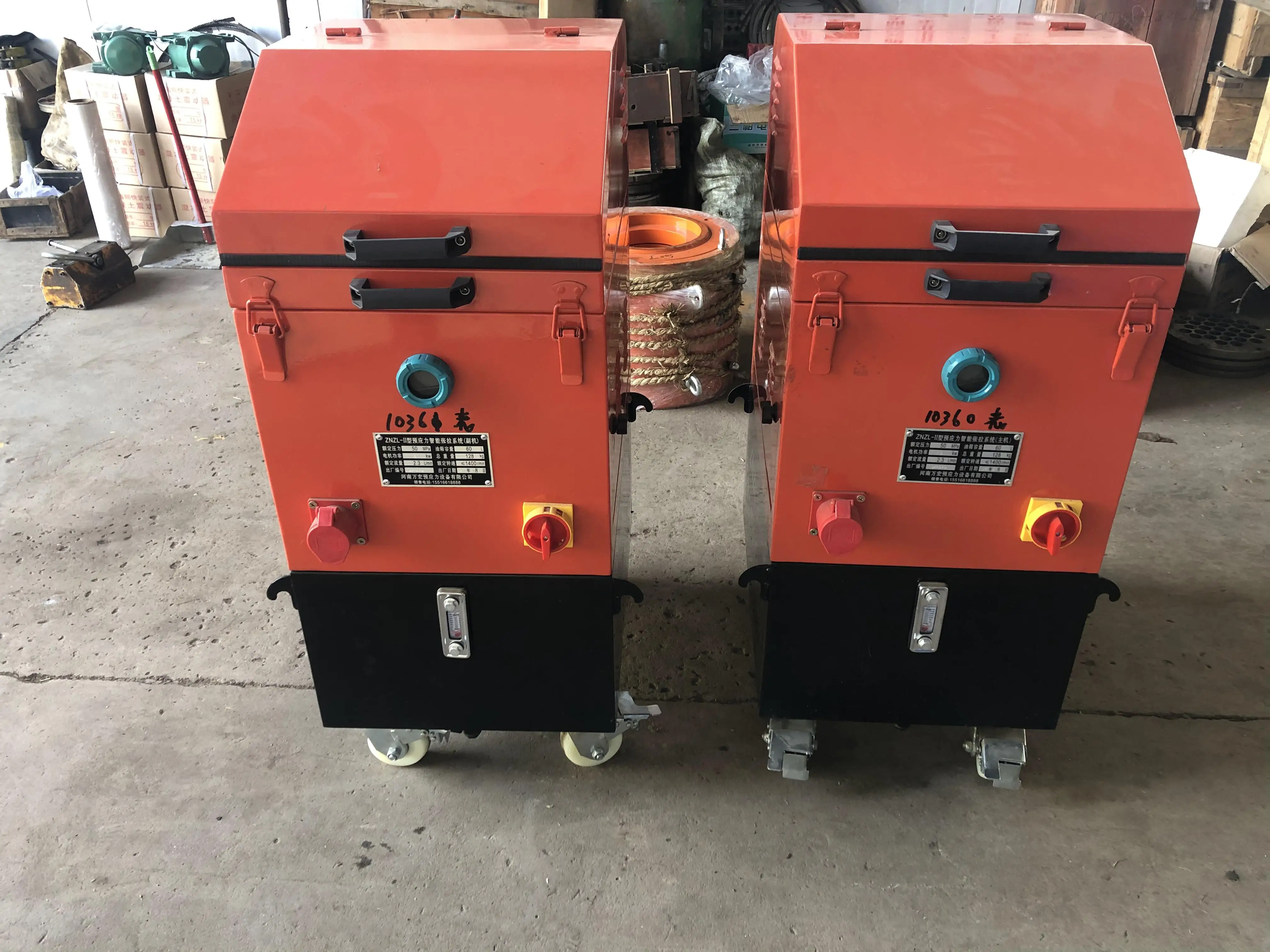

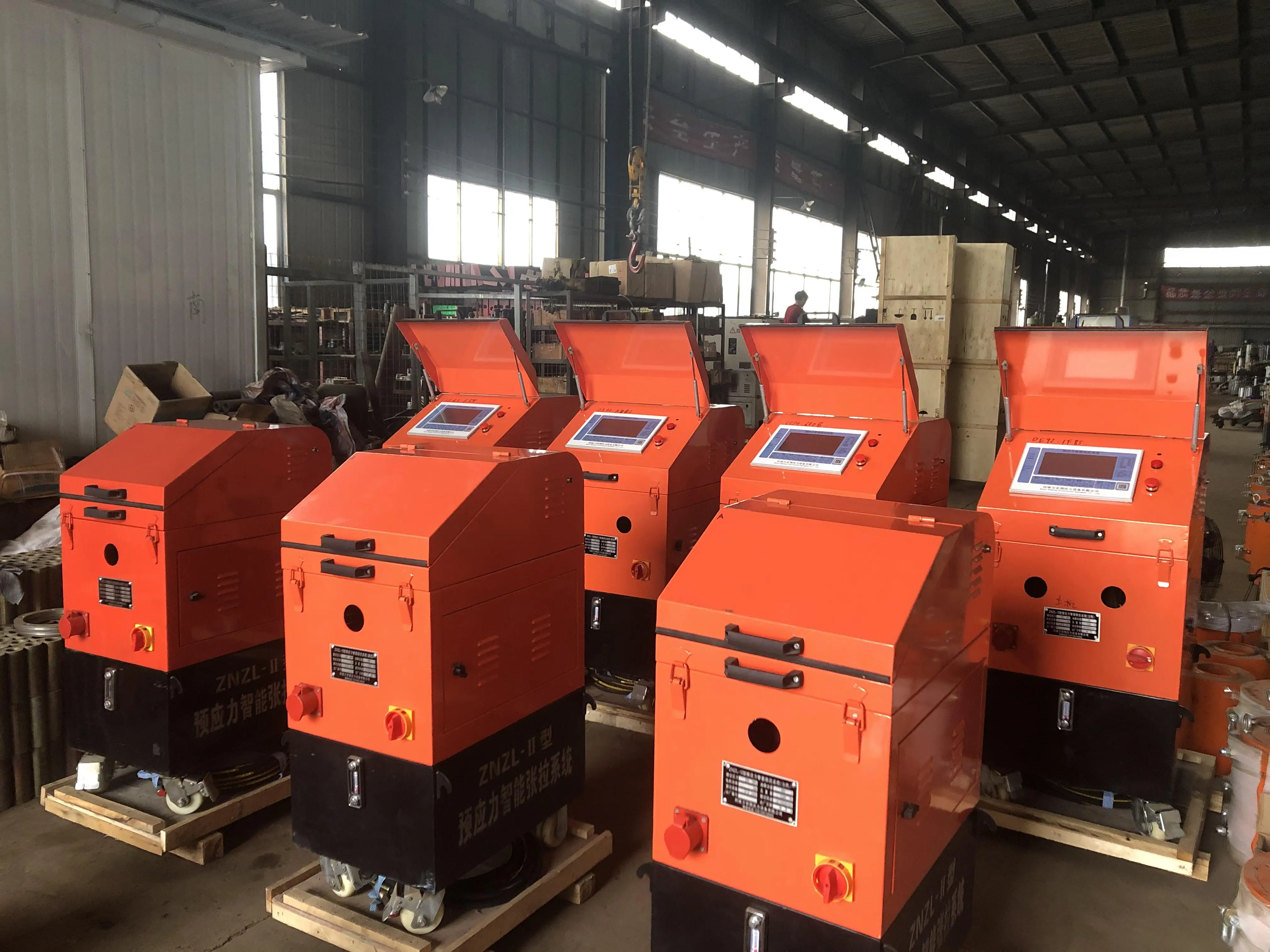

product display
explain | performance | parameter |
control box | l. Main motor inverter control 2. PLC based control unit 3. Can realize the pump station automatic tension, pressure, tension value printing operation and other functions | 1. environment temperature：0℃-55℃ 2. power requirement：AC380V，50H 3. power：3KW |
pressure sensor | l. The stress for detecting and controlling automatic tension of the jack is installed at the pump station 2. The piston displacement is measured and mounted on the jack | 1.range：0-60Mpa 2. output：4-20mA 3.measuring range：0-400mm |
touch screen | Set and store tension parameters, call tension parameters; Display the real-time data of tension and save the generated data of tension; Print tensioning to generate data | operating temperature：0℃-45℃ |
notebook computer（match） | Tensioning data can be set, monitored, printed and uploaded to the Internet through the laptop | A well-known brand with WIFI function, subject to the current configuration |
system features
1.A building-block system architecture allows you to organise tension modes automatically
2.Adopts stepless speed regulation and frequency conversion control
3.Lent employs a variety of design schemes for redundant and secure use
4.Static displacement sensor has good collision resistance
5.A dual-channel communication transmission mode is adopted
6.The system supports special tensioning, such as single beam tensioning, inverted roof tensioning, and supplementary tensioning
7.Buy a system that lets you upgrade your software indefinitely
Recommend Products
Company Profile

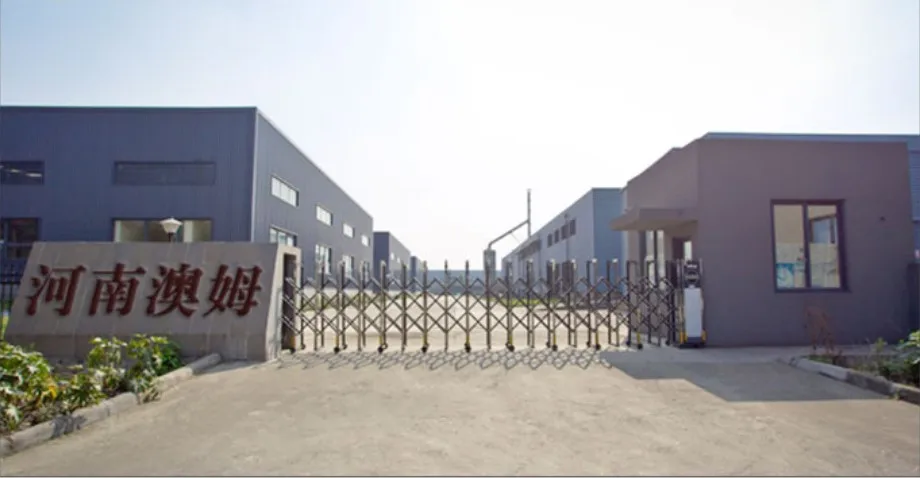

Henan Aomu prestressed equipment Co., Ltd. is located in kaifeng, China, the ancient capital of the seven dynasties with a long history. It is near zhengzhou airport in the west and Lianyungang port in the east, with high speed around the city, convenient transportation and superior geographical position.

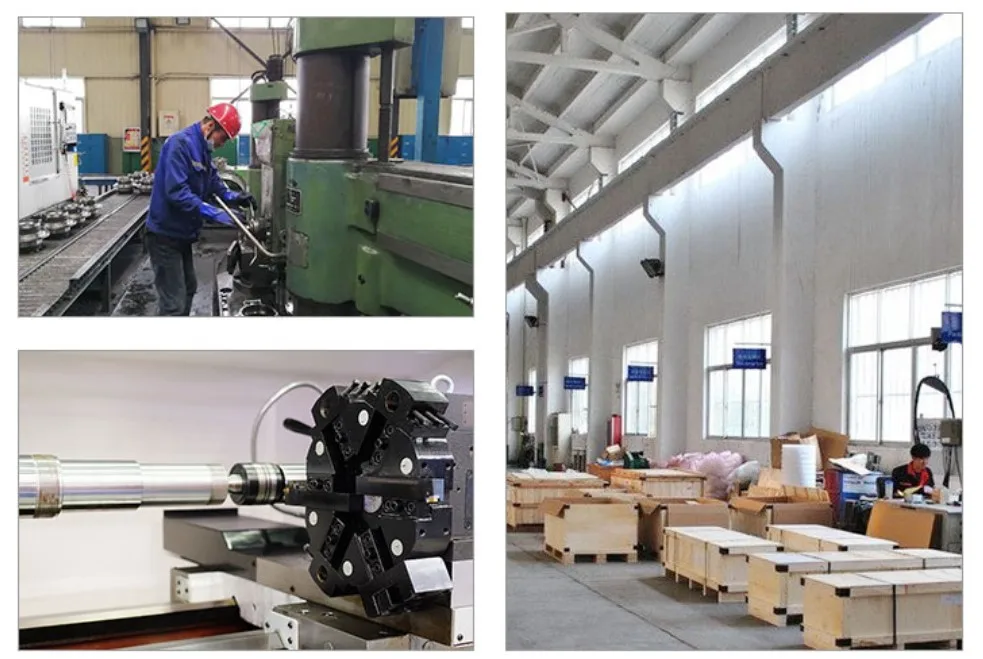

The company was founded in the new century in 2000, with nearly ten years of international foreign trade experience, our company is a research and development, production, sales, service as one of the road and bridge equipment manufacturers, the company has two steel structure workshop, covers an area of about 3000 square meters, there are 8 technical staff, more than 100 ordinary staff, with dozens of sets of large-scale production equipment, The main products of the company are: intelligent tensioning equipment, intelligent grouting equipment, tensioning jack, metal corrugated pipe machine, prestressed anchor, high speed mixer, steel strand threading machine and so on. The company has a wealth of manufacturing experience system, the company's products sell well in more than 20 provinces, cities, autonomous regions and other highways, high-speed rail, Bridges, water conservancy projects, docks, power stations, TV tower projects, products widely sold in South America, Southeast Asia, Africa, India and other regions, the company's products and services by the majority of users.
Sincerely look forward to friends from all walks of life visit guidance, negotiate cooperation, and seek common development!
The company was founded in the new century in 2000, with nearly ten years of international foreign trade experience, our company is a research and development, production, sales, service as one of the road and bridge equipment manufacturers, the company has two steel structure workshop, covers an area of about 3000 square meters, there are 8 technical staff, more than 100 ordinary staff, with dozens of sets of large-scale production equipment, The main products of the company are: intelligent tensioning equipment, intelligent grouting equipment, tensioning jack, metal corrugated pipe machine, prestressed anchor, high speed mixer, steel strand threading machine and so on. The company has a wealth of manufacturing experience system, the company's products sell well in more than 20 provinces, cities, autonomous regions and other highways, high-speed rail, Bridges, water conservancy projects, docks, power stations, TV tower projects, products widely sold in South America, Southeast Asia, Africa, India and other regions, the company's products and services by the majority of users.
Sincerely look forward to friends from all walks of life visit guidance, negotiate cooperation, and seek common development!
Packaging and shipping
FAQ
1.Q: Are you a factory or trading company?
A:Yes,Henan Aum Prestressed Equipment Co., Ltd is a factory located in Kaifeng City, Henan Province.
2. Q: What's your supply capacity?
A: Generally, our factory's capacity is 1000 sets per month. But for special large quantity order, we can produce more than
it.Don't worry about this.
3. Q: How can we trust your quality?
A:There are many ways to check quality. Such as, send sample, visit factory, etc. Our advice is that visit factory is the best way to check quality.
4. Q: What are your payment terms?
A:We accept both T/T payment and irrevocable L/C at sight. For the T/T payment, we accept 30% prepayment in advance and the balance payable against copy of B/L.
5. Q: If accept OEM service to made product as per customer offering drawing?
A: Yes, we can offer OEM service. We also offer customers new product design, non-standard design and prestressing construction plan.
6. Q: If free sample available?
A:Yes, we can offer sample free of charge. But the express cost should be on buyer’s account.
A:Yes,Henan Aum Prestressed Equipment Co., Ltd is a factory located in Kaifeng City, Henan Province.
2. Q: What's your supply capacity?
A: Generally, our factory's capacity is 1000 sets per month. But for special large quantity order, we can produce more than
it.Don't worry about this.
3. Q: How can we trust your quality?
A:There are many ways to check quality. Such as, send sample, visit factory, etc. Our advice is that visit factory is the best way to check quality.
4. Q: What are your payment terms?
A:We accept both T/T payment and irrevocable L/C at sight. For the T/T payment, we accept 30% prepayment in advance and the balance payable against copy of B/L.
5. Q: If accept OEM service to made product as per customer offering drawing?
A: Yes, we can offer OEM service. We also offer customers new product design, non-standard design and prestressing construction plan.
6. Q: If free sample available?
A:Yes, we can offer sample free of charge. But the express cost should be on buyer’s account.
