Беспроводной гид микрофон системы для цифровых зеркальных камер TG-10
- Категории: >>>
- Поставщик: JTS,PROFESSIONAL,CO.,LTD.
Поделиться:
Описание и отзывы
Характеристики
Products Description
TG-10R/TG-10T
* Handy and fashion outward.
* Preset 16 selectable UHF channels.
* Using Lithium cell to provide long operation time.
* Transmitter with built-in condenser capsule.
* LED display on both transmitters and receivers.
* Belt-pack and neck-set wearing.
* Earphone WM-10TG for TG-10R; earhook microphone CM-801S for TG-10T.
* 60m operation distance.
* Compatible with stationary transmitter TG-10STX and receiver TG-10SRX.
* Preset 16 selectable UHF channels.
* Using Lithium cell to provide long operation time.
* Transmitter with built-in condenser capsule.
* LED display on both transmitters and receivers.
* Belt-pack and neck-set wearing.
* Earphone WM-10TG for TG-10R; earhook microphone CM-801S for TG-10T.
* 60m operation distance.
* Compatible with stationary transmitter TG-10STX and receiver TG-10SRX.
TG-10R | ||
Model | TG-10R | |
Frequency Preparation | PLL Synthesized Control | |
Carrier Frequency Range | 470~960 MHz | |
3x Frequency Range | 856.100 - 864.900 MHz (F band) 606.500 - 629.900 MHz (U band) 721.500 - 748.375 MHz (G band) 658.125 - 678.500 MHz (D band) 487.125 - 506.500 HHz (I band) 502.000 - 694.000 MHz (T band) | |
LED Display | Channel | |
Controls | Power On/Off Channel selection Voiume control | |
Audio Frequency Response | 40~18,000 Hz | |
Output connector | 1/8” Dummy stereo Phone Jack | |
Battery life | 14 hours typical | |
Battery | Lithium cell (3.7V, 1300mAh) | |
Dimension(mm) | 54mm(W)* 17mm(D)* 99mm(H) | |
TG-10T | ||
Model | TG-10T | |
Internal Microphone | Omni-directional Condenser Microphone | |
Frequency Preparation | PLL Synthesized Control | |
Carrier Frequency Range | 470~960 MHz | |
3x Frequency Range | 856.100 - 864.900 MHz (F band) 606.500 - 629.900 MHz (U band) 721.500 - 748.375 MHz (G band) 658.125 - 678.500 MHz (D band) 487.125 - 506.500 HHz (I band) 502.000 - 694.000 MHz (T band) | |
RF Outputs | 10mW | |
Stability | ±10kHz | |
Frequency Deviation | ±48kHz | |
LED Display | Channel | |
Controls | Power On/Off Channel selection Voiume control | |
Spurious Emissions | < -50 dBC | |
Audio Frequency Response | 40~18,000 Hz | |
Microphone input connector | 1/8” Mono Phone Jack | |
Battery life | 14 hours typical | |
Battery | Lithium cell (3.7V, 1300mAh) | |
Dimension(mm) | 54mm(W)* 17mm(D)* 99mm(H) | |

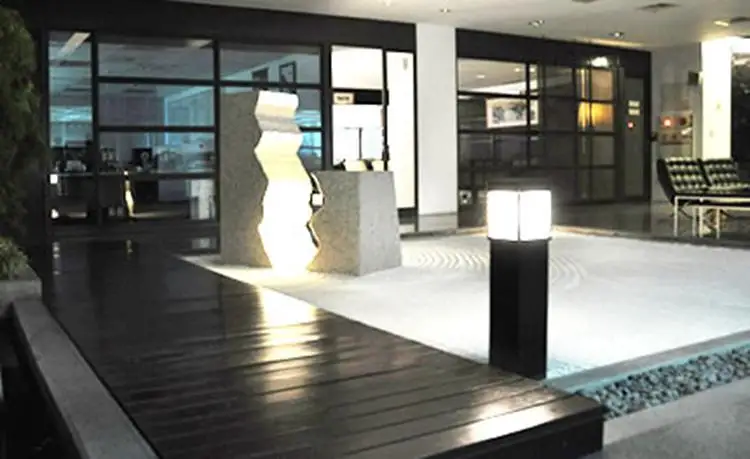

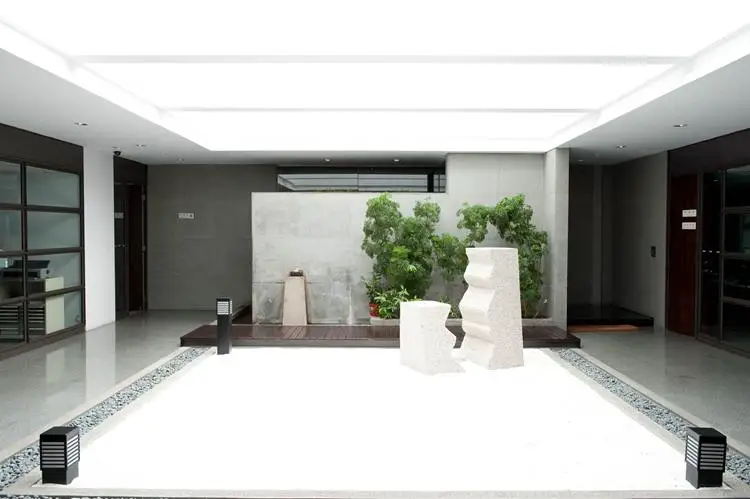

Company Profile
Technology and aesthetics are two necessary components in designing professional microphones. Here at JTS, both are seamlessly incorporated. For the past 35 years, JTS has been investing large amounts of resources into microphone research and development. The results demonstrate the artistic and scientific achievements of JTS personnel. The effort makes the JTS microphone a marvel in terms of affordability, performance, and reliability.

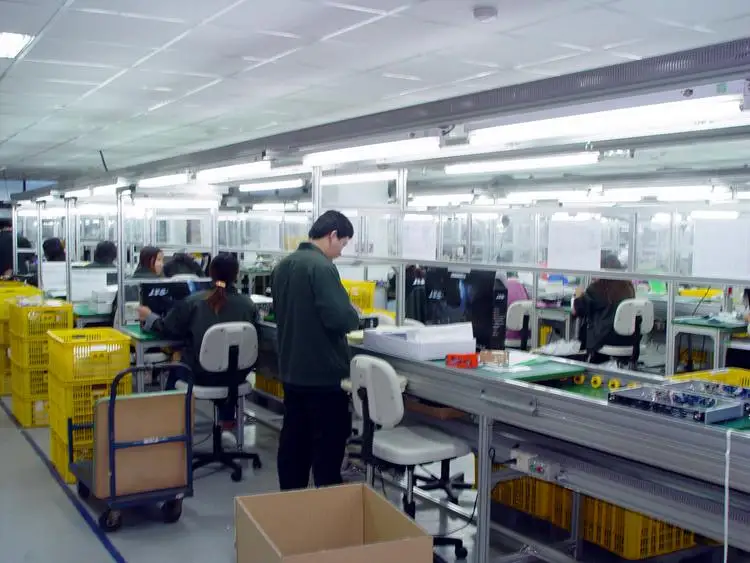

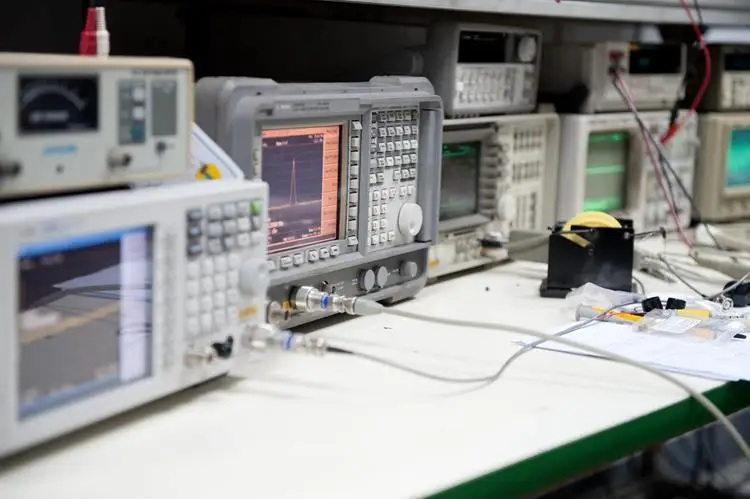

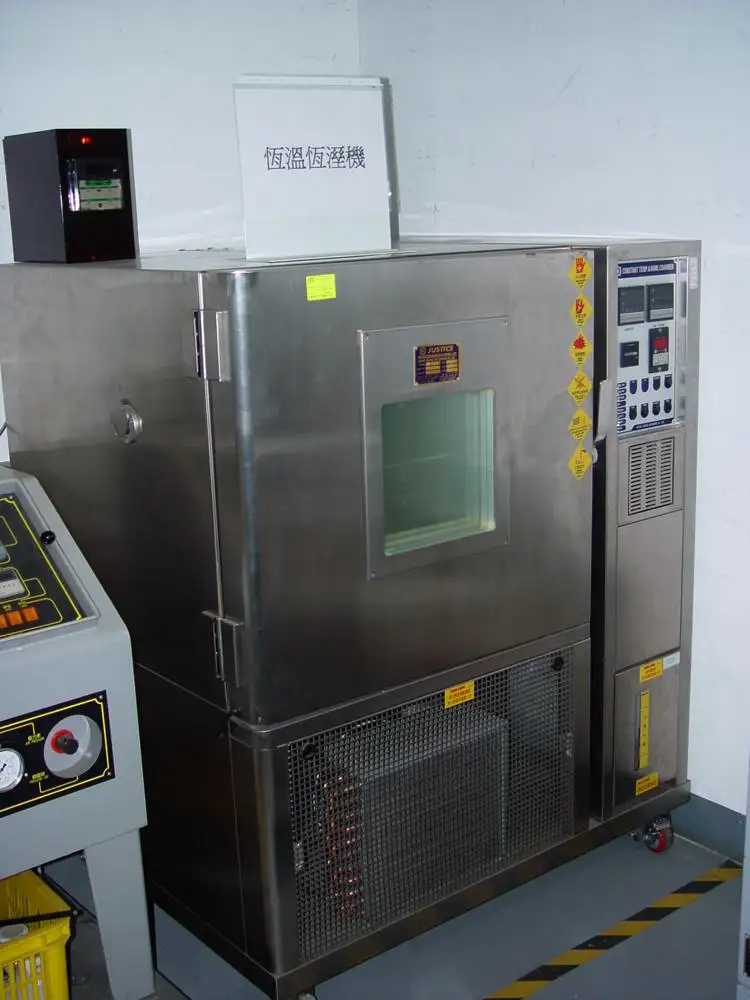

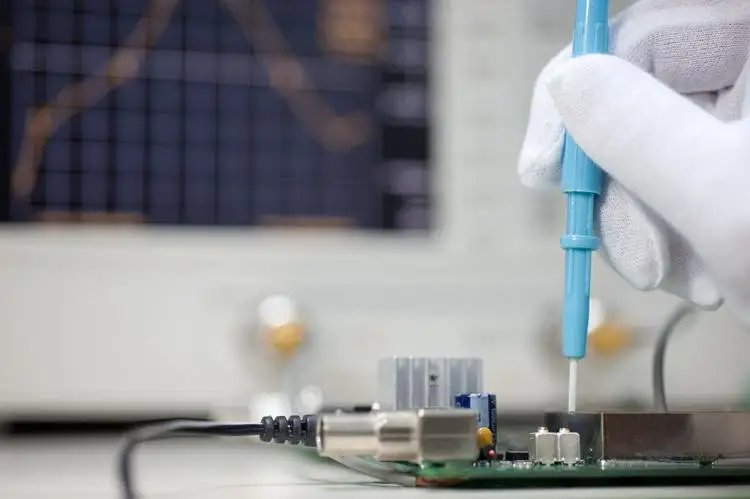

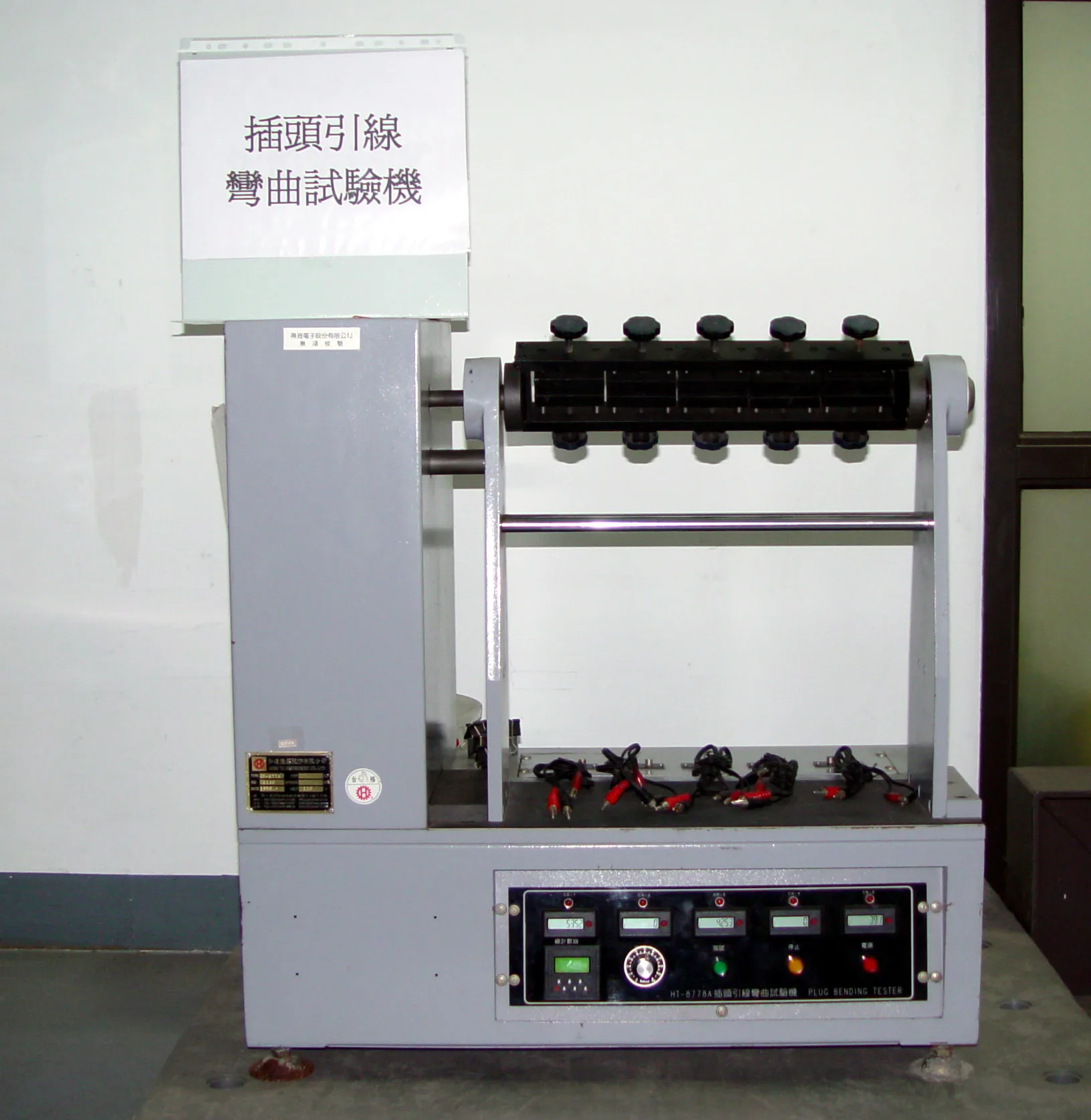

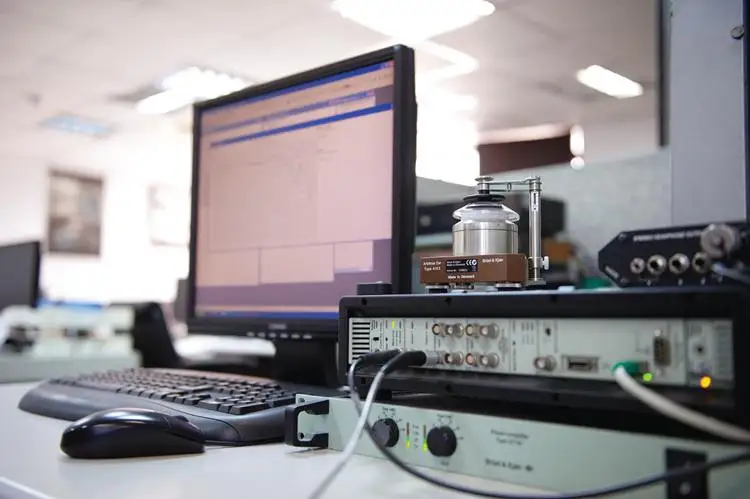

Manufacturing Technique

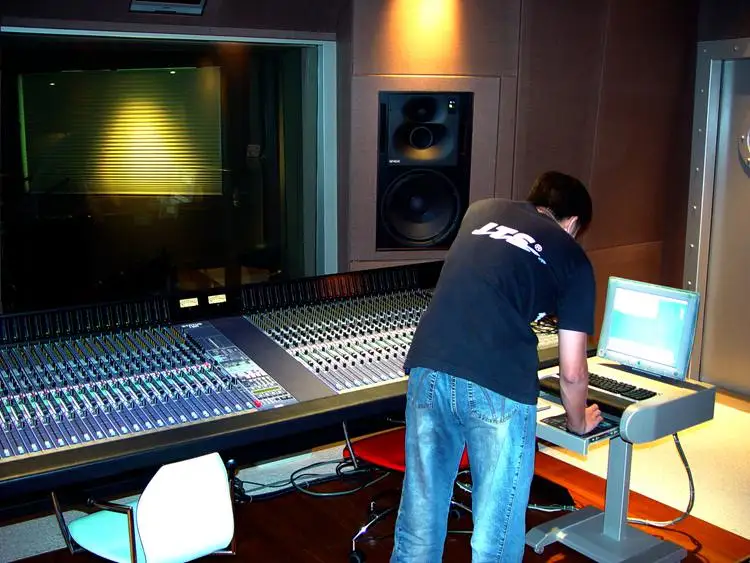

Exhibition

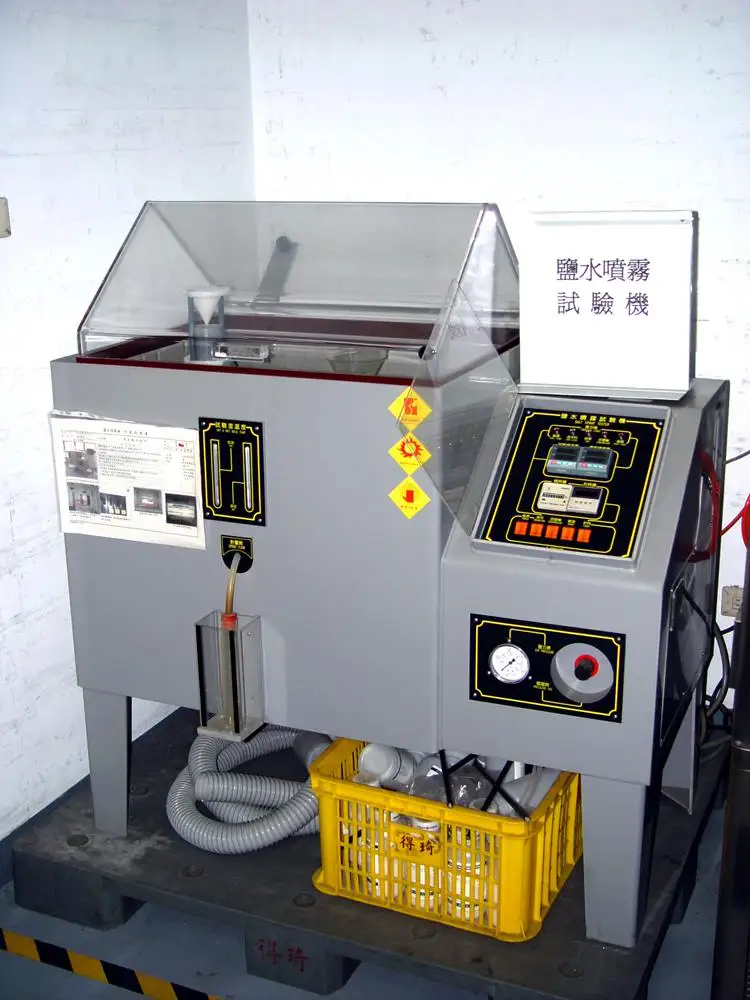

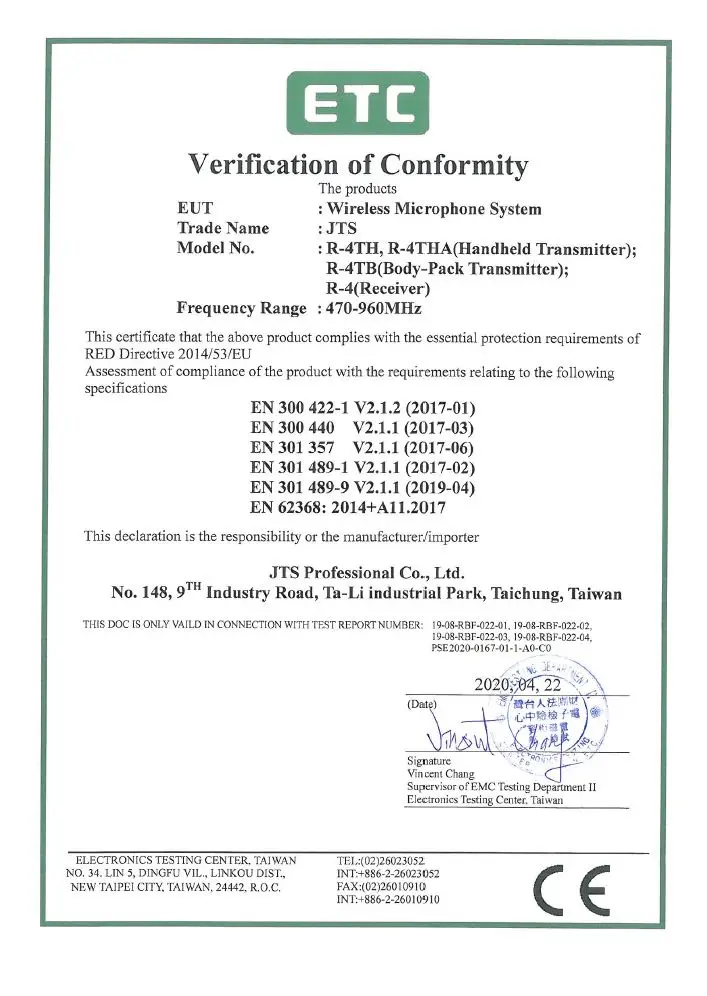

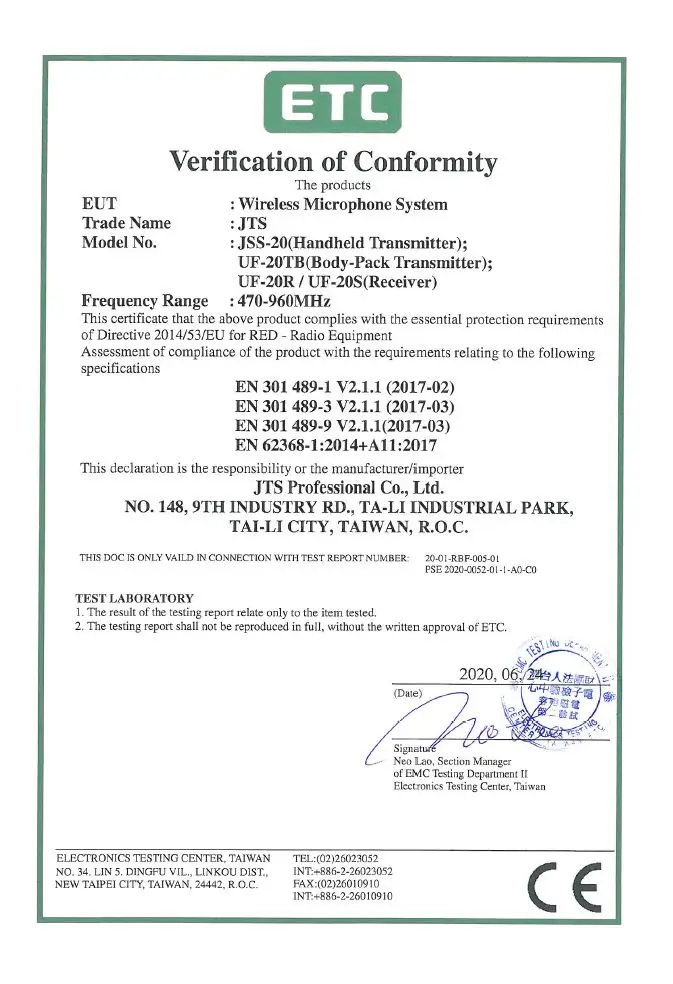

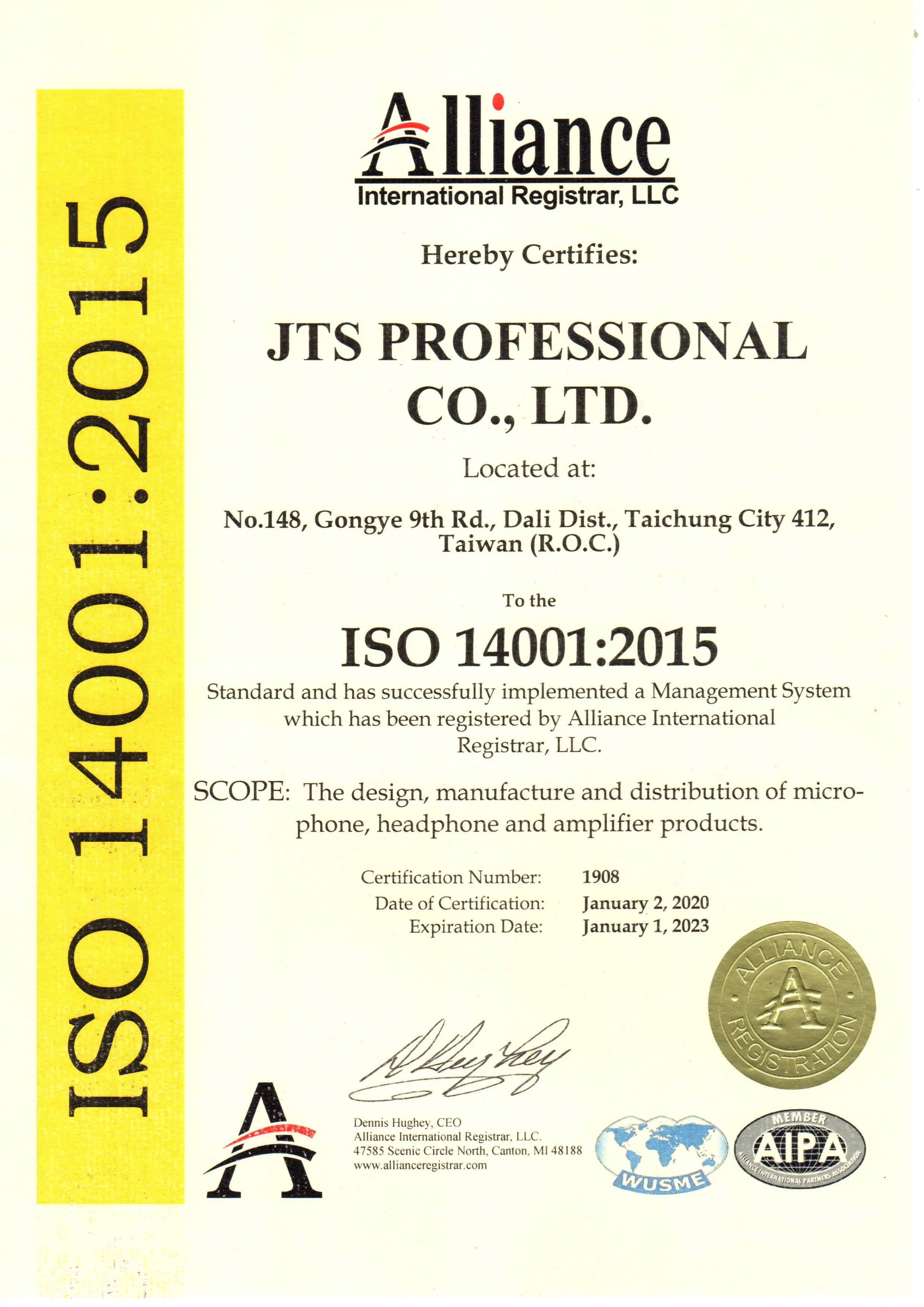

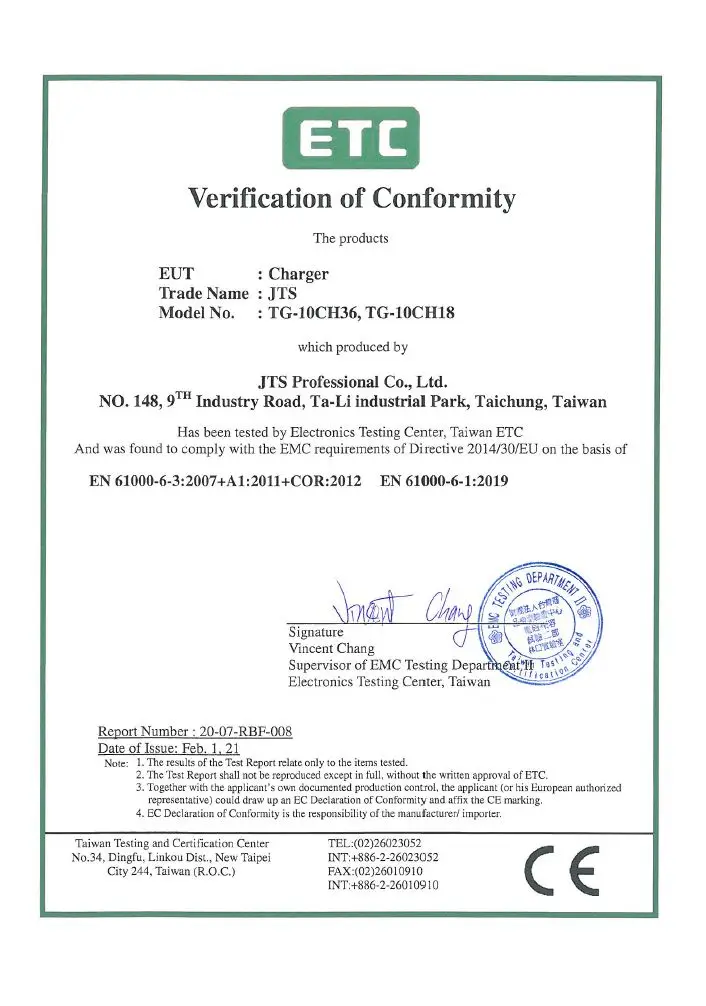

Certifications

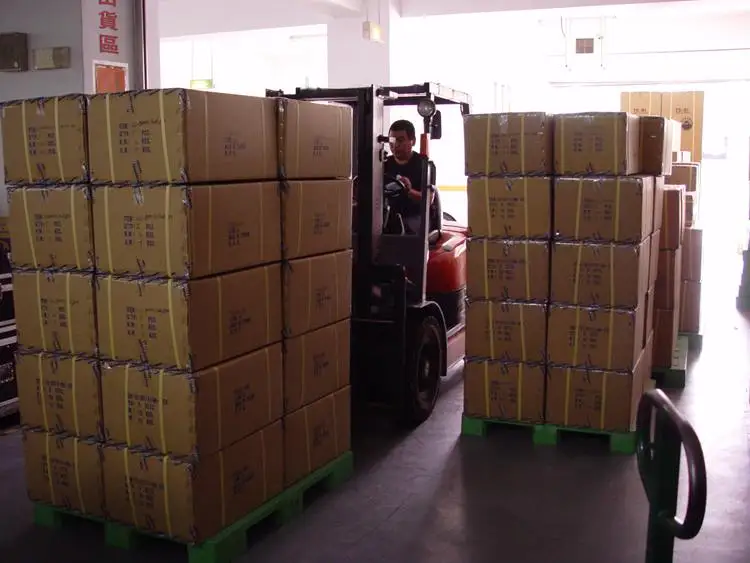

Product packaging
