Welcome to>>Shanghai Wanerxin Intelligent Technology Co., Ltd.

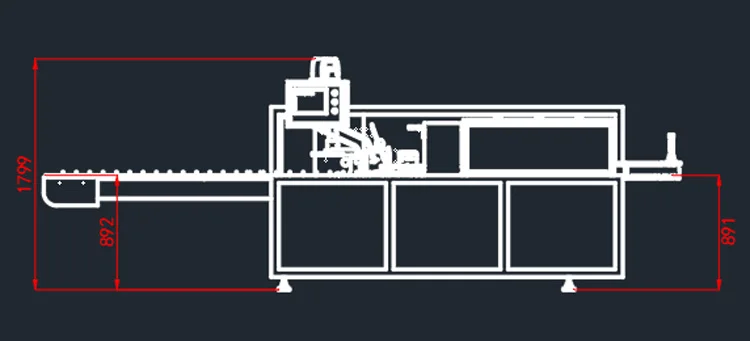

Layout
Product Description
Work steps | Advantages |
1. Manually organize and put the product into the basket and conveying to the filling station | No production no carton detection. Avoid empty boxes. |
2. The cartoning machine detects that there is a production delivered, picked up the carton from the carton magazine and open the corresponding manual and fold it. | The 200-type The cartoning machine adopts a dual-erecting box mechanism, and the success rate of opening the box is higher, and it can make larger cartons. |
3. The cam-mechanism pushes the production into the propped carton and transmits it back. | The 160 type cartoning machine adopts a cam-mechanism forward-back push structure, which pushes the production faster. |
4. The carton is transferred to the position of the folding box and sprayed with hot melt glue. | Spraying saves 2/3 of the cost than manual gluing |
5. The sealing device at both ends of the carton seals the carton | Mechanical sealing is more stable |
6. The finished product is clamped and transmitted through the belt. | Secondary molding |
1. It adopts the packaging form of automatic feeding, erecting, entering, sealing, and discharge. The structure is compact and reasonable, and the operation and adjustment are simple.
2. The use of variable frequency motor, touch screen, PLC programmable control system, the man-machine interface display operation is clearer and easier, the degree of automation is high, and it is more user-friendly.
3. The use of photoelectric cell automatic detection and tracking system, no product does not suck the carton, and the packaging materials are maximized.
4. The packaging range is wide, easy to adjust, and quick conversion between various specifications and sizes can be achieved.
5. There is no changing parts needed to replace the different sizes, just adjust it to achieve.
6.No product no carton detection, When the product is restored to supply, it will run automatically, and the product will stop automatically if the box is not in place, and the main drive motor overload protection device is more suitable for safer and more reliable application.
7. Automatic display of packing speed and count.
8. It can be integrated with aluminum-plastic packaging machines, pillow packaging machines, bottling lines, filling machines, labeling machines, inkjet printers, online weighing instruments, other production lines and other equipment to achieve linkage production.
Item | Parameters | Remarks | |
Machine type | Intermittent Side load |
| |
Capacity | 20-35 cartons/minute |
| |
Carton requirements | Paper requirements | 250—400g/m2 | Requires a flat surface to be absorbable |
Size range | Length (90-200) width (60-150) height 20-50mm |
| |
Compressed air source | Pressure | ≥0.6MPa |
|
Air consumption | 20m3/h |
| |
Power supply | 220V 50Hz |
| |
Main motor power | 1.5kw |
| |
Dimensions LXWXH | 3765X1330X1763mm |
| |
Net weight of the whole machine | 1530kg |
| |
Component list
Serial number | Name | Model and specification | Manufacturer |
1 | PLC | SIMATIC S7-200 | Mitsubishi or Siemens |
3 | Encoder | E6B2-CWZ6C | Omron, Japan |
4 | Touch screen | 6AV6 648 -0CC11-3AX0 | Mitsubishi or Siemens |
5 | Inverter | V20 | Mitsubishi or Siemens |
6 | Photo cell | WT-N1211 | SICK |
7 | Motor | CH-1500-10S 1.5KW | Taibang, Zhejiang Dongbang |
8 | Indexing box | 0S83-4L-180 | Zhejiang Huilin, Zhejiang Zhongli |
9 | Push Button | XB2 | Schneider, France |
10 | Emergency stop | ZB2 BC4D | Schneider, France |
11 | Intermediate relay | LY2M 24V | Izumi, Omron, Japan |
12 | AC contactor | 1810 | Schneider, France |
13 | Proximity switch | TL-Q5MC1-Z | Omron, Japan |
14 | Cover shell | 304 Stainless steel | Ruida |
15 | Air switch | 3P32A | Schneider, France |
16 | Switching power supply | PMC-24v | Taiwan Mingwei |
