Высокоскоростная медицинская машина для производства ткацкого станка

Описание и отзывы

Характеристики

What we can do for customer?

1. full communication before making contract

1) Fully understand what customer want to make,and make project offer

2) Invite customer to China,to view whole production line process,then make contract

3) Visit customer’s factory,to Check layout design and Construction details



2. Comminicate on time after making contract?

1) Produce and deliver goods according to the time agreed in the contract,We will inform the customer of the production progress, and timely inform the customer in case of any accident, so as to make a response plan in advance

2) Packing and loading container in professional way,to make sure goods can be arrived safely.

3) Supply full correct documents,support customer to get custom clearance smoothly

4) Guide customer to unload machine,and check the goods by packing list.



3. Arrange visa and air ticket in advance when the goods arrive at customer’s factory.

Send good engineer to guide customer to install the equipment and trial the machine.

10 days more Training guidance is available after installation trial.



4. Customer can send 2-3 engineer to China,we will arrange them to get trainning in good factory,to learn management,working skill,and operation training.



5. Online service is available

6. Spare parts for reservition:we will advise customer to buy,also will give some for free.

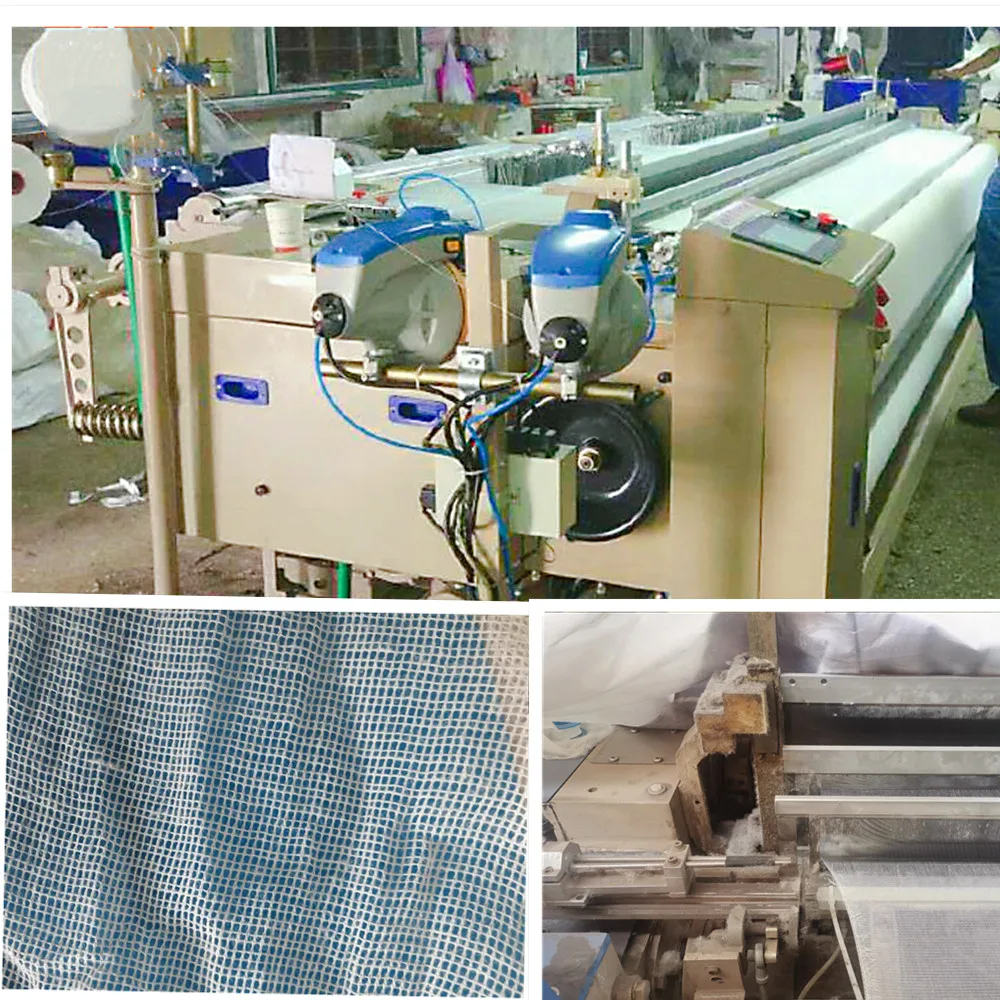

Kerrian-910A  is the lasted model air jet loom,special for making gauze fabric

Working stable and high efficiency 99%,low maintainess cost,high speed 650RPM



technical parameter of medical gauze air jet loom

Applicable yarn	Cotton yarn  O/E 12-40   R/S 30-45
Thread (inch)	Warp density 10-35EPI   Weft density 6-30PPI
Reed width	210cm  230cm  280cm  340cm  (optional)
Shedding motion	Tapped shedding( plain)
Heald frame	2pcs (it is enough for gauze fabric weaving)
Color	1 or 2 (advise 2 )
Let-off	Mechanical/electronic
Take-up	Mechanical/electronic
Warp beam	Dia.800mm
Take-up	Wind on loom(max roller dia.550mm) wind on batching motion(max.roller dia.1000mm)
Main configuration	Machine weight:2000kg-2500kg(heavy) Nozzle:Jiete brand Magnetive valve:SMC,Japan Electronic control system:Baina,China Bearing:NSK or Nachi,Japan
Output per hour	E. g  cotton yarn Ne40xNe40  thread 26x18   grey gauze width:95cm Machine working width 210cm,speed 620R.P. efficiency 95% Machine output per day: 95cm x 50m x 2( two lane)=95cm x 100m



leno  gauze weaving machine

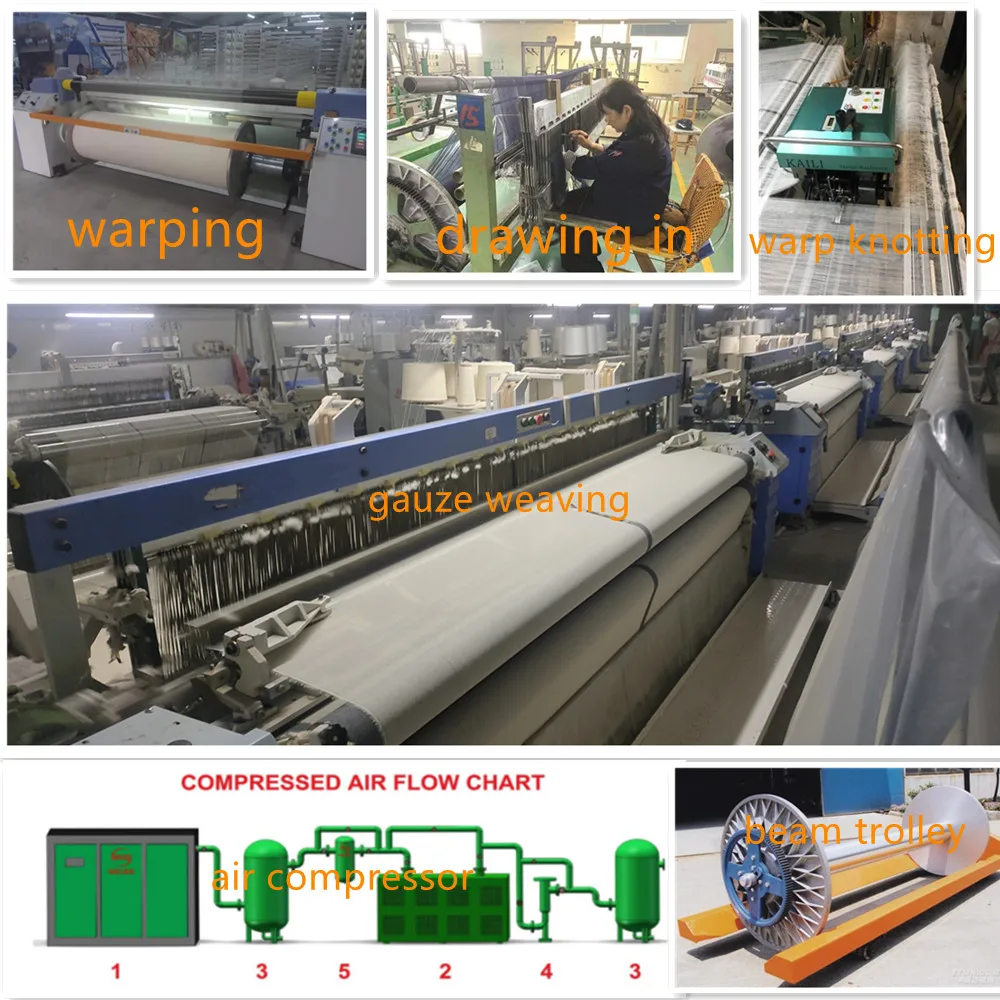

We supply the whole production line for customer.whole production line solution is available for customer
