Specifications
Application:

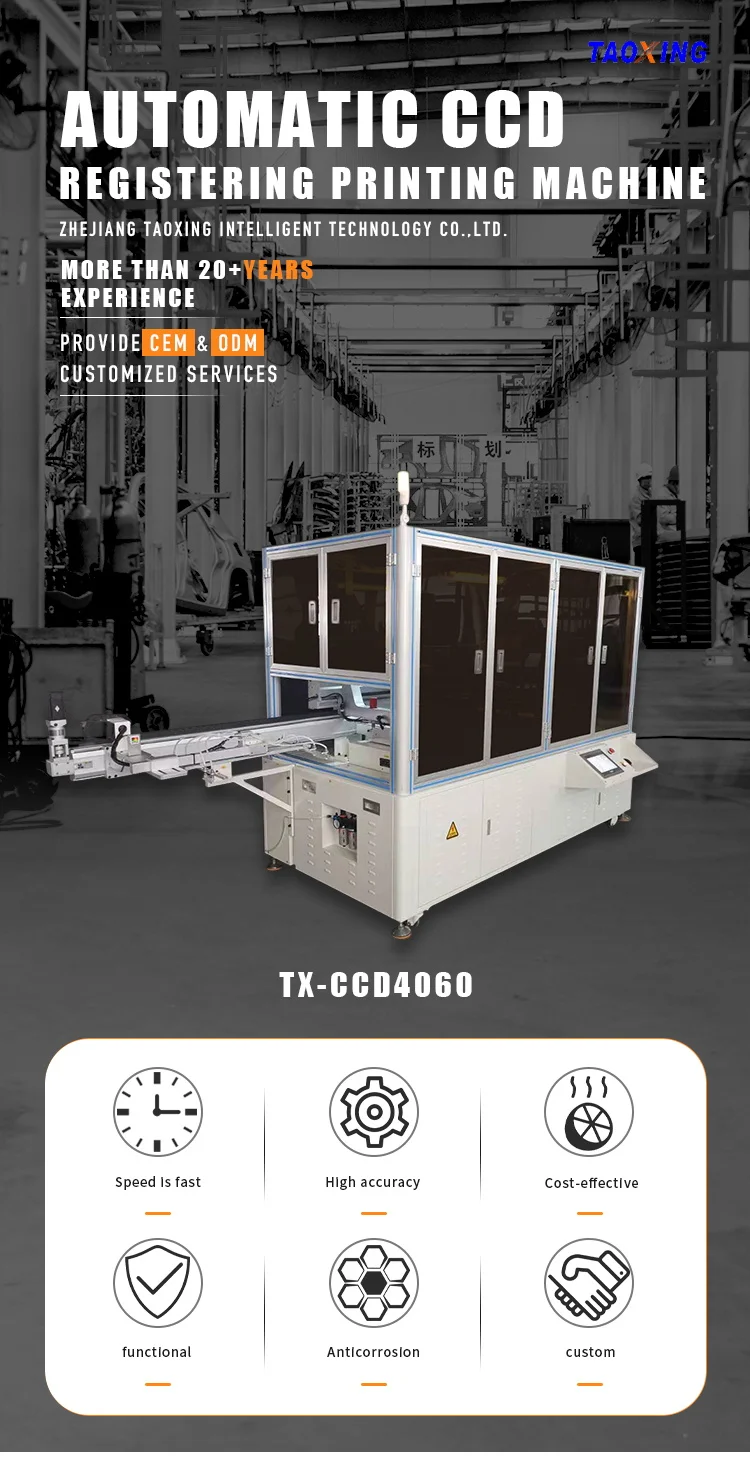

Automatic CCD Image Registration Screen Printing Machine to meet highest demands, with CCD-camera system and movable print table to produce high-quality prints on flat materials such as EL-foils, LGP panels, BEF-films, touch screens, membrane switches,flexible printed circuits, and much more.
Features:
A. Full automatic system, with auto loading and unloading device for improving production yield rate.
B. PLC programming, touching screen, simple to operate, easy to use.
C. LED Control panel is available for any position by rotating the hunger, easy to operate.
D. CCD auto-alignment system ensure accurate printing, the aligning accuracy within +0.01mm, to provide excellent function.
E. Top servo motors drive printing fast and smooth, stable and quiet.
F. Multi-valued image processing
G. Machine components top configuration
H. Anti-static bar and anti-dust rollers is optional.
I. Fault self detection system with emergency switch and safety protection, and alarm light, etc.
B. PLC programming, touching screen, simple to operate, easy to use.
C. LED Control panel is available for any position by rotating the hunger, easy to operate.
D. CCD auto-alignment system ensure accurate printing, the aligning accuracy within +0.01mm, to provide excellent function.
E. Top servo motors drive printing fast and smooth, stable and quiet.
F. Multi-valued image processing
G. Machine components top configuration
H. Anti-static bar and anti-dust rollers is optional.
I. Fault self detection system with emergency switch and safety protection, and alarm light, etc.
Parameters:
Model | TX-CCD4060 |
Max printing area | 400X600mm |
Table size | 500x700mm |
Max screen frame | 750x1080mm |
Capacity | 400Pcs/h |
Stacking Height | 300mm |
Work-Piece Thickness | 0.1-2mm |
Worktable Displacement | ±5mm |
Air Source | 0.6-0.8Mpa |
Air Consumption | 15L/min |
Power Supply | AC380V/50Hz |
Power consumption | 5.5kW |
Mechanical Repeatability | 0.01mm |
Printing Accuracy | ≤5um |
Machine Dimension | 3500*1100*2050MM |
Machine Weight | 950KG |
Machine Description
Recommend Products
Buyer Comment
Company Profile
Certification
Packing&Delivery
FAQ
Q: Are you a factory or trading company?
A: We are a professional manufacturing factory specialize in printing equipment with more than 20 years experience, committed to supplying our customer top quality and dedication to the constant improvements of quality,reliability, productivity and the competitiveness of our products and services.
Q: How to get a quotation?
A: Please send us an inquiry directly. We need to get specific details, such as material, size, color,thickness, quantity, etc.
Q: Can you do the production as customized?
A: Yes, we have a professional technique team, we could produce the machine depends on
your requirements.
Q: What are your terms of payment?
A: We accept TT/LC/PAYPAL/Western union, every payment term we can discuss.
Q: How long is the warranty time?
A: All products carry up to a full year warranty. Supply wearing parts with favorable price and long term after-sales service. We believe in total customer satisfaction, aside from our no-hassle guarantee.
Q: How to get a quotation?
A: Please send us an inquiry directly. We need to get specific details, such as material, size, color,thickness, quantity, etc.
Q: Can you do the production as customized?
A: Yes, we have a professional technique team, we could produce the machine depends on
your requirements.
Q: What are your terms of payment?
A: We accept TT/LC/PAYPAL/Western union, every payment term we can discuss.
Q: How long is the warranty time?
A: All products carry up to a full year warranty. Supply wearing parts with favorable price and long term after-sales service. We believe in total customer satisfaction, aside from our no-hassle guarantee.
