Сетевой видеорегистратор Dahua Купер серии 4CH 8CH HDCVI рекордер 5 в 1 XVR 4-канальный 8-канальный 1080P DVR (XVR1B04
- Категории: Surveillance Products >>>
- Поставщик: Shenzhen,Bomi,Vision,Technology,Limited
Поделиться:
Описание и отзывы
Характеристики

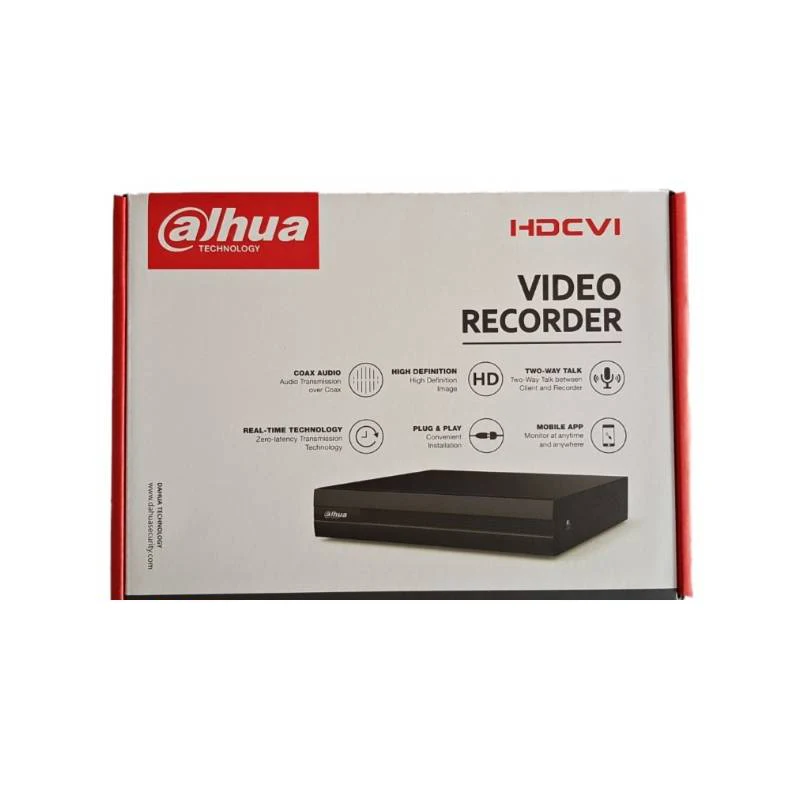

Dahua Cooper Series 4CH 8CH HDCVI Recorder 5 in 1 XVR, 4 Channel 8 Channel 1080P DVR (XVR1B04 XVR1B08)
Products Description
XVR1B04
XVR1B08
4/8 Channel Penta-brid 1080N/720P Cooper 1U Digital Video Recorder
> H.265+/H.265 dual-stream video compression
> Supports HDCVI/AHD/TVI/CVBS/IP video inputs
> Max 5/10 channels IP camera inputs, each channel up to 2MP/6MP; Max 20/40Mbps Incoming Bandwidth
> Long transmission distance over coax cable
> Supports 1 SATA HDD, up to 6TB
4/8 Channel Penta-brid 1080N/720P Cooper 1U Digital Video Recorder
> H.265+/H.265 dual-stream video compression
> Supports HDCVI/AHD/TVI/CVBS/IP video inputs
> Max 5/10 channels IP camera inputs, each channel up to 2MP/6MP; Max 20/40Mbps Incoming Bandwidth
> Long transmission distance over coax cable
> Supports 1 SATA HDD, up to 6TB
Product Paramenters
System | ||
Main Processor | Embedded Processor | |
Operating System | Embedded LINUX | |
Video and Audio | ||
Analog Camera Input | 4/8 Channel, BNC | |
HDCVI Camera | 4CH: 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps | |
8CH: 1080P@25/30fps, 720P@25/30fps | ||
AHD Camera | 1080P@25/30, 720P@25/30fps | |
TVI Camera | 1080P@25/30, 720P@25/30fps | |
CVBS Camera | PAL/NTSC | |
IP Camera Input | 4CH: 4+1, each channel up to 2MP | |
8CH: 8+2, each channel up to 6MP | ||
Audio In/Out | 1/1, RCA | |
Two-way Talk | Reuse audio in/out, RCA | |
Recording | ||
Video Compression | H.265+/H.265/H.264+/H.264 | |
Resolution | 1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF | |
Record Rate | Main Stream: | |
4CH: All channels 1080N/720P/960H/D1/HD1/BCIF/CIF/QCIF(1~25/30fps) | ||
8CH: the 1st channel 1080N/720P(1~25/30fps), others 1080N/720P(1~15fps); 960H/D1/HD1/BCIF/CIF/QCIF(1~25/30fps) | ||
Sub stream: | ||
4CH: CIF/QCIF (1~15fps) | ||
8CH: CIF/QCIF (1~7fps) | ||
Video Bit Rate | 32Kbps ~ 4096Kbps Per Channel | |
Record Mode | Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop | |
Record Interval | 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec | |
Audio Compression | G.711A, G.711U, PCM | |
Audio Sample Rate | 8KHz, 16 bit Per Channel | |
Audio Bit Rate | 64Kbps Per Channel | |
Display | ||
Interface | 1 HDMI ,1 VGA | |
Resolution | 1920×1080, 1280×1024, 1280×720 | |
Multi-screen Display | When IP extension mode not enabled: | |
4CH: 1/4 | ||
8CH: 1/4/8/9 | ||
When IP extension mode enabled: | ||
4CH: 1/4/6 | ||
8CH: 1/4/8/9/16 | ||
OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording | |
Network | ||
Interface | 1 RJ-45 Port (100M) | |
Network Function | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter ,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.) | |
Max. User Access | 128 users | |
Smart Phone | iPhone, iPad, Android | |
Interoperability | ONVIF 16.12, CGI Conformant | |
Video Detection and Alarm | ||
Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips | |
Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis | |
Alarm input | N/A | |
Relay Output | N/A | |
Playback and Backup | ||
Playback | 4CH: 1/4 | |
8CH: 1/4/9 | ||
Search Mode | Time /Date, Alarm, MD and Exact Search (accurate to second) | |
Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom | |
Backup Mode | USB Device/Network | |
Storage | ||
Internal HDD | 1 SATA Port, up to 6TB capacity | |
eSATA | N/A | |
Auxiliary Interface | ||
USB | 2 USB 2.0 | |
RS232 | N/A | |
RS485 | N/A | |
Electrical | ||
Power Supply | DC12V/1.5A | |
Power Consumption | <10W | |
(Without HDD) | ||
Construction | ||
Dimensions | Cooper 1U, 197mm×192mm×41mm (7.8“×7.6”×1.6“) | |
Net Weight | 0.54kg (1.19lb) | |
(without HDD) | 0.56kg (1.23lb) | |
Gross Weight | 0.93kg (2.05lb) | |
Installation | Desktop installation | |
Environmental | ||
Operating Conditions | -10°C ~ +45°C (+14°F ~ +113°F), 10~ 90% RH | |
Storage Conditions | -20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH | |
Third-party Support | ||
Third-party Support | Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more | |
Certifications | ||
Certifications | FCC: Part 15 Subpart B | |
CE: CE-LVD: EN 60950-1/IEC 60950-1 | ||
CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 | ||
UL: UL 60950-1 | ||
Company Profile
Shenzhen Bomi Technology, Limited
Shenzhen Bomi Technology, Limited mainly focuses on the distribution of security products from the three top manufacturers from
China-Hikvision, Dahua and Uniview. We have been working in this field since 2015 and we have established long-term and stable
relationship with these factories. The products we sell including stand-alone DVR, NVR, IP camera, HDCVI camera, video intercoms,
access controls products, alarm products, accessories and so on with international version. We have great advantage on prices and
after-sales service amoung the other competitors from China. We adhere to the principle of "Customer Upmost, Service First", so,
we always try our best to do win-win business with our customers. We have exported to many countries and regions including Europe,
America, Asia, Australia and so on. OEM orders are acceptable. .Your trust is our great honor! Your satisfaction is our pursue. We
will continually create new products to satisfy your individual needs. We will make great efforts to offer excellent pre-sales,
sales and after-sales service.We are sincerely looking forward to your cooperation!
China-Hikvision, Dahua and Uniview. We have been working in this field since 2015 and we have established long-term and stable
relationship with these factories. The products we sell including stand-alone DVR, NVR, IP camera, HDCVI camera, video intercoms,
access controls products, alarm products, accessories and so on with international version. We have great advantage on prices and
after-sales service amoung the other competitors from China. We adhere to the principle of "Customer Upmost, Service First", so,
we always try our best to do win-win business with our customers. We have exported to many countries and regions including Europe,
America, Asia, Australia and so on. OEM orders are acceptable. .Your trust is our great honor! Your satisfaction is our pursue. We
will continually create new products to satisfy your individual needs. We will make great efforts to offer excellent pre-sales,
sales and after-sales service.We are sincerely looking forward to your cooperation!
FAQ
1.When will you ship my order? |
Ordinary,once we get confirmation for payment,we will ship order within 1-2 days. |
2.Can I install the IP camera by myself? |
Of course,the camera is flexible installated.And there is a user manual within box,you can contact us in need. |
3.How is your after-sale service? |
Three engineers work more than five years we will respond your technical support within 24 hours. |
4.Do you support drop shipping? |
Yes,your drop shipping is aviable. |
5.How about warranty? |
Three years warranty. |
Dahua Cooper Series 4CH 8CH HDCVI Recorder 5 in 1 XVR, 4 Channel 8 Channel 1080P DVR (XVR1B04 XVR1B08)
Dahua Cooper Series 4CH 8CH HDCVI Recorder 5 in 1 XVR, 4 Channel 8 Channel 1080P DVR (XVR1B04 XVR1B08)
