Unique U Boom High Quality 50 Ton Construction Machine Pickup Crane Lifting Equipment In Malaysia
SM1
Product Description

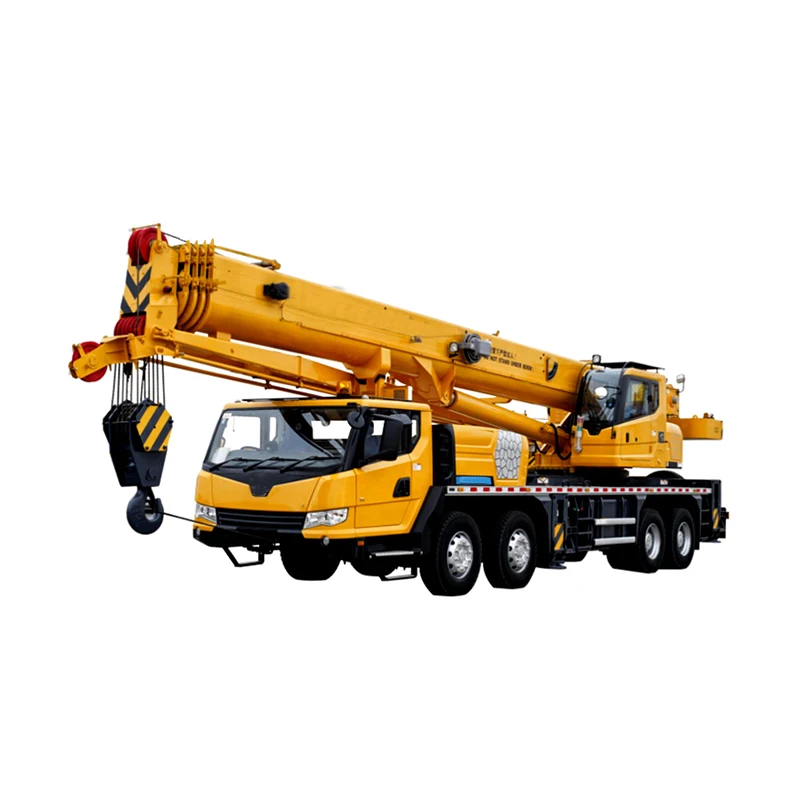

XCT50_Y truck crane is widely used for the lifting operations in general engineering projects, such as construction site, urban renewal, communication and transportation, ports, bridge, oilfields and mine, and complex working environments.
Performance Characteristics:
1. 5-section boom of 44m with U-type profile is adopted; the max. lifting load is 50 t; the max. lifting height is 59.5 m; all capacities take the lead in its class.
2. The machine is designed to be high temperature resistance, so it can continuously work without downtime in ambient temperature of 45℃. The whole vehicle is also waterproof and corrosion resistant. The reliability and service life of parts are greatly improved.
3. Abundant configurations of operating methods and jib types can meet the requirements of different customers.
Item | Unit | Parameter | |
Dimensions (length x width x height) | mm | 14045×2790×3615 | |
Total vehicle mass in travel configuration | kg | 40100 | |
Axle load | 1st and 2nd axle | kg | 8500 |
3rd and 4th axle | kg | 11550 | |
Engine rated power/rpm | kW/(r/min) | 247/2200 | |
Max. output torque/rpm | N.m/(r/min) | 1350/1100-1600 | |
Max. travel speed | km/h | 90 | |
Min. turning diameter | m | 24 | |
Min. ground clearance | mm | 260 | |
Approach angle | ° | 19 | |
Departure angle | ° | 13 | |
Max. grade ability | % | 40 | |
Fuel consumption per 100 km | L | 38 | |
Max. total rated lifting capacity | t | 50 | |
Min rated working radius | m | 3 | |
Max. load moment | Base boom | kN.m | 2009 |
Fully-extended boom | kN.m | 933 | |
Outrigger span | Longitudinal | m | 6.1 |
Lateral | m | 7.1 | |
Hoist height | Base boom | m | 11.2 |
Fully-extended boom | m | 43.3 | |
Boom length | Base boom | m | 11.4 |
Fully-extended boom | m | 43.5 | |
