CNMC-300 High Pressure PU Polyurethane Spray Foam Injection Machine
1. The machine has a small size, light weight, low failure rate, simple operation, easy to move and so on.
2. Use the most advanced pneumatic booster devices, the maximum degree to ensure stability of equipment work.
3. Multiple raw material filter device to minimize the spray plug problem.
4. Multiple leakage protection system to protect the safety of the operator.
5. With an emergency switch system, to the most rapid response to emergencies.
6. Reliable and powerful heating system can make the raw material rapidly heating to the ideal state, to meet the normal
construction of equipment.
7. The feeding volume can be adjusted, and has a regular, quantitative function, especially suitable for high-precision small
batch of polyurethane casting to improve production efficiency.
8. The latest no-clean spray gun with small size, light weight, low failure rate.
9. Material taken pump use large ratio method, automatic mention material, high viscosity of winter raw materials can also easily
feed.




Parameter of hydraulic polyurethane foam spray machine


Model
CNMC-300
Max working pressure
15MPa (150 bar)
Max hose length
94m(spraying)/120m(injecting)
Max fluid temperature
88℃ (190℉)
Max output
14kg/min ( 30 lb/min)
Max output pressure
20MPa
Heater power
6000W each side
Heating hose power
1000W/15m
Whole power
17000W
Voltage
380 V 3 phase 50HZ
Machine weight
150kg
Standard configuration:
Proportion Fixed Mainframe
1 set

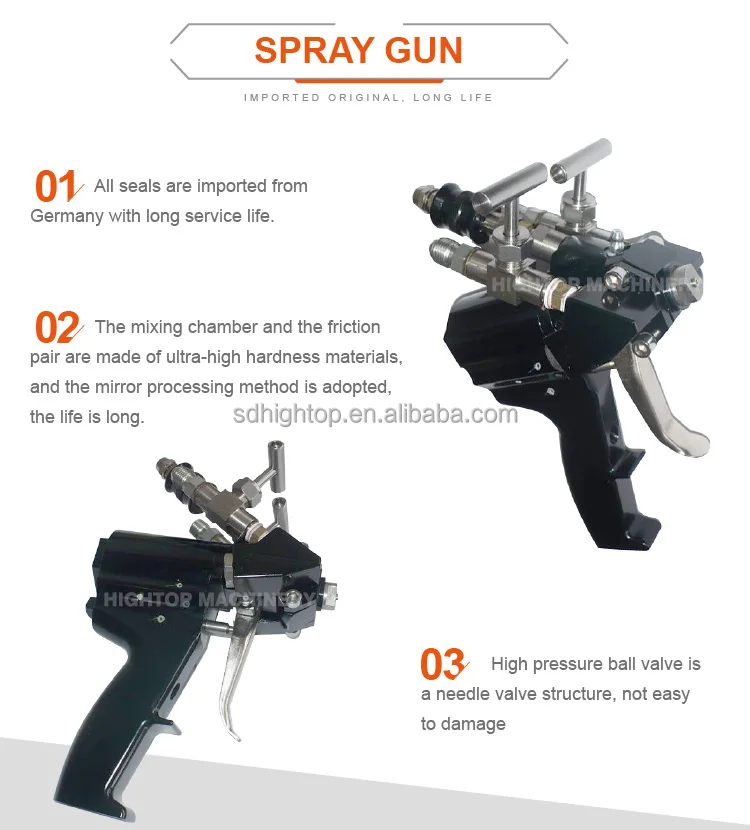

Self-cleaning foaming gun
1 set

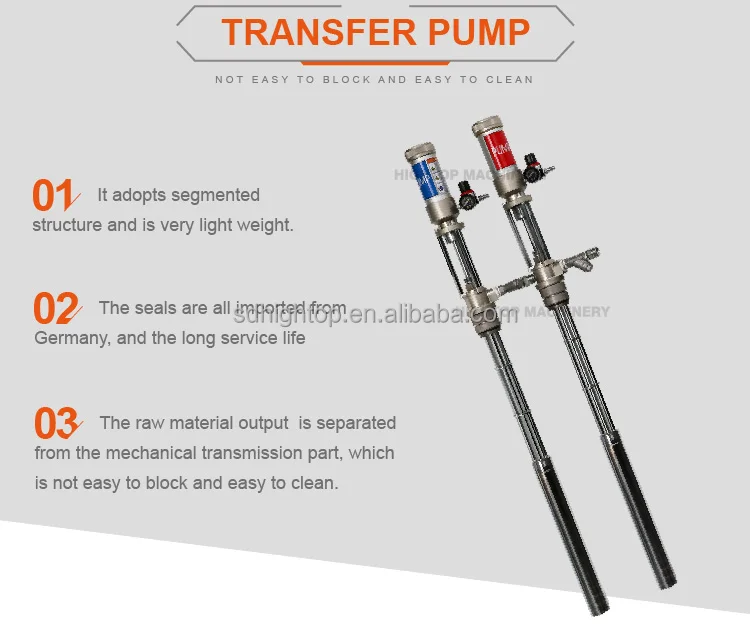

Feeding pump
2 set

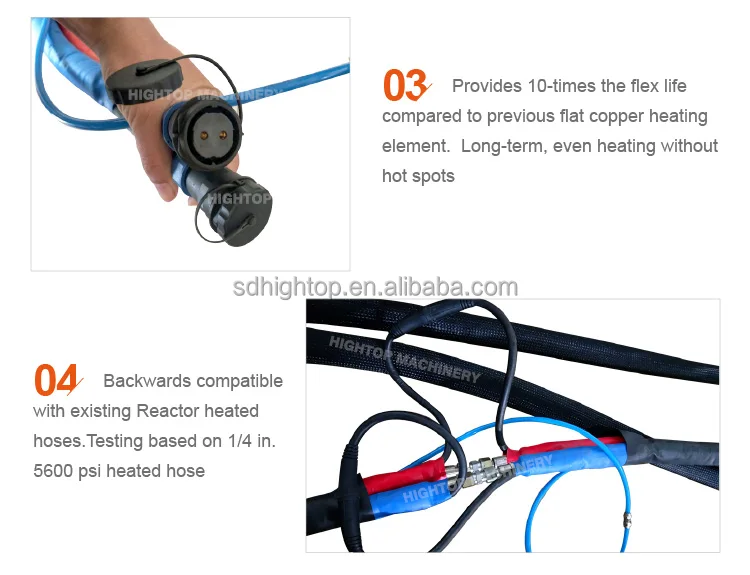

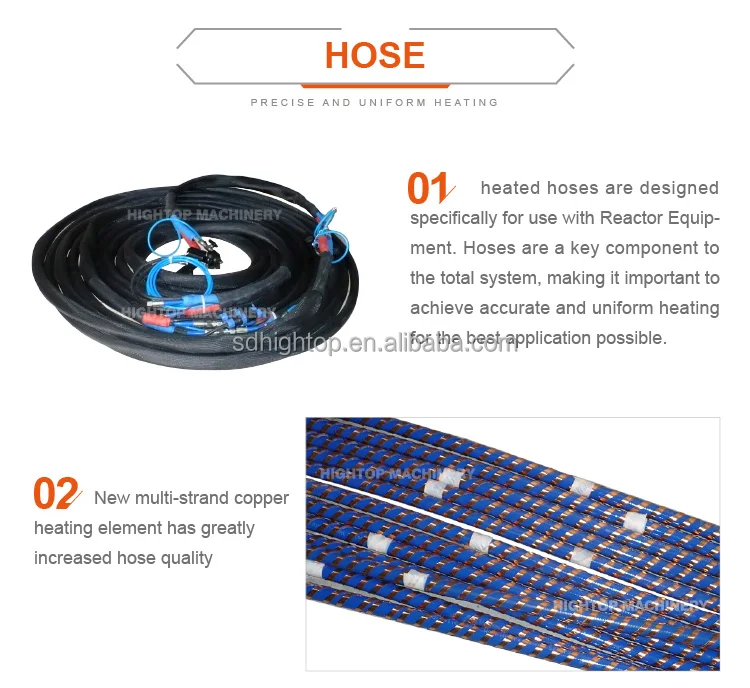

Heating hose
49.2 feet (15m)
Connecting hose from feeding pump to machine
10 feet(3meters )
Connecting hose from heating hose to gun
 5 feet(1.5m)

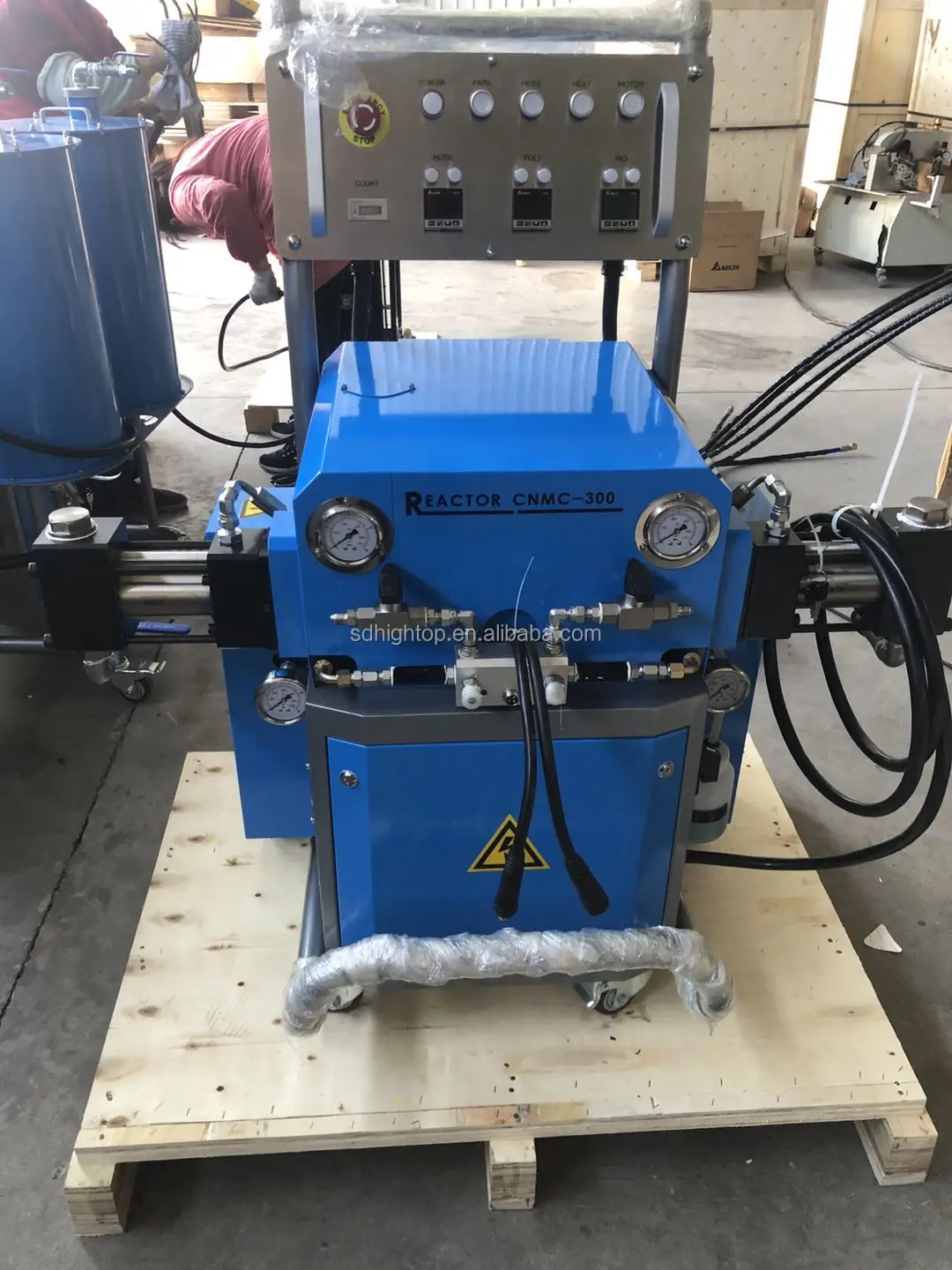

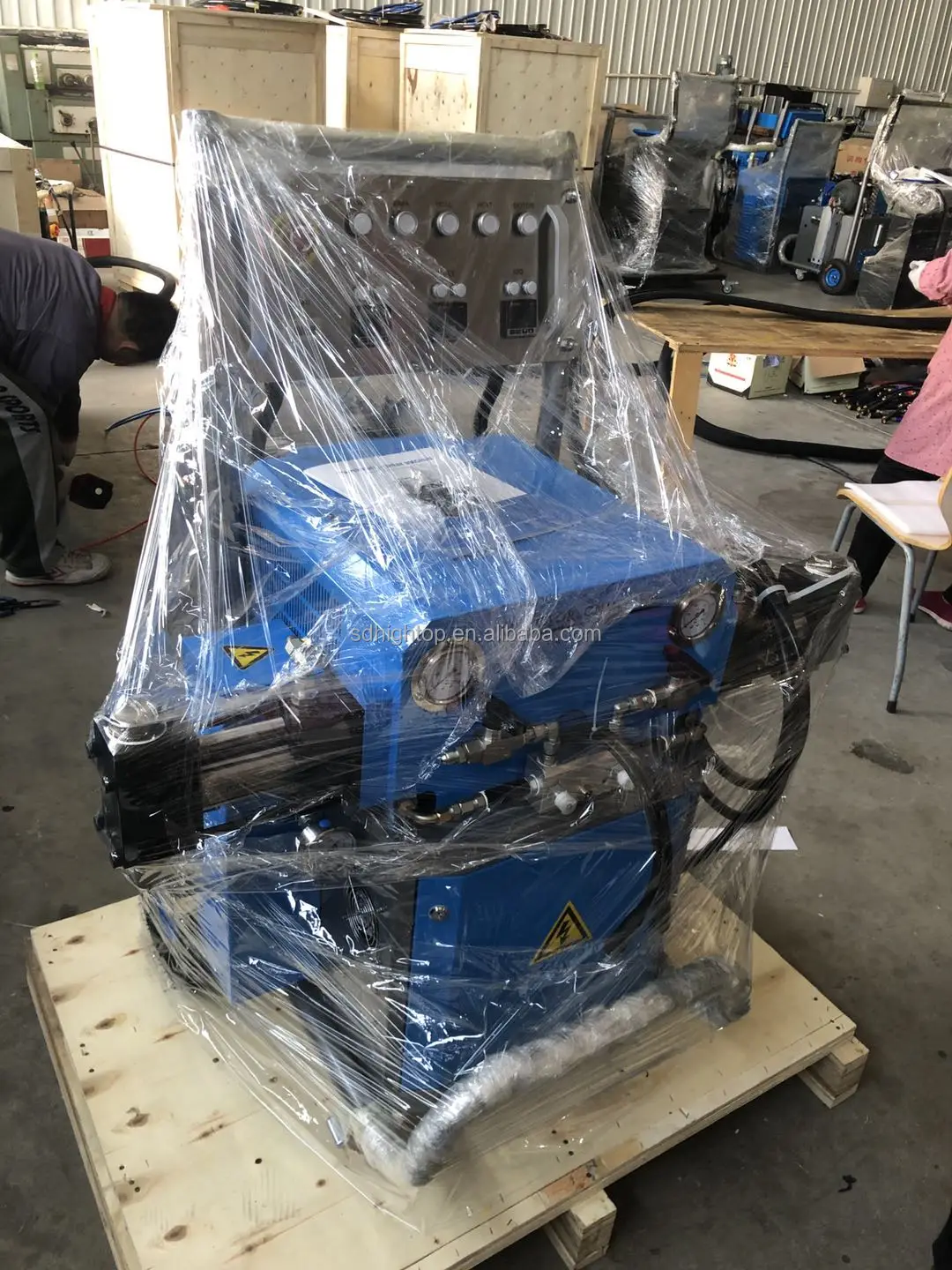

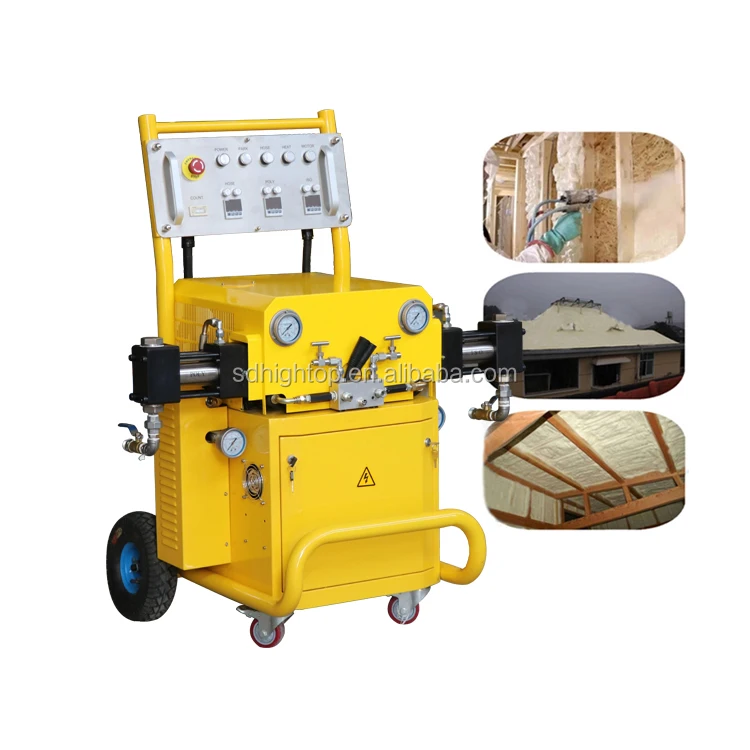

Images of hydraulic polyurethane foam spray machine
