Product Description
Product Name | Optical Time Domain Reflectometer |
Dynamic Range | 24/22dB |
Funcion | Detecting uniformity, defects, break, and joint coupling of fibers |
Application field | Cable construction, maintenance and monitoring |
Product performance description
产品性能介绍说明
产品性能介绍说明

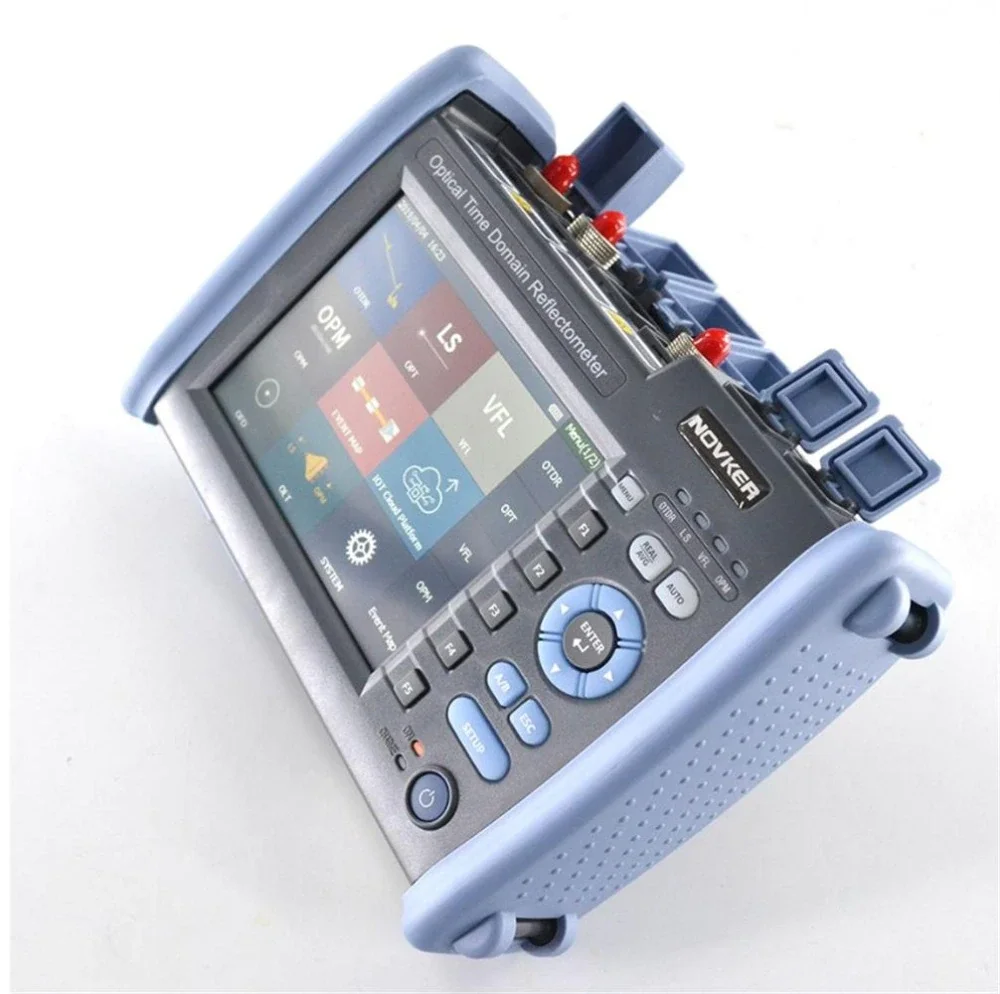

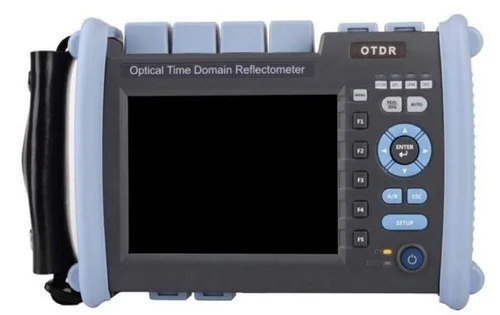

The NK6000 series of optical time domain reflectors are a high-performance multi-function instrument designed for FTTX networks. The product can achieve a large 45dB dynamic range, a ranging resolution of 0.05m, a blind spot having a small 0.8M, has a double wavelength, three-wavelength, four-wavelength, and a single, multi-mode body, etc., which is selected. The online module enables the lossless, unique results self-diagnosis function, greatly guarantees the reliability and effectiveness of the results.
This product can achieve a variety of functions such as light source, optical power meter, VFL, fiber end face detection, light loss, fault location, photographic (MAP view), single mode, and multi-mode.
This product can achieve a variety of functions such as light source, optical power meter, VFL, fiber end face detection, light loss, fault location, photographic (MAP view), single mode, and multi-mode.
This product uses a touch and button dual operation. This product has a rich external interface that can be achieved remotely through the Ethernet interface, or the external U disk, printer and PC data communication can be implemented by two different USB interfaces.
1.High performance test
5.8 inch color TFTLCD display,
touch/ key dual operation
Dynamic range:. 35/33dB
Less than 0.8 meters ultra
short event blind area
testing optical fiber jumper freely..
Link optical nondestructive testing
Signal optical detection function
(Effective protection of APD)
touch/ key dual operation
Dynamic range:. 35/33dB
Less than 0.8 meters ultra
short event blind area
testing optical fiber jumper freely..
Link optical nondestructive testing
Signal optical detection function
(Effective protection of APD)
2.Mutifunctional test - Standard
configuration
OTDR.
Stable laser source
Visual red light fault location (VFL)
Optical power meter (OPM)
OTDR.
Stable laser source
Visual red light fault location (VFL)
Optical power meter (OPM)
3.Mutifuntional test - high configuration
Intelligent Optical Link Mapper [iOLM]
Optical fiber end face detection
Optical loss test
Fault location
Optical fiber end face detection
Optical loss test
Fault location
4.Convenient operation
One key automatic test
unique diagnostic function for test
Multi wavelength simultaneous testing function
Ethernet Remote control
unique diagnostic function for test
Multi wavelength simultaneous testing function
Ethernet Remote control
5.Convenient data processing
English and Chinese input function
Automatic data storage
SOR Batch processing
Remote upgrade function
IOT Cloud Platform soon
Automatic data storage
SOR Batch processing
Remote upgrade function
IOT Cloud Platform soon
6.High reliability
20h Super long standby
1.5 meter drop test
Waterproof and splash proof
Operating temperature -10℃~50℃
1.5 meter drop test
Waterproof and splash proof
Operating temperature -10℃~50℃
Product Usage
* * 7-inch full touchscreen; Professional and efficient UI (user interface) and UE (user experience)
* Handy, lightweight, fully functional, tablet-inspired design
* Excellent optical performance: Event dead zone: minimum 1m;
Attenuation dead zone: minimum 5m
* Dynamic range: 28dB-34dB
* Resolution with the shortest distance:5 cm
* 12-hour operating time
* Fully featured: Options support VFL, power meter, light source and Fiber Inspection Probe
* Handy, lightweight, fully functional, tablet-inspired design
* Excellent optical performance: Event dead zone: minimum 1m;
Attenuation dead zone: minimum 5m
* Dynamic range: 28dB-34dB
* Resolution with the shortest distance:5 cm
* 12-hour operating time
* Fully featured: Options support VFL, power meter, light source and Fiber Inspection Probe
It is mainly used to measure the length, loss and connection quality of all kinds of optical fibers and cables, and can be widely
used in engineering construction, line maintenance and testing, emergency repair, and the development and production of optical fibers and cables.
Product | NK6000 Series Multi-Function Optical Time Domain Reflectometer | ||||||||||||||
Model | S1 | S2 | S3 | S4 | T1 | T2 | M1 | SM1 | |||||||
Fiber type | SM | MM | SM&MM | ||||||||||||
Wavelength(nm) | 1310/1550 | 1310/1490/1550 | 1310/1550/1625 | 850/ 1300 | 850/1300/1310/1550 | ||||||||||
Maximum dynamic range(dB) | 35/33 | 38/36 | 42/40 | 45/43 | 38/35/36 | 38/35/36 | 26/28 | 26/28/37/35 | |||||||
Event dead zone(m) | 1 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 1 | 1 | |||||||
Attenuation dead zone(m) | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |||||||
Display | 5.8 inch color LCD with touch screen； size: 227 mm *160 mm *70mm | ||||||||||||||
Measuring range | 500m /l km /2 km /4 km /8 km /16 km /32 km /64 km /128 km /256km | ||||||||||||||
Measuring pulse width | 5ns/ 10ns/ 5Ons/ 160ns/ 320ns/ 500ns/1000ns/ 5000ns/ 1000ns/ 2000ns | ||||||||||||||
Ranging accuracy | ± (0.75m+ Sampling interval +0.005% x Test distance) | ||||||||||||||
Loss precision | ± 0.05dB | ||||||||||||||
Reflection accuracy | ± 3dB | ||||||||||||||
Data storage | ≥2000 | ||||||||||||||

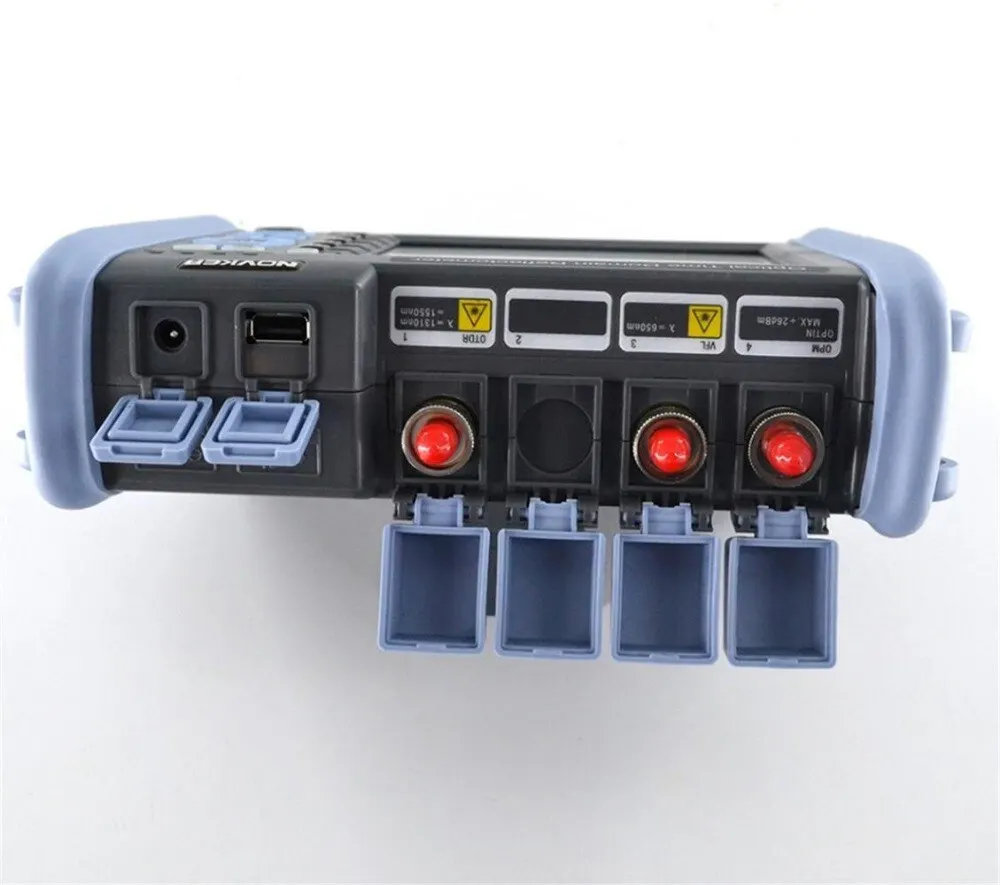

Interface type | FC/ PC (Replaceable SC, ST) | ||||||||||||||
Communication interface | USB, mini-USB, 10M/100M Ethernet | ||||||||||||||
VFL output | ≥5mW | ||||||||||||||
