Адаптер питания Gigabit active ethernet POE Инжектор poe для
- Категории: Ethernet & Communication Modules >>>
- Поставщик: Optical,Network,Video,Technologies,(shenzhen),Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

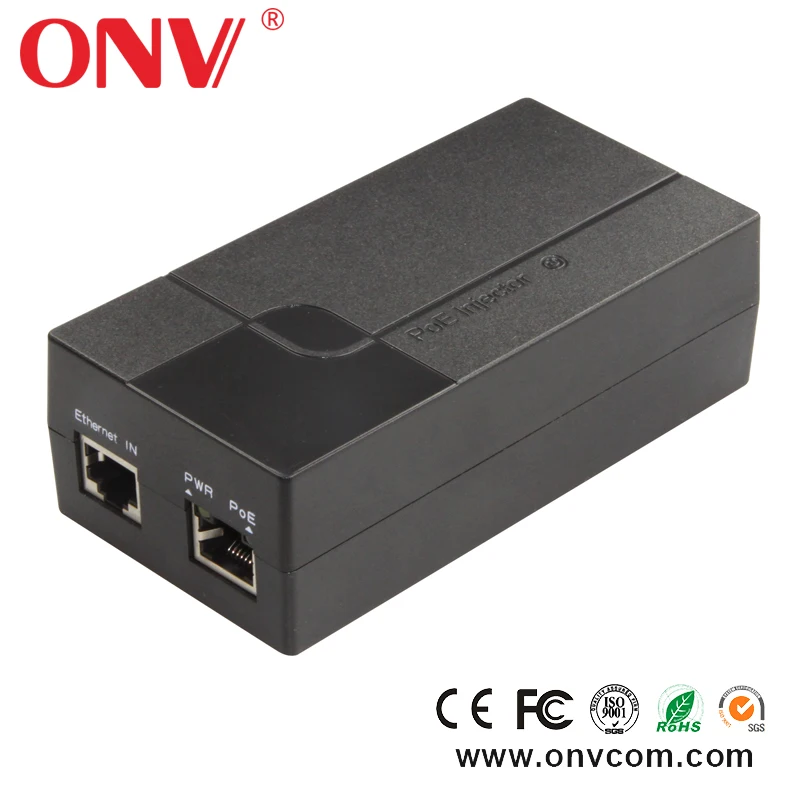

ONV-PSE3301AC

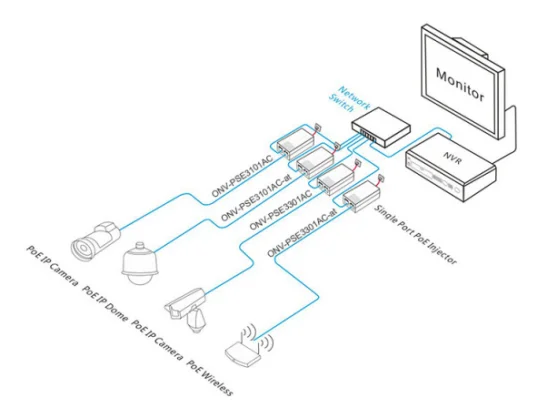

— Supply power to HD network surveillance cameras with Cat5e (PoE)
— 2x 10/100/1000M RJ45 ports; 1x AC input port
— AC input: 100~240V
— Compatible with IEEE 802.3af standard
— Coming with the Ethernet network port and PoE output port, and the power input port with
lighting-proof function (meet the secondary lightning protection)
— Can supply power with the spare line pair(4/5 (+), 7/8 (-) method or the data line pair 1/2(+),
3/6(-) method
— No fan, natural heat dissipation, small, quiet design, suitable for desktop or wall
Model | ONV-PSE3301AC | ONV-PSE3301AC-at | |
Port Description | 2x copper cable RJ45 ports, 1x AC input port | ||
Power Supply Pin | Default: 1/2 (+), 3/6 (-),optional:4/5(+), 7/8(-) | ||
Network Medium | 1000Base-T: 5Cat and more UTP (≤100 meters) | ||
Thermal Protection | >100°C | After opening, port 17-24 support 10M/250 meters long distance transmission. | |
Working Rate | 10/100/1000Mbps | ||
Network Port Protection | IEC61000-4-2(ESD) | ||
MTBF | 100,000 hours | ||
LEDs Indicator | PoE working status | ||
PoE Standards | IEEE 802.3af | IEEE 802.3at | |
Total Power | 18W | 35W | |
DC Output Voltage | 52V | ||
PoE Port Power | 15.4W | 30W | |

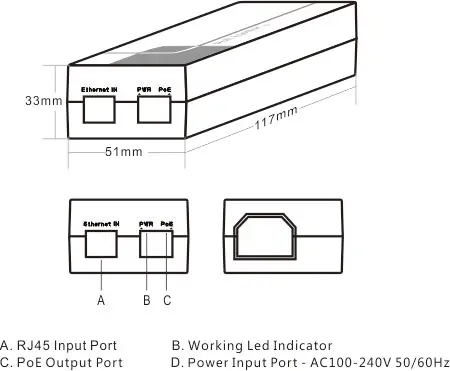

Dimensions | 117*51*33mm | Port 1 to Port 24 IEEE802.3af/at @ POE | |
Weight | 0.14kg | ||
Operation TEMP / Humidity | -20°～ 55°C;10%～90%% RH Non condensing | ||
Storage TEMP / Humidity | -20°～ 75°C;10%～95% RH Non condensing | ||
Certification | CE mark,commercial,FCC Part 15 Class B, RoHS | ||
Warranty | 3 years warranty | ||
Model | Description | ||||||
ONV-PSE3301AC | 10/100/1000M single port PoE injector, 2x RJ45 ports, IEEE802.3af, total power is 18W | ||||||
PACKING LIST | CONTENT | QTY | UNIT |
Single port gigabit PoE injector | 1 | SET | |
Power Cable | 1 | PC | |
User Guide | 1 | PC | |
Warranty Card | 1 | PC |
