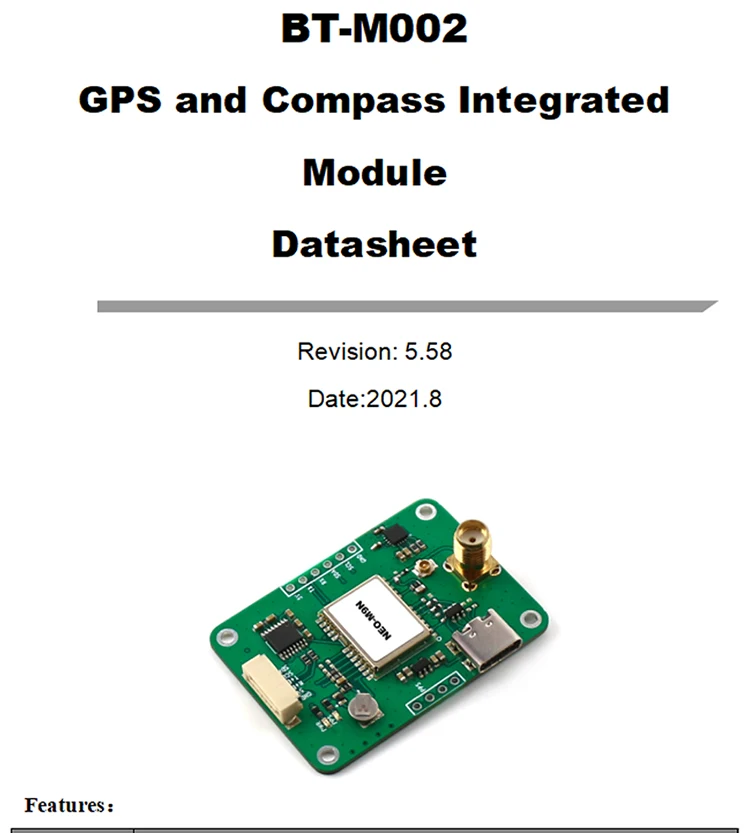

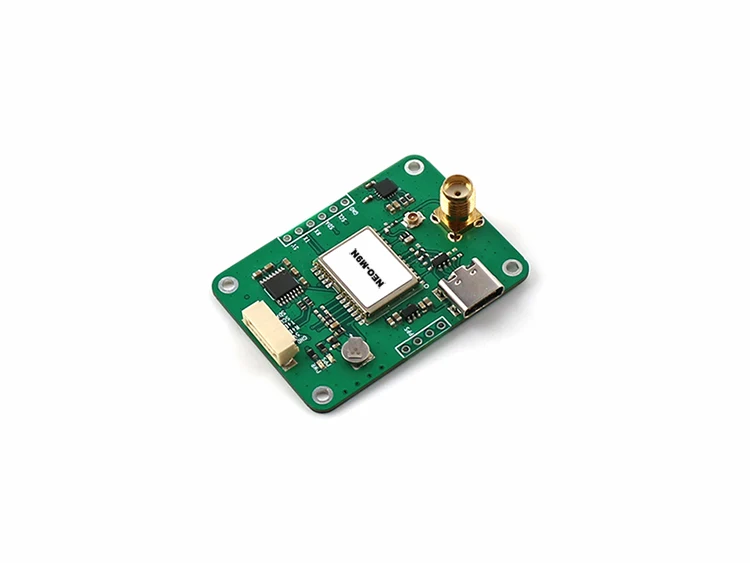

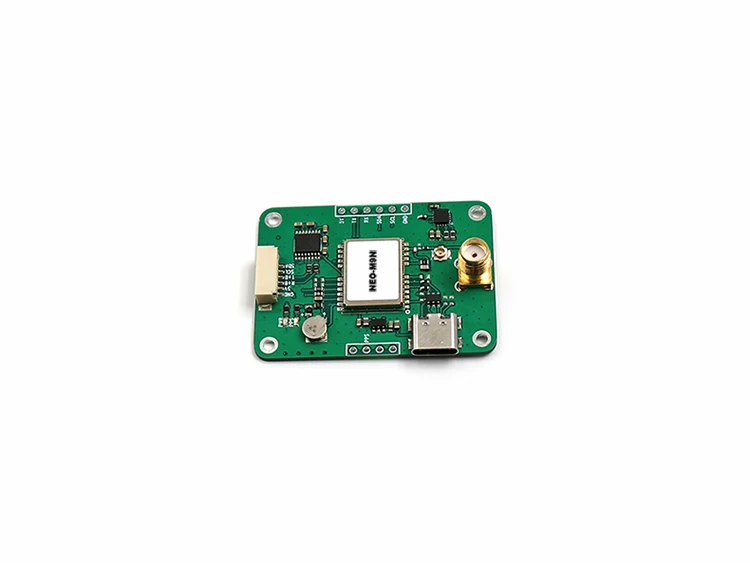

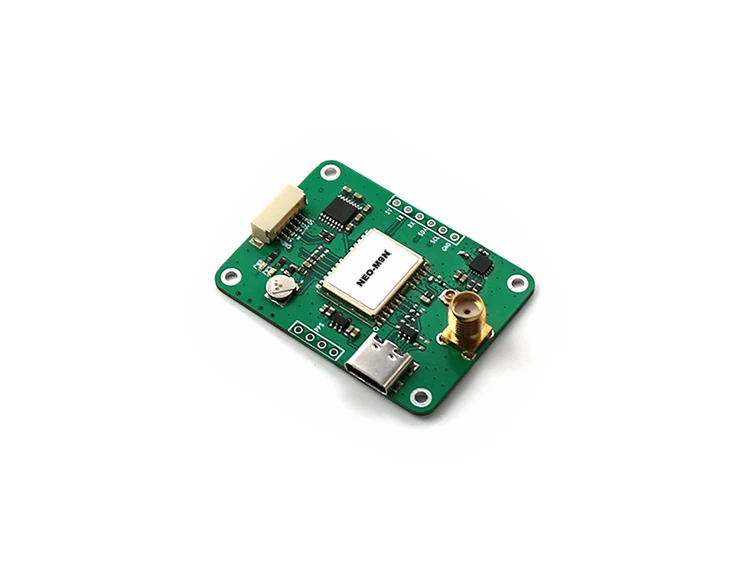

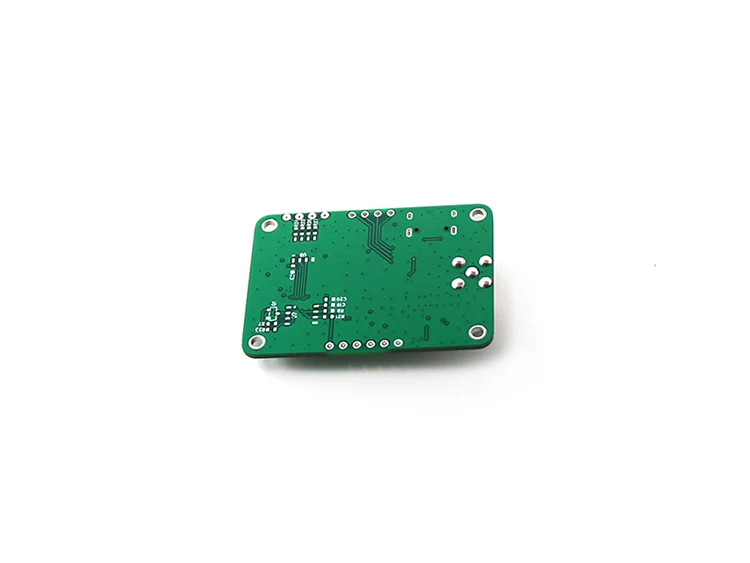

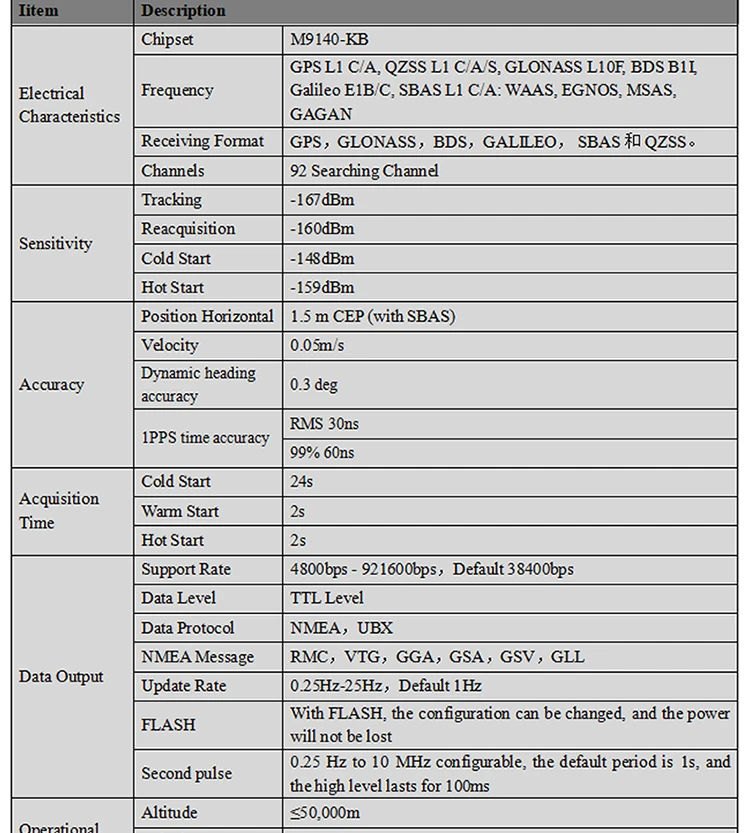

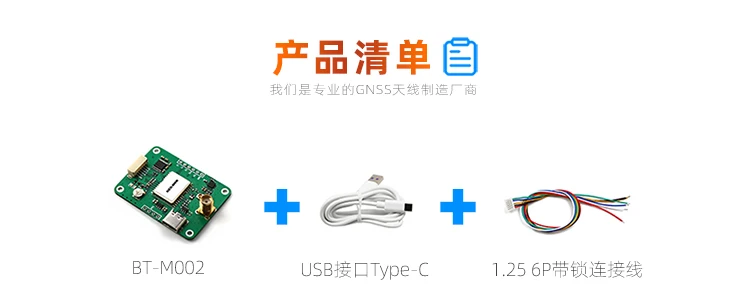

Beitian разработан с NEO-M9N электронный компас IC QMC5883L GPS L1 ГЛОНАСС BeiDou B1 Galileo E1

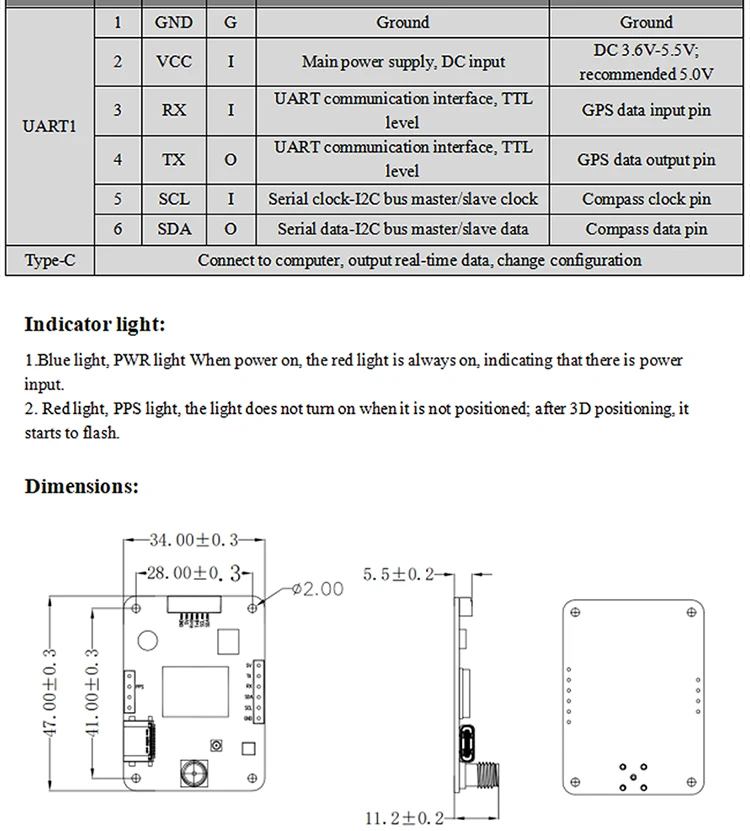

Interface

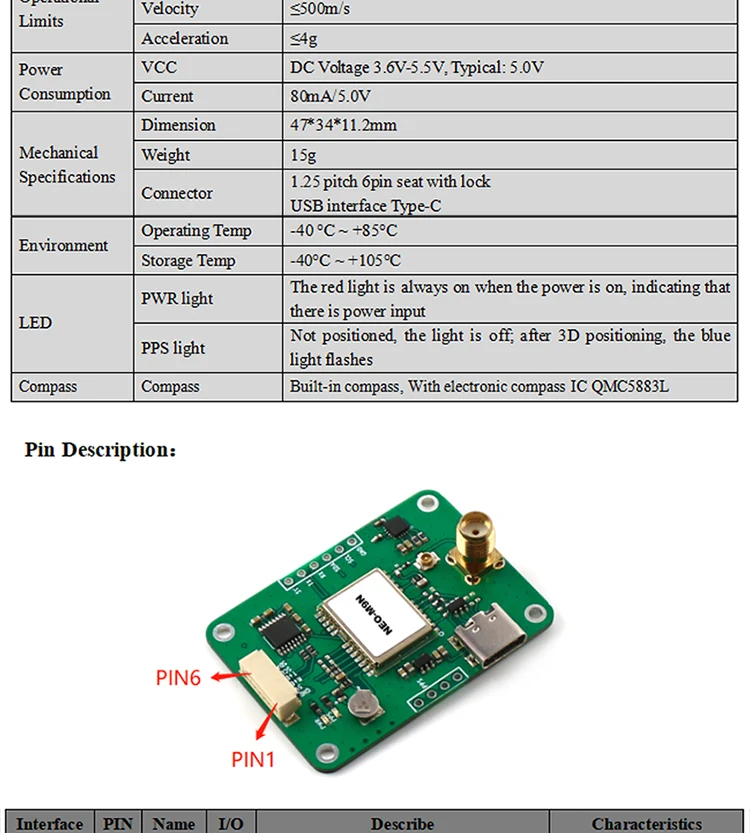

PIN

Name

I/O

Describe

Characteristics

UART1

1

GND

G

Ground

Ground

2

VCC

I

Main power supply, DC input

DC 3.6V-5.5V; recommended 5.0V

3

RX

I

UART communication interface, TTL level

GPS data input pin

4

TX

O

UART communication interface, TTL level

GPS data output pin

5

SCL

I

Serial clock-I2C bus master/slave clock

Compass clock pin

6

SDA

O

Serial data-I2C bus master/slave data

Compass data pin

Type-C

Connect to computer, output real-time data, change configuration
