1 ton 72V/135Ah new Lithium Battery electric quick hitch small Mini Telescopic Hydraulic Crawler Excavator
1. Independent design, beautiful appearance, high configuration, Yangma power.
2. Imported system, superior performance, low fuel consumption, wide operation range, suitable for construction operation with narrow space, etc.
3. Quick change joints are used, and various accessories such as rotary drilling drill, crushing hammer, loading bucket and grab are optional.
4. Reduce the cost, liberate the labor force, improve the degree of mechanization, low investment and high return.
2. Imported system, superior performance, low fuel consumption, wide operation range, suitable for construction operation with narrow space, etc.
3. Quick change joints are used, and various accessories such as rotary drilling drill, crushing hammer, loading bucket and grab are optional.
4. Reduce the cost, liberate the labor force, improve the degree of mechanization, low investment and high return.
Technical Parameters | ||||||
Machine Weight | 950KG | Theoretical working hours | 8.3KW/12HP | |||
Bucket Capacity | 0.025m³ | Support fast charging | Yes | |||
Working device form | Backhoe | Theoretical charging time | 8H/4H/1H | |||
Power mode | Lithium battery | Motor power | 4KW | |||
Battery voltage | 72V | Driving speed | 0km/h-6km/h | |||
Battery capacity | 135Ah | Power consumption per hour | 1Kwh | |||
Battery weight | 100KG | Decibels within 1 meter | ＜60 | |||

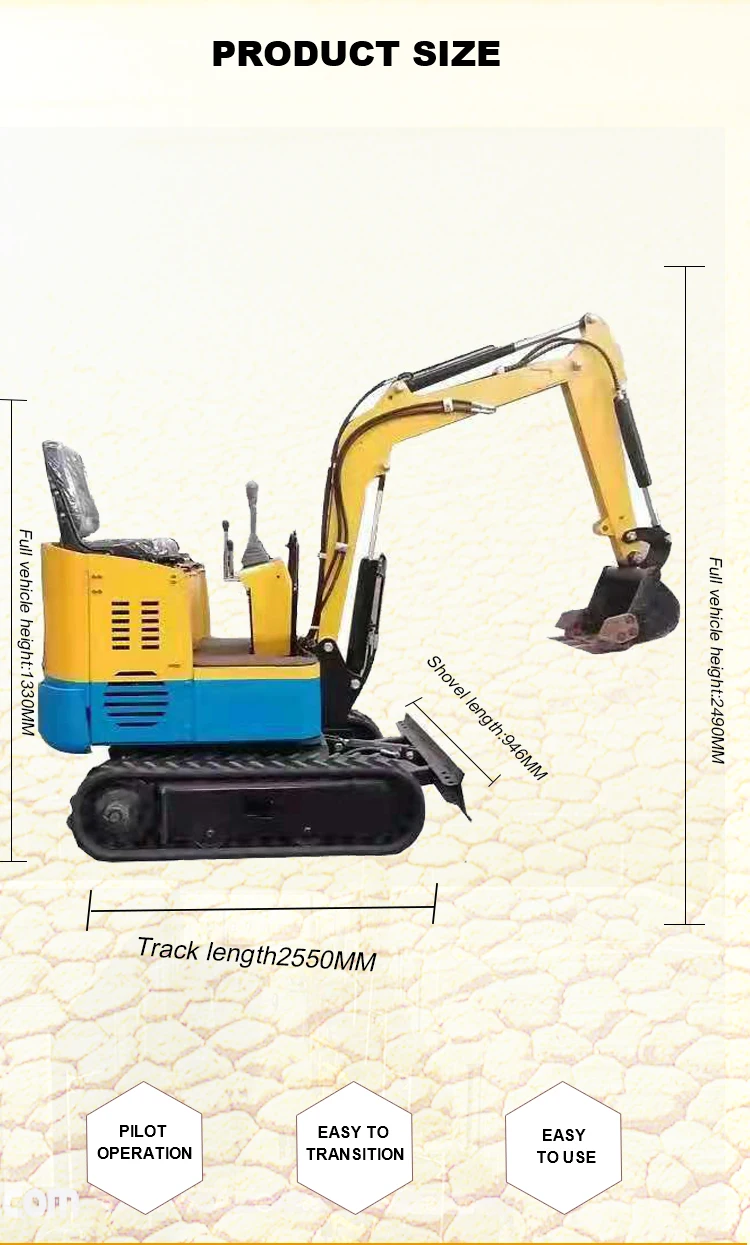

Dimensions | ||||||
Wheelbase | 770mm | Max. Digging radius | 2400mm | |||
Track ground length | 1090mm | Max. Digging depth | 1650mm | |||
Platform ground clearance | 380mm | Max. Digging height | 2490mm | |||
Chassis width | 946mm | Max. Unloading height | 1750mm | |||
Track width | 180mm | Min. radius of gyration | 1190mm | |||
Transport length | 2550mm | Max. Height of dozer blade | 325mm | |||
Full vehicle height | 1330mm | Dozer blade max. depth | 175mm | |||
Product Features
It has excellent work efficiency and cost performance, simple operation, small and flexible, convenient transportation, and can operate in a narrow site. It is especially suitable for planting, trenching, fertilization and weeding in orchards, such as Kiwi fruit, vineyard, orange and navel orange.
Likewise, it has multiple functions such as excavation, crushing, ditch cleaning and drilling.
It can quickly replace accessories and greatly improve the utilization rate of the machine; Boom side shift device: the boom side shift device is equipped at the front of the machine body, to truly realize the direct excavation work similar to the root of the wall without frequent movement of the machine body. It is more suitable for operation in narrow and small sites.
Adjustable bulldozer, crusher and pipeline can be selected to realize smooth, fast and powerful operation, better durability, maintenance and world-class safety performance.
Suitable working conditions: farmland, gardens, greening, pipeline construction, urban and rural construction, land loosening, orchard nursery planting pits, concrete pavement crushing, sand and gravel mixing, construction operations in small spaces, etc.
