ANENG ST208 Digital multimeter Clamp Tester



General Characteristic:

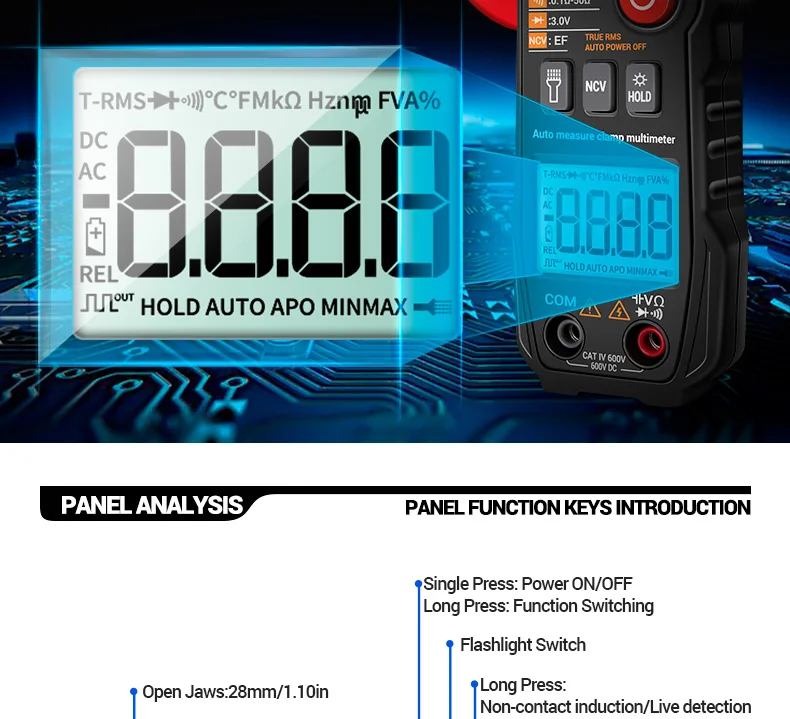

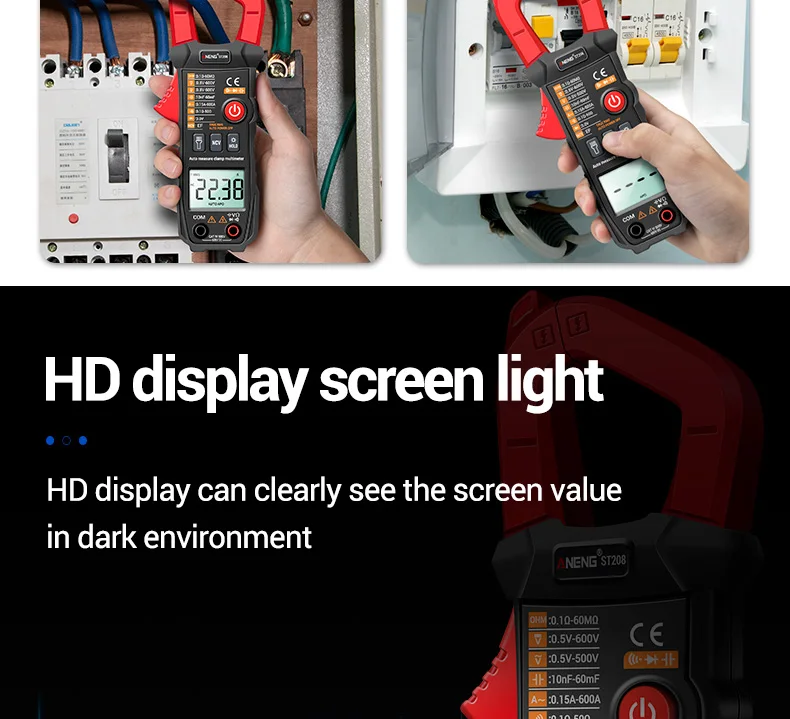

1. Display: liquid crystal display (LCD);

2. Maximum display: 5999 (5 5/6) bit automatic polarity display;

3. Measurement method: double integral A/D conversion;

4. Sampling rate: about 3 times per second;

5. Over range display: The highest position shows"OL";

6. Working environment:(0~40)℃,relative humidity<80%;

7. Power: AAA 2* 1.5V battery;

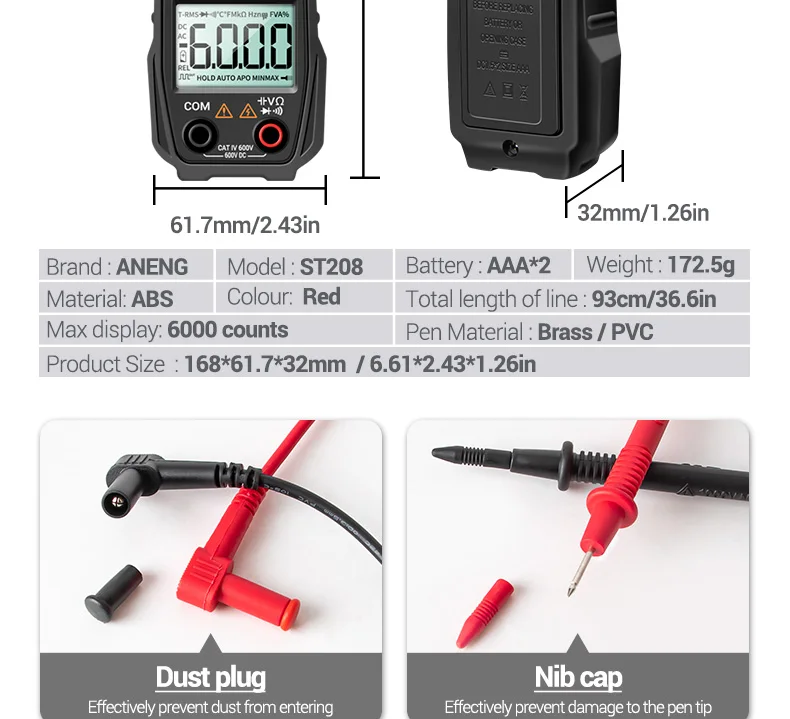

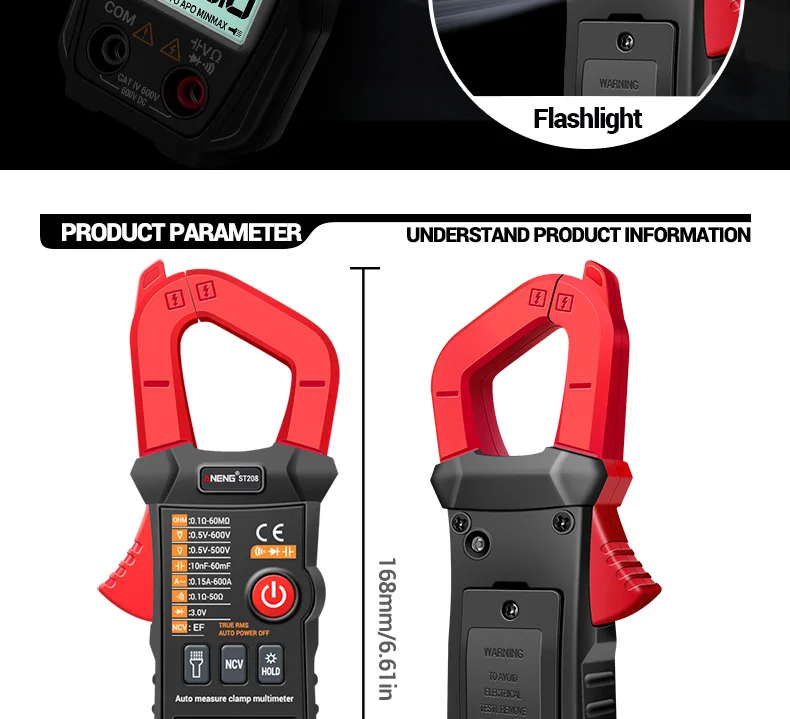

8. Volume (size): 176×67×33mm(L×W×H);

Technical Specification:

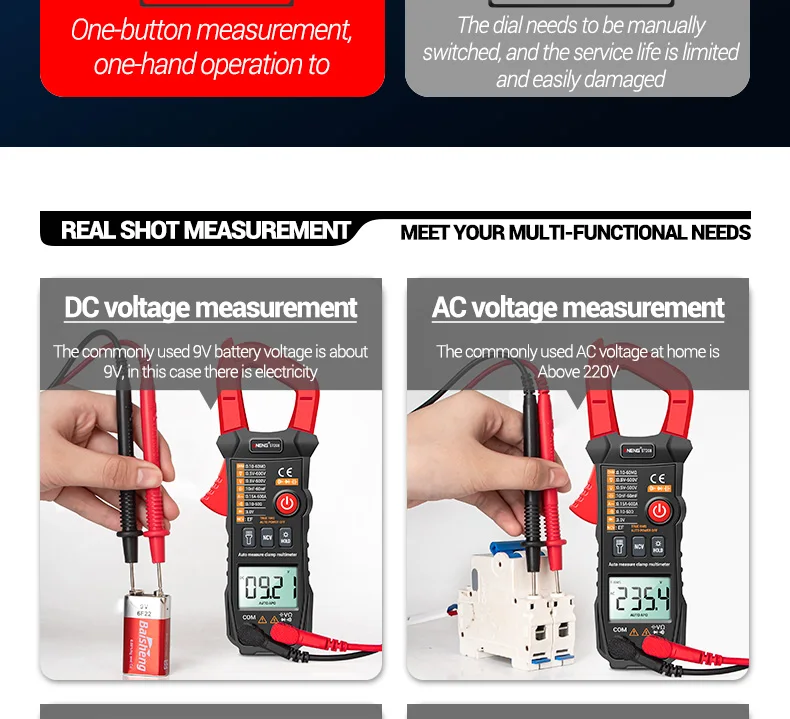

1.DC voltage / AC voltage automatic scanning test (DCV / ACV)

Accuracy Range	6000 counts	Resolution
DC/AC6V	±(0.5%+3)	0.001V
DC/AC60V		0.01V
DC/700V		0.1V
AC500V	±(0.8%+10)	1V



2.Resistance(Ω)

Accuracy Range	6000counts	Resolution
600Ω	±(0.8%+5)	0.1Ω
6kΩ	±(0.8%+3)	1Ω
60kΩ		10Ω
600kΩ		100Ω
6MΩ		1kΩ
60MΩ	±(2.5%+3)	10kΩ



3. Capacitance(C)

Accuracy Range	6000counts	Resolution
10nF	±(3.5%+20)	10pF
100nF		100pF
1uF		1nF
10uF		10nF
100uF		100nF
1mF		1uF
10mF		10uF
60mF	±(5%+3)	100uF

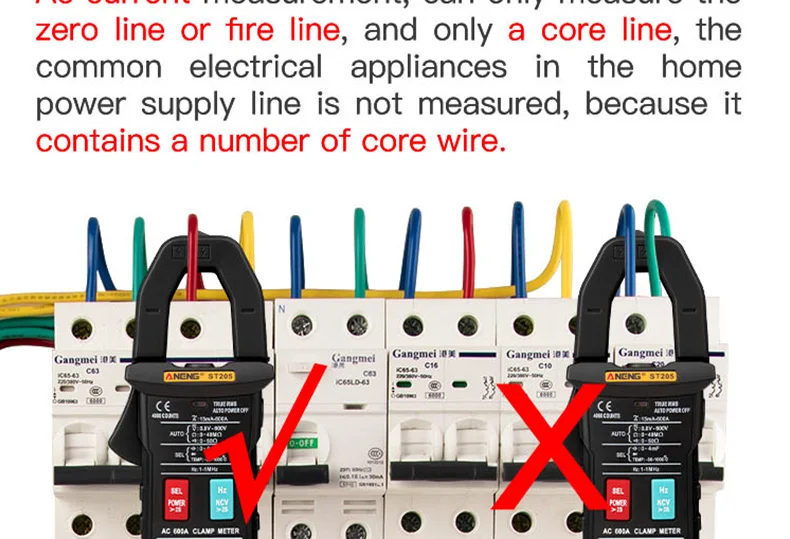

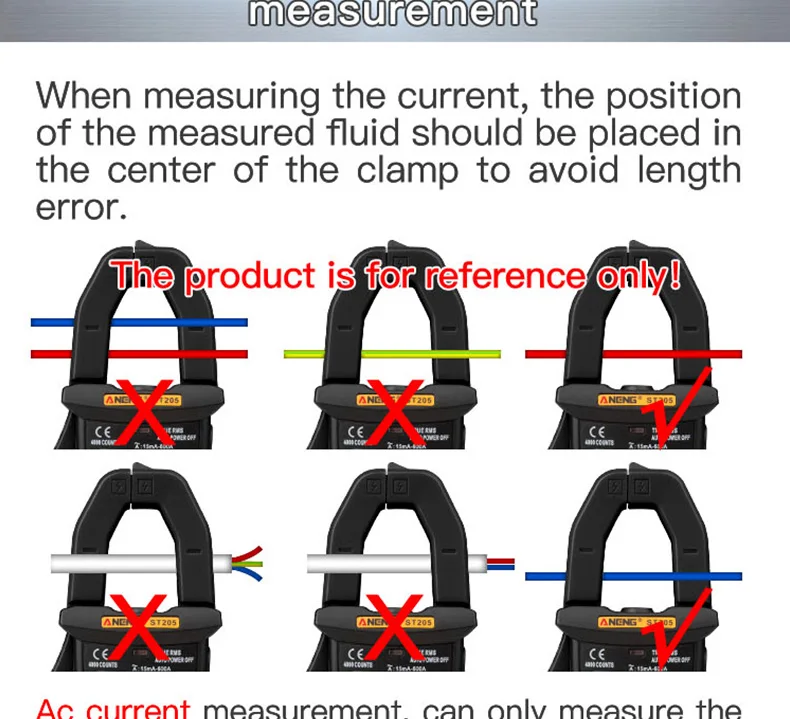

4.AC  current

Accuracy Range	6000counts	Resolution
60A	±(2%+30)	0.001A
600A		0.01A

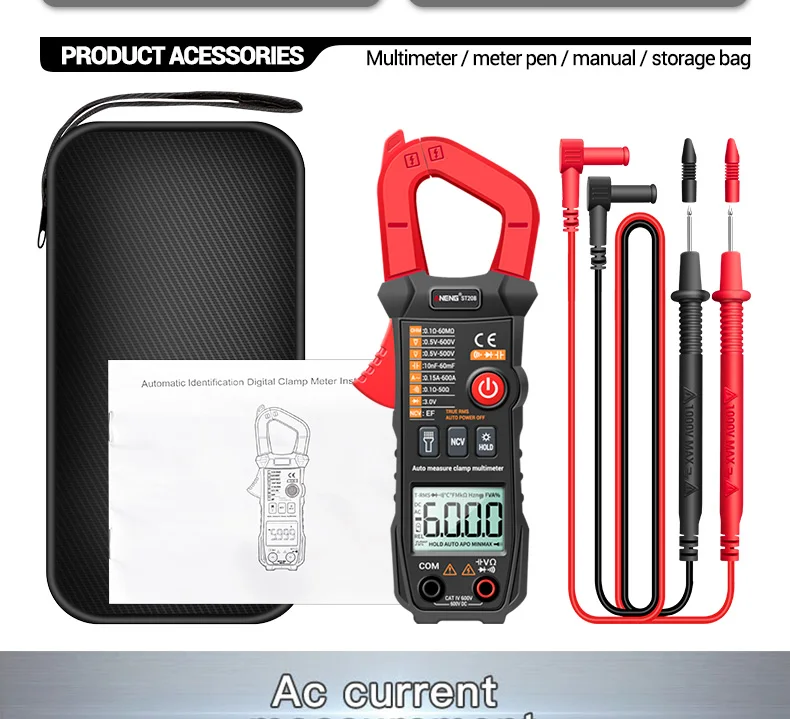

Package:

1 x Clamp Ammeter

1 x English User Manual

1 x Test Lead Probe
