Yugong High Speed Tea Paper Cup Making Machine Spare
- Категории: Paper Production Machinery >>>
- Поставщик: Henan,Yugong,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

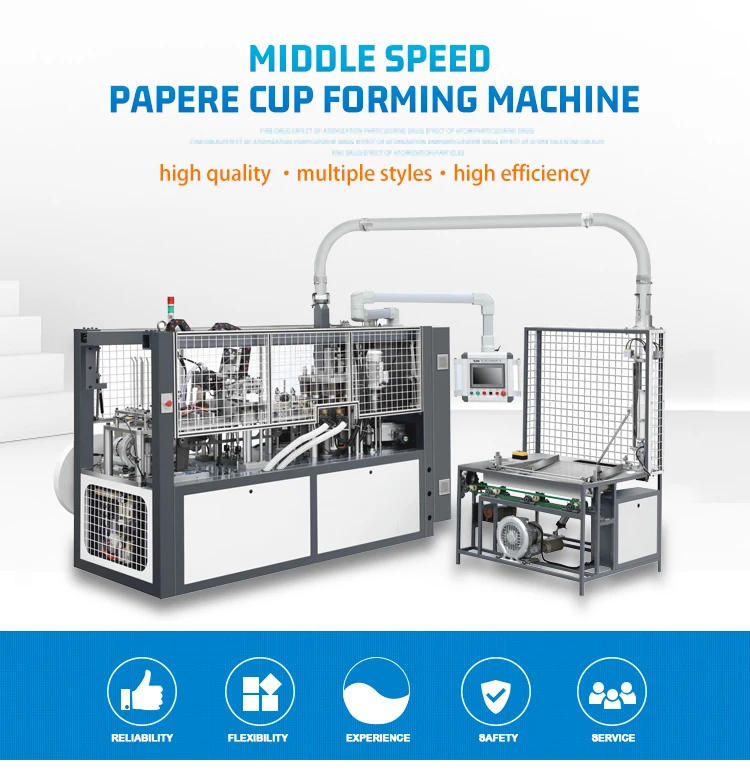

Middle Speed Paper Cup Making Machine
Reliability:
Smart middle speed paper cup forming machine is provided with advantages of high performance,high efficiency and high quality.
The overall steel plate machine body and oil-spraying lubrication system ensures normal and stable long-term operation of the equipment.
High Efficiency and Energy Conservation:
Advanced high-precision cylindrical cam driving unit working with gear drive system make sure the precisely working of every station.
Bottom paper feeding controlled by servo tracking system,and raw material paper can be saved effectively.
Advanced high-precision cylindrical cam driving unit working with gear drive system make sure the precisely working of every station.
Bottom paper feeding controlled by servo tracking system,and raw material paper can be saved effectively.
Foreign Technical and Made in China:
Paper bottom heating system(Switzerland Leister)uses 2 steps flameless heating.
Every step in production is monitored by photocell (Japan Omron)and be reported.
Paper bottom heating system(Switzerland Leister)uses 2 steps flameless heating.
Every step in production is monitored by photocell (Japan Omron)and be reported.
User-friendly Design:
The function of machine is controlled by human-computer interface and PLC system.
Manual operation can be replaced by automatic paper cup counting and collection table with appropriate setting.
The function of machine is controlled by human-computer interface and PLC system.
Manual operation can be replaced by automatic paper cup counting and collection table with appropriate setting.
| Cup size | 6~16oz(outside diameter ofa cup 60-90mm,outside diameter of bottom 50~70mm,height of cup 50~135mm,depth of bottom 5~10mm) |
| Rated speed | 90-110pcs/min |
| Main motor power | 2.2KW |
| Electro thermal power | 8.6/13.2KW |
| Air source | 0.6m/min;0.6MPa customer-owned |
| Applical base paper | 190~350g/(single or double PE coating paper) |
| Weight | 3.8T |

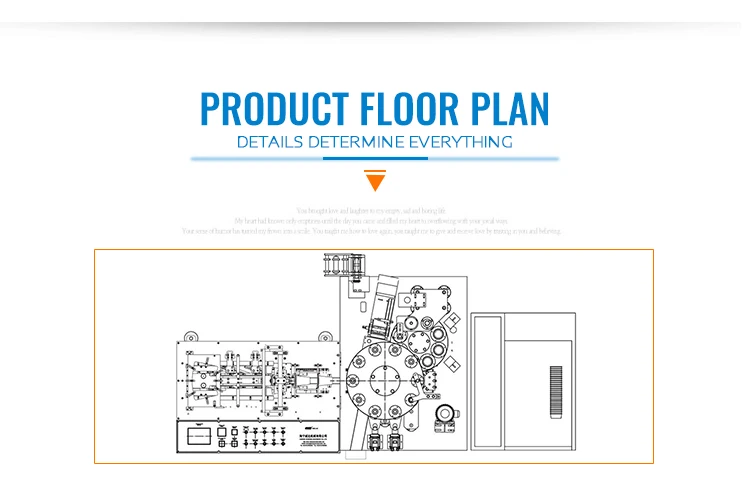

| Main size | 2700*1500*1800mm |
| Paper cup collector size | 1150*850*2000mm |
| Actual power consumption | 7.5KW |
| Remark | The paper thickness error margin is ±0.05mm for the same set of mould |
Packaging & Shipping
1. Packaging:
Packed by standard import & export wooden cases or carton boxes.
2. Shipping:
By logistics; by automobile; by train; by shipping; by air etc.

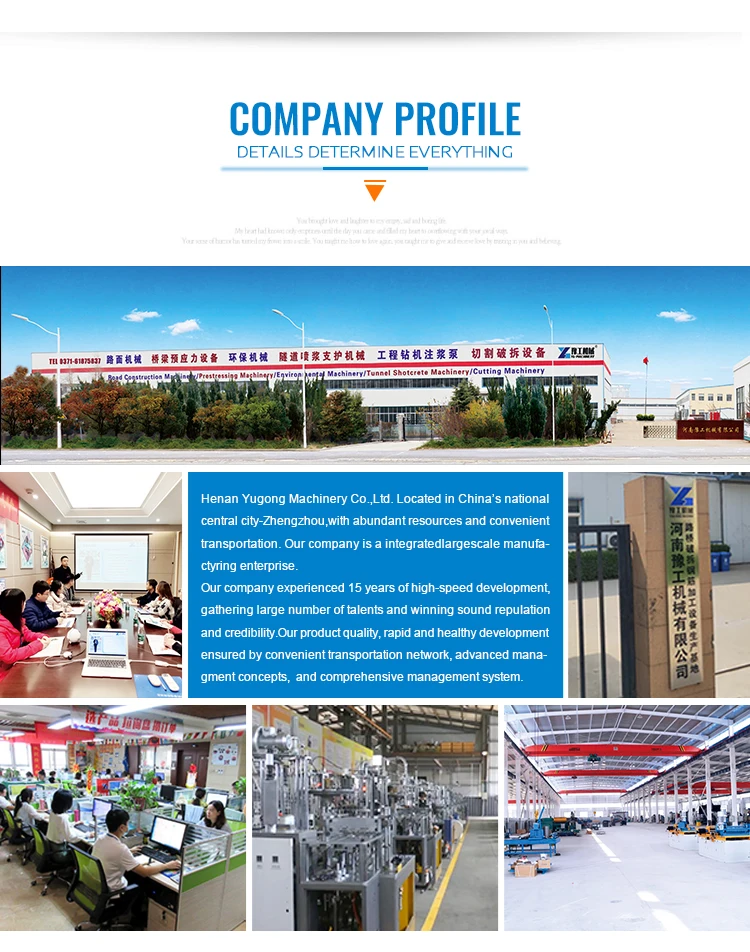

Company Information
Our Services
1.We have more than15 years manufacture and export experience.
2.Exporting to all over the world,win high reputation among customers.
3.CE, ISO 9001 and Strict Production Guideline to guarantee the high quality of our products.
4.Near the Qingdao port convenient for exporting.
5.Customer service staff 24 hours online,offer free technical support.
6.Factory and Competitive Price we offer.
7.Strong Research & Development technical team.
8.Various machinery to meet all your needs at our factory.
9.Engineers are available to guide the installation and take care of other problems.
10.We offer OEM&ODM service to meet all your requirements.
FAQ
1.Q:Are you trading company or manufacturer?
A:We are original equipment manufacturer.
2.Q:How long is your delivery time?
A:It is according to the model and quantity.Generally it is 3-5 days if the product are in stock.It will be 15-30 days if you want to customize the product.
3.Q:Do you provide samples? ls it free or extra?
A:Yes,we could offer you the sample.But it's not free.
You need to pay for the sample and the cost of freight.
4.Q:What is your terms of payment?
A:We accept T/T,Westerm Union,Money Gram,Paypal,etc.
