Product Description
Overview
LIVEPRO L1 V1 with 4 CH HDMI inputs and 1 HDM output, all of them support 1080p. For live streaming, there is a USB3.0 interface And plus, the LAN port for controlling and upgrading; for audio, it has 2 interfaces, one for input, and the other one for output. All of these make it easy to create professional multi camera productions. It is able stream any one from the 4 HDMI inputs to any live broadcasting platform via third party live streaming software such as OBS. Simply connect LIVEPRO L1 V1and you can switch live between 4 high quality video camera inputs for dramatically better quality images. Or connect a computer for PowerPoint slides or gaming consoles.
6 Picture PVW, PIP

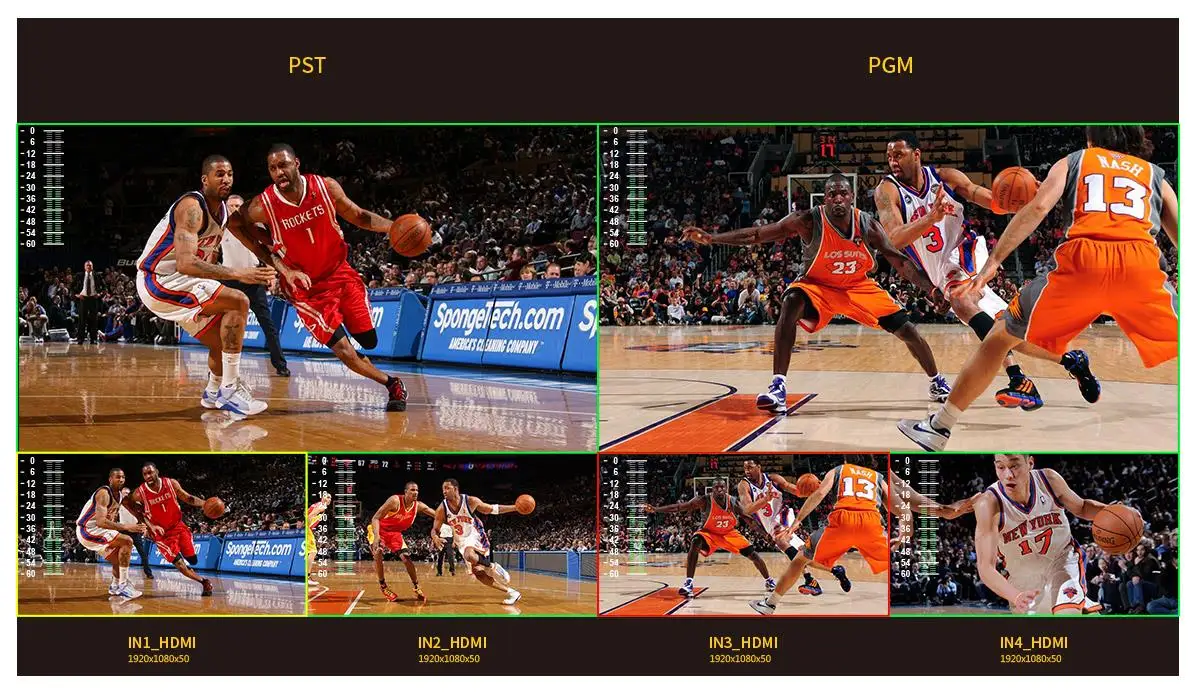

When the switcher is connected with an external expansion screen, it can preview real-time monitoring on 6 pictures, including PGM, PST and 4-channel HDM input signals, and the audio column is displayed. Plus, you can set 9 layouts for PIP (Picture in Picture) mode. This is very useful for large-scale multi stand field production.
Compact and Light Weight Design
The LIVEPRO L1 V1 is a mini switcher, that is small enough to fit into equipment cases and camera bags. Designed to integrate with typical video production workflows, the LIVEPRO L1 V1 has a screw tap for standard video mounts and conveniently attached onto a tripod to stay out of the way. It is light weight design makes it ideal for mobile video applications too.
Multi- Application, One Solution
For normal people, they need smaller and simpler product to deal with the live applications. The LIVEPRO L1 V1 can be done this,which is with simple and compact design, rich special effects switching function, the screw hole can be fixed the switcher on the tripod. With these, live streaming and multi signal control will be simpler and easier done by single person.
AUDIO IN and AUDIO OUT

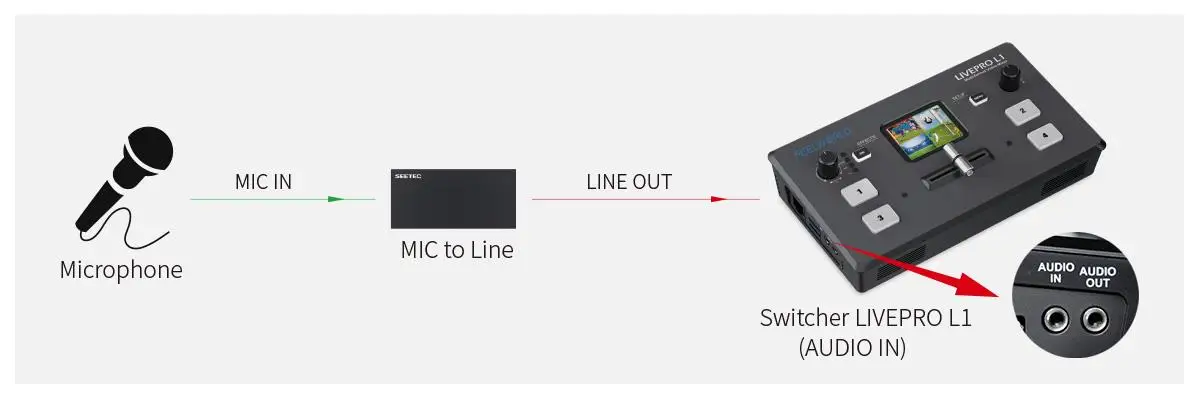

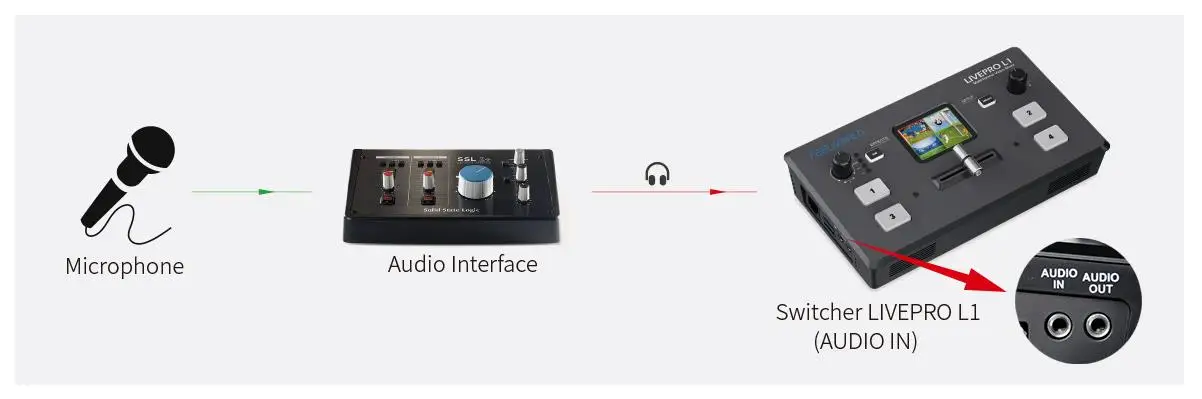

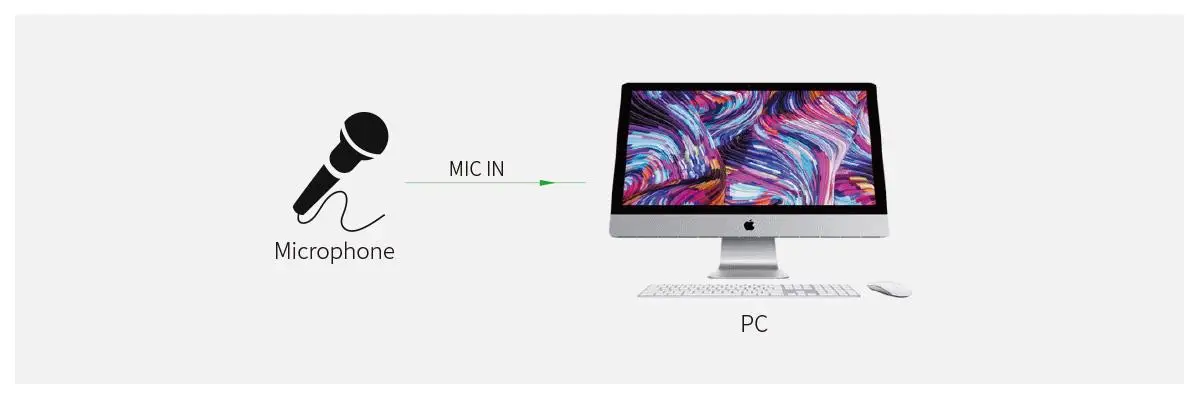

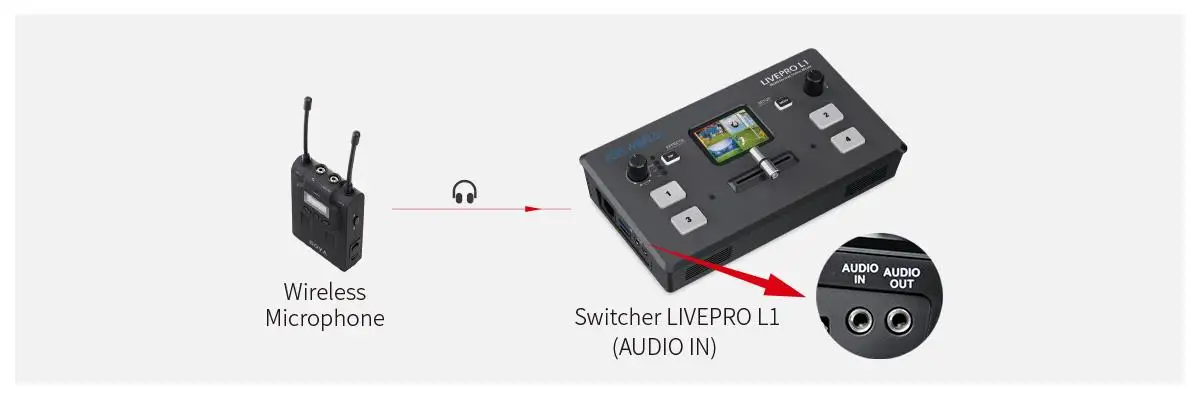

LIVEPRO L1 V1 with AUDIO IN and OUT. The output interface can be connected to speakers, headsets, etc.; The AUDIO IN interface is a linear input interface, which is connected to digital signal. The microphone collects analog signals, so when the microphone is connected to the LIVEPRO L1 V1 audio input interface directly, there is no way to receive audio.
Exquisite and Flexible Control Panel
The LIVEPRO L1 V1 has an exquisite and compact control panel. The 4 buttons are for selecting input signals, green flashing means the signal has been selected, then switch the T-Bar, the selected signal will be displayed on the screen seamlessly, the green button changed to red after switched. The MENU button is for menu setting, the SW button is for selecting different functions such as mixing, PIP, transition time setting and the other functions. The left knob is for voice volume controlling, the right knob is for menu setting as well. From the TFT screen, we can preview 4 HDMI signals and easily do menu setting. When you choose T-Bar to switch signal sources or transition effects, T-Bar must be pushed to left end or right end. When using the menu operation, T-BAR should also be in left end or right end, otherwise it cannot be operated.When you would like to connect or embed audio, you must select the external or embedded audio source in the "AUDIO" menu firstly.

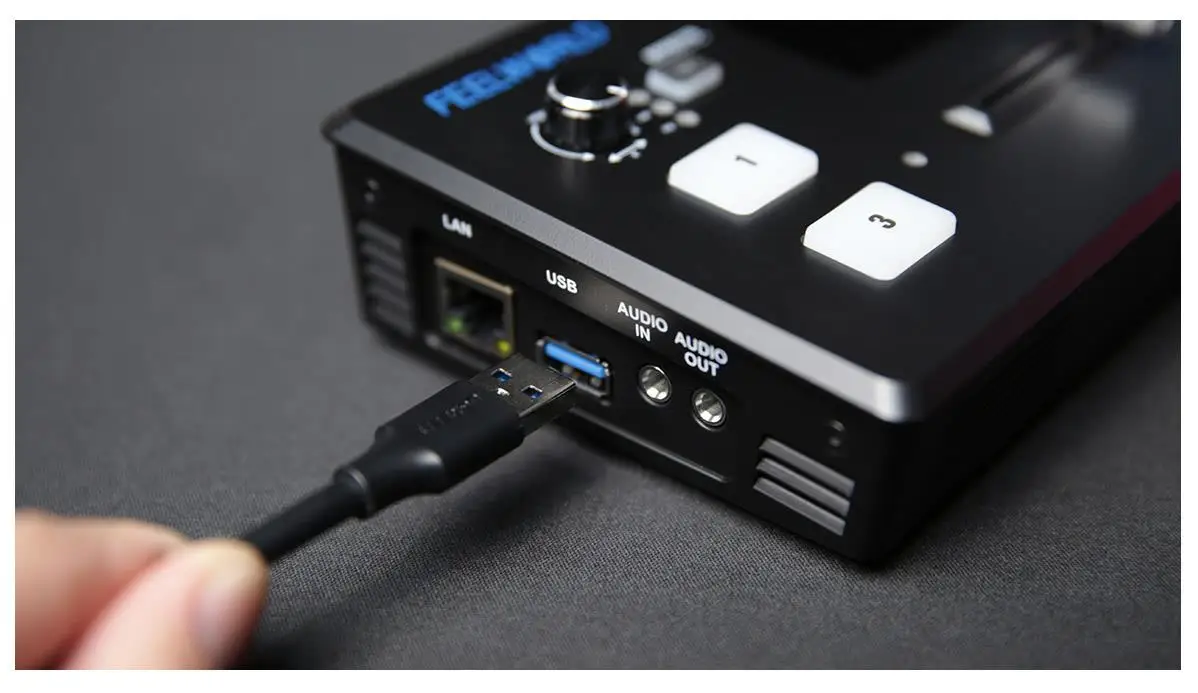

USB 3.0 Live Streaming
To ensure maximum compatibility, LIVEPRO L1 V1 features a USB connection that operates as a simple webcam source. That means you can plug in and instantly get working with any video software. The software is tricked into thinking the LIVEPRO L1 V1 is a common webcam, but it is really a live production switcher! That guarantees full compatibility with any video software and in full resolution 1080HD quality. Choose any software you like, such as OBS software for live streaming, or conference software (Tencent conference and Yealink ) for business presentations. LIVEPRO L1 V1 works with software and platforms such as OBS, acquisition software（AMCap, ECap, Potplayer), conference software (Tencent conference and Yealink) , Youtube, Facebook, Zoom, Tik Tok and more!
Main Features
* 【Multi Camera Live Production】LIVEPRO L1 V1 with 4 HDM inputs and 1 HDM output, all of them support 1080p. For live streaming, there is a USB3.0 interface. Simply connect LIVEPRO L1 V1 and you can switch live between 4 high quality video camera inputs for dramatically better quality images.
* 【Live Stream by Single Person】The LIVEPRO L1 V1 is smaller and simpler product, which is with simple and compact design, rich special effects switching function, the screw hole can be fixed the switcher on the tripod. Live streaming and multi signal control will be simpler and easier done by single person. You can choose to set any of them as preview or PGM as you like.
* 【Faster Video Production】The USB 3.0 output of LIVEPRO L1 V1 connects to any computer and looks like a built in webcam, so all streaming software for social media platforms work! With up to 4 HDM inputs you can set up multiple camera angles. Or you can connect to a computer with a PowerPoint slide show, video clip playback, websites or gaming consoles. All switching is in real time.
* 【Add Exciting Video Effects】It can preview real-time monitoring on 6 pictures, including PGM, PST and 4-channel HDMI input signals, and the audio column is displayed. You can choose the transition effect you want from SW button.
* 【Remote Operation】After connecting the LAN port to the computer, not extra software need to be installed, the software XPOSE holds on the computer, the operation is same as the switcher.
* 【Live Stream by Single Person】The LIVEPRO L1 V1 is smaller and simpler product, which is with simple and compact design, rich special effects switching function, the screw hole can be fixed the switcher on the tripod. Live streaming and multi signal control will be simpler and easier done by single person. You can choose to set any of them as preview or PGM as you like.
* 【Faster Video Production】The USB 3.0 output of LIVEPRO L1 V1 connects to any computer and looks like a built in webcam, so all streaming software for social media platforms work! With up to 4 HDM inputs you can set up multiple camera angles. Or you can connect to a computer with a PowerPoint slide show, video clip playback, websites or gaming consoles. All switching is in real time.
* 【Add Exciting Video Effects】It can preview real-time monitoring on 6 pictures, including PGM, PST and 4-channel HDMI input signals, and the audio column is displayed. You can choose the transition effect you want from SW button.
* 【Remote Operation】After connecting the LAN port to the computer, not extra software need to be installed, the software XPOSE holds on the computer, the operation is same as the switcher.
Specification
Model | LIVEPRO L1 V1 | ||
Screen Size | 2.0" TFT Display | ||
Backlight | LED | ||
Input | 4 X HDM | HDM | |
Output | 1 X HDM | HDM | |
Audio In | 1×3.5mm Stereo Jack | ||
Audio | Audio Out | 1×3.5mm Stereo Jack | |
Input Solution | HDM SMPTE 720p@50/60 | 1080i@50/60 | 1080p@23/24/30/50/60 VESA 1024X768@60 | 1280X720@60 | 1280X768@60 | 1280X800@60 | 1280X1024@60 | 1360X768@60 | 1366X768@60 | 1440X900@60 | 1600X1200@60| 1680X1050@60 | 1920X1080@60 | 1920X1200@60 | ||
Output Solution | HDM SMPTE 720p@50/60|1080p@24/25/30/50/60 VESA 1024X768@60 | 1280X720@60 | 1280X768@60 | 1280X1024@60 | 1360X768@60 USB Streaming 1280X720@50/60 | 1280X1024@60 | 1360X768@60 | 1920X1080@24/25/30/50/60 Note: Please refer connected computer for applicable resolution support | ||
Input Voltage | DC 12V / 1.5A | ||
Max Power | 18W | ||
Working Temperature | -30℃～50℃ | ||
Humidity | 10%~85% | ||

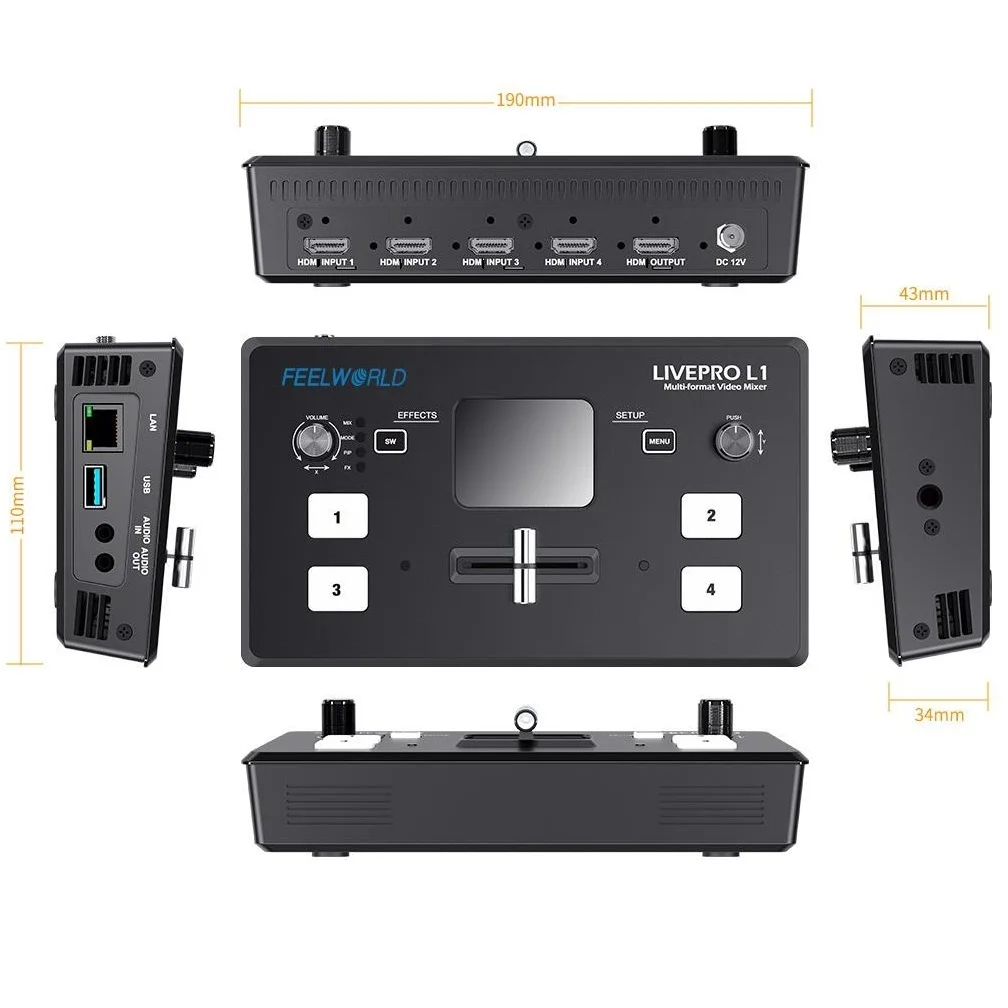

Unit Size | 190(L) x 110(W) x 43(H)mm | ||
Unit Weight | 500g | ||
Color Box Size | 260(L)*130(W)*82(H)mm | ||
Outer Carton Qty | 15 | ||
Outer Carton Size | 470*275*480mm | ||
Gross Weight | 14.5kgs | ||
Application
Multiple Application Scenarios Suitable
LIVEPRO L1 V1 is widely used in sports events, e-sports competition, business presentation, wedding , character interview,education and training, etc.

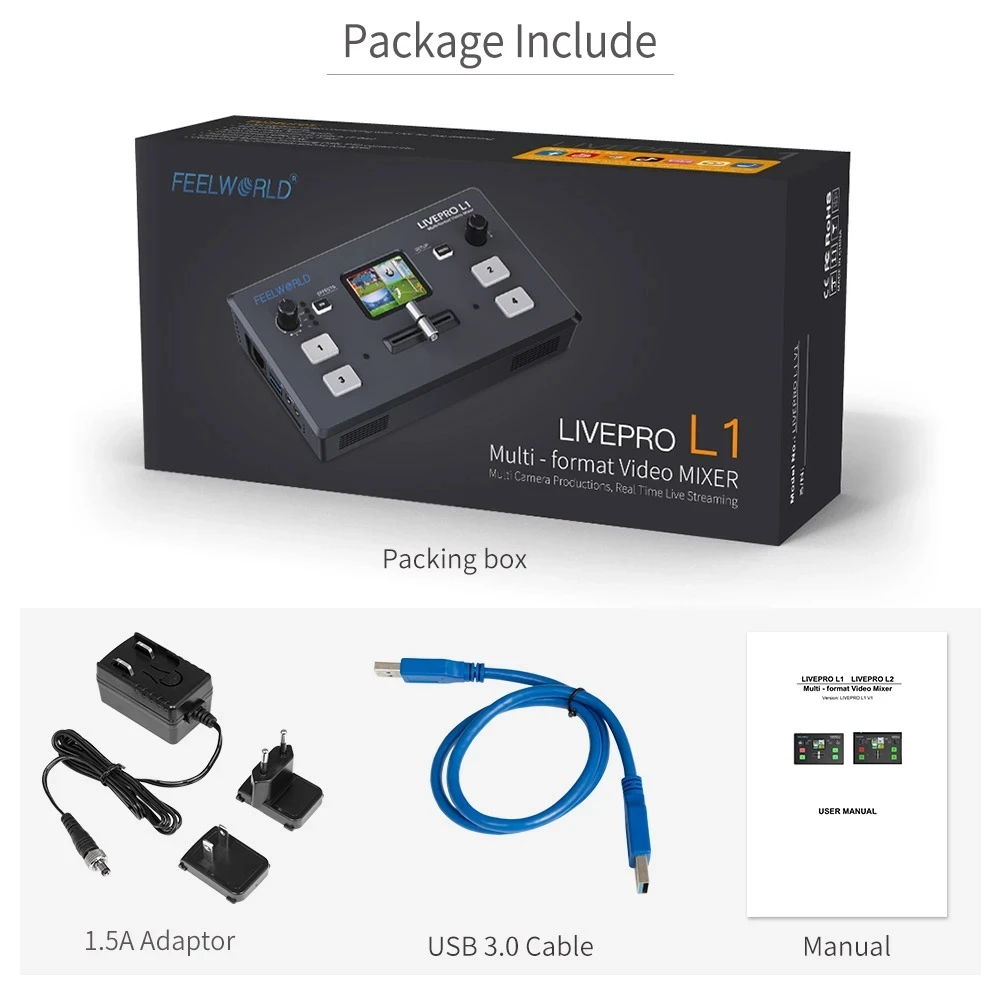

Packing List
* 1x LIVEPRO L1 V1 switcher
* 1× 1.5A Adaptor
* 1× USB 3.0 Cable
* 1× Manual
* 1× 1.5A Adaptor
* 1× USB 3.0 Cable
* 1× Manual
Our Service
1.Your any inquiry or question will be replied within 24hrs.
2.To be our agent or distributor is well welcomed.
3.Excellent after sale service.
4.We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
2.To be our agent or distributor is well welcomed.
3.Excellent after sale service.
4.We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
FAQ
Q1: Do you provide warranty and after-sales service?
A1: Yes, we do.We offer relevent warranty service for this product, any part of the whole product can be repaired for 1 year.And if you ment any problems after receiving the goods, please kindly contact us.
Q2: Can I just buy one sample to test before I want to order more quantity?
A1: Yes, we do.We offer relevent warranty service for this product, any part of the whole product can be repaired for 1 year.And if you ment any problems after receiving the goods, please kindly contact us.
Q2: Can I just buy one sample to test before I want to order more quantity?
A2: Sure, welcome to give us your sample order.
Q3: The quantity of my order is very large, can you solve it?
A3: Our factory has the strength to meet large quantities of demand. While large orders will also get more favorable prices. For details, please feel free to contact us!
Q4: How to calculate my delivery cost?
A4: First of all, you can select your delivery address on the platform to check the corresponding shipping cost. If you are not satisfied with the shipping route or price, please contact us without hesitation. We will try our best to recommend more transportation options.
Q5: What payment methods do you accept?
A5: The payment methods we accept include L/C,Visa,Paypal,T/T, Credit card , WesternUnion,Moneygram,Escrow.
Q3: The quantity of my order is very large, can you solve it?
A3: Our factory has the strength to meet large quantities of demand. While large orders will also get more favorable prices. For details, please feel free to contact us!
Q4: How to calculate my delivery cost?
A4: First of all, you can select your delivery address on the platform to check the corresponding shipping cost. If you are not satisfied with the shipping route or price, please contact us without hesitation. We will try our best to recommend more transportation options.
Q5: What payment methods do you accept?
A5: The payment methods we accept include L/C,Visa,Paypal,T/T, Credit card , WesternUnion,Moneygram,Escrow.
A1:LIVEPRO L1 V1 with 4 CH HDMI inputs and 1 HDMI output, all of them support 1080p. For live streaming, there is a USB3.0 interface. And plus, the LAN port for controlling and upgrading.
Q7:where the product can be used?
A2:LIVEPRO L1 V1 is widely used in sports events, e-sports competition, business presentation, wedding , character
interview,education and training, etc.
interview,education and training, etc.
