Цена:1 943,00 $ - 2 515,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики



Transflective circuit board coating detection upright Metallurgical microscope hardware metal parts detection metal microscope






Production Name
Metallurgical microscope
model
LC-230GTS
Eyepiece magnification
10 times
Objective lens magnification
5X, 10X, 20X, 50X
Instrument magnification
50X-500X
weight
14kg
Scope of application
Metal, graphite, material analysis
flatness
1/4@632.8nm
coating
antireflection /Customer request
Application
optical equipment







The 230GT series metallographic microscope adopts a plan achromatic optical system and an epi-Kola illumination system,
At the same time in the epi-illumination
The anti-reflection structure in the meter system effectively prevents the reflected light from interfering with the imaging
light, thereby making the imaging clearer and
The field of view contrast is better.
|Provide a stable and reliable operating mechanism to make the imaging clearer and easier to operate.
l The microscope body adopts a brand-new ergonomic design with a well-proportioned structure to realize the expansion of the lens
body as a building block.
The low-position operation of I workbench, light intensity and coarse and fine adjustment improves the comfort of use.
■Widely used in various types of semiconductor silicon wafer inspection, material science research, geological mineral analysis,
mirror
Subject areas such as testing and precision engineering

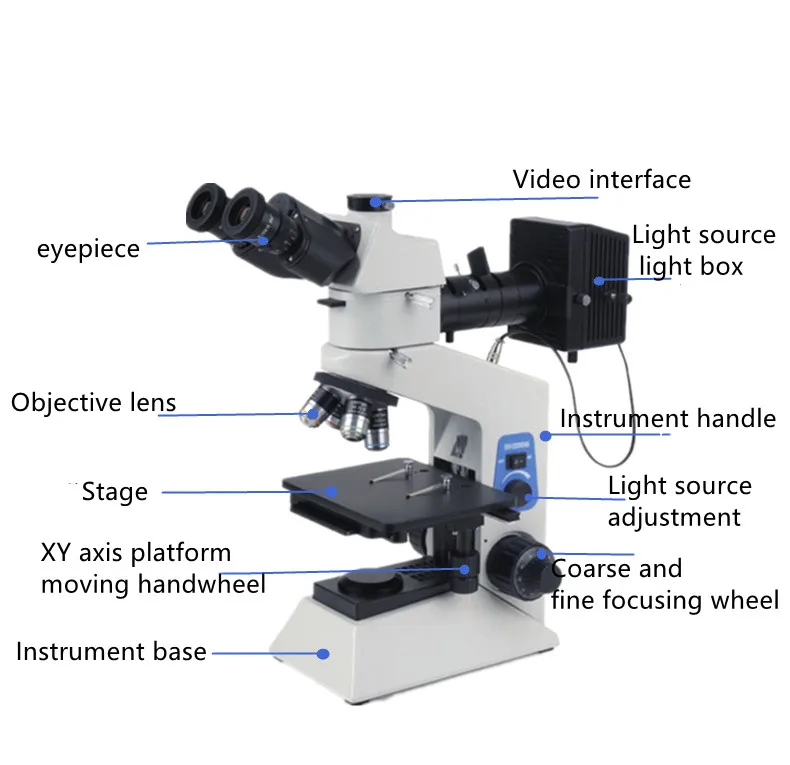

Optical system: finite distance chromatic aberration correction optical system
Hinged binocular, 30° tilt, 360° rotation, interpupillary distance adjustment range: 54-75mm,
Observation tube: bilateral ±5 diopter adjustable; hinged trinocular, fixed splitting ratio, binocular: trinocular = 80%: 20%
Eyepiece: PL10X high eye point plan eyepiece,
Field of view: 18mm
Objective lens: long working distance plan achromatic metallographic objective lens 5X, 10X, 20X, 50X
Magnification: Standard optical magnification: 50X-500X, can be increased to 1000X, digital amplifier is about 3000X
Converter: external positioning four-hole converter
Focusing mechanism: Coaxial coarse and fine adjustment, with mechanical upper limit and elastic adjustment device,
Coarse adjustment stroke 28mm, fine adjustment accuracy 0.002mm
Stage: Coaxial coarse and fine adjustment, with mechanical upper limit and elastic adjustment device, double-layer mechanical
shift
Moving platform, with 180X145mm flat platform, moving range: 76mmX50mm

Lighting system: reflective Kola lighting, adaptive wide voltage 90V-24V, 6V/30W halogen lamp,
The light intensity is continuously adjustable, with a variable aperture diaphragm and a field diaphragm, and the center of the
field diaphragm is adjustable.
Photography device: photographic tube, (with PK bayonet), 3.2X photographic eyepiece

Camera device: 1.0X, C-type camera connector, 0.35X/0.5X optional

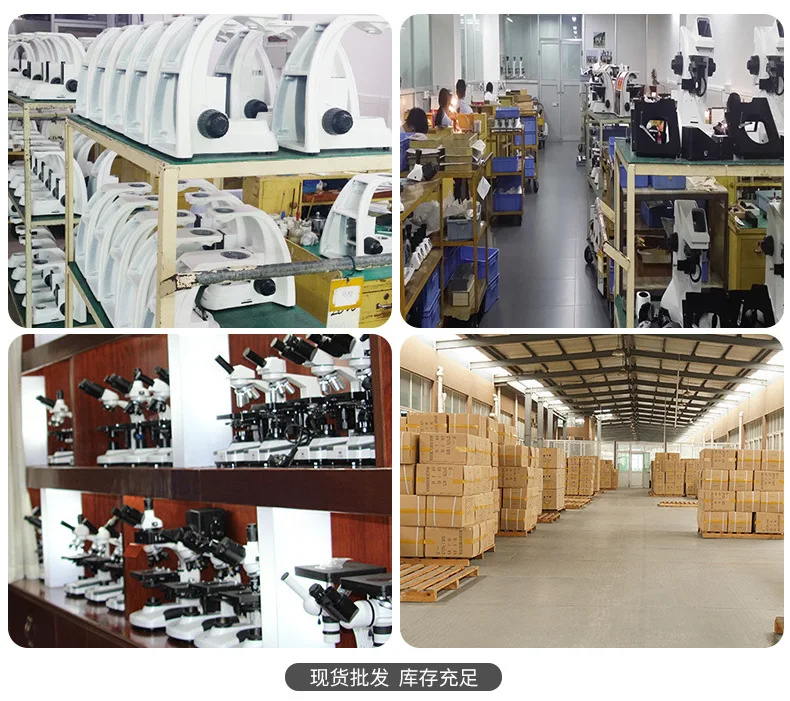

Located in Henan,a becutiful city in China,nanyang jingying trade co., ltd has become one of China'S leading manufacturers of optical component,optical assemblies,lens assemblies Founded in 1999,we have a strong and steady growth that has lead us to today's staff of over 1300 comprised of a very skilled team of fabricators,mechanical engineers ,process engineers ,optical engineers and coating designers Our manufacturing capabilities consist of all type of custom manufactured lens,like plano convex lens ,biconvex lens,plano concave lens,biconcave lens,achromaticl lens,cylindrical lens,spherical lens and aspherical lens beamsplitter like beamsplitter plate,cube beamsplitter and other beamsplitter,prism,like right angle prisms,penta prisms,corner cube prism,dove prism,reflective prism,dispersion prism,anamorphic prism .coatings,optical system ,the products are widely used in non-contact inspection,medical,automation,precision instrument,automotive,micro-measuring Quality is first and always the keys to our success,we also have most advanced metrology instrument,spherical lens measurement system,prism angle measure system,with theses advanced instrument ,we acquire the ISO9001 ,CE International certificateAs a company ,we are commited to growth and development .our cooperative relationship with local universities and research center,university,optical technology research institute ,enhances our engineering and R&D techniques .With the concept of strict management,continuous innovation,continuous improvement,customer satisfation,our company is committed to deliver customers with quality products,on-time delivery ,competitive pricing .we focuses on producing high precision optical components.the goal at our company is to be your first choice of partner supplier of optical components
