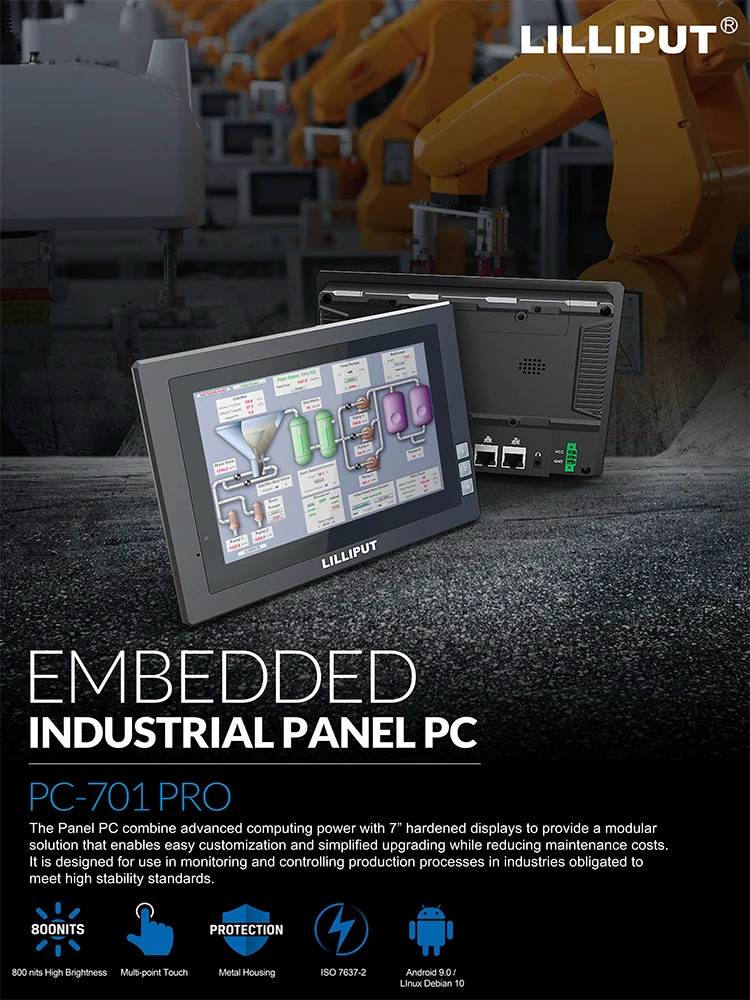

LILLIPUT industrial capacitive 7 inch imx 8 embedded touch panel pc for PLC HMI monitor Android linux system
Specificatiom
| SYSTEM | CPU | NXP i.MX 8M Mini Cortex®-A53 1.6GHz Quad-core processor |
| OS | Android 9.0 / Linux Debian 10 | |
| RAM + ROM | 2GB LPDDR4 (4GB is optional) + 16GB Flash (64GB is optional) | |
| GPU | 3D GPU (1×shader, OpenGL® ES2.0), 2D GPU | |
| Sensors | Gyroscope & accelerometer | |
| DISPLAY | LCD | 1280×800, 800 nit, 170°/170° viewing angle |
| Touch Screen | Multi-point capacitive touch screen | |

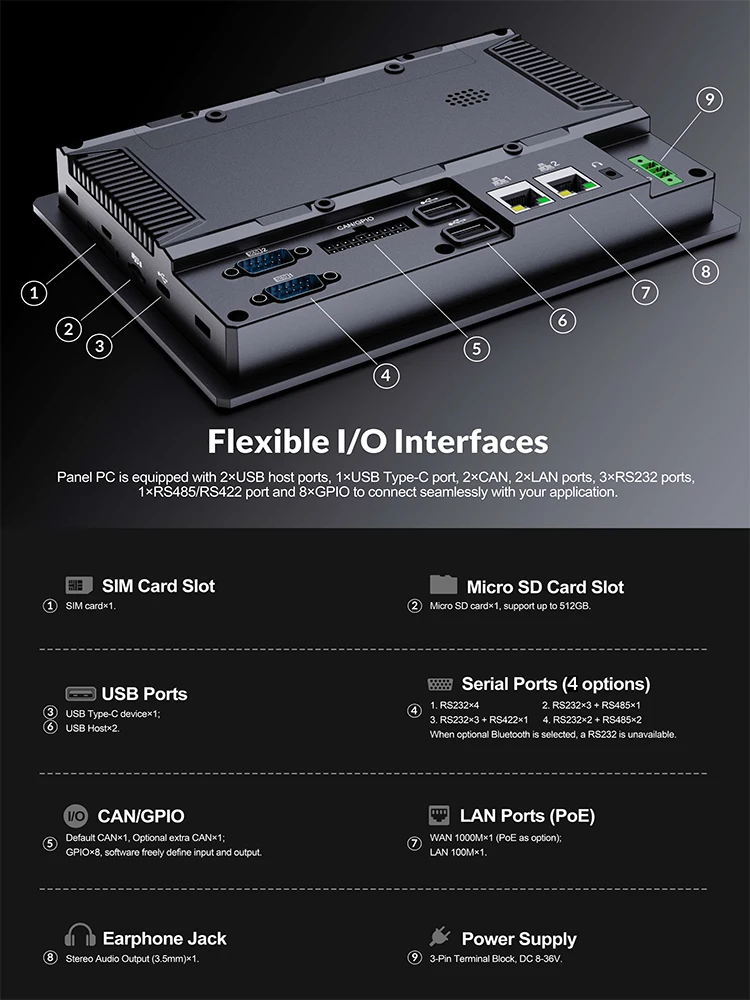

| INTERFACES | LAN | 1000M×1 (PoE is optional, 25W), 100M×1 |
| GPIO | ×8 (Software freely define input and output) | |
| CAN | Default CAN Bus 2.0B×1, optional extra CAN Bus 2.0B×1 | |
| COM (4 options) | 1. RS232×4 | |
| 2. RS232×3 + RS485×1 or 3. RS232×3 + RS422×1 | ||
| 4. RS232×2 + RS485×2 | ||
| When optional BT is selected, will occupy one RS232 port | ||
| SIM Slot | ×1 | |
| Micro SD Card Slot | ×1, support up to 512GB | |
| USB | USB host×2, USB Type-C device×1 | |
| Earphone Jack | 3.5mm | |
| OPTIONAL FUNCTION | Cellular Network | 3G/4G (LTE, DC-HSPA+, WCDMA, GSM) |
| Wi-Fi | 802.11a/b/g/n/ac, 2.4GHZ/5GHZ | |
| BT | BT 5.0, 2402MHz~2480MHz | |
| GNSS | GPS, GLONASS | |
| POWER | Power Supply | DC 8~36V |
| Power Consumption | ≤12.5W (≤2.5W when standby) | |
| OTHERS | Speaker | ×1 |

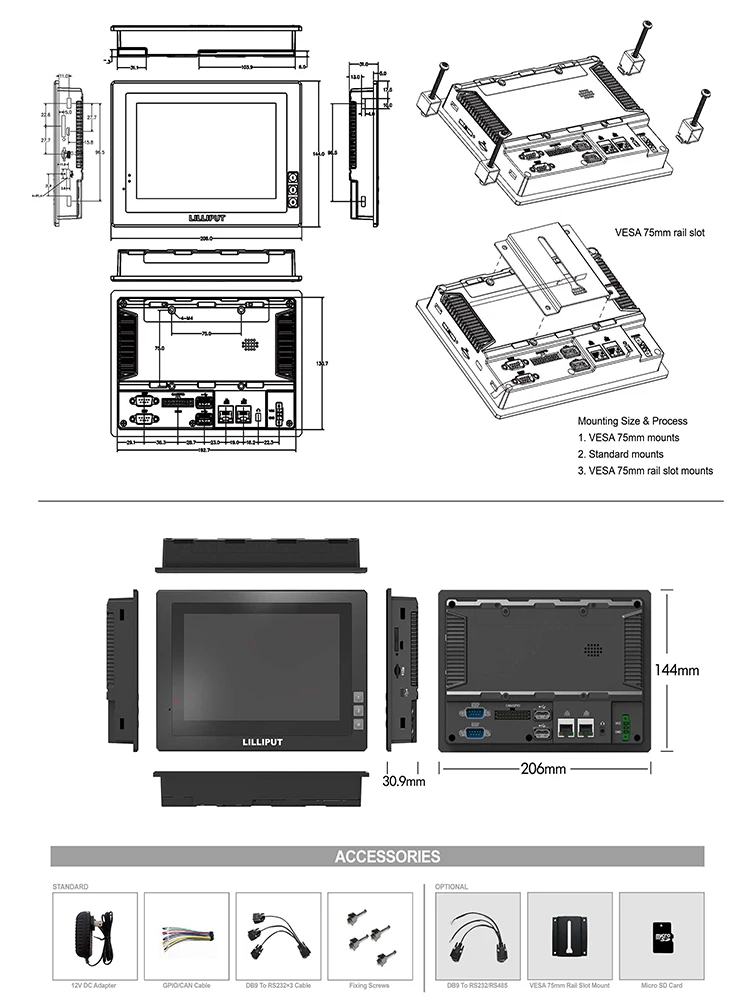

| Dimension | 206mm×144mm×31mm | |
| Weight | 790g | |
| Environment | Operating Temp: -20°C~60°C (-4°F~140°F) | |
| Storage Temp: -30°C~70°C (-22°F~158°F) |
Product Description
Company Information
LILLIPUT is a globalized ODM (Original Design Manufacturer) and EMS (Electronic Manufacturing Service) service provider specialized in research and application of electronic, optoelectronic and computer-related technology.
It is an ISO 9001:2008 certified research institute and manufacturer involved in design, manufacturing, marketing and delivery of electronic products across the world since 1993. The has been producing and delivering both standardized and customized products in the field of Optoelectronic Display, Embedded Computer Control System and Electronic Testing & Measurement in the past two decades offering a variety of solutions in satisfying a wide range of industries.
