Product Description
8 ton 8.5 ton 8770 kgs 9 ton china suppliers cheap x9 0.3m3 Bucket volume medium crawler wheel hydraulic excavator

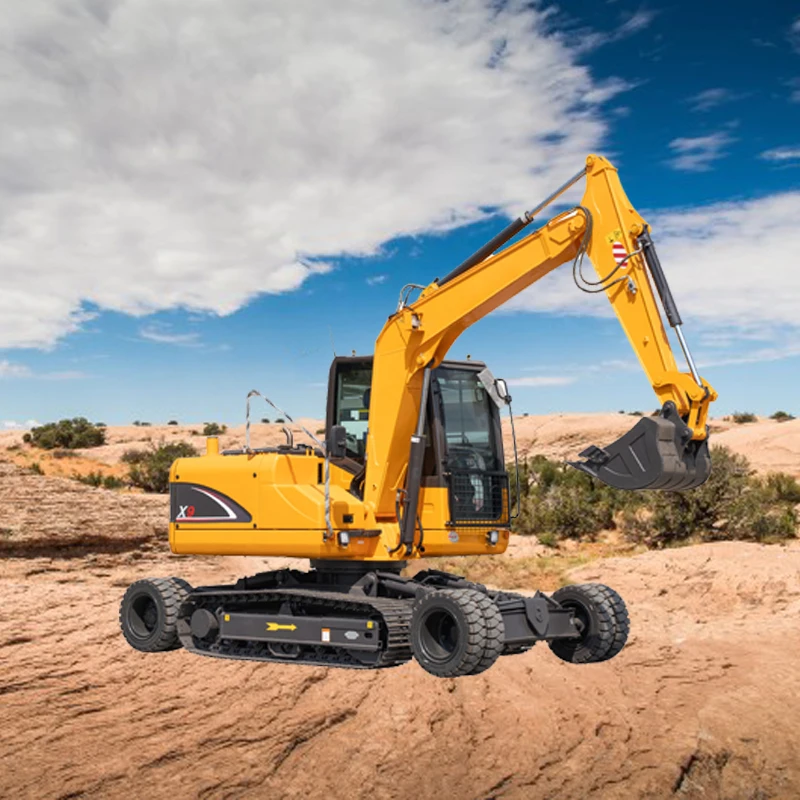

BDXN9 wheel crawler hydraulic excavator Is an Wheeled crawler excavator in one, ERUO 3 emission standard, save 30% fuel consumption low fuel consumption, convenient maintenance of international quality chassis configuration, operation stability is stronger.
1.Stronger power, lower fuel consumption2.New upgraded cab, beautiful appearance, interior ergonomic design, front gear, structure, adjustable suspension seat, heating and cooling air conditioning, large LCD display, wide vision, more comfortable operation.
Machine Weight | 8510 kg(excavate ) 8840kg(clip） | Speed | Wheel travelling speed | 21 km/h | |
Bucket capacity | 0.3 m3 | rack travelling speed | 3 km/h | ||
Engine | Model | Yanmar 4TNV98-ZCSLKC | Swing speed | 9rpm | |
Displacement | 3.319L | Max grade ability | 30degree | ||
Rated power / speed | 46.3kW/2200 rpm | Hydraulic and liquid capacity | Hydraulic system | Rexroth load sensitive system | |
Max torque | 223.3-243.5N. m/1600 ± 100 rpm | Pump | Variable capacity pump | ||
Optional engine | Model | Yanmar 4TNV98T-ZCSTYC | Preseure | 25 MPa | |
Displacement | 3.319 L | Displacement | 132 L/min | ||
Rated power / speed | 56.5kW /2200 rpm | Hydraulic oil tank capacity | 175L | ||
Max torque | 273.3-298.2N. m/1650± 100rpm | Fuel tank capacity | 150L | ||
Engine oil capacity | 12L |

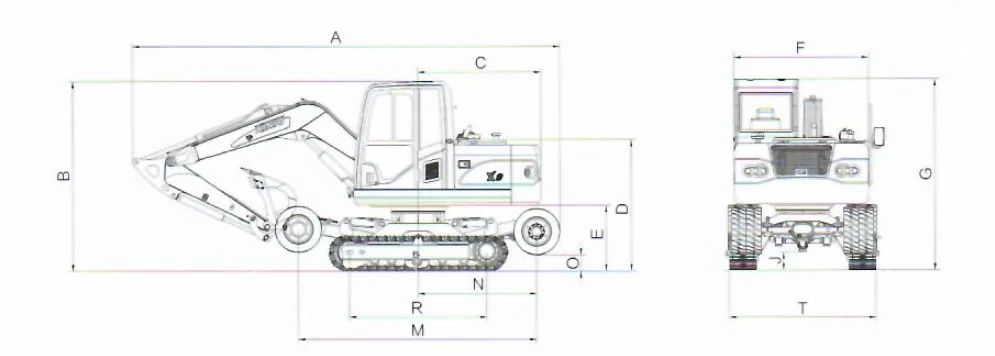

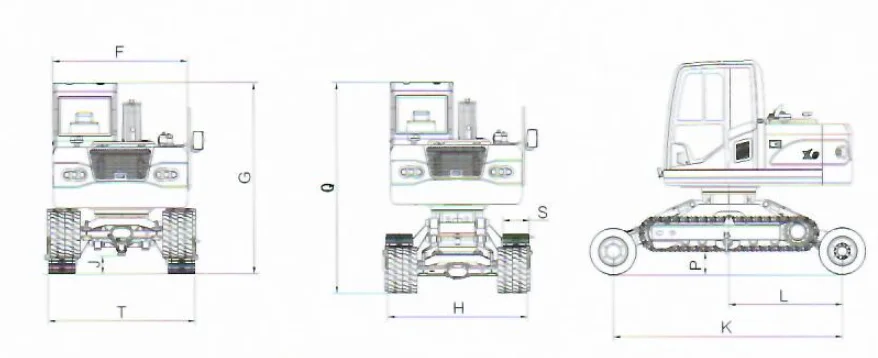

A Total length Total length | ||||
3.5m boom +2.00m boom3.5m +Bucket arm 2m | 6570 | K Raise rear wheel spacing Wheels up wheel gauge | 3400 | |
B Total height | L Distance of swing center to rear wheel (wheels down | 1682 | ||
3.5m mill +2.00m boom3.5m +Bucket arm 2m | 2982 | M Lower the rear wheel spacing. Wheels down wheel gauge | 3560 | |
C Rear end radius of rotation Counter weight turning RADIUS | 1836 | Distance of swing center to rear wheel (wheels up) | 1767 | |
D Engine hood height | 2104 | Rear wheel ground clearance (wheels up) | 300 | |
E Counter weight ground clearance | 1120 | Track ground clearance (wheels down) | 330 | |
F Total width of the Upper structure of the rotary platform | 2000 | Q Total height (wheels down) | 3190 | |
G Cabin height (wheels up) | 2982 | R Track wheel base | 2050 | |
H Tire width" | 2120 | S Track width | 400 | |
J Minimum ground clearance | 270 | T Total width Track outer Wiath | 2160 |
Working device | Boom 3.5m+Arm 2m |
Max. digging radius | 6680 |
Max. digging radius on ground | 6555 |
Max. digging depth | 3572 |
Max. Cutting height | 6955 |
Max. dumping height | 5245 |
Min. turning radius | 2540 |
Max. vertical digging depth | 3255 |
KN) Bucket digging force | 56 |
(KN) Bucket arm digging force | 36 |
Product Details

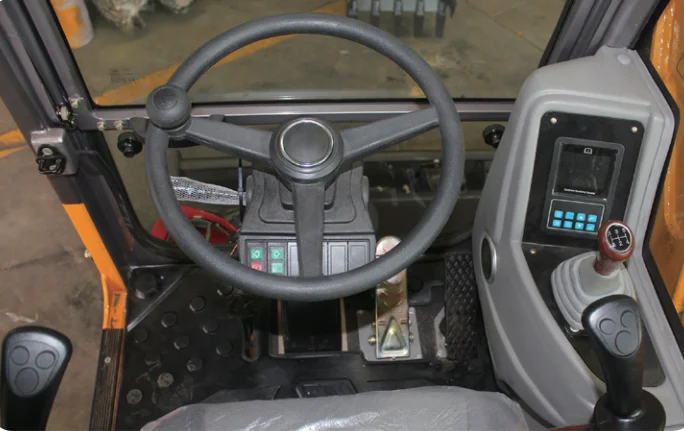

1.New upgrade cabin, beautiful out-looking, cabin ergonomic design, front gear institutions, adjustable suspension seats, air conditioner, largescreen LCD displav. open field of vision, Operating more comfortable

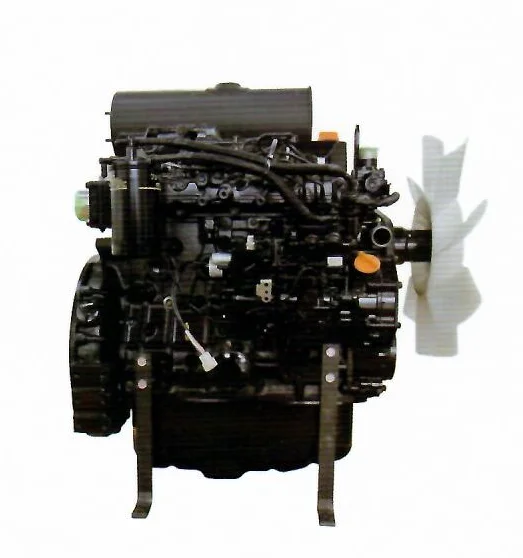

2. Japanese Yanmar engineAdopting strong power YANMAR TNV direct injection diesel engine, green emission, high power output . Through the improvement of fuel injection system, the exhaust emission standard can meet requirements of various countries. Low noise design makes operation beneficial to health and environmental protection

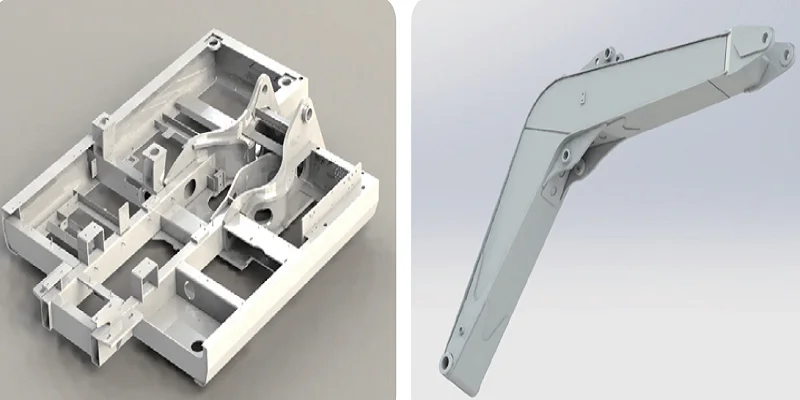

3.After the finite element analysis, the structure of the upper turntable and the working device is more easonable, which greatly improves the strength and toughness of the turntable and the working device.

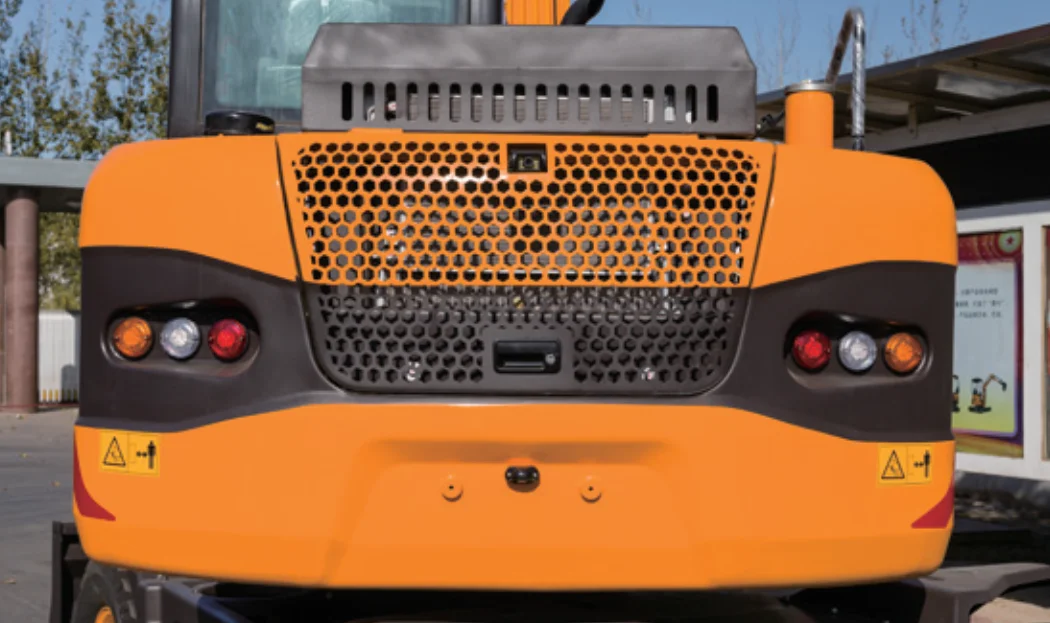

4.Parataxis radiator, full steel mesh back door, increase ventilation, improving the . cooling efficiency, the back lights hidden
inside the counterweight completely, avoiding the the collision at the complex conditions working.
inside the counterweight completely, avoiding the the collision at the complex conditions working.

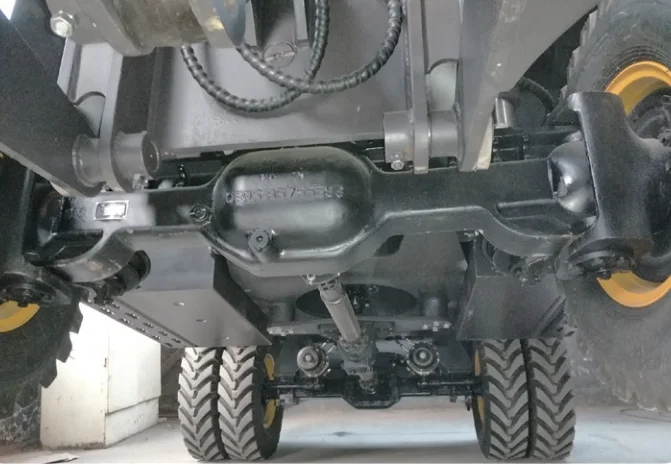

5.The overall box-type structure chassis, with reinforced front anc rear driven axles, reinforcement gearbox, reinforcement up and lown box, more load carry capacity.Front and rear driven axles with hub reduction, more passing ability, suitable for complex
road, more driving power, suitable for climbing.
road, more driving power, suitable for climbing.
Company Profile
Company advantages
(1) Founded in 1999 (2) CE ISO certificate (3)15+ senior technicians (4) 2 years warranty (5)24 hours after sale service (6) large stock and cheap spare parts
Certifications
Partner
Transport
FAQ
1.Q: Are you a manufacturer?
A: Yes, we are a manufacturer located in Shandong province which in the manufacturing center of construction machinery. We have passed ISO and CE certificate and our products have been exported to over 20 countries.
2.Q: Why choose BADA?
A:With our two factories and more than 100 workers, we only produce very high quality products.2 Years warranty and only 1% repair rate during the past 10 years, which is cost effective and win good reputation.
3.Q: Can you produce customizable machines?
A: Yes, we can provide customizable machines according to your requirements. We have 8 senior engineers and can design and supply higher configuration.
4.Q: How about your After-sales service
A: We have 3 aftersales, and can provide 24-hour technical support by phone and email.
5.Q: What is your lead time?
A: Normal goods usually take 7-10 days, and customization takes 15-25 days
6.Q: Is it convenient to visit your factory? How to go there?
A: Warmly welcome to visit our factory. When you arrive, we will pick you up.
A: Yes, we are a manufacturer located in Shandong province which in the manufacturing center of construction machinery. We have passed ISO and CE certificate and our products have been exported to over 20 countries.
2.Q: Why choose BADA?
A:With our two factories and more than 100 workers, we only produce very high quality products.2 Years warranty and only 1% repair rate during the past 10 years, which is cost effective and win good reputation.
3.Q: Can you produce customizable machines?
A: Yes, we can provide customizable machines according to your requirements. We have 8 senior engineers and can design and supply higher configuration.
4.Q: How about your After-sales service
A: We have 3 aftersales, and can provide 24-hour technical support by phone and email.
5.Q: What is your lead time?
A: Normal goods usually take 7-10 days, and customization takes 15-25 days
6.Q: Is it convenient to visit your factory? How to go there?
A: Warmly welcome to visit our factory. When you arrive, we will pick you up.
