Power Curtis 1204M-5305 36V 48V 325A Motor controller DC drive speed control controller
Curtis Models 1204M/1205M/1209M/1221M provide fully programmable control of DC series motors
performing on-vehicle traction or pump duties. These microprocessor-based MOSFET controllers add flexibility
and versatility to the time-proven Curtis series motor controller family
performing on-vehicle traction or pump duties. These microprocessor-based MOSFET controllers add flexibility
and versatility to the time-proven Curtis series motor controller family
Product Description
Features
▶ Power MOSFET technology provides smooth, silent, efficient, and cost-effective operation.
▶ Adjustable parameters enable custom optimization of speed, torque, and braking control.
▶ Half bridge armature and full bridge field provides regenerative braking down to zero speed.
▶ Sealed package rated at IP64 and IP67.
▶ Overspeed braking (regenerative) limits speed while driving downhill.
▶ WalkAway™ braking feature limits any stopped or key-off rolling to very low speed.
▶ System uses Hall effect speed sensor on motor or drive train to control vehicle speed.
▶ Tow switch enables free rolling for towing of vehicle.
▶ Anti-rollback function provides improved control when throttle is released on hills.
▶ Anti-stall function helps prevent motor commutator damage.
▶ Controller drives warning buzzer – steady in reverse; intermittent during WalkAway™ braking.
▶ Optional electromagnetic brake output.
▶ Optional brake light output.
▶ MultiMode™ inputs provide for multiple speed and power modes of operation.
▶ Timed shutdown of main contactor after pedal is released and vehicle has stopped.
▶ LED status indicator with external output.
▶ Fully compatible with 1311, 1314 and 1307 Programmers for parametric adjustment, tuning, test, and diagnostics
▶ Adjustable parameters enable custom optimization of speed, torque, and braking control.
▶ Half bridge armature and full bridge field provides regenerative braking down to zero speed.
▶ Sealed package rated at IP64 and IP67.
▶ Overspeed braking (regenerative) limits speed while driving downhill.
▶ WalkAway™ braking feature limits any stopped or key-off rolling to very low speed.
▶ System uses Hall effect speed sensor on motor or drive train to control vehicle speed.
▶ Tow switch enables free rolling for towing of vehicle.
▶ Anti-rollback function provides improved control when throttle is released on hills.
▶ Anti-stall function helps prevent motor commutator damage.
▶ Controller drives warning buzzer – steady in reverse; intermittent during WalkAway™ braking.
▶ Optional electromagnetic brake output.
▶ Optional brake light output.
▶ MultiMode™ inputs provide for multiple speed and power modes of operation.
▶ Timed shutdown of main contactor after pedal is released and vehicle has stopped.
▶ LED status indicator with external output.
▶ Fully compatible with 1311, 1314 and 1307 Programmers for parametric adjustment, tuning, test, and diagnostics
Model Sheet
Model Number | Nominal Battery volt | Current Limit 2Min | Current Limit 1 Hour |
1204M-42XX | 24V/36V | 275A | 125A |
1204M-53XX | 36V/48V | 325A | 140A |
1204M-63XX | 48V/72V | 325A | 140A |
1205M-46XX | 24V/36V | 500A(30 SEC) | 175A |
1205M-56XX | 36V/48V | 100(1MIN) | 200A |
1205M-6B3XX | 60V/72V | 400(1MIN) | 175A |
1209M-55XX | 36V/48V | 450 | 200A |
1209M-64XX | 48V/72V | 400 | 175A |
1221M-67XX | 48V/72V | 550 | 225A |

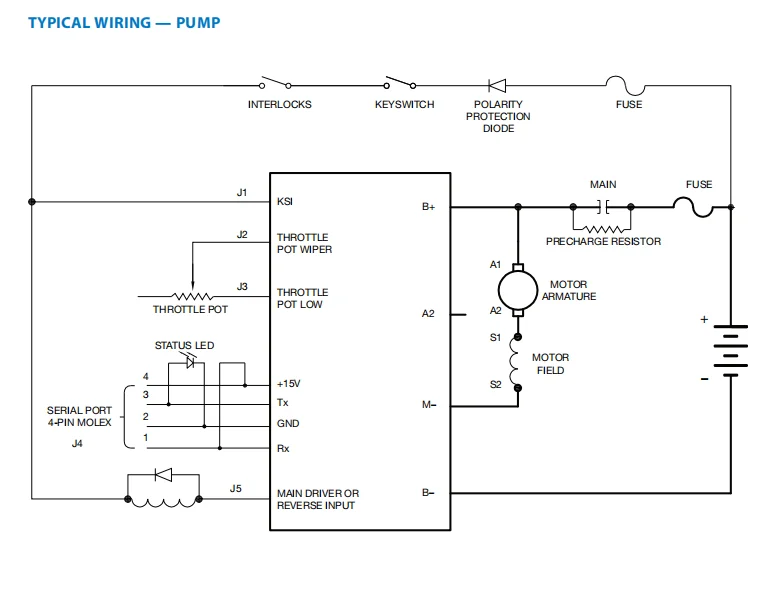

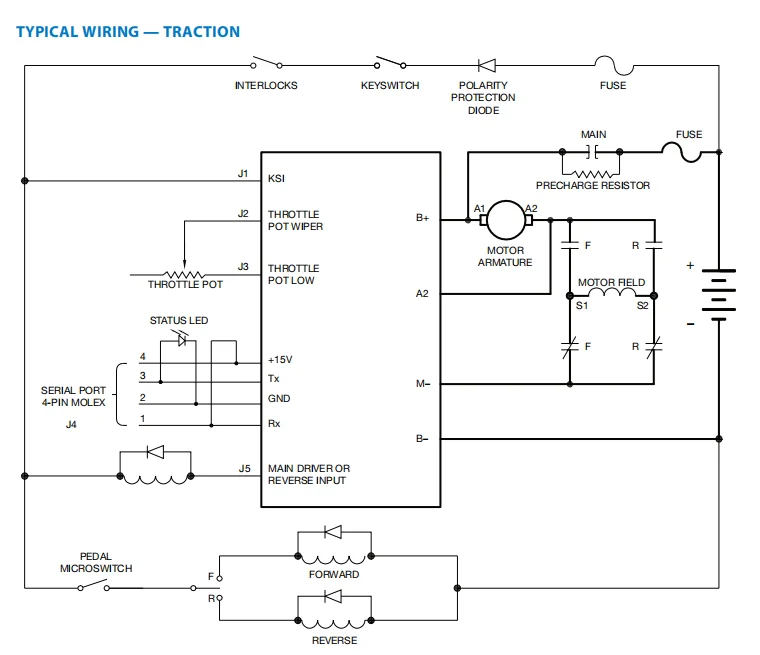

Schematic Diagram
Specification
Warranty | 2 Year |
Brand Name | Albright curtis |
rModel Number | 1204M-5203 |
Product name | Speed Torque motor controller 1266R-5351 36V 48V 350A For small industrial vehicles |
Nominal input voltage | 36V to 48 V |
Operating ambient temperature range | -40°C to 50°C |
Weight 1.45 kg (3.2 lb) | Dimensions 229 * 178 *81 mm |
Anti-stall function /Power MOSFET technology | Extensive fault detection and diagnostic reporting Fully compatible with Curtis 1311, 1313 and 1314 Programmers for parametric adjustment, tuning, test, and diagnostics. |
