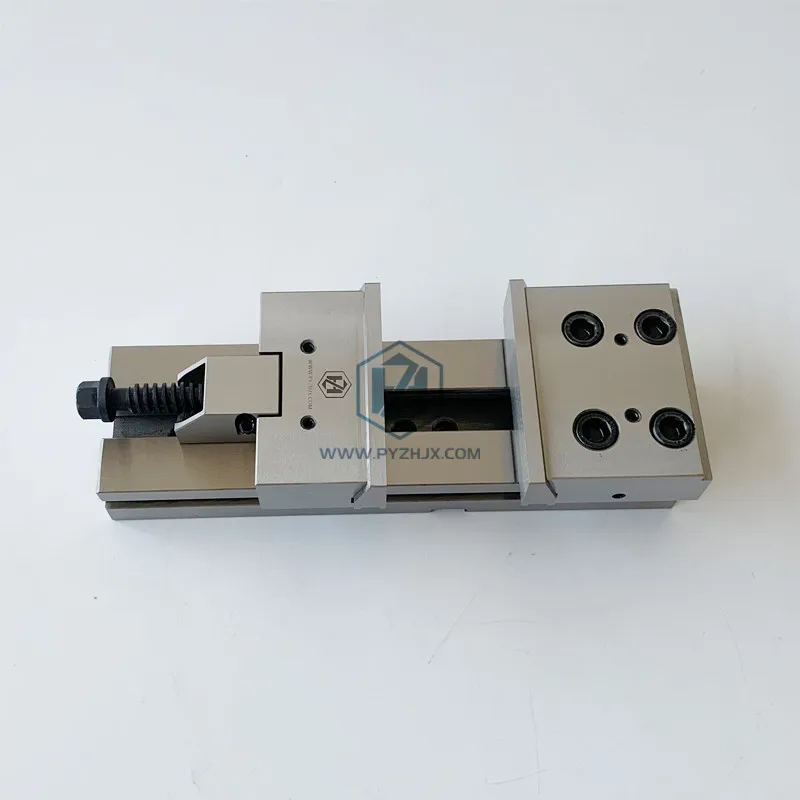

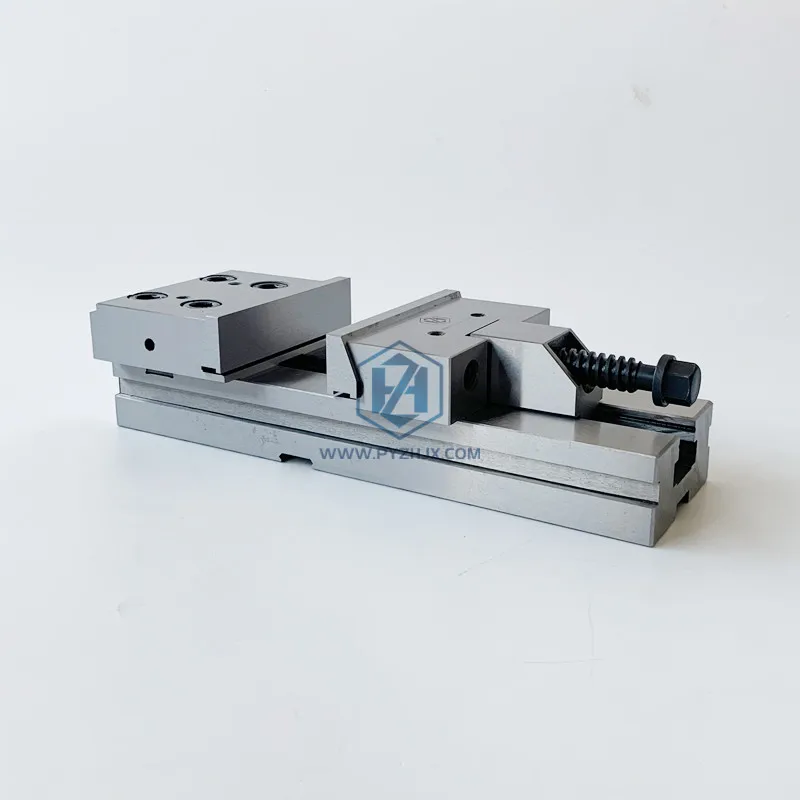

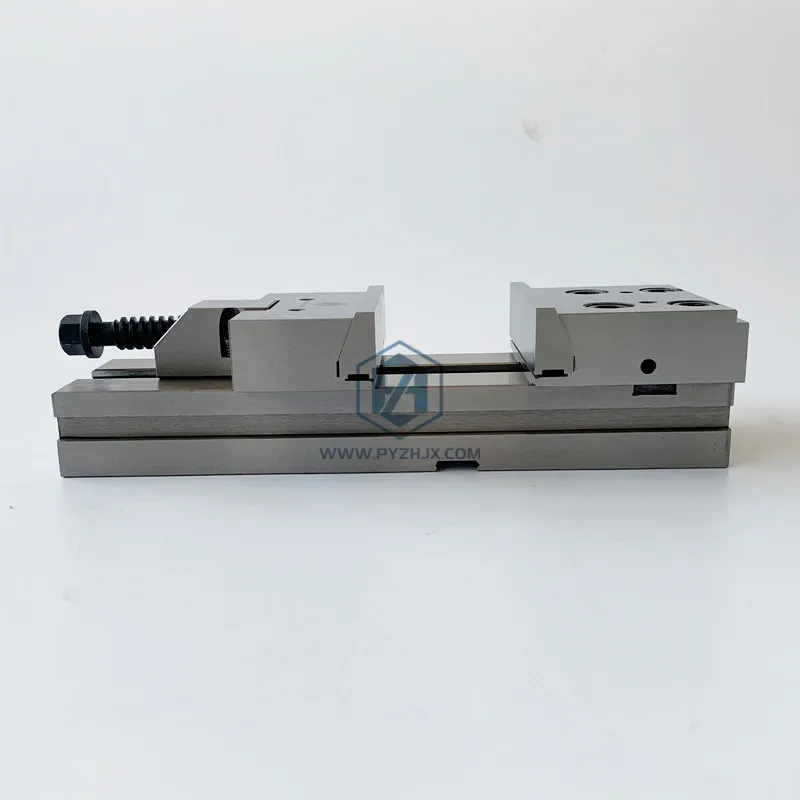

CNC Milling Grinding Drilling Modular Type 6in GT150x400 Precision Vise
Product Description
Pingyuan Zhenghao Machinery Co., Ltd
As leading manufacturer of precision vise, we have GT100, GT125,GT150,GT175,GT200 GT300 and other GT series modulat vis. We also have QGG, QKG toolmakers vise, QM QW, Q93 Q97 machine vise.
CNC Milling Grinding Drilling 6in Precision Vise features:
Material:20CrMnTi Alloy steel
Hardness:HRC58~62
Parallelism:0.005/100mm
Spuareness:0.005mm
Usage:CNC Milling Machine clamping tools and accessories
Drive mode: manual

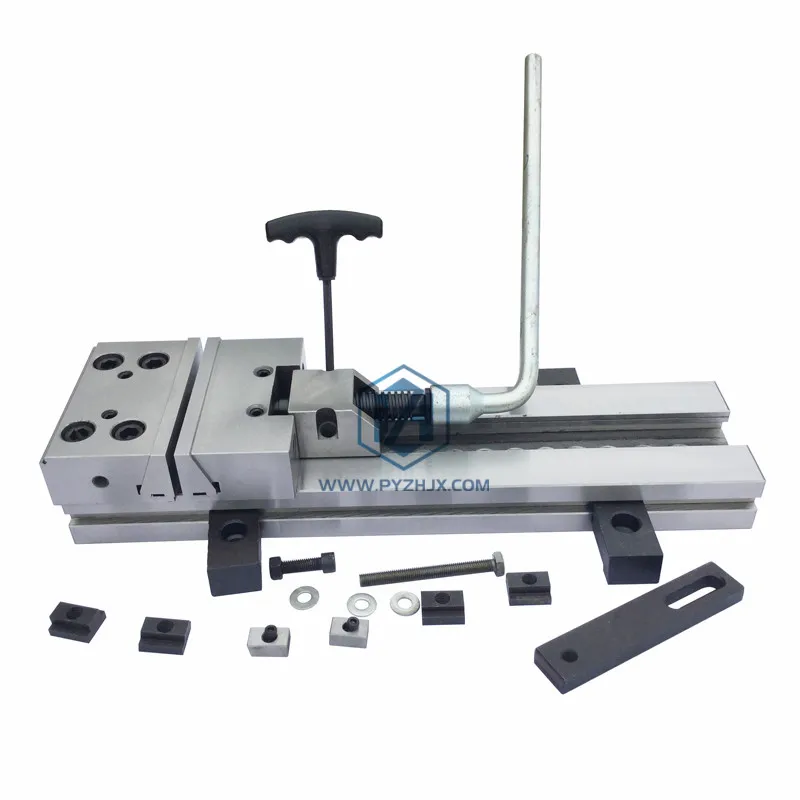

Vise Accessories: Interchangeable jaws, vise base, we supply, wecome to contact
Vise clamping tools to work table: we supply
GT150 Precision Modular China Vise for Milling Machine accessories to Lathe
Parameters for CNC Milling Grinding Drilling 6in Precision Vise
| GT Precision Modular Vises | |||||
| Order No. | B | H | Smax | L | Clamping force |
| mm | mm | mm | mm | Kg | |
| GT100-I | 100 | 30 | 100 | 270 | 3000 |
| GT125-I | 125 | 40 | 150 | 345 | 3000 |
| GT150A-I | 150 | 50 | 200 | 420 | 5000 |
| GT150B-I | 150 | 50 | 300 | 520 | 5000 |
| GT150C-I | 150 | 50 | 400 | 620 | 5000 |
| GT175A-I | 175 | 60 | 200 | 455 | 6000 |
| GT175B-I | 175 | 60 | 300 | 555 | 6000 |
| GT175C-I | 175 | 60 | 400 | 655 | 6000 |
| GT175D-I | 175 | 60 | 500 | 755 | 6000 |
| GT175E-I | 175 | 60 | 600 | 855 | 6000 |
| GT200A-1 | 200 | 65 | 200 | 495 | 10000 |
| GT200B-1 | 200 | 65 | 300 | 595 | 10000 |
| GT200C-I | 200 | 65 | 400 | 695 | 10000 |
| GT200D-I | 200 | 65 | 500 | 795 | 10000 |
| GT200E-I | 200 | 65 | 600 | 895 | 10000 |
| GT300A-1 | 300 | 80 | 200 | 535 | 12000 |
| GT300B-1 | 300 | 80 | 300 | 635 | 12000 |
| GT300C-I | 300 | 80 | 400 | 735 | 12000 |
| GT300D-I | 300 | 80 | 500 | 835 | 12000 |
| GT300E-I | 300 | 80 | 600 | 935 | 12000 |
| GT300F-I | 300 | 80 | 700 | 1035 | 12000 |
| GT300G-I | 300 | 80 | 800 | 1135 | 12000 |
Our vise is with differen jaw plates:
Flat jaw plates for clamping precision workpiece and steel part
Thread hole jaw plates could add soft jaws, to clamp aluminum piece
Groove jaw plated super vise could used for blank parts.
Related Products
CNC Milling Grinding Drilling 6in Precision Vise Related Products
Company Information
- CNC Milling Grinding Drilling 6in Precision Vise
- Pingyuan Zhenghao Machinery Co., ltd, founded in 1998,
- Professional manufacturer for high-precision accessories(Vise, collects, adapters, holders) on CNC machine in China.
- Our customers are mainly from North America, EU, Southeast Asia, and other countries and regions around the world.
Contact us
FAQ
1. We XZH are factory since 1998, also do trading.
2. Market: different places of the world: USA, Australia, Switland, French, Belgium, Israel, Hungary, South Africa, Argetina...
3. High precision Vise Products: tool vise QKG, QGG, precision modular vice GT series, universal tilting vises QW series, QM precision machine vises...
4. Delivert and Shipping: delivery by air and courier, shipping by sea as per need.
5. Customized products. OEM Service
6. 24-hours service for inquiry, product presentaion and after-sales service.
7. Welcome to contact us about distribution and agent cooperation.

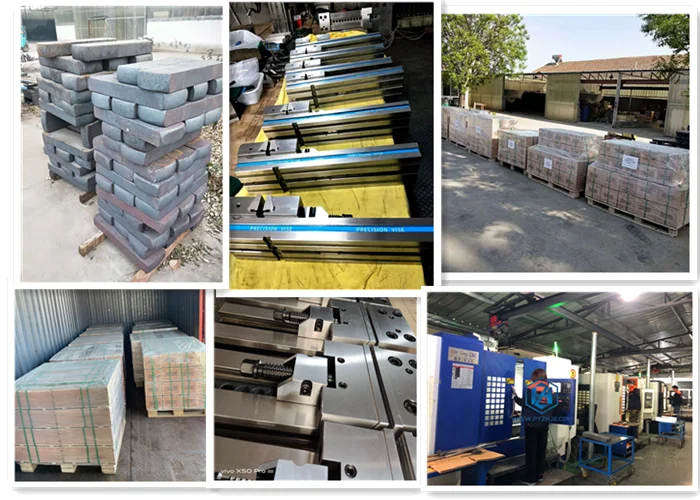

Logistics
- Package: Plastic bags inside, cartons, wooden box, pallets.Or as per need.
- Logo and shipping marks:Zhenghao or as per need.
- Logistics: By sea, air and courier according to the order quantity and weight.
