Product Description

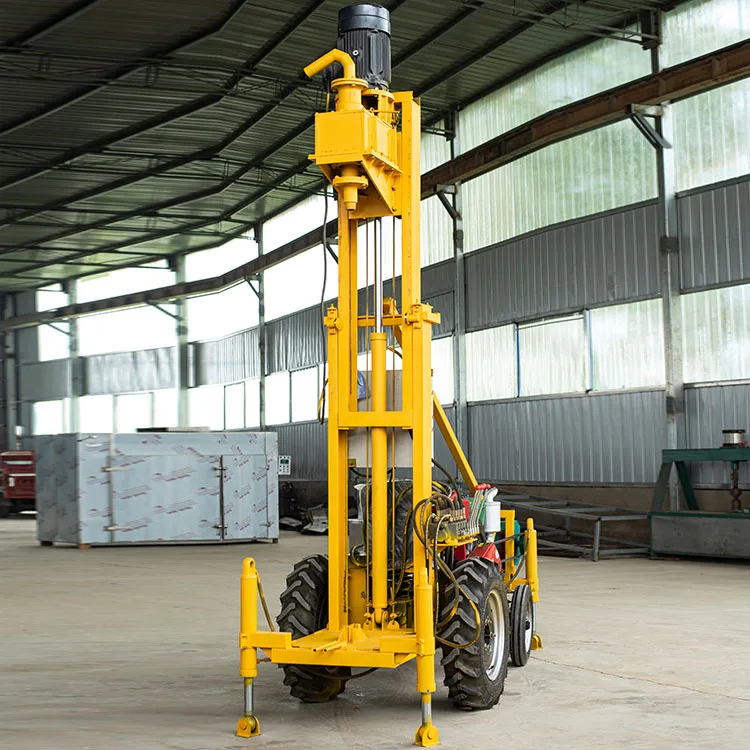

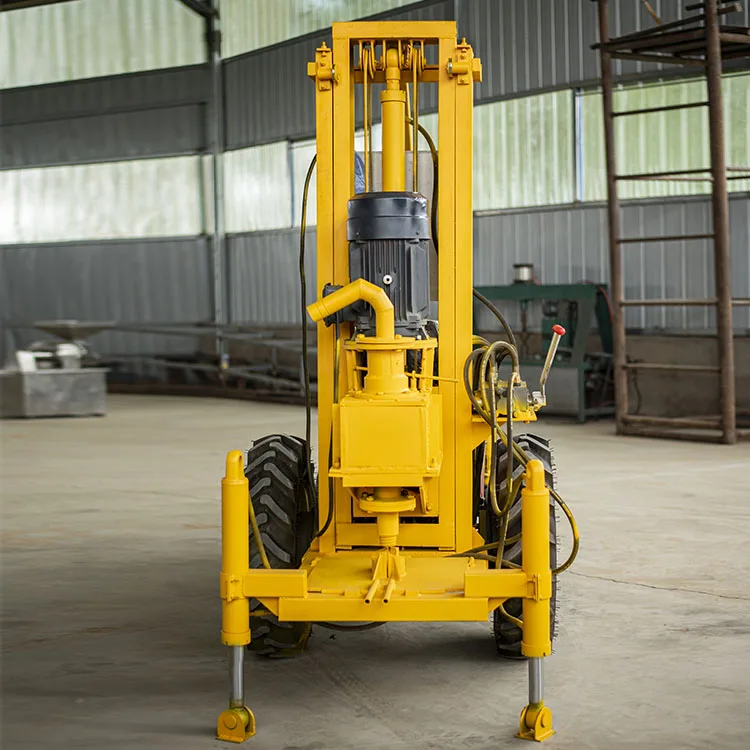

Factory price drilling wells equipment portable 150m deep small water well drilling rig machine

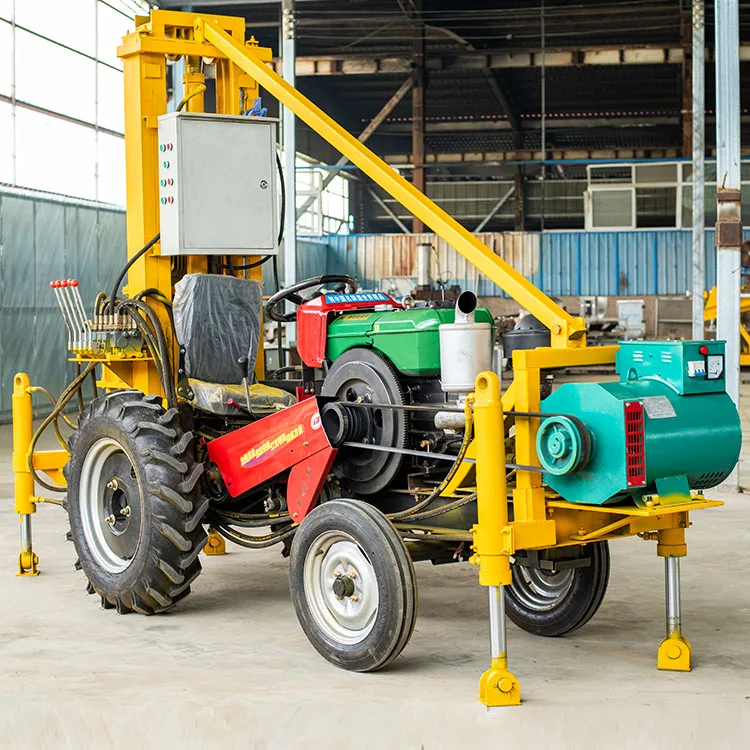

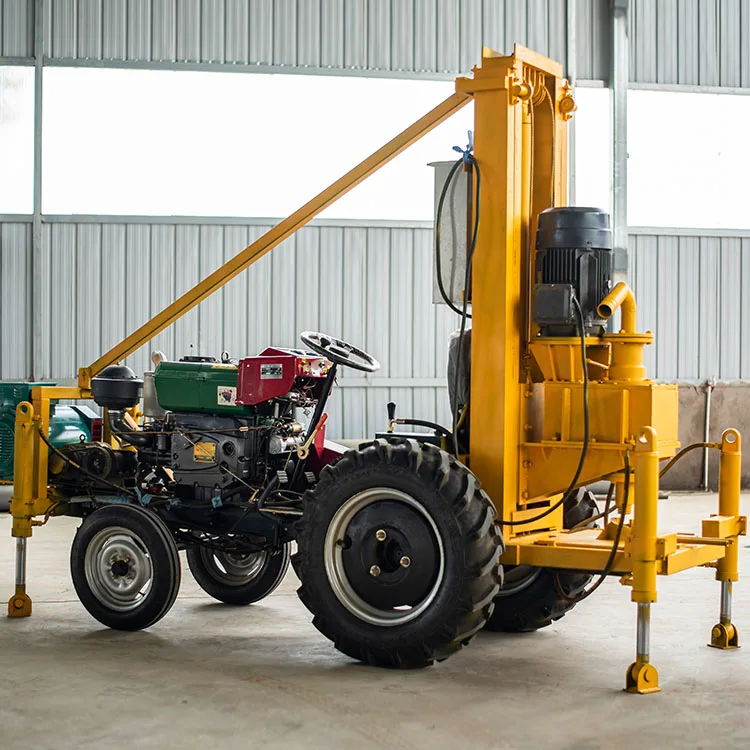

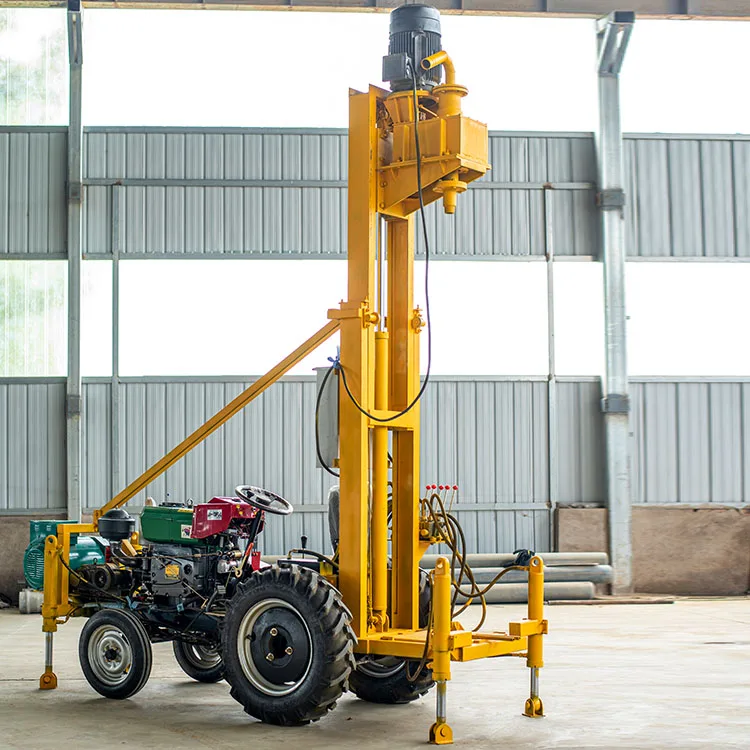

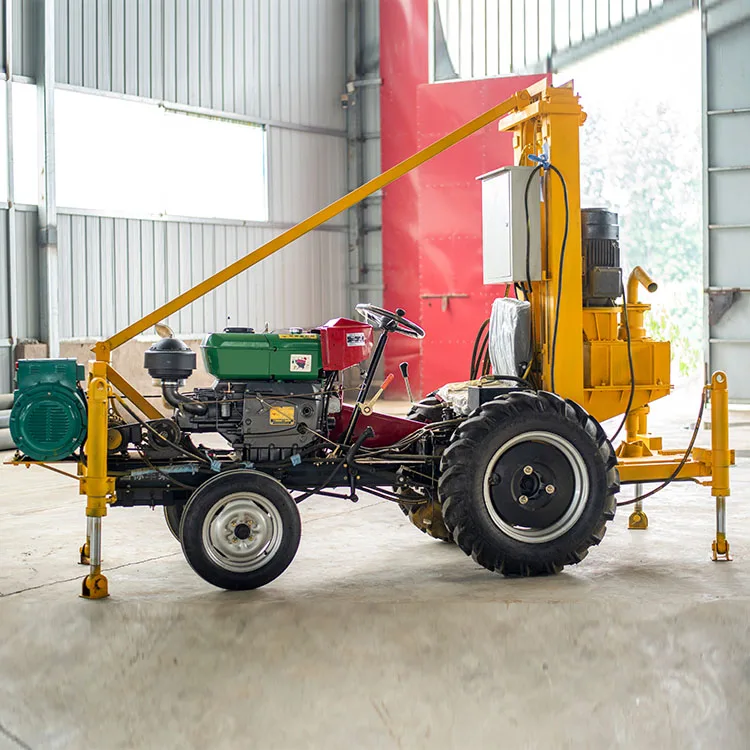

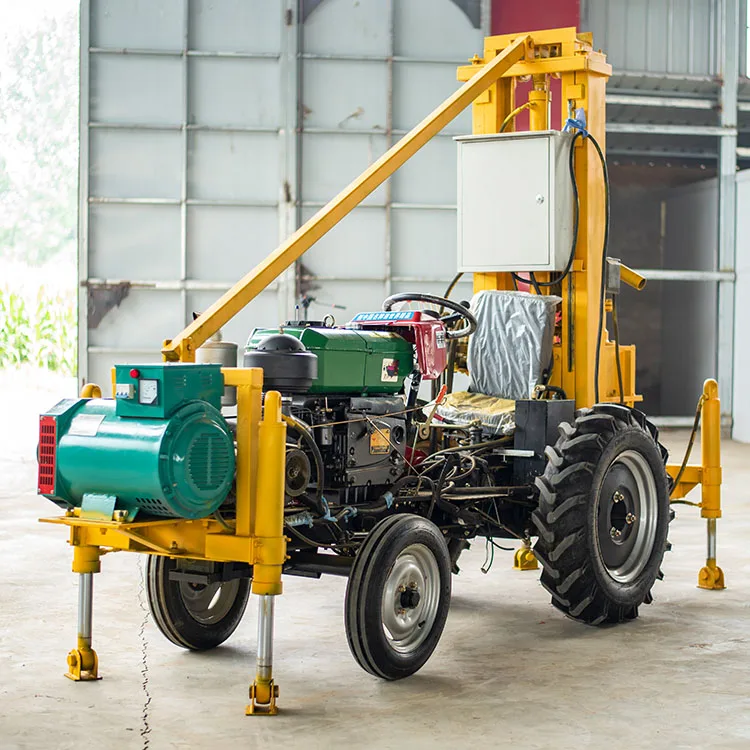

This machine is tractor mounted drilling bit, it is equipped with 36hp tractor, 30kw generator, hydraulic system, hydraulic oil cooling systerm. It can drill 150m in soil and the open hole is 200 to 450mm. And it can also drill hard rocks with tricone drillig bit.
The advantage of the water well drilling machine are as below:
1.Light weight, energy saving.
2. Patented product, unique design and simple drilling structure.3. Easy to transport and can learn how to handle the machine in short time.
4. Can drill through hard stratum, unless thick rock layer.
5. One person operation, reduce the labor intensity.
6. High efficiency and work fast.
7. Assure easily operation and long life service life.
Suitable For
Soil Layer
Sand Layer
Rock Layer
Application
This machine mainly used for geothermal drilling, farm irrigation , house yard, gardens and water well drilling, drilling diameter is 120-450mm, and drilling depth is 100m to 150m. It also can be used in small building piling, like farmhouse or factory, the drilling diameter can reach 450mm and depth can be more than 150 meter.
Geothermal drilling
Farm irrigation
Home/Garden
Factory
Specification
Diesel hydraulic water well drilling machine HY-DT-500 (with tractor) | ||
Working Dimension(mm) | 3750*1350*4100mm | |
Weight of machine (kg) | 1500 | |
Drill rod diameter (mm) | Ø60 | |
Drill rod length(mm) | 1500 | |
Rod change method | Full automatic screw thread | |
Drilling depth(m) | 150 | |
Drilling speed(rpm) | 70/100 | |
Voltage (V) | 380 | |
Drilling head motor | 7.5KW | |
Diesel engine | 36hp | |
Drilling method | Rotating type | |
Pump power (KW) | 7.5kw | |
Drilling hole diameter(mm) | 200-450 mm | |
Hosting height(mm) | 3200 | |
Hosting capacity (kg) | 2000 | |
Completed unit of drilling machine include main engine, tools, 40 meter drill rod, 2 units alloy drilling bit, 1 unit water pump, 5 meter high pressure water pipe and English manual. | ||
Products details

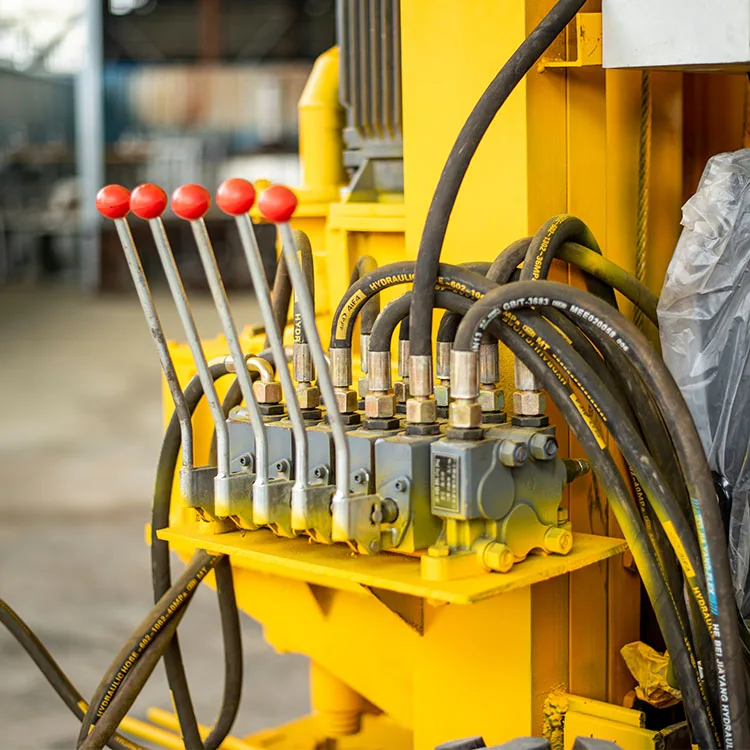

Details & Advantages
1. 36HP big power diesel with electric starter, make the machine more powerful and easy to start.

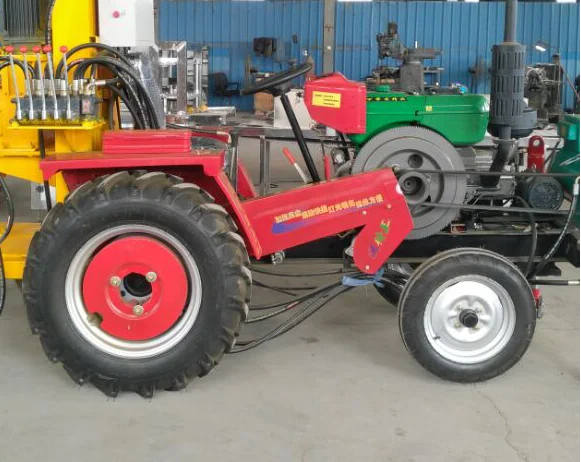

2. This machine is equipped with a tractor, which is flexible in movement and applicable in a wide area.

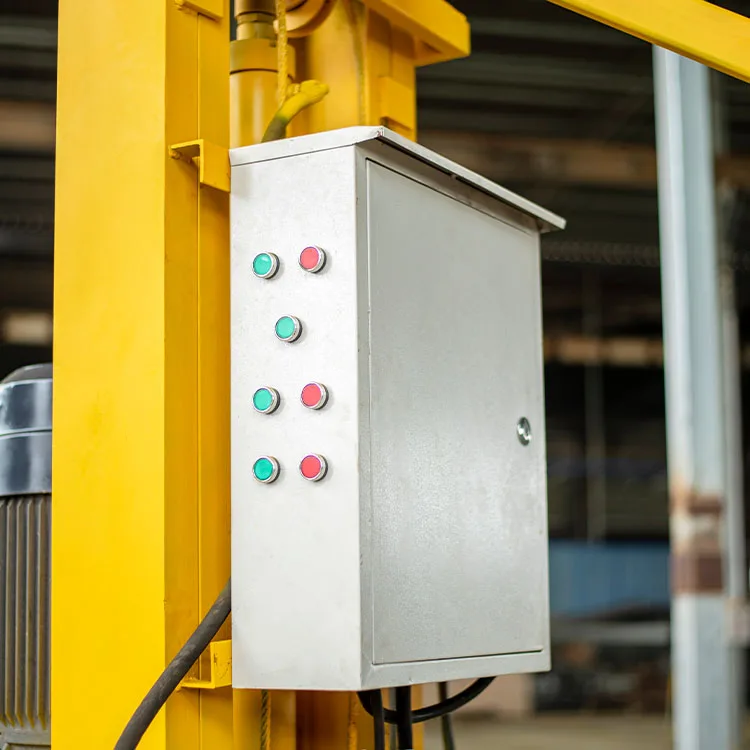

3. High-quality electric control cabinet, with simple joystick, one person can operate independently.
Accessories

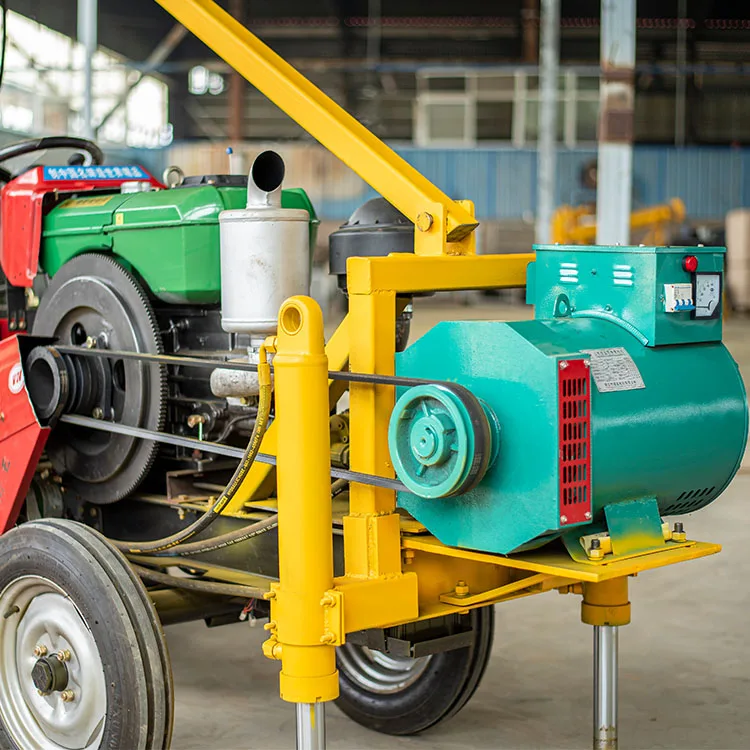

High pressure water pipe Alloy drilling bit Generator Tractor

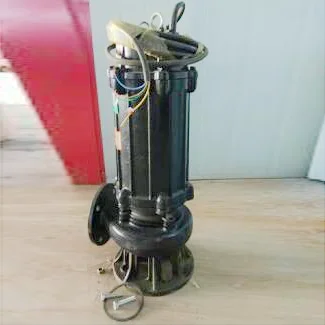

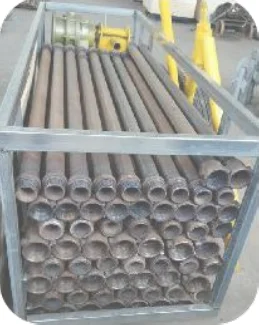

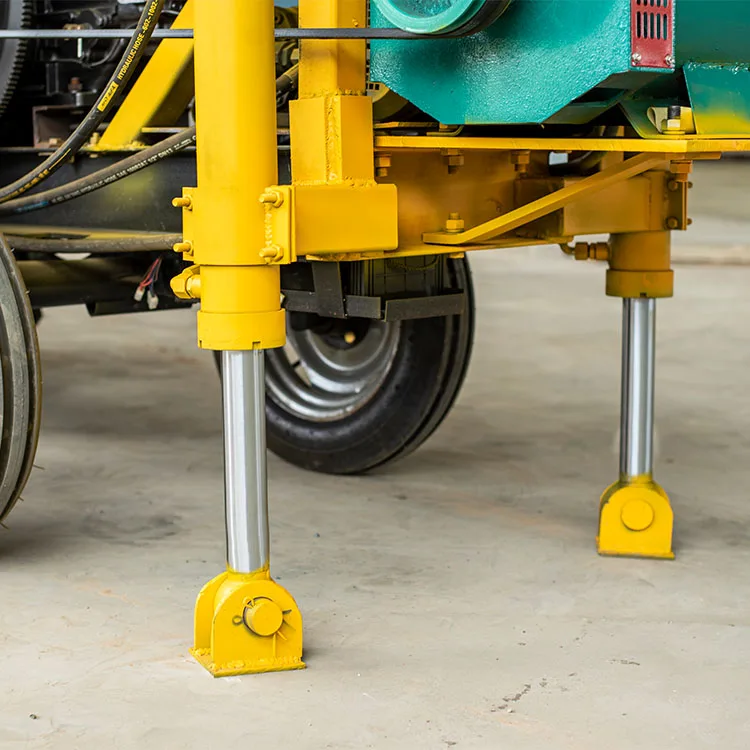

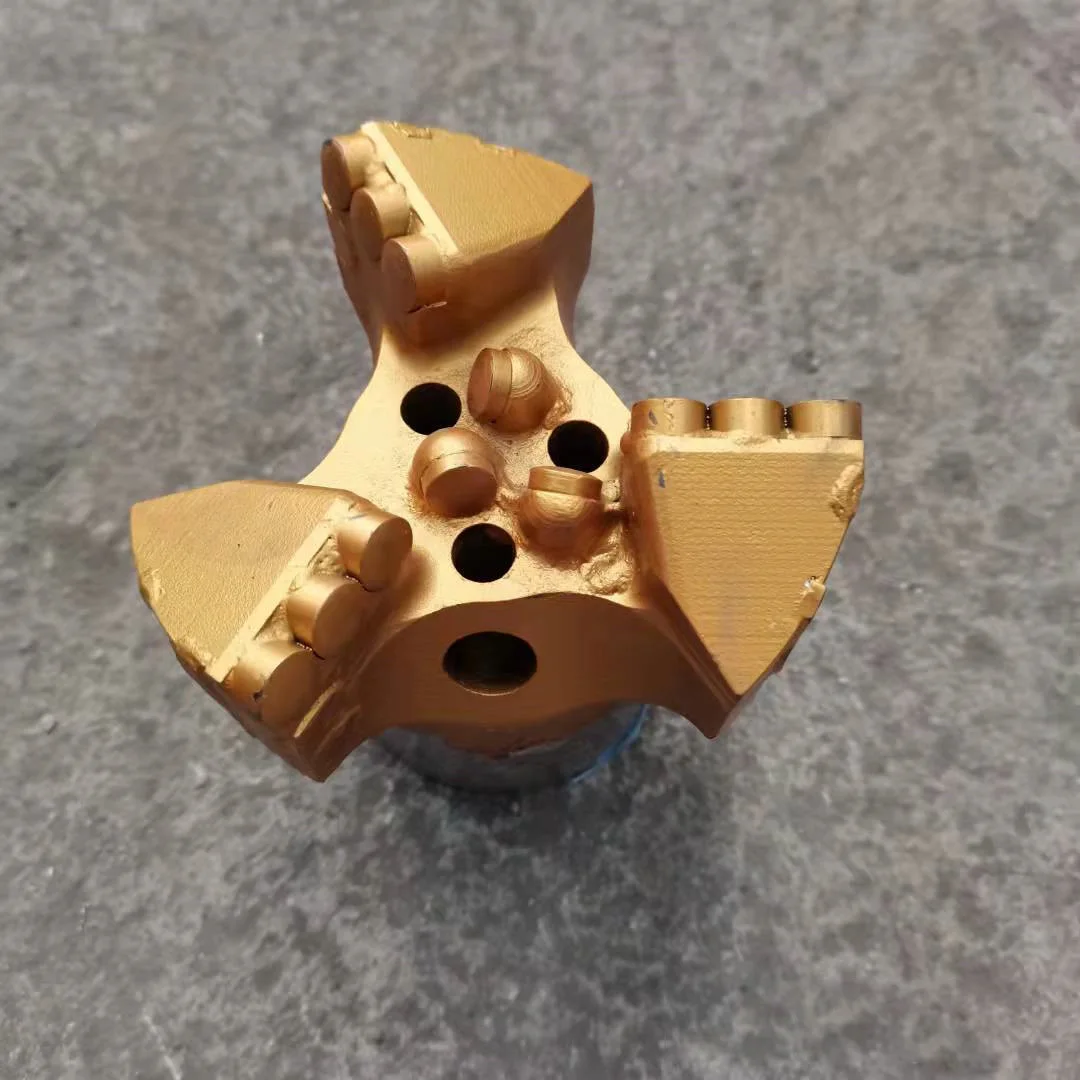

Drilling rod PDC drilling bit Hydraulic outrigger Water Pump
Factory Real Shot
Recommend Product
Company Profile
FAQ
Q1,Are you manufacturer?
A:Yes, we are manufacturer with more than 10 years' experience.
Q2, Can you ship the machine to my address?
A:Yes, generally we will ship the machine by sea. If you need the machine urgently, we also provide the air freight service.
Q3, Where are you? Can we go to China and visit your factory?
A:We are in Luohe city, Henan province, the middle of China. The nearest port is Shanghai port, Welcome to our factory.
Q4, Do you have manual with the machine?
A:Yes, of course. It is in English version.
Q5, Can you offer us the necessary paper to do the customs clearance?
A:Yes. We will send you the commercial invoice, sales contract, packing list, bill of lading(FOB or CFR, CIF terms), insurance policy (if CIF terms), also CO, FORM E if you need.
A:Yes, we are manufacturer with more than 10 years' experience.
Q2, Can you ship the machine to my address?
A:Yes, generally we will ship the machine by sea. If you need the machine urgently, we also provide the air freight service.
Q3, Where are you? Can we go to China and visit your factory?
A:We are in Luohe city, Henan province, the middle of China. The nearest port is Shanghai port, Welcome to our factory.
Q4, Do you have manual with the machine?
A:Yes, of course. It is in English version.
Q5, Can you offer us the necessary paper to do the customs clearance?
A:Yes. We will send you the commercial invoice, sales contract, packing list, bill of lading(FOB or CFR, CIF terms), insurance policy (if CIF terms), also CO, FORM E if you need.
