Проект под ключ Автоматическая производственная линия 3 в 1 для разлива питьевой
- Категории: >>>
- Поставщик: Zhangjiagang,Baiji,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

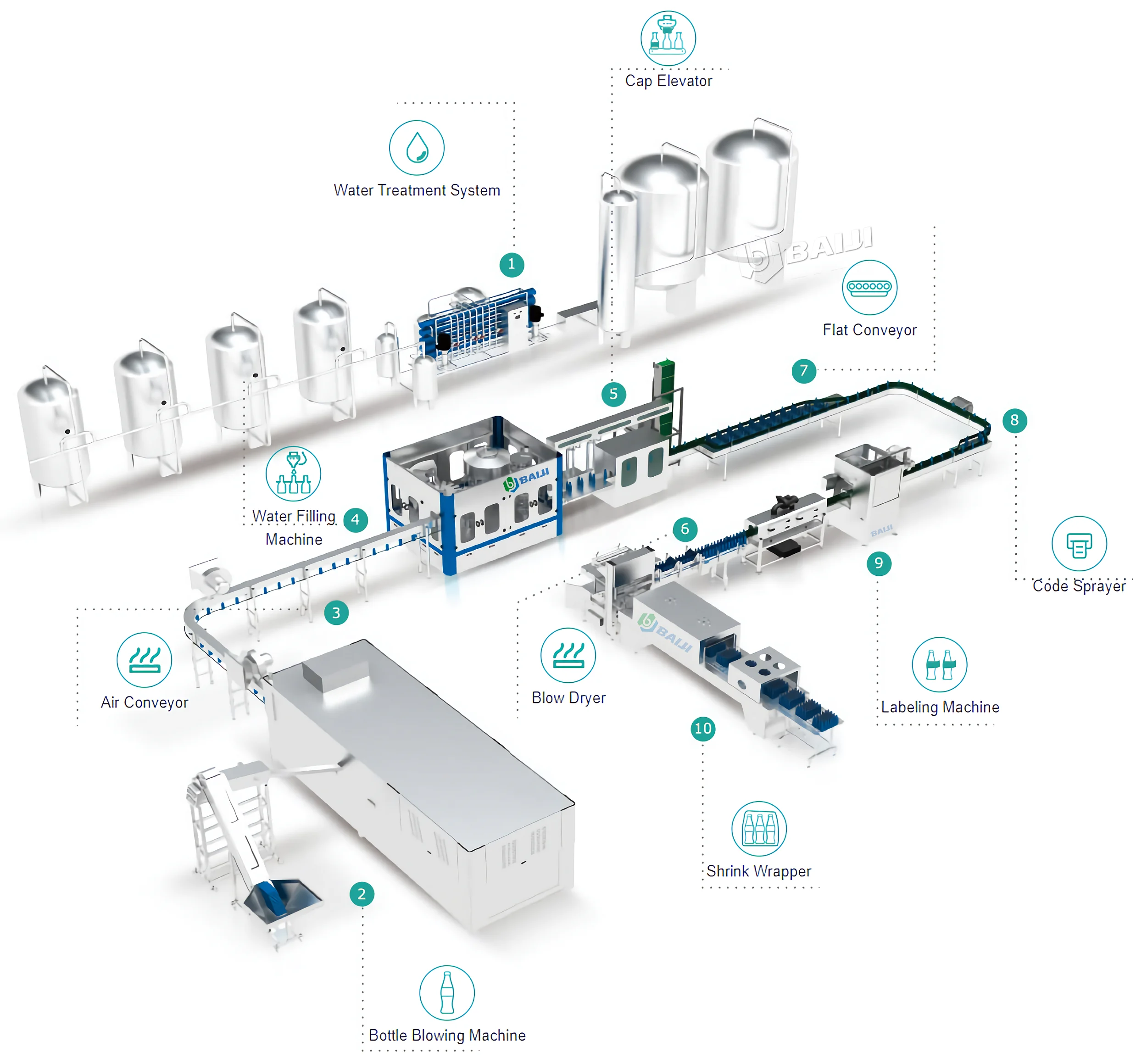

Turnkey project automatic 3 in 1 drinking water filling machine production line
Features:
The washing filling capping machine is mainly used for Non-aerated carbon dioxide drink, such as pure water, mineral water and so on. It is a unique design combining the three machines of bottle washing, filling and capping in one to decrease main power, to save space and to diminish the air pollution among the three machines.
Our water filling production line can suitable for 0.25 to 2L different PET bottles.
Our water filling production line can suitable for 0.25 to 2L different PET bottles.
Detailed Images

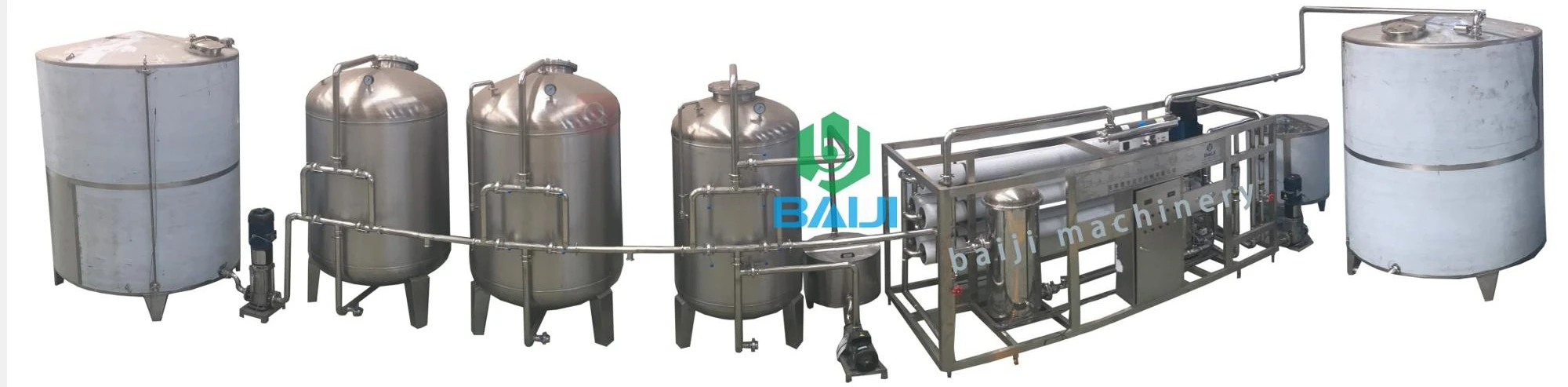

Water treatment system
Processing included: quartz sand filter, active carbon filter, sodium ion exchanger, precision filter, RO (Reverse Osmosis), ozone generator, finished water tank

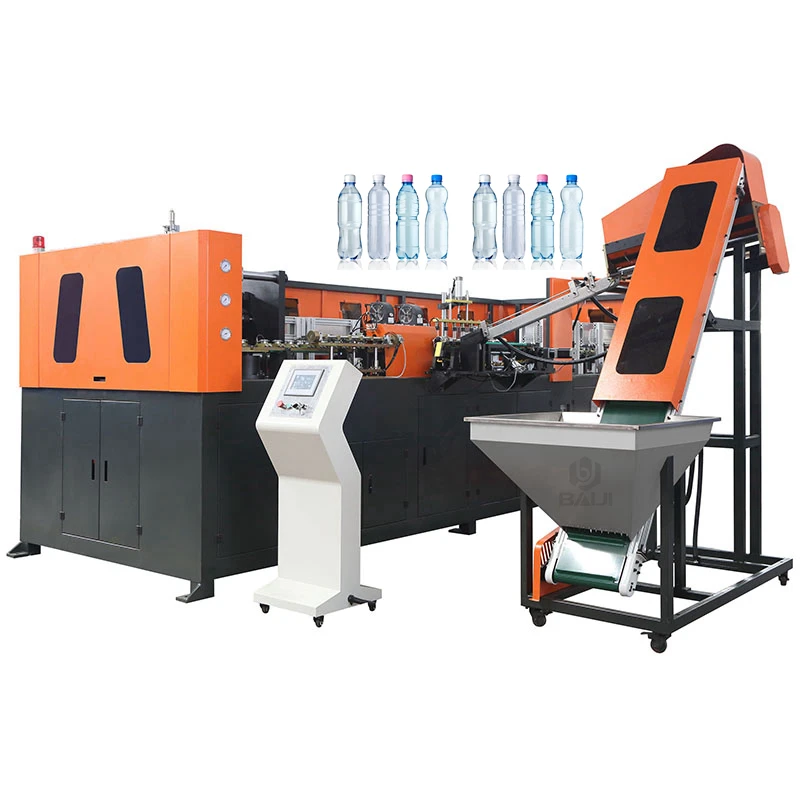

Automatic bottle blowing machine
Full automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the pure water bottle, mineral water bottle, carbonated drink bottle, juice hot fill bottle and oil bottle etc.

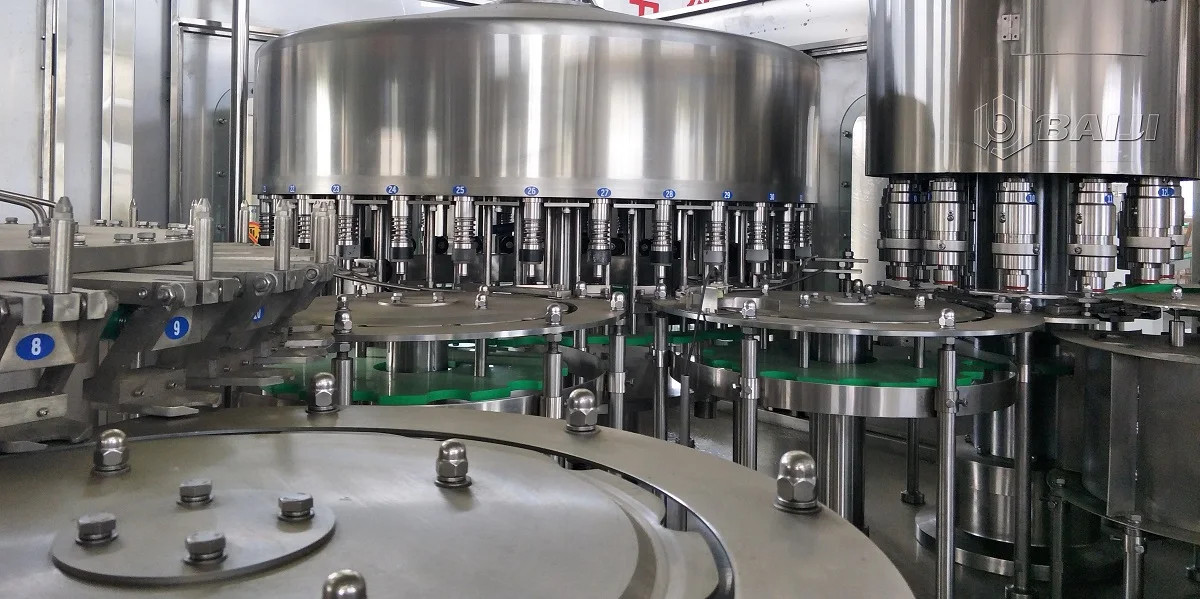

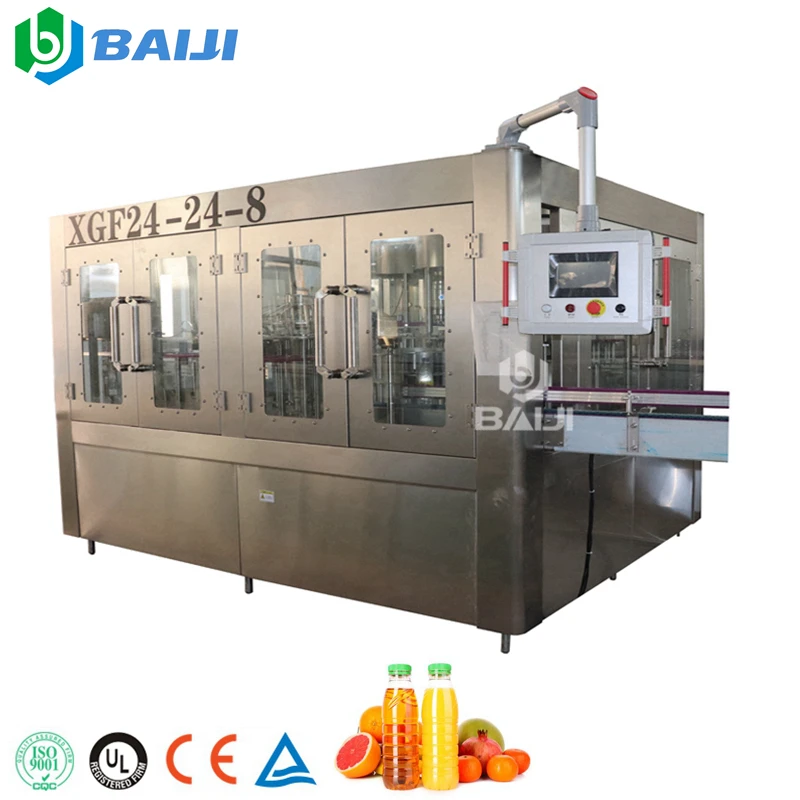

3 in 1 washing filling capping machine
It combines the three machines of bottle washing, filling and capping in one to decrease main power, to save space and to diminish the air pollution among the three machines.
Technical Parameter | ||||||||||||||
Model | Washing heads | Filling heads | Capping heads | Capacity (500ml)(B/H) | Motor power(kw) | Dimensions(mm) | Weight (kg) | |||||||
CGF8-8-3 | 8 | 8 | 3 | 2000 | 1.9 | 1900*1420*2000 | 1500 | |||||||
CGF14-12-5 | 14 | 12 | 5 | 4000 | 3.5 | 2450*1800*2400 | 2500 | |||||||
CGF18-18-6 | 18 | 18 | 6 | 5000-6000 | 4.0 | 2650*1900*2400 | 3500 | |||||||
CGF24-24-8 | 24 | 24 | 8 | 7000-10000 | 4.8 | 2900*2100*2400 | 4500 | |||||||
CGF32-32-10 | 32 | 32 | 10 | 10000-12000 | 7.6 | 4100*2000*2400 | 6500 | |||||||
CGF40-40-12 | 40 | 40 | 12 | 15000-18000 | 8.3 | 4550*2650*2400 | 8500 | |||||||
CGF50-50-15 | 50 | 50 | 15 | 20000-24000 | 9.6 | 5450*3210*2400 | 9800 | |||||||

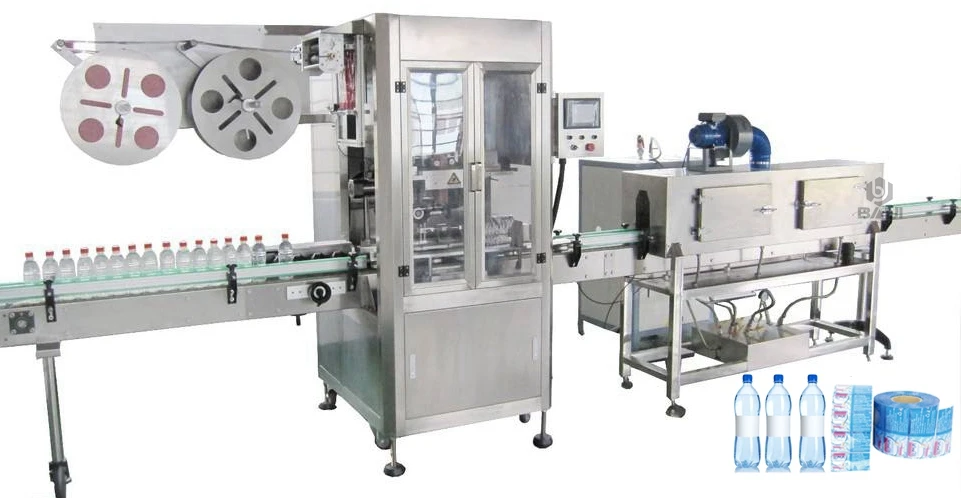

Automatic labeling machine
The auto shrink sleeve labeling machine consist of auto labeling machine, heat shrink tunnel and steam generator.
This machine adopts international advanced technology, cover the circle label on the pet bottle.And then hot shrinking to fix on the position which bottle body designated.

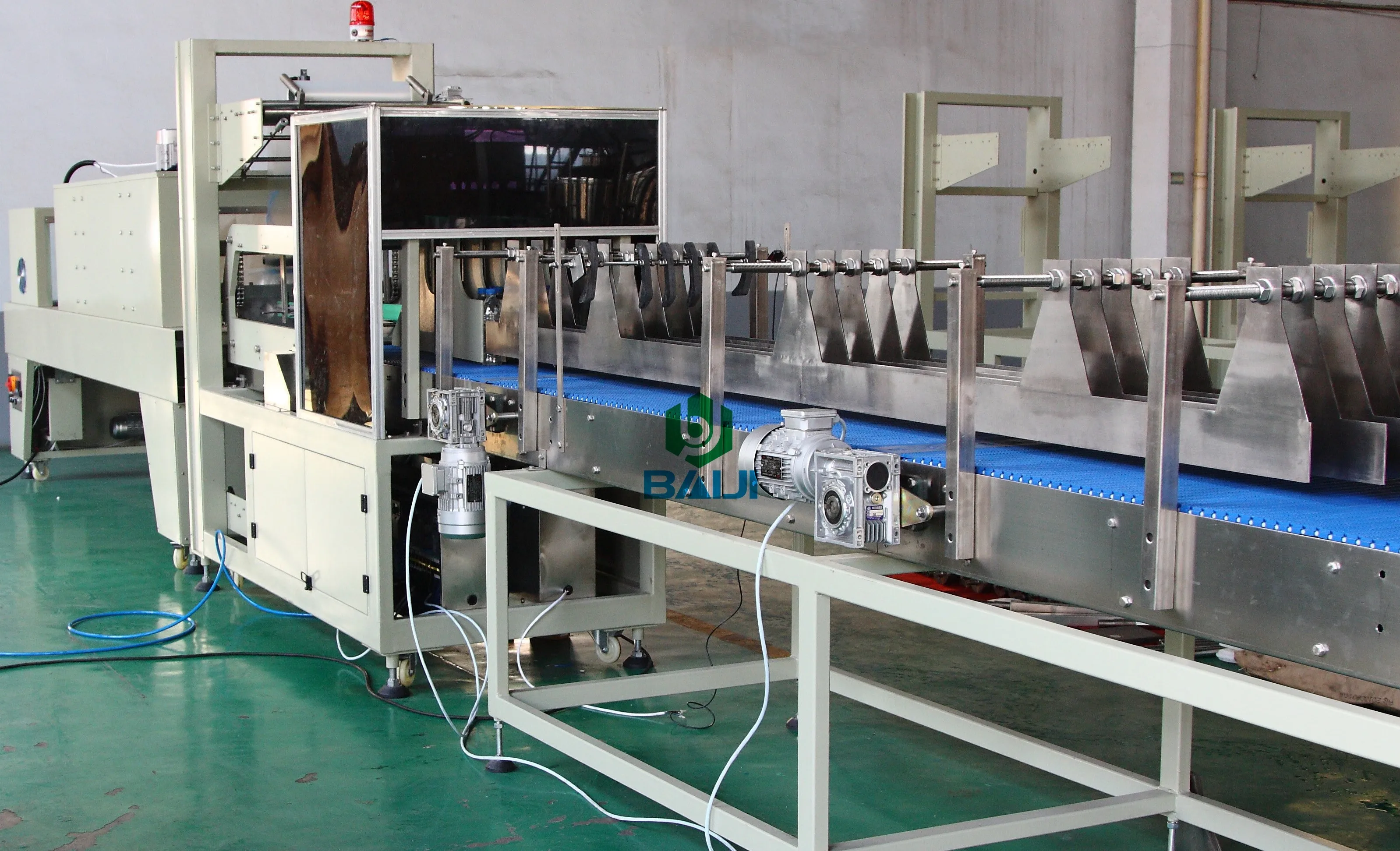

Automatic packaging machine
PE film shrink wrapping machine
To pack several bottles into one package, make it easier for delivery.
You can decide 24 bottles one package, 12 bottles one package, etc. It is changeable.
To pack several bottles into one package, make it easier for delivery.
You can decide 24 bottles one package, 12 bottles one package, etc. It is changeable.

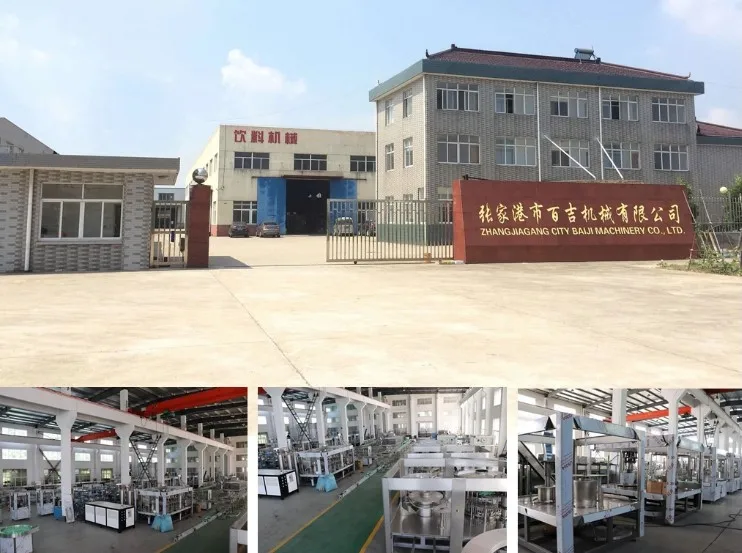

Our company
Zhangjiagang Baiji Machinery CO., Ltd is a company which has specifically manufactured beverage machine for more than 10 years. Our company holds the right of independent import & export, and enjoys a good reputation in national and aboard markets.
Our company is specialized in manufacturing carbonated drink production line, mineral water filling labeling and packing machine, pure water filling production line, juice or tea drink hot filling production line, milk filling and packing production line, edible oil filling and capping machine, wine production line. The drink can be PET bottled, 5 gallon barreled, easy open canned, glass bottled and so on.
FAQ
1. What service can you provide before and after sales?
Firstly, we can supply the most suitable machine according to your capacity. Secondly, after getting your workshop dimension, we can design the workshop machine layout for you. Thirdly, we can provide technical support both before and after sales. We will give you long time technology supply. We can dispatch our engineer to you for installing and debugging machines. Engineer's roundtrip tickets, accommodation, and your side travelling fee will be charged by you. We can also supply you mounting process, so your engineers can fit and debug machines by themselves.
2. Are you a manufacturer or a commercial company?
We are a manufacturer, and we have a foreign trade department, we market our own products.
3. What's your package and delivery method?

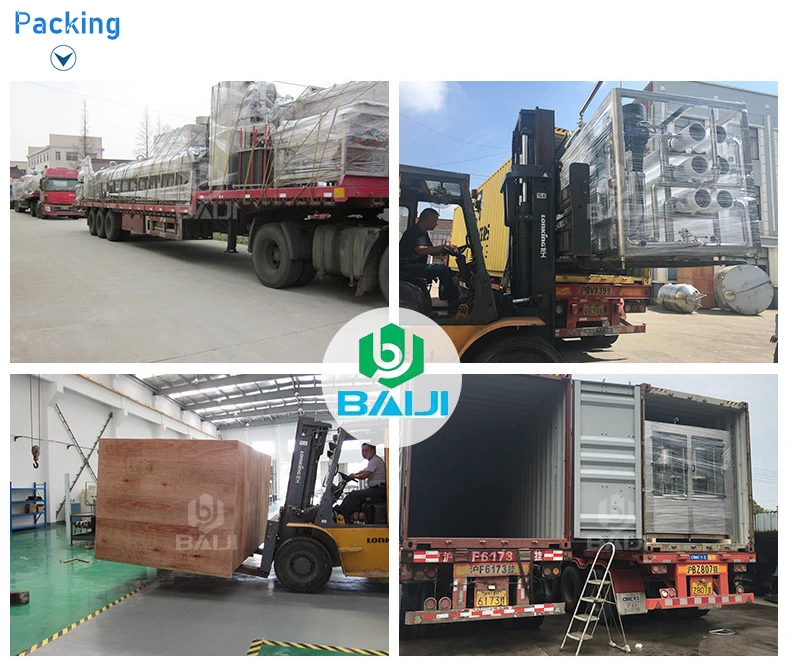

We use standard package. If you have special package requirements, we will pack as you required, but the fees will be paid by customers. We commonly use sea transportation, using container to deliver the goods through Shanghai Port.
4. What is the warranty period of the machine?
One year. Except the wearing parts, we will provide free maintenance service for the damaged parts caused by normal operation within warranty. This warranty does not cover wear and tear due to abuse, misuse, accident or unauthorized alteration or repairs. Replacement will be shipped to you after photo or other evidence are provided.
