                                               Dispersion Kneader

                                       Whatsapp & Wechat: 0086 13963993705



1.Technical Spec.:

Model		X(S)N- 55×30	X(S)N- 75×30	X(S)N- 110×30	X(S)N- 150×30
Total volume of mixing chamber	L	125	175	250	325
Working volume of mixing chamber	L	55	75	110	150
Main motor power	KW	75	110	185	220
Tilting motor power	KW	4.0	4.0	5.5	11
Tilting angle	°	140	140	140	140
Rotation speed of rotor(front/rear)	r/min	30/24.5	30/24.5	30/24.5	30/24.5
Pressure of compressed air	Mpa	0.6~0.8	0.6~0.8	0.6~0.8	0.6~0.8
Pressure of cooling water(rubber mixing)	Mpa	0.2~0.4	0.2~0.4	0.2~0.4	0.2~0.4
Pressure of heating vapor(plastic mixing)	Mpa	0.5~0.8	0.5~0.8	0.5~0.8	0.5~0.8
Overall size	mm	3300×1900×2900	3760×2143×3135	4075×2712×3580	4200×3400×3900



2.Features:

1) motor: Dandong Beilong brand

2) speed reducer: hard-teeth reducer from Jiangsu Kaibo

3) the electric elements: CHINT brand, OMRON PLC

4) the thickness of hard chrome plated for mixing chamber & rotors: 0.1mm

5) mixing chamber: 16MN plate

6) rotor: 2 wings, the comers ridges and end surface are bead welded with abrasion  resistant hard alloy to be polished after being ground and plated with hard chromium.

7) sealing type: outside copper seal , the most advanced seal method.

8) feeding type: rear feed, front discharge

9) hydraulic driven chamber tilt system

10) feeding gate: automatic



Available modes: 10L, 20L, 35L, 55L, 75L, 110L, 150L, 200L can be sent to you as per request.



Packaging & Shipping

1).Delivery time: within 20-30 days

2).The machine need one 20F or 40Ft tcontainer loaded.

3).Packing: for main machine, there is no package,will be fxed in container,and the other parts will be packed in wooden cases.

4). Warranty time: one year

5). Mode of payment: 30% in advance by T/T+the balanced after the goods finished.

Company Information

We are specialized in rubber machine design, manufacturing and maintenance works:



Our Main Products:

· Rubber mixing equipment: Bale cutter, Kneader, Bucket elevator, Mixing mill

· Rubber vulcanizing machine: Four-column press, Frame press, Tire & tube press,etc

· Automatic & Semi-automatic waste tire recycling machine

· Rubber calender machine: 3 roll & 4 roll calender

· Rubber extruding machine: cold feed extruder & hot feed extruder

· Reclaimed rubber production line: Dynamic devulcanizer, Cracker mill, Rubber refiner,etc

E-mail: Mark at qdtoplit dot com

Wechat / whats app: 0086-13963993705.

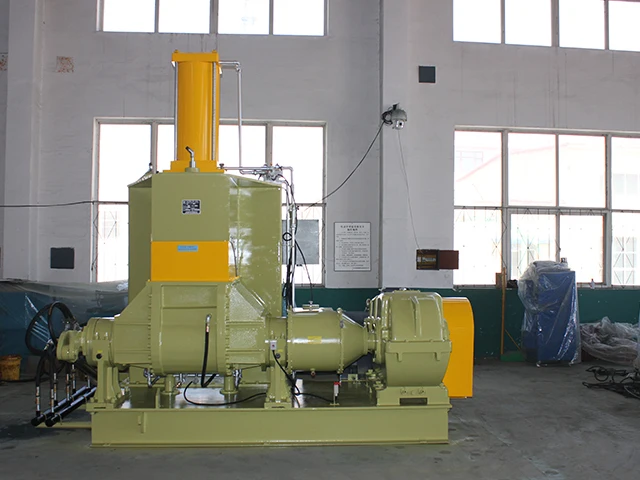

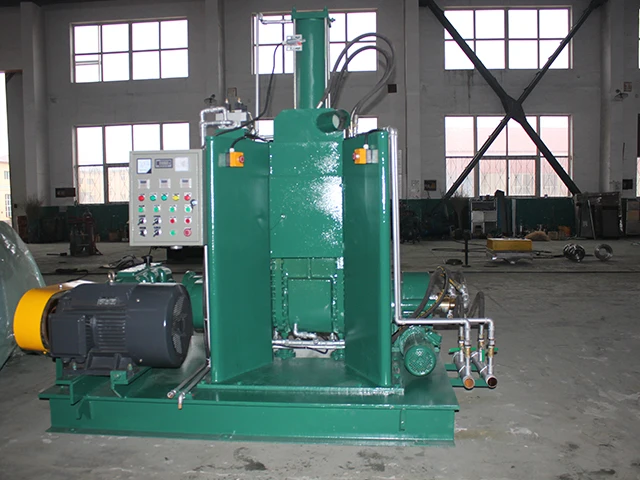

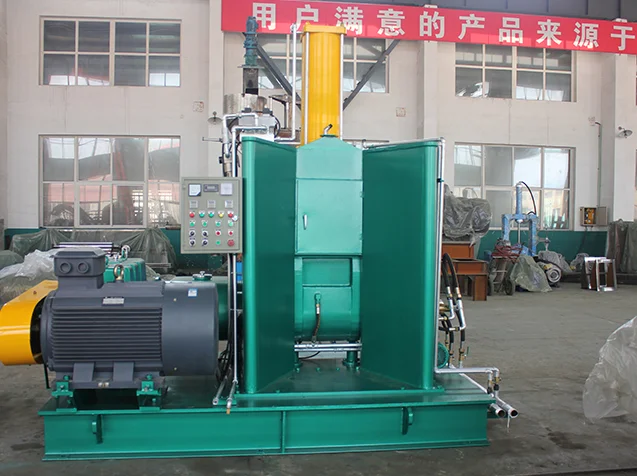

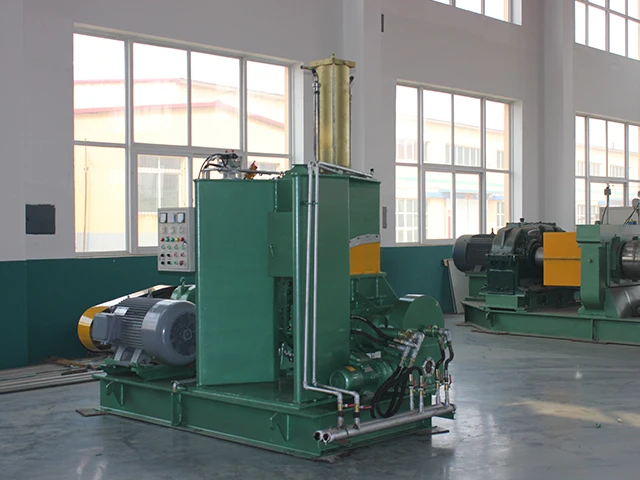

Reference photos:
