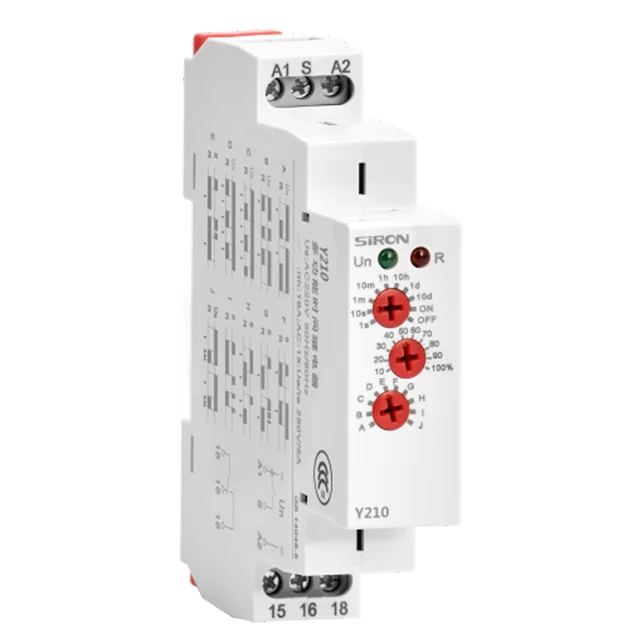

Многофункциональный модульный таймер SIRON Y21 16 А 220 В переменного/постоянного тока 12-240 высококачественный модуль реле
- Категории: Relays >>>
- Поставщик: Shenzhen,Siron,Electrical,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Features

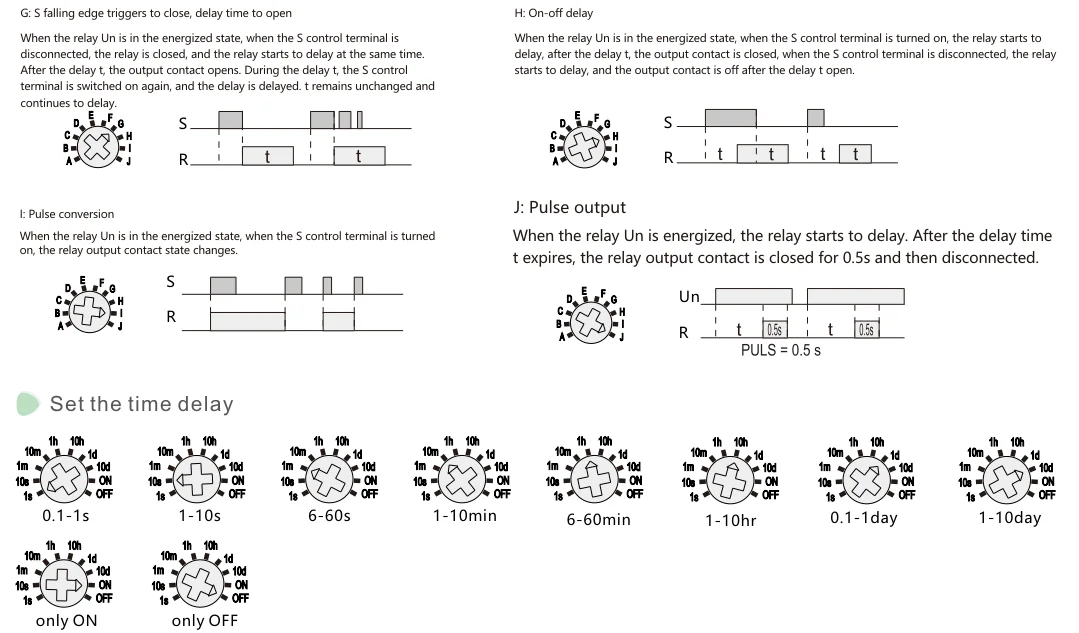

* Ultra-wide delay range,0.1 SEC-10 days can be set (10 gears).
* Optional AC/DC12V-240Vultra wide operating voltage specification.
* Relay working state is indicated by LED indicatorlight.
*Multi-function time relay can be used for industrialequipment, lighting control,Heatingelementcontrol,motorcontrol, fan control, with 10 kinds of extension, the delay range covers0.1 second to 10 days.
Products Description
Product Parameters
Specifications | ||||||||||

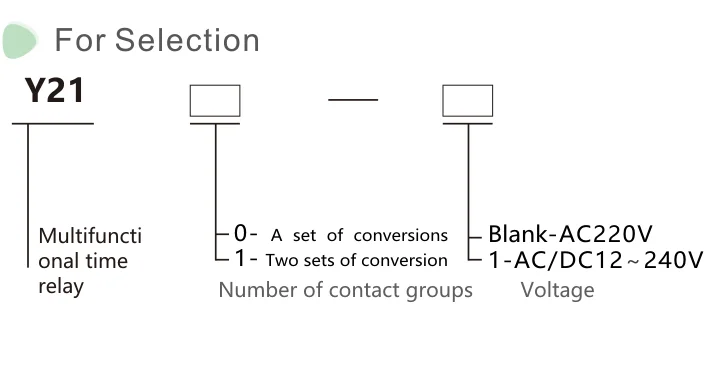

Model | Electricity delay | Y200 | Y200-1 | Y202 | Y202-1 | |||||
Delay to disconnect | Y201 | Y201-1 | Y203 | Y203-1 | ||||||
Output number of contact groups | A set of conversions | Two sets of conversion | ||||||||
Output contact current | 1×16A(AC1) | 2×16A(AC1) | ||||||||
Output contact voltage | 250VAC/24VDC | |||||||||
Rated control supply voltage | AC 220V (50-60Hz) | AC/DC 12-240V (50-60Hz) | AC 220V (50-60Hz) | AC/DC 12-240V (50-60Hz) | ||||||
Consumed power | ACmax.6va/1.3W | AC 0.09-3VA/DC 0.05-1.7W | ACmax.6va/1.9W | AC 0.09-3VA/DC 0.05-1.7W | ||||||
Power supply allowable fluctuation range | -15%；+10% | |||||||||
Power indicator light | Green LED | |||||||||
Delay range | 0.1 seconds-10 days, normally open, normally closed | |||||||||
Set way | Knob | |||||||||
Setting precision | 10% | |||||||||
Repeat accuracy | 0.2% | |||||||||
Temperature fluctuation error | 0.05%/℃，at=20℃(0.05%℉,at=68℉) | |||||||||
Minimum switching power | 500mW | |||||||||
Output relay indication | Red LED | |||||||||
Mechanical life | 1×107 | |||||||||
Electrical life (resistive load) | 1×105 | |||||||||
Reset the time | Max 200ms | |||||||||
Operating environment temperature | -20℃～+55℃ | |||||||||
Store and transport ambient temperatures | -35℃～+75℃ | |||||||||
installation | 35mm rail installation | |||||||||
Protection grade | IP20 | |||||||||
Installation position | Arbitrary | |||||||||
Installation altitude | ≤2000M | |||||||||
Pollution levels | 2 | |||||||||
Wiring ability | 1×2.5mm2 or 2×1.5mm2 0.4N.m | |||||||||
Overall dimensions | 90mm×18mm×64mm | |||||||||
Conform to the standard | GB14048.5,IEC60947-5-1,EN61812-1 | |||||||||
As our company's product categories are very rich, the products are not all products displayed by the online shop.
If you have any other needs, please contact us for consultation.
Company Profile
MANUFACTURING FACTORY
* Hubei Yuanlan production base covers an area of 100 acres,which is a manufacturing base with systematic ERP management. Our main products: terminal station, relay, signal lamp, cable, related auxiliary equipment; Annual output value of 3 million sets.
* Hubei Yuanlan production base covers an area of 100 acres,which is a manufacturing base with systematic ERP management. Our main products: terminal station, relay, signal lamp, cable, related auxiliary equipment; Annual output value of 3 million sets.
* Our products are exported to Japan and the domestic market, and occupy the leading position in the market in the industry.
* The company has been continuously innovating and developing, and returning users and serving the society with excellent service.
Delivery
Certifications
FAQ
Q1: What company do we belong to?
A1: We are a manufacturer and a trader.
A1: We are a manufacturer and a trader.
Q2: How long is our delivery time?
A2: This depends on the quantity of the goods you ordered, we have stock, usually 7-15 days delivery time.
Q3: How long is the quality guarantee?
A3: One year guarantee.
Q4: How many discounts are available for ordering products?
A4: As long as you provide us with your demand, we will give you the best price.
To know more information, please feel free to contact us:
Tel./WhatsApp:+8618813675597
Email:funny@szsiron.com
A2: This depends on the quantity of the goods you ordered, we have stock, usually 7-15 days delivery time.
Q3: How long is the quality guarantee?
A3: One year guarantee.
Q4: How many discounts are available for ordering products?
A4: As long as you provide us with your demand, we will give you the best price.
To know more information, please feel free to contact us:
Tel./WhatsApp:+8618813675597
Email:funny@szsiron.com
