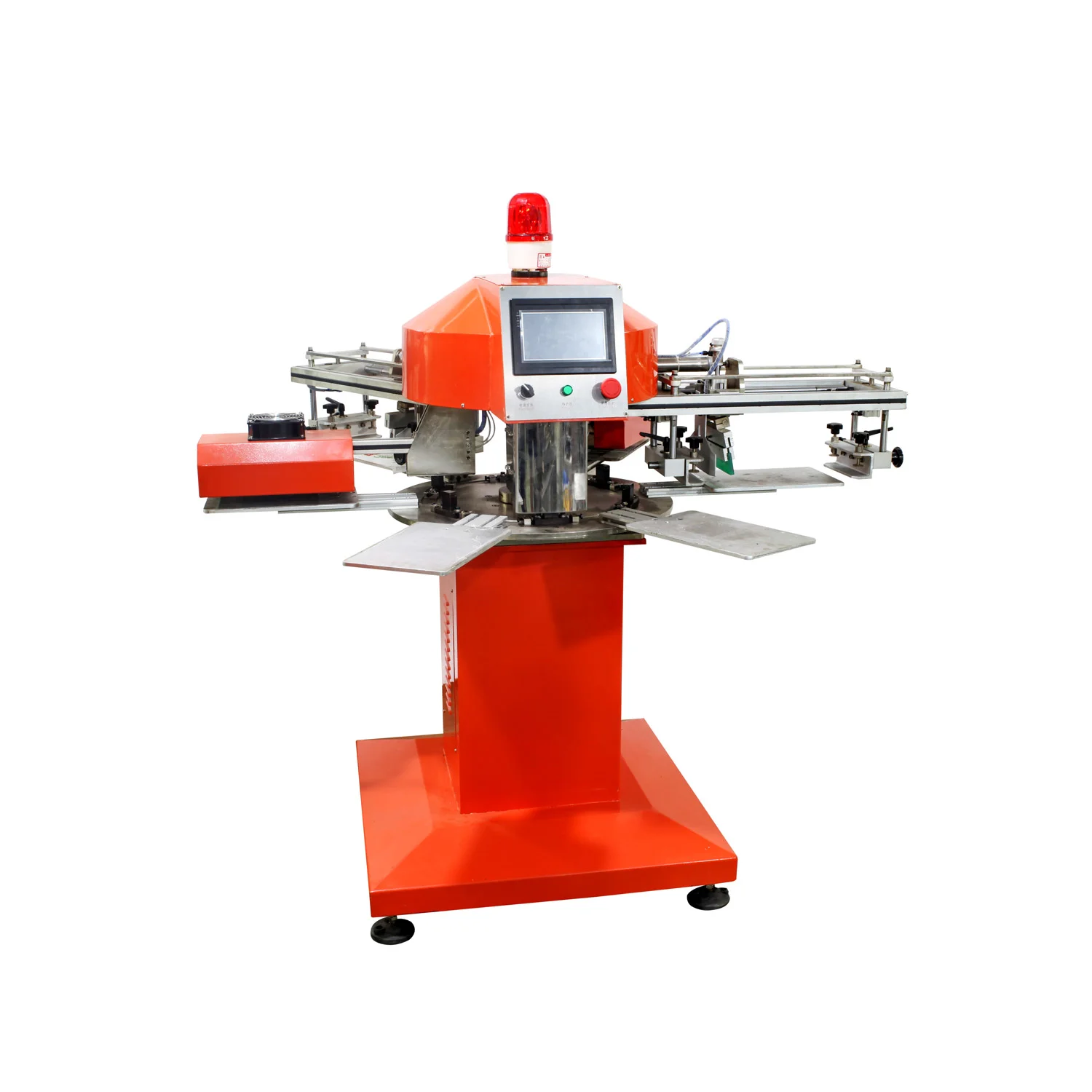

Автоматическая Роторная машина для трафаретной печати
- Категории: Screen Printers >>>
- Поставщик: Zhejiang,Taoxing,Intelligent,Equipment,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Machine Description
Applications
Applied to the garment industry's ultra-fast no tag / label screen printing and other
industries. This screen printing machine speed up to 900 / hour, can greatly increase production.
industries. This screen printing machine speed up to 900 / hour, can greatly increase production.
Features
1, PLC control, human-machine interface, features clear, easy to operate.
2, flat screen, infrared drying, particularly suitable for small-area printing inks and printing different frame types. Such as T-shirt collar and so on.
3,8-position by a stepper motor drive, smooth running smoothly.
4, scraper, back blade can adjust the angle, also adjust the level to ensure equalized printing pressure. When color printing, the second color screen printing templates around, precise adjustment.
5, 8-station rotary table, place one workpiece station, two stations printing, drying four stations, one station takes the workpiece, eight stations simultaneously at high speed.
Explanation:
Printing speed and loading and unloading, the print stroke and products and other factors
Another may be the design and manufacture of special equipment according to customer requirements
2, flat screen, infrared drying, particularly suitable for small-area printing inks and printing different frame types. Such as T-shirt collar and so on.
3,8-position by a stepper motor drive, smooth running smoothly.
4, scraper, back blade can adjust the angle, also adjust the level to ensure equalized printing pressure. When color printing, the second color screen printing templates around, precise adjustment.
5, 8-station rotary table, place one workpiece station, two stations printing, drying four stations, one station takes the workpiece, eight stations simultaneously at high speed.
Explanation:
Printing speed and loading and unloading, the print stroke and products and other factors
Another may be the design and manufacture of special equipment according to customer requirements
Product Parameter
Model | SPF-2/6 | SPF-3/8 | SPF-4/10 |
Print Color/Sation | 2/6 | 3/8 | 4/10 |
Max.Printing Area | 150*150mm | 150*150mm | 150*150mm |
Dryer | 2 | 3 | 4 |
Pallet Size | 220*330mm | 220*330mm | 220*330mm |
Max.Printing Speed | 900pcs/hr | 700pcs/hr | 500pcs/h |
Total Power | 3.8kw | 4.2kw | 6.3kw |
Rated Voltage | AC220v50/60Hz | AC220v50/60Hz | AC220v50/60Hz |
Air Consumption | 20Litre/min0.6Mpa | 25Litre/min0.6Mpa | 42Litre/min0.6Mpa |
Dimension | ∅1500*1500mm | ∅1500*1500mm | ∅1700*1500mm |
Weight | 230kgs | 280kgs | 300kgs |
Electric Part Configulation
Servo motor | TAIWAN DELTA |
Servo drive | TAIWAN DELTA |
PLC | TAIWAN YONGHONG |
Touch Screen | XIAMEN WEIKONG |
Power switch | TAIWAN MINGWEI |
AC Contactor | CHNT |
1 in 4 Relay | Omron |
Magnetic Switch | TAIWAN AIRTAC |
Emergency Switch | SCHNEIDER BE102C |
Spin switch | SCHNEIDER BE101C |
Belt | Italy Megadyne |
Company Profile
Zhejiang Taoxing Intelligent Equipment Technology Co., Ltd. Established in 2008 and have a team of experienced engineers and sales and after-sales service teams. We have our own factory in Haining,Zhejiang,where manufacture full series of high-quality screen printing machines,Drying Tunnel,book binding machine,mask machine and other machine.
Foreign Cooperative Partners
Photo of Factory
our servuce
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
*custom contact us
* Sample testing support.
* View our Factory.
*custom contact us
After-Sales Service
*1 year warranty
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
