2ft 4ft 5ft алюминиевый профиль для склада Светодиодная трубка 3 года гарантии
- Категории: LED Batten >>>
- Поставщик: Olam,Tech,Manufacturing,Shenzhen,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Paramenters
Technical Parameters-- LED Batten Light -V Series | ||||||||||
Model | OL-PL20W-V60 | OL-PL40W-V120 | OL-HL200W-900 | OP-PL60W-V150 | ||||||
Power | 20W | 40W | 200W | 60W | 400W | |||||
Dimensions | 600*73.4*69.5mm | 1200*73.4*69.5mm | 900*420*52mm | 1500*73.4*69.5mm | 1500*420*52mm | |||||
Input Voltage | AC220-240V/AC100-277V(for US market) | |||||||||
Power factor ( P.F. ) | >0.9 | |||||||||
Luminous Efficiency | >110LM/W (Frosted) >130lm/W (Transparent) | |||||||||
LED source | Edison SMD 2835, CRI>80Ra | |||||||||
Lamp body color | White | |||||||||
Metal Materials | Aluminum T5, PC (V0) | |||||||||
Beam angle | 120° | |||||||||
Certification | CE , RoHS | |||||||||
Working temperature | -20~50℃ | |||||||||
Lifetime | 50000hrs | |||||||||
Warranty time | 3 / 5 years | |||||||||
Details Images
LED Batten Light -V Series
Lenth:600mm/1200mm/1500mm
Watts: 20W/40W/60W
Daylight Sensor for option
---The brightness will be Automatically adjusted as the day light changing.

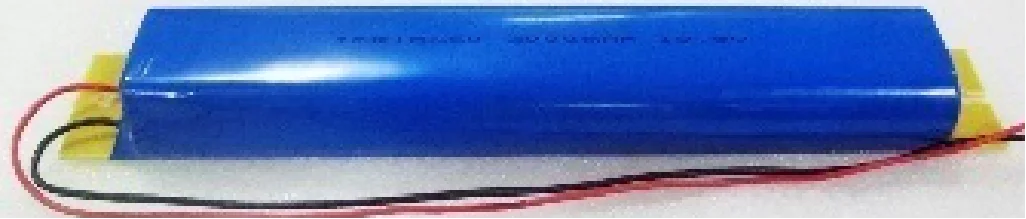

Emergency system (for option)
●Input voltage: AC220-240V
●Emergency time: 30/60/90/120/180 min
●Emergency power: 5W/10W
●Emergency time: 30/60/90/120/180 min
●Emergency power: 5W/10W

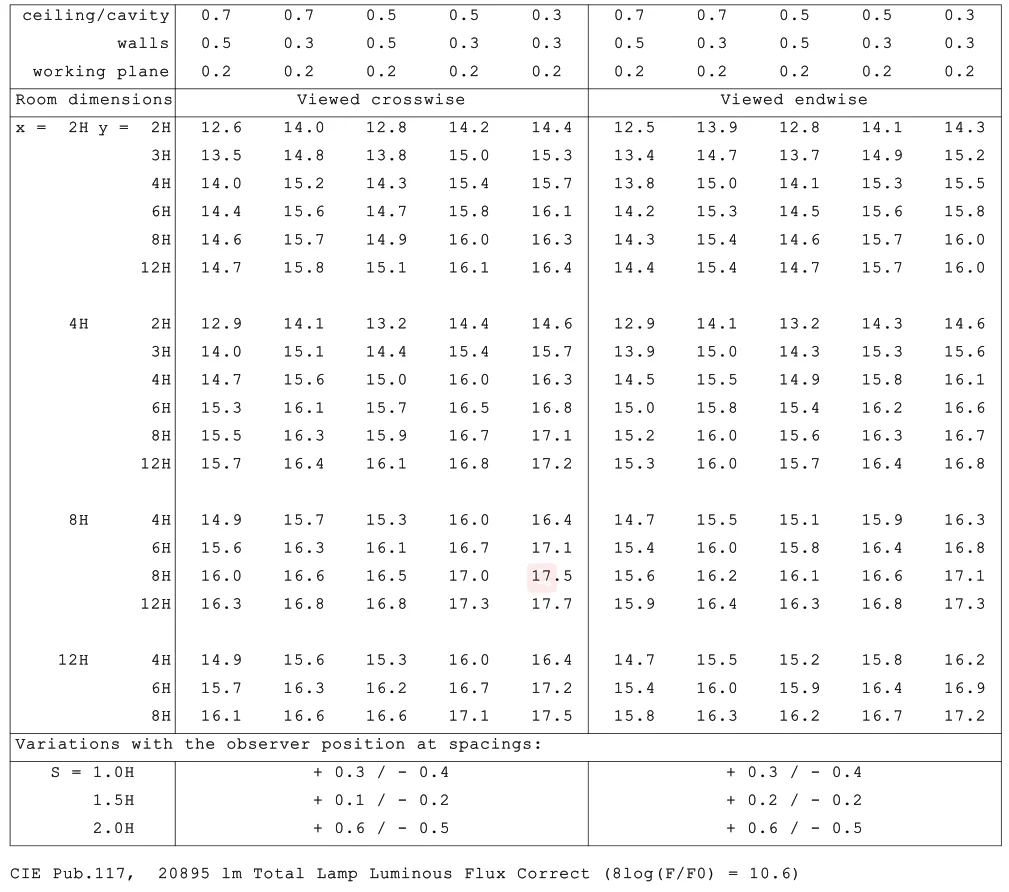

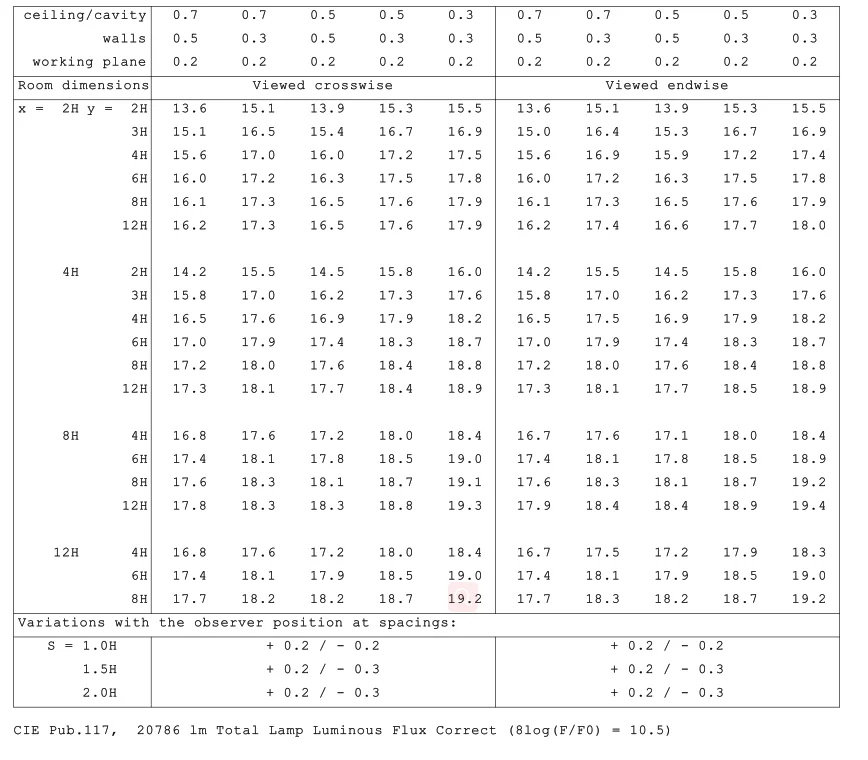

UGR<19 Test report

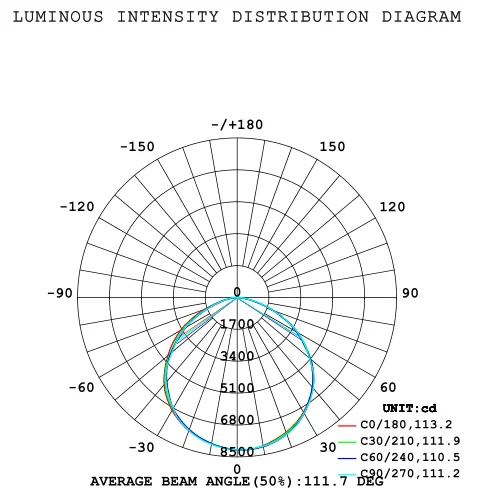

Luminous Intensity Distribution Diagram
UGR>19 Test report

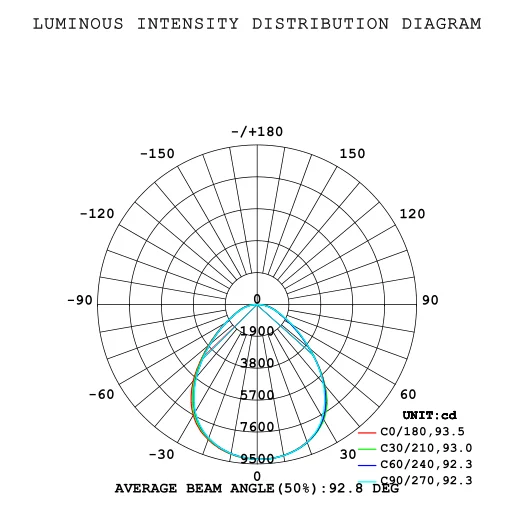

Luminous Intensity Distribution Diagram
LED Batten Light -V series Fixtures
★LED batten light -V series are available in a variety of light distributions including medium beam fixtures and wide light distribution designs.
★Narrow and medium distribution fixtures have a Type 1 or Type 5 light distribution. These distribution types are ideal for aisles or higher ceilings.
★Placing fixtures parallel to aisles is approximately 50 percent more efficient than a perpendicular alignment and helps decrease eye strain. This layout is also easier to control with motion sensors.
★Wide distribution fixtures give off a broader light distribution and are better suited for open layouts to provide a uniform light for commercial buildings and areas.
★Fixture with a medium light distribution are somewhere in between. The light distribution is round rather than linear, but the beam is more concentrated, casting very little of the light outside of a 0-270 degree zone.
★Narrow and medium distribution fixtures have a Type 1 or Type 5 light distribution. These distribution types are ideal for aisles or higher ceilings.
★Placing fixtures parallel to aisles is approximately 50 percent more efficient than a perpendicular alignment and helps decrease eye strain. This layout is also easier to control with motion sensors.
★Wide distribution fixtures give off a broader light distribution and are better suited for open layouts to provide a uniform light for commercial buildings and areas.
★Fixture with a medium light distribution are somewhere in between. The light distribution is round rather than linear, but the beam is more concentrated, casting very little of the light outside of a 0-270 degree zone.
Dimensions
Application
-Particularly using in Warehouse, Workshop, Supermarket，Gymnasiums，Big box retail stores，Other commercial Industrial spaces.
Company Profile
- -Professional LED lighting manufacturer
-- Available OEM/ODM and trial orders

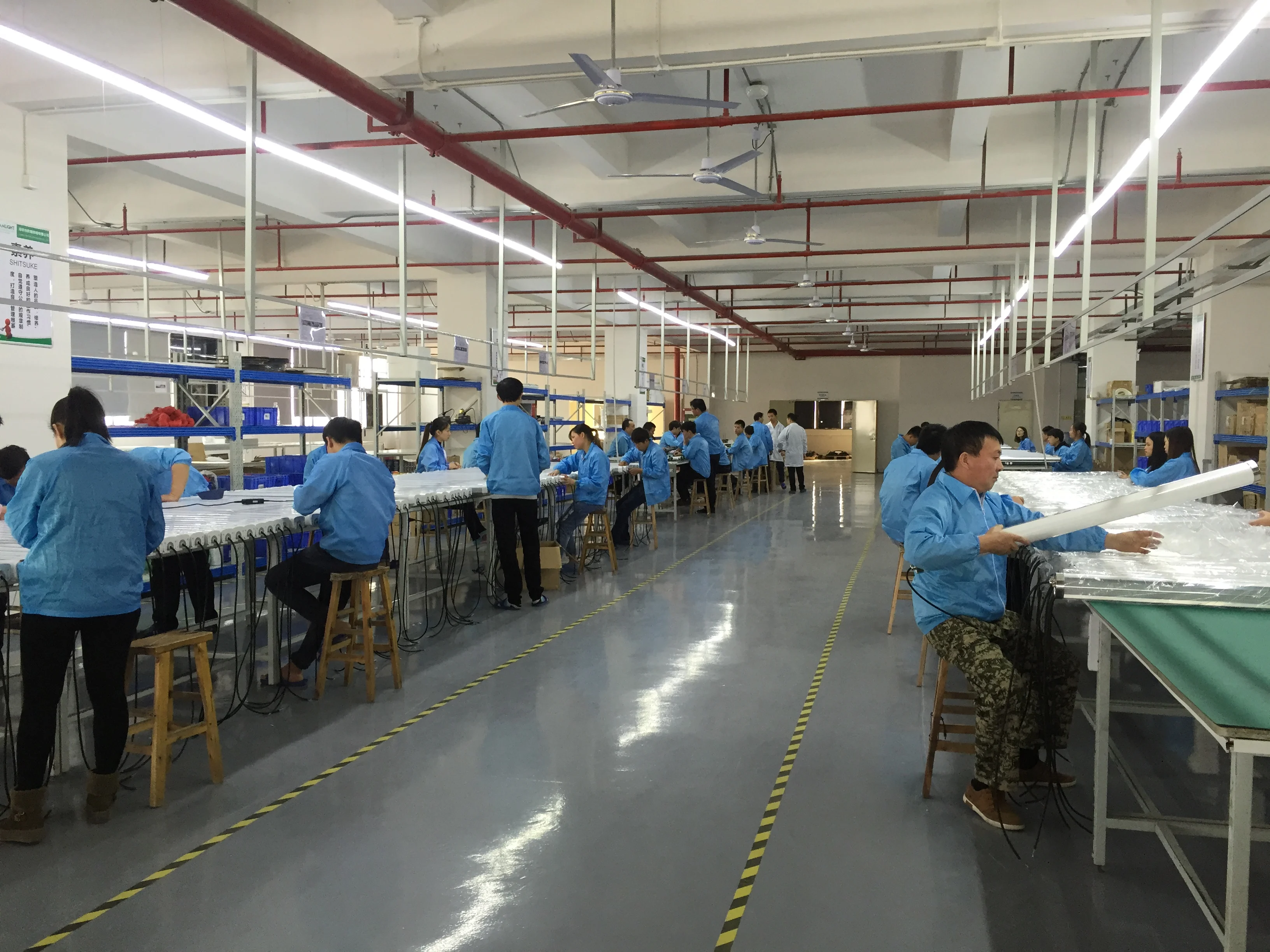

--5000㎡ workshop & normative quality control system
-- 100,000pcs/month capacity.
--Main Products: IP67 LED Tubular Light, LED Panel Light, LED Modular Panel Light, LED Linear High Bay Light, LED Strip Light, UFO High Bay Light. LED Tri-Proof Light. LED Linear Light
-- Available OEM/ODM and trial orders
--5000㎡ workshop & normative quality control system
-- 100,000pcs/month capacity.
--Main Products: IP67 LED Tubular Light, LED Panel Light, LED Modular Panel Light, LED Linear High Bay Light, LED Strip Light, UFO High Bay Light. LED Tri-Proof Light. LED Linear Light
FAQ
1.What kind of service do you provide ?
A: We provide OEM/ODM service .
We have professional Research and Develop department,If you have any idea customize , can tell us .
2. How can I get some samples?
A: We are pleased to offer you samples test firstly ,for standard type, NO MOQ for samples.
3. Are you a factory?
A: Yes. We have specialized in this field more than 10 Years.
4. What is the delivery time?
A: Samples order , in stock Bulk order , 15-30 days normally, detail delivery date will be decided according to production season and order quantity.
5. What is your MOQ?
A: The MOQ is based on your different order and packaging choose.Please contact us for more details.
6. Can you customize Private label / Box ?
A: Yes , we can customize private label/ box .The MOQ is normal 2000 pcs ,contact us for more details .
7. Can you laser logo on the Products ?
A : Yes , we have laser logo machine , can provide laser logo on products , it is single color . No MOQ request . If need print
colorful LOGO , MOQ is 1000pcs .
8. How about the payment term ?
A: We accept payment by TT ,Paypal ,LC .
We can place order on alibaba , payment by Alibaba( VISA;Mastercard;e-checking;T/T ).
9.How to contact us?
A:Send us your detail request! If you need free sample, please kindly send inquiry to us.
A: We provide OEM/ODM service .
We have professional Research and Develop department,If you have any idea customize , can tell us .
2. How can I get some samples?
A: We are pleased to offer you samples test firstly ,for standard type, NO MOQ for samples.
3. Are you a factory?
A: Yes. We have specialized in this field more than 10 Years.
4. What is the delivery time?
A: Samples order , in stock Bulk order , 15-30 days normally, detail delivery date will be decided according to production season and order quantity.
5. What is your MOQ?
A: The MOQ is based on your different order and packaging choose.Please contact us for more details.
6. Can you customize Private label / Box ?
A: Yes , we can customize private label/ box .The MOQ is normal 2000 pcs ,contact us for more details .
7. Can you laser logo on the Products ?
A : Yes , we have laser logo machine , can provide laser logo on products , it is single color . No MOQ request . If need print
colorful LOGO , MOQ is 1000pcs .
8. How about the payment term ?
A: We accept payment by TT ,Paypal ,LC .
We can place order on alibaba , payment by Alibaba( VISA;Mastercard;e-checking;T/T ).
9.How to contact us?
A:Send us your detail request! If you need free sample, please kindly send inquiry to us.
Click to Get the Latest Catalog with Price .
↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓
