PHENOLIC INSULATION

Maximum thermal performance with minimal thickness



Phenolic insulation is manufactured by a process in which a plastic foam forms an insulating core between two flexible tissue faced layers.

An extensive range of super high performance rigid thermoset phenolic insulation for roofs, walls and floors, available from Norman Piette.

TENLEAD PHENOLIC FOAM offers among the most thermally efficient conductivity and thermal performance values available, which means you can minimise thickness of your insulation compared to other conventional insulations to achieve the same performance.  It also has exceptional fire performance characteristics. As it is a thermoset material it hardens and chars in fire situations, giving off very little smoke; unlike thermoplastics, such as polystyrene which melt, soften, and give off thick black smoke.

• A fibre–free rigid thermoset phenolic core and thermal conductivity of 0.018 – 0.023 W/m·K these are the most thermally efficient insulation products commonly used


• The thinnest commonly used insulation products for any specific U–value


• Each product achieves the required fire performance for its intended application


• Manufactured with a blowing agent that has zero Ozone Depletion Potential (ODP) and low Global Warming Potential (GWP)









































  Fire resistance	Class A (ASTM E84);class '0'(BS476 part 5, 6, and 7) CE Class B1
  Thermal conductivity	0.021-0-023w/(m.k)
  Compressive strength	>0.3Mpa
  Strong vapor barrier	water absorption rate<0.1%
  Wide operating temperature range	-250 to 150 C degrees
  Density	40-160kg/m3
  Size	customized
  Color	pink/green/grey/dark,etc,.
  Zero	ODP/CFC/HCFC

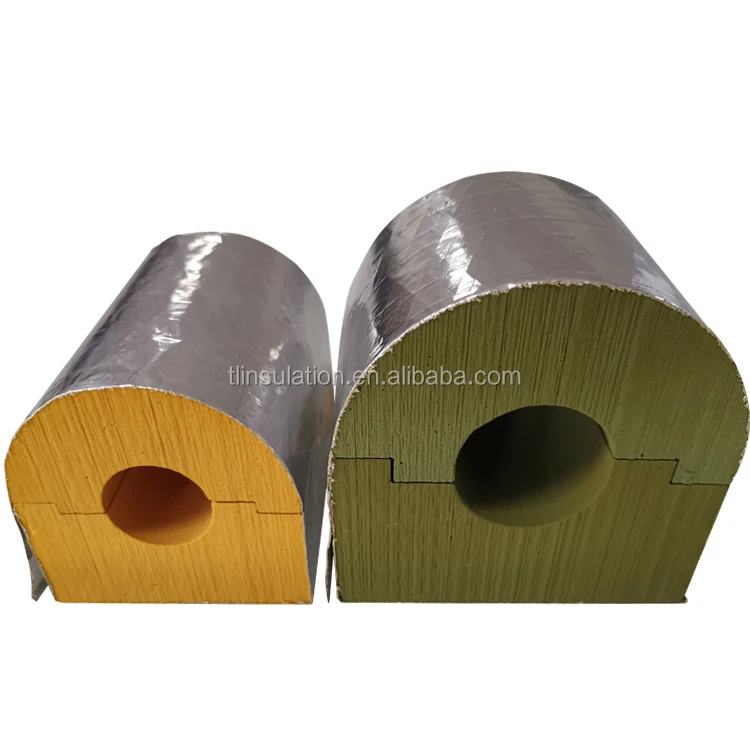

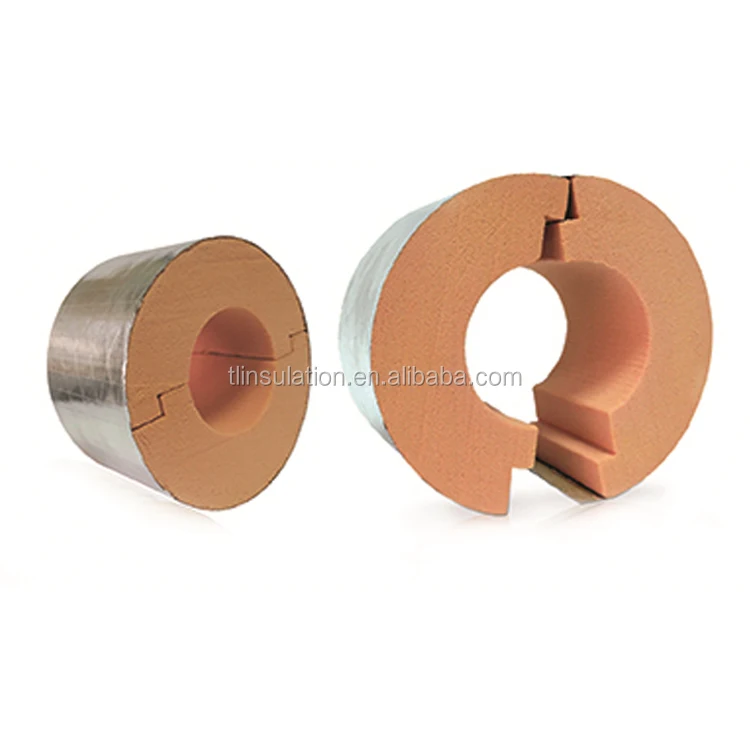

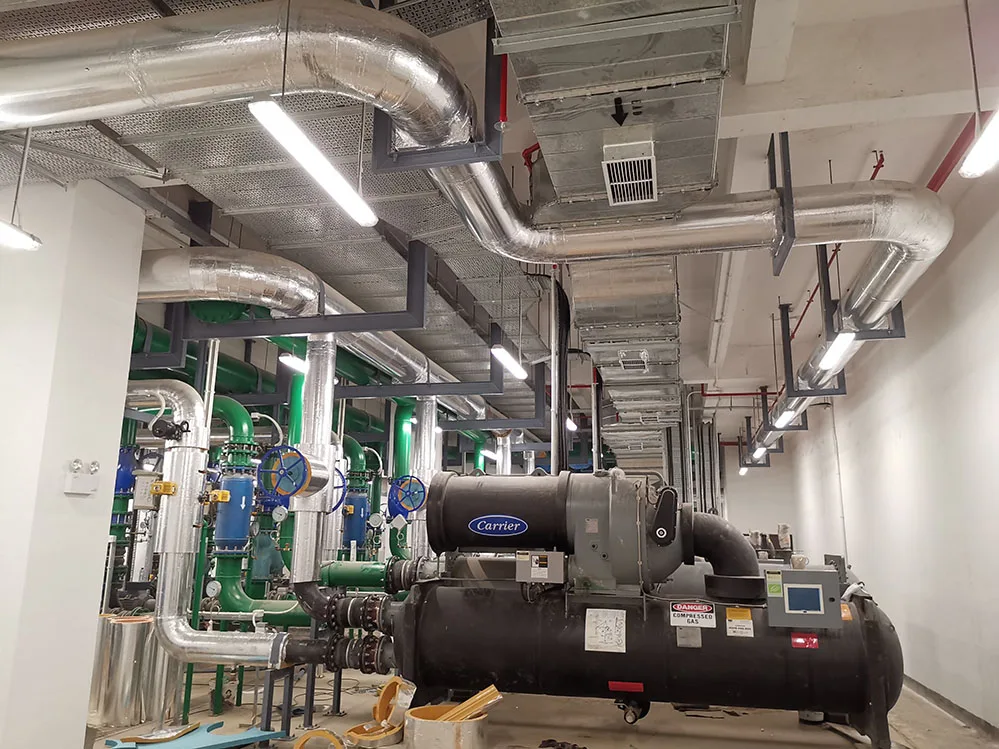

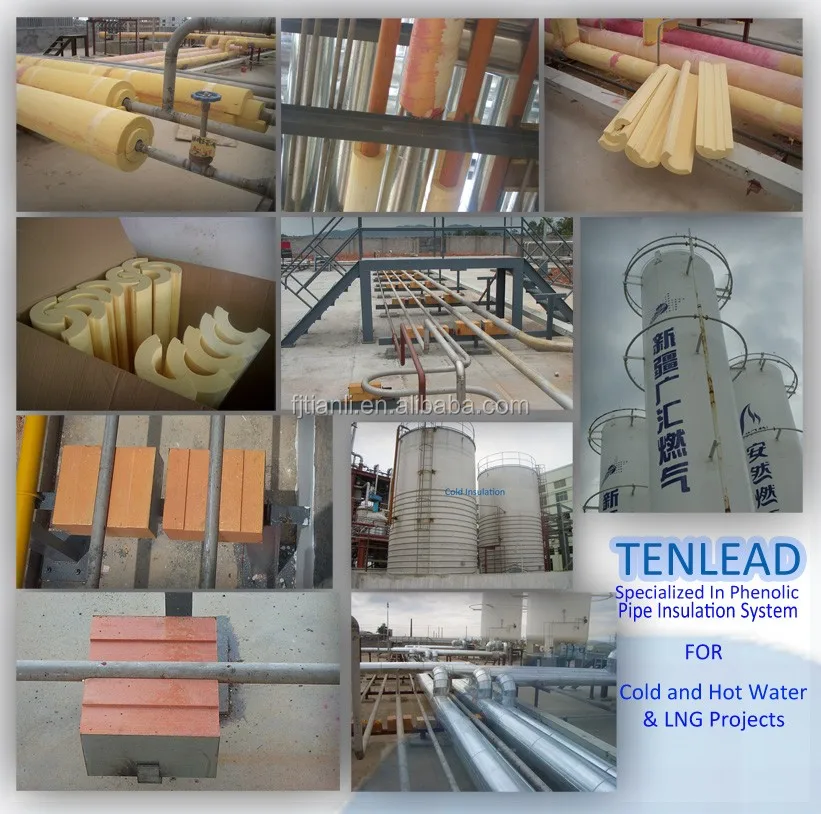

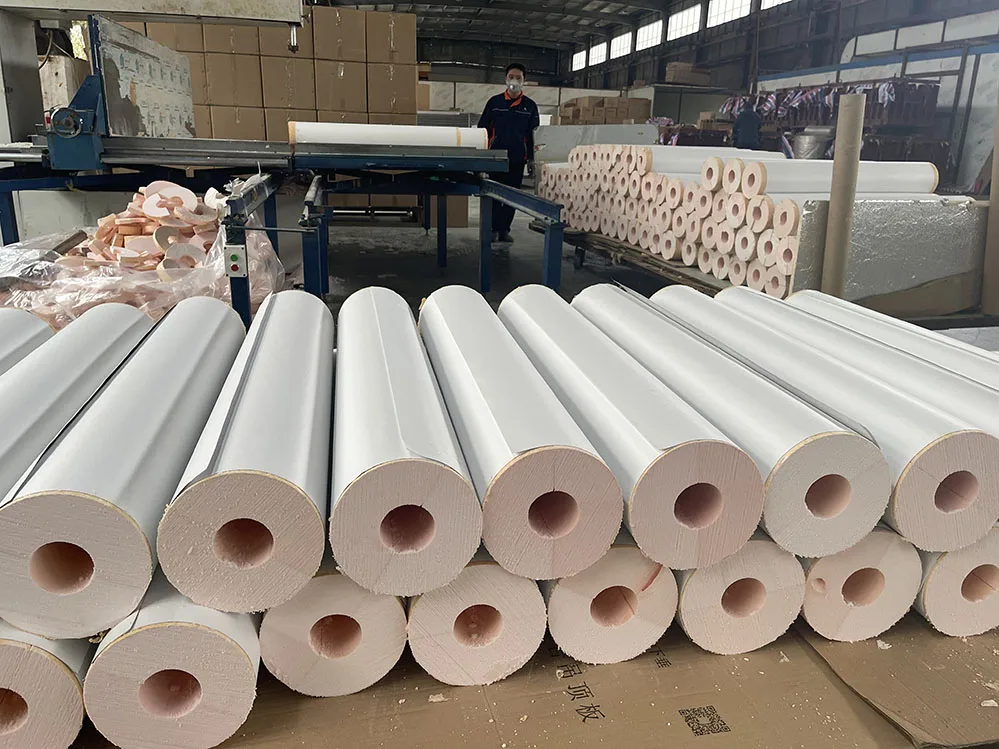

Besides the buildsing insulation, Phenolic foam material is also widly used for pipeline insulation system.
