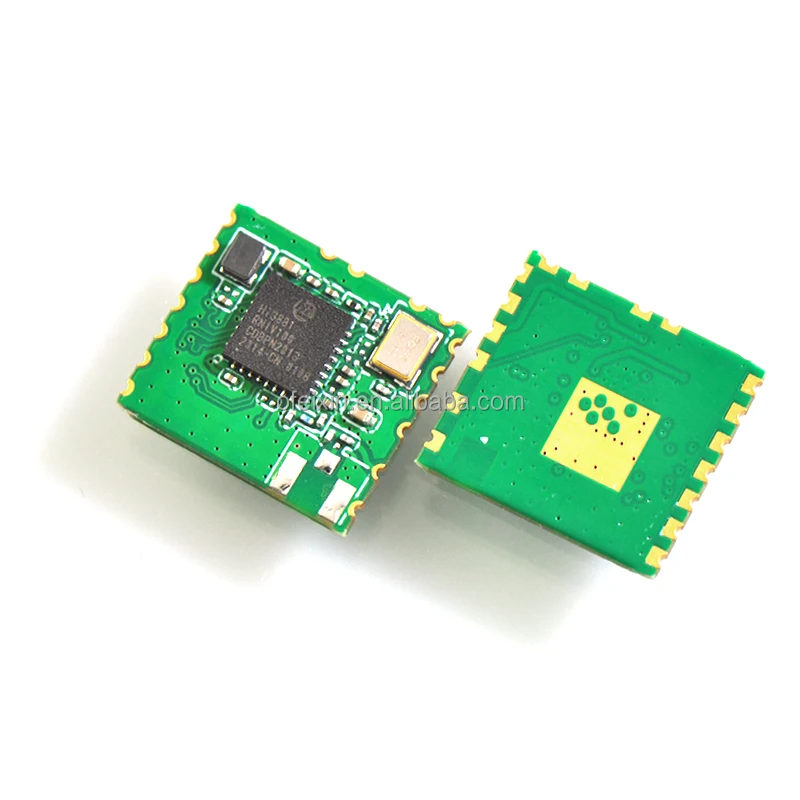

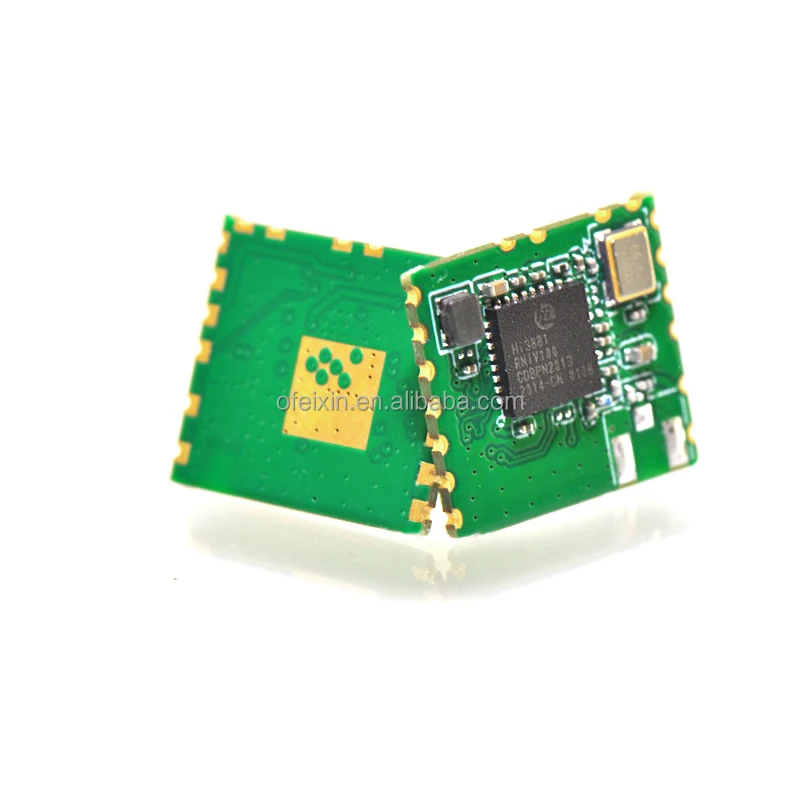

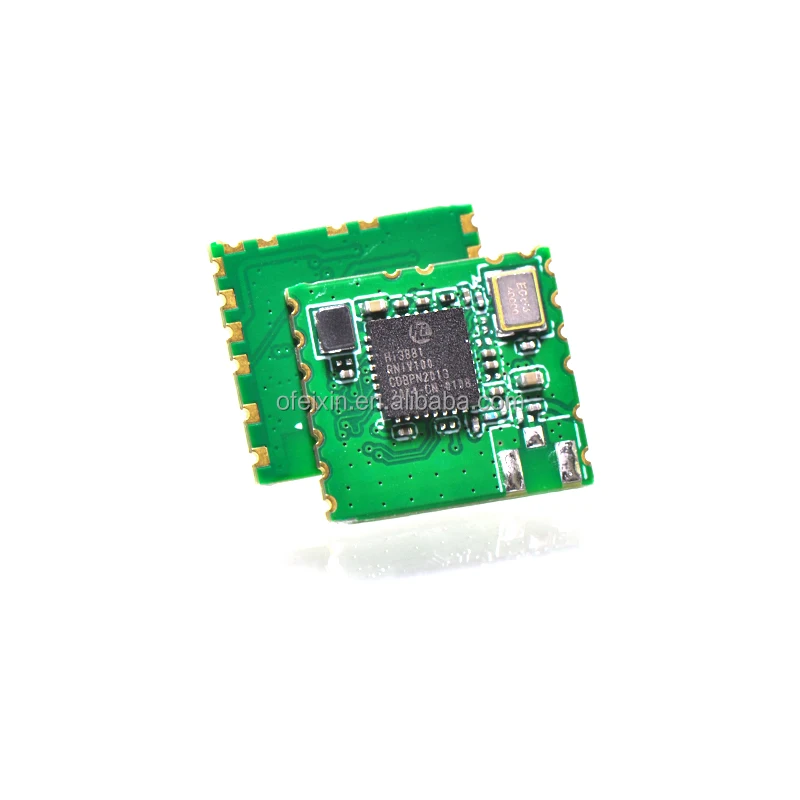

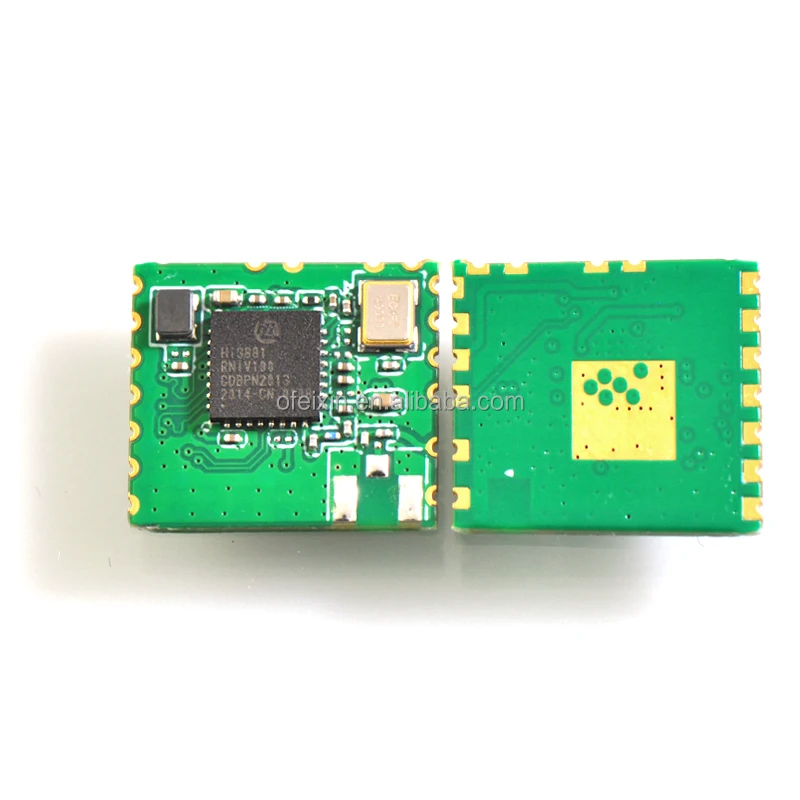

3181M-S is a highly integrated 2.4 GHz Wi-Fi module that support the IEEE 802.11b/g/n baseband and RF circuit. It supports 20 MHz standard bandwidth and 5 MHz/10 MHz narrow bandwidth, and provides a physical layer rate up to 72.2 Mbit/s. Wi-Fi baseband supports the orthogonal frequency division multiplexing (OFDM) technology and is backward compatible with the direct sequence spread spectrum (DSSS) and complementary code keying (CCK) technologies, offering various data rates defined in the IEEE 802.11 b/g/n protocol. Module chipset including the SPI, UART, I2C, PWM, GPIO, and multi-channel ADC. In addition, it provides high-speed SDIO2.0 slave interfaces, with clock frequency up to 50 MHz.
Features
* Operate at ISM frequency bands (2.4GHz)
* Maximum rate of 72.2 Mbit/s@HT20 MCS7
* SDIO interface for Wi-Fi
* High transmitting power
* High receiving sensitivity
* PHY supporting IEEE 802.11b/g/n
* MAC supporting IEEE802.11 d/e/h/i/k/v/w
* WFA WPA, WFA WPA2 personal, and WPS2.0 for Wi-Fi
Application Range:
& Consumer Application
Tablet/Smart TV/IPTV/OTT/IPC/AI Speaker/Security System /Toys
Medical equipments/Medical instruments & Other Consumer Electronic Products
Detailed Parameters
Model No
3181M-S
Main Chipset
Hi3881
WIFI Interface
SDIO
WIFI Standards
IEEE802.11 b/g/n
Date Rates
72.2 Mbps
Certification
RoHS,REACH
RF Antenna
External Antenna
OS Supported
LiteOS/Linux
Operating Frequency
2.4GHz
Operating Voltage
3.3V
Dimensions
14 x 12.5 x1.8 mm
RF Chains
1T1R
Operating Temperature
-40°C to 85°C
Storage Temperature
-40°C to 85°C
Note
Respect of the customer,please contact the sales staff before purchasing module to carry out pre-sale consultation.Otherwise,the module may not meet your needs or modules have no inventory. Detailed specifications docs,please download form the official website or sales. skype:+86 15982458633
