Product Description

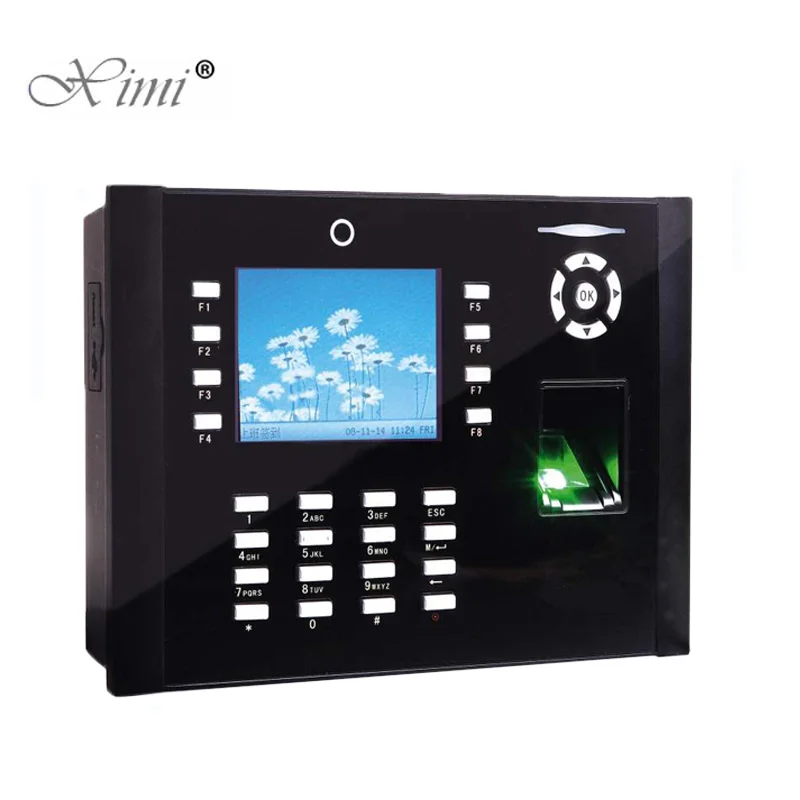

Iclock680 is an innovative biometric fingerprint reader for Time & Attendance application, offering unparalleled performance using an advanced algorithm for reliability, precision and excellent matching speed. The Iclock680 features the fastest commercial-based fingerprint matching algorithm and high-performance, high-image quality optical fingerprint sensor. The 3.5" TFT can display more information vividly, including fingerprint image quality and verification result etc. TCP/ IP communication is standard and make sure the data transmission between terminal and PC can be easily done within several seconds. 8 function keys are the shortcuts to change the attendance status, workcode or to browse the short message, and can be defined as required. The camera can capture the image of the user. The Iclock680 has access control connectivity for Wiegand-in, Wiegand-out, door lock connection, alarm, bell, remote to exit switch.
Features
1. Time & Attendance and access control device
2. Incorporates ZK fingerprint sensor and optionally RFID reader
3. Stores up to 8.000 fingerprint templates.
4. Stores up to 200.000 log records without PC download.
5. Camera 1,3 M. pixels
6. Allows communication with PC through Ethernet and USB port
7. Optionally, allows Wifi and GPRS communications
8. Events management (doctor, personal issues, etc…)
9. Time zones, groups and holidays management for access control
10. All European languages (standard texts and voices) included
11. Audio voices (male or female) and text configured by menu
2. Incorporates ZK fingerprint sensor and optionally RFID reader
3. Stores up to 8.000 fingerprint templates.
4. Stores up to 200.000 log records without PC download.
5. Camera 1,3 M. pixels
6. Allows communication with PC through Ethernet and USB port
7. Optionally, allows Wifi and GPRS communications
8. Events management (doctor, personal issues, etc…)
9. Time zones, groups and holidays management for access control
10. All European languages (standard texts and voices) included
11. Audio voices (male or female) and text configured by menu
Specification
Fingerprint Capacity | 8000 templates |
Transaction Capacity | 150,000 |
Hardware Platform | ZEM800 |
Communication | RS232/485, TCP/IP, USB-client, USB-host |
Standard Functions | Workcode, SMS, DLST, Scheduled-bell, Self-Service Query, Automatic Status Switch, T9 input, photo-ID ,Webserver |
Access Control Interface for | 3rd party electric lock, door sensor, exit button, alarm, Door Bell |
Wiegand Signal | Input & Output |
Optional Functions | ID/Proximity, 9 digit user ID, Wi-Fi, GPRS, 3G, Web server |
Display | 3.5 inches TFT Screen |
Power Supply | 12V DC 1.5A |
Operating Temperature | 0 °C- 45 °C |
Operating Humidity | 20%-80% |
