Силовой привод 310vdc 800w pwm 4A от 150 до 20000 ОБ/мин bldc для промышленного
- Категории: Motor Controllers >>>
- Поставщик: Dongguan,ICAN,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
hot sale intelligent 750w 220v brushless dc motor speed controller
BLDC DRIVER
| Model | Peak Current (A) | Rated Current (A) | Voltage | Adaptive |
| BLD-70 | 6 | 3 | 12-30VDC | ≤70W |
| BLD-120 | 15 | 8 | 12-30VDC | ≤120W |
| BLD-300B | 35 | 15 | 12-56VDC | ≤300W |
| BLD-300R | 20.6 | 2 | 15-62VDC | ≤300W |
| BLD-750 | 45 | 25 | 18-52VDC | ≤750W |
| BLDH-350 | 4 | 2 | 180-265VAC | ≤350W |
| BLDH-400R | 5.5 | - | 110-250VAC | ≤400W |

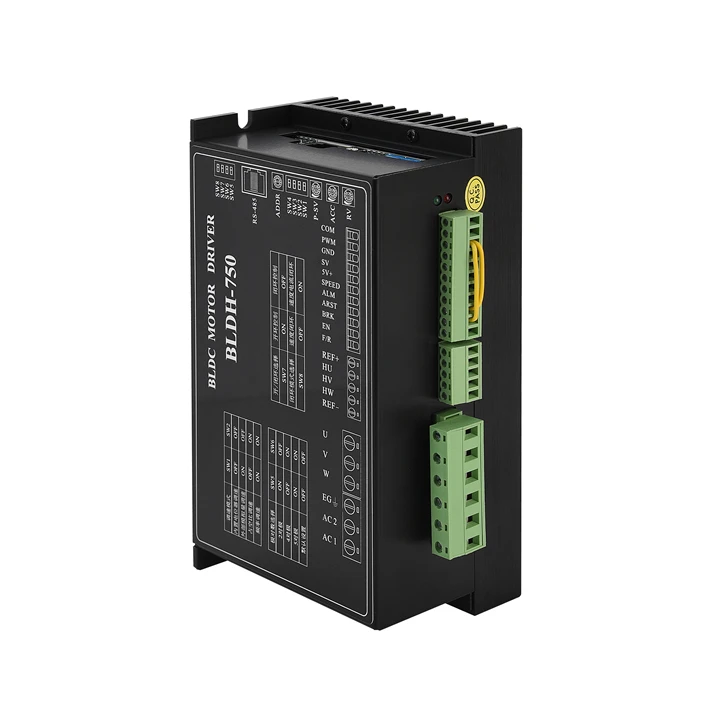

| BLDH-750 | 8 | 4 | 180-265VAC | ≤750W |
Related Products
Features
Compact and powerful
Excellent velocity control
Wide speed control range of 150-20000rpm
Speed regulation:0.5%max(with respect to load)
Easy operation with on board potentiometer
Speed setting via external analog or digital signals
Strong protection
Four speed regulation modes
Build-in potentiometer RV,External potentiometer,Pulse Width Modulation,Input analog signal (0-5V)
Function setting
1. ACC/DEC time setting
2. Motor poles pair selection
3.Open/closed loop setting
4. Peak current setting
5. Quick brake
6.CW/CCW rotation
Main Products Series
Company Information
Original factory: YES
Year Established: 2009
Total Employees: 80-100People
Manufacturing Equipment: Ultra-precision CNC universal grinder (Sweden), CNC (Germany), DMG lathe and milling, etc.
Detection Capacity:
Motor: Full detection one by one; Motor driver aging time: 8H
