Винты из нержавеющей стали 304 Цинковый ОЗУ-ремень шариковое основание двойные болты мощный ассортимент сверхмощный шланговый
- Категории: >>>
- Поставщик: Shenzhen,Hicorpwell,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Stainless Steel 304 Screws Zinc Ram Strap Ball Base Double Bolts Power Assortment Heavy Duty Hose Clamp
A general-purpose worm gear hose clamp is interlocked to prevent shearing, while clamps used for exhaust have no holes, helping them prevent marring of thehose and fumes escaping. Stainless steel w
Product Detail
| Keywords | Heavy Duty Double Bolt Hose Clamp pipe clamp |
| Product name | Double bolts power hose clamp |
| Hose Clamps type | double bolts clamp |
| Wideth | 20mm & 24 mm |
| Thickness | 1.0 mm |
| Material | 304 Stainless Steel & 301,204 also available |
| Application | Ductwork, Pole Mount, Securing, Hanging |
| Catalgoue | Stainless steel hose clamp system for Outdoor FO Cables |
Description:

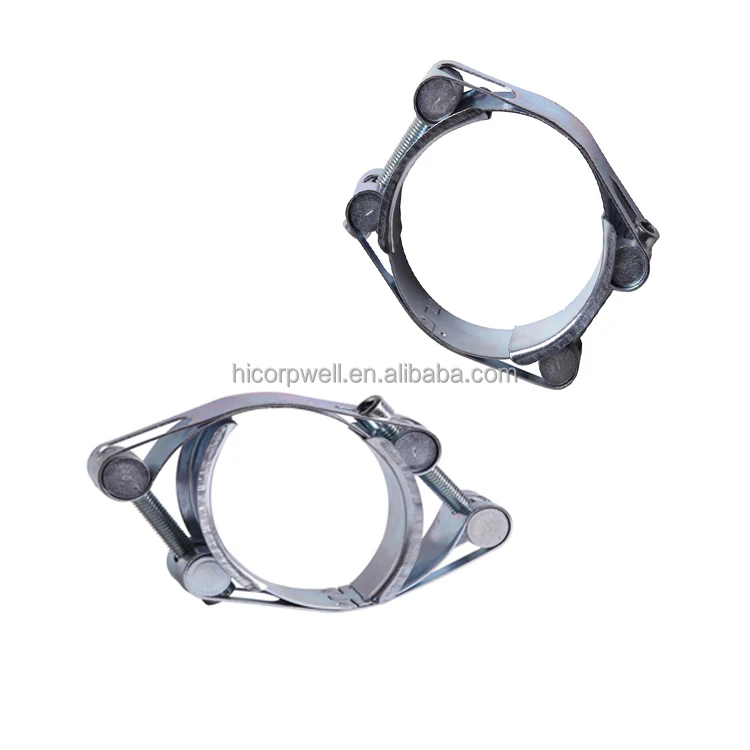

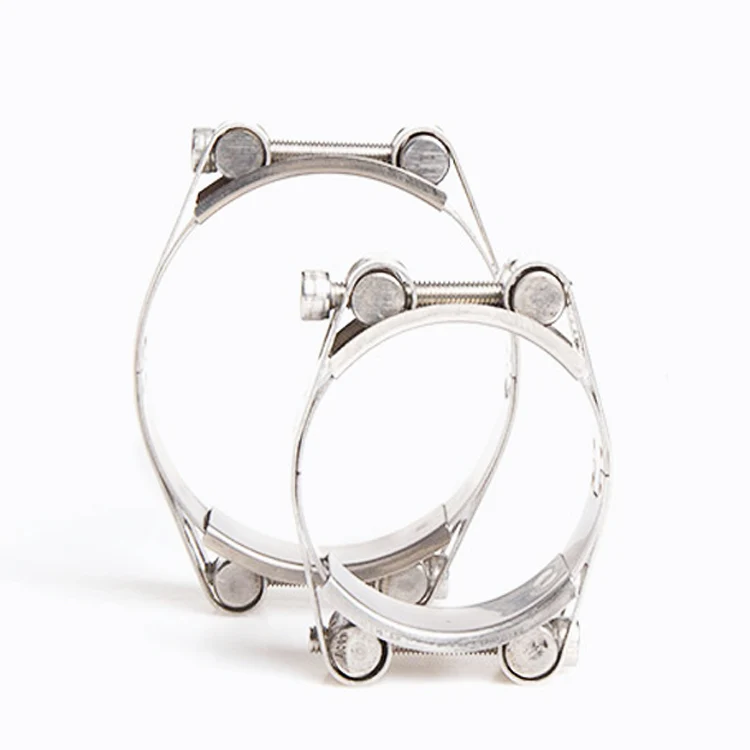

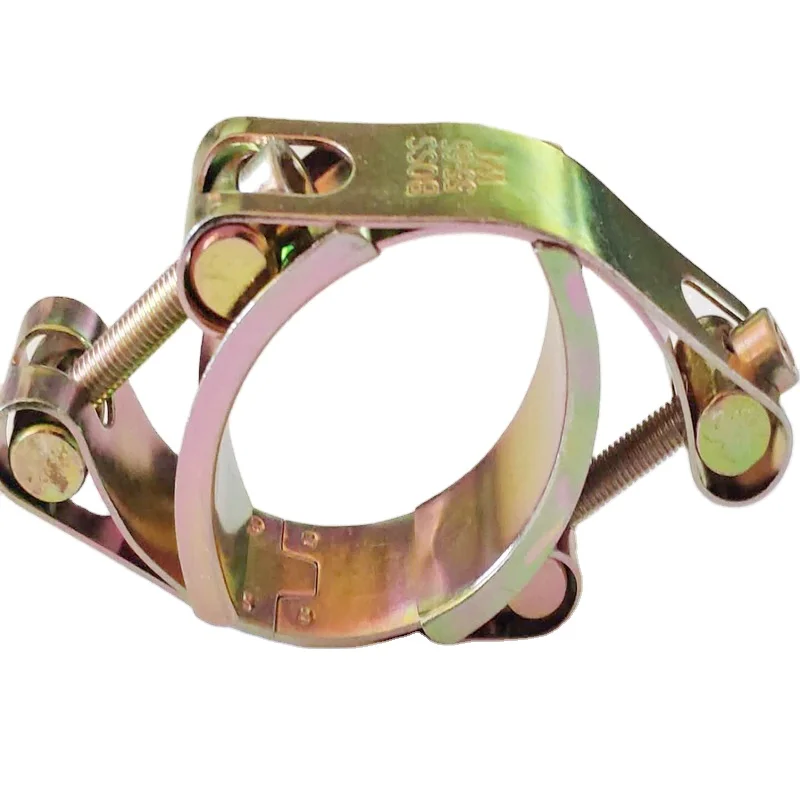

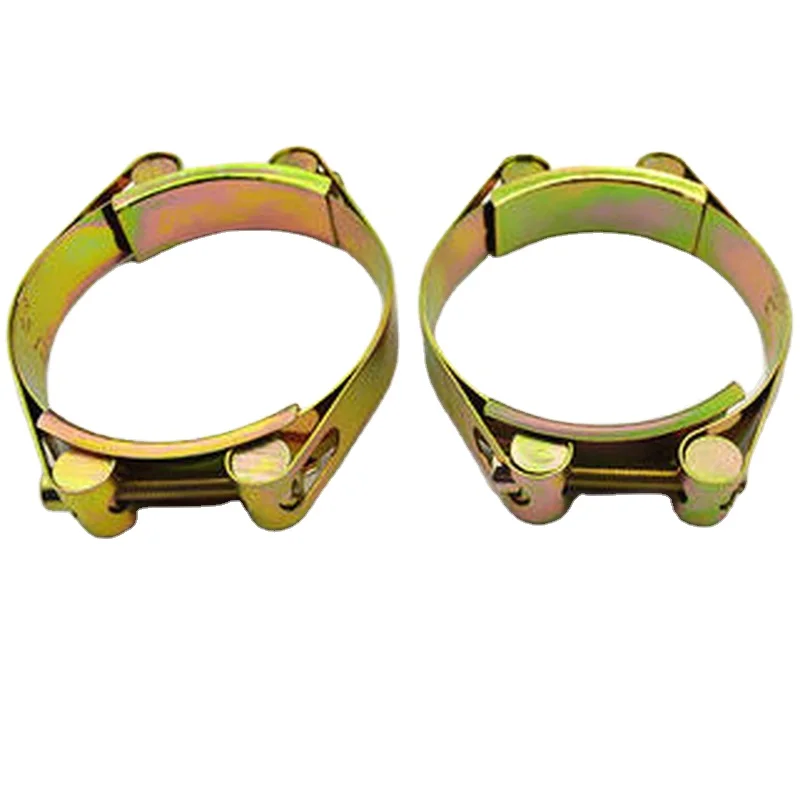

Power-Clamps are designed for heavy-duty industrial hose connections.
Double Bolts for heavy duty hose clamp

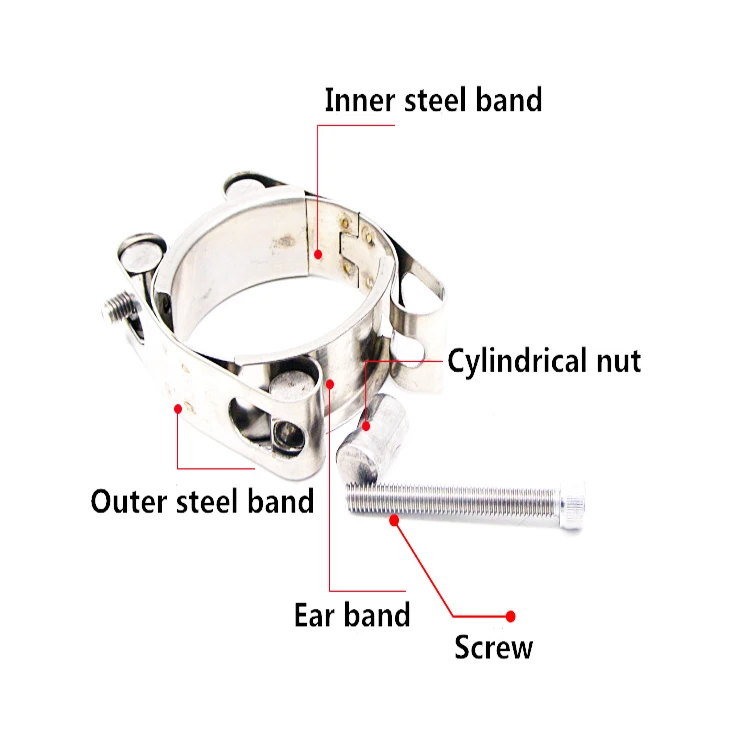

Power-Clamp is configured with two bolts and is fitted with a bridge with
raised edges,which prevent shearing of the hose material.
Hicorpwell Power-Clampsare suitable for many applications.
Feature:
(1)Bigger adjusting range

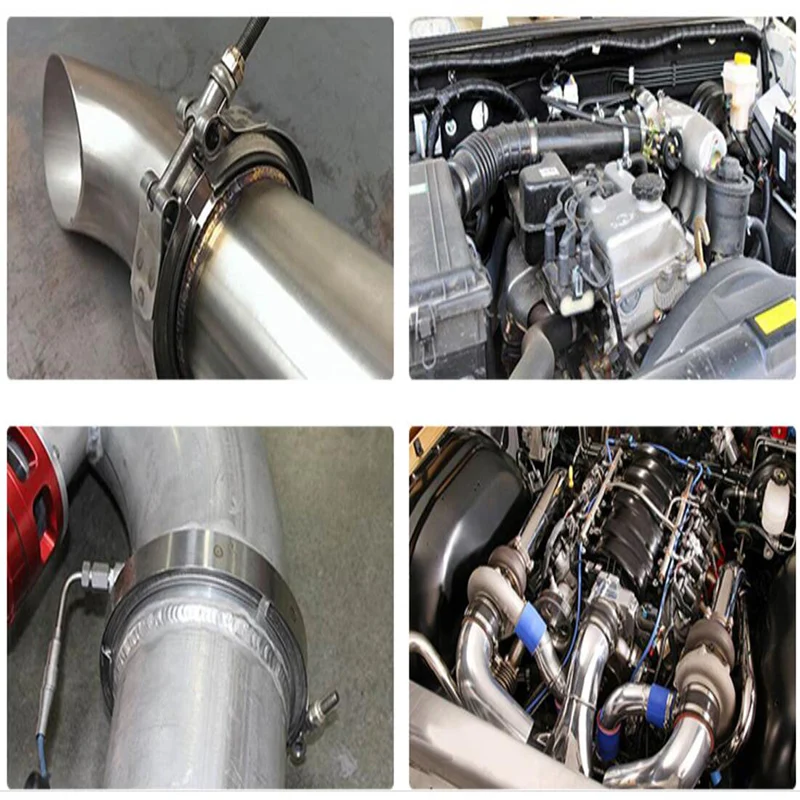

Application: To auto pipe , motor pipe , water pipe , cooling pipe , gas pipe ect.
(2) Evenly stress when fastening
(3) Wrest resistant and high crushing strength
(4) Corrosion resistant , and protects the rubber surface is not damaged
(5) Can smoothly , can be reused
(6) Ideal fastener of all kinds of gentle and harsh pipes
Application: To auto pipe , motor pipe , water pipe , cooling pipe , gas pipe ect.
Typical applications can be found in the following areas:
Agricultural
Drainage systems
Irrigation systems
Cooling systems
Sludge suction systems
Material Types :
W1 | W4 | |
Band | galvanized steel | 201, 301, 304 stainless steel |
Bridge | galvanized steel | 201, 301, 304 stainless steel |
Trunnion | galvanized steel | 201, 301, 304 stainless steel |
Sleeving | galvanized steel | 201, 301, 304 stainless steel |
Bolt | galvanized steel | 201, 301, 304 stainless steel |
Size | Band Width | Screw | Band Thickness | Band |
(mm) | (mm) | (mm) | (mm) | |
35--45 | 20 | M6*45 | 1 | 0.8 |
40--50 | 0.8 | |||
45--55 | 0.8 | |||
50--60 | 0.8 | |||
55--65 | 0.8 | |||
60--70 | 0.8 | |||
65--75 | 1 | |||
70--80 | 1 | |||
75--85 | 1 | |||
80--90 | 1 | |||
85--95 | 1 | |||
60-70 | 24 | M8*60 | 1 | 1 |
70-80 | 1 | |||
80-90 | 1 | |||
90-100 | 1 | |||
100-110 | 1 | |||
110-120 | 1 | |||
120-130 | 1 | |||
130-140 | 1 | |||
140-150 | 1 | |||
150-160 | 1 | |||
160-170 | 1 | |||
170-180 | 1 |
Related Products
Company Information
Company Information

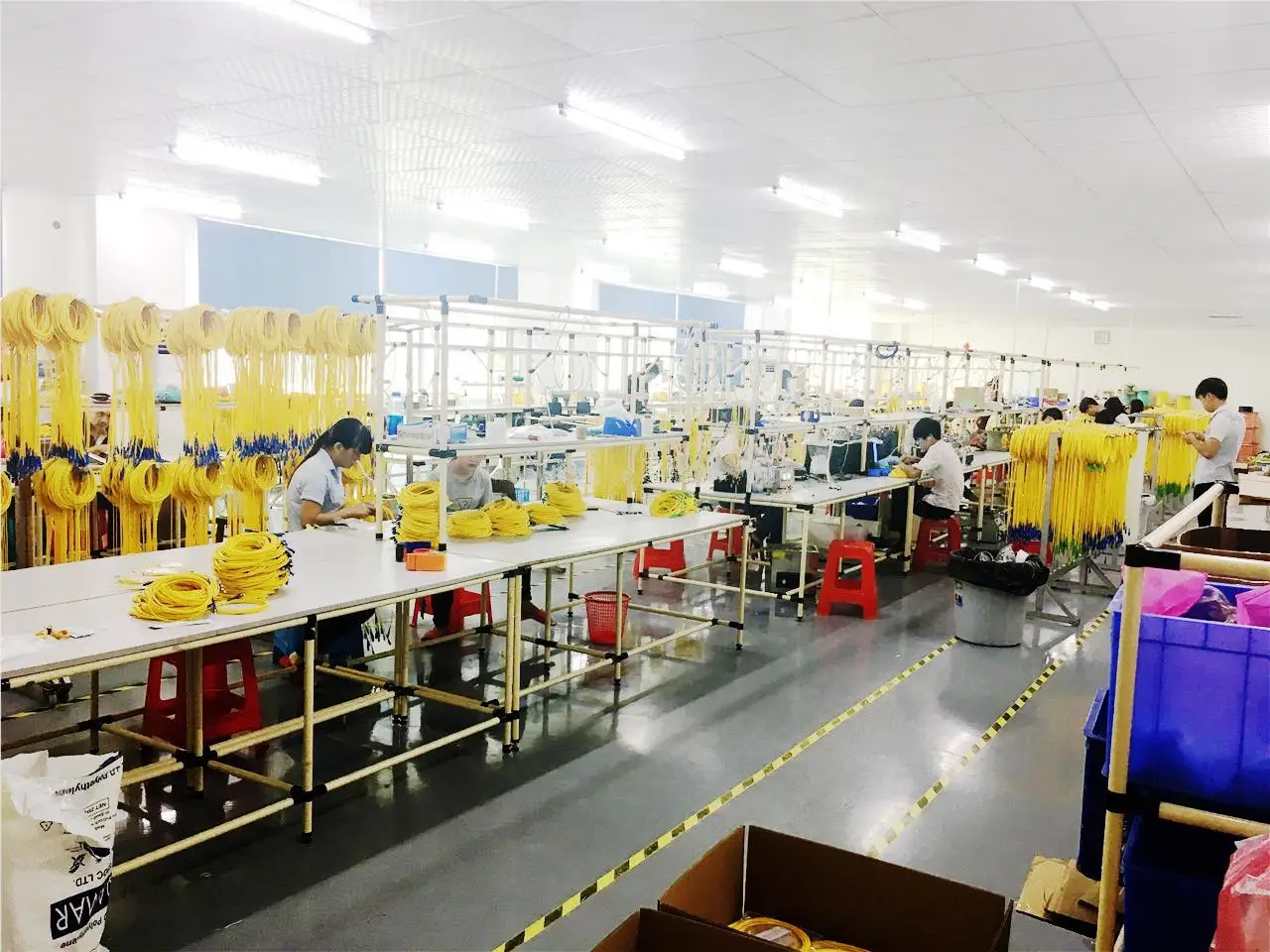

Shenzhen Hicorpwell Technology co.,Ltd was founded in 2013 is located in Shenzhen , workshop area more than 3000 square .Hicorpwell has developed relationship with a worldwide network of customers. The product offerings are designed to meet the most demanding requirements of clients and are sold primarily to Europe and North America.It has been a professional position in fiber optic communication industries in China.
