Бесплатный образец Прямой Рычаг изогнутые клеммы быстрого подключения микропереключатель T125
- Категории: >>>
- Поставщик: Shenzhen,Greater,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
● MQS-Series Subminiature Switch
1. High quality and high precision, so we won the trust of many customer from all over the world;2. Automatic production line with fast delivery time;
3. Free samples to test before place an order;
4. OEM or ODM are available, so far we had provided many OEM & ODM product especially for auto industry to our customers;
5. Engineering support, we will help you to choose the model when you in the design, and help you to figure out when you meet problem when using;
6. Provides drawing or datasheet for you before the smaple or order;
7. Toneluck founded in 1976, the best switch manufacturer in China.
3. Free samples to test before place an order;
4. OEM or ODM are available, so far we had provided many OEM & ODM product especially for auto industry to our customers;
5. Engineering support, we will help you to choose the model when you in the design, and help you to figure out when you meet problem when using;
6. Provides drawing or datasheet for you before the smaple or order;
7. Toneluck founded in 1976, the best switch manufacturer in China.

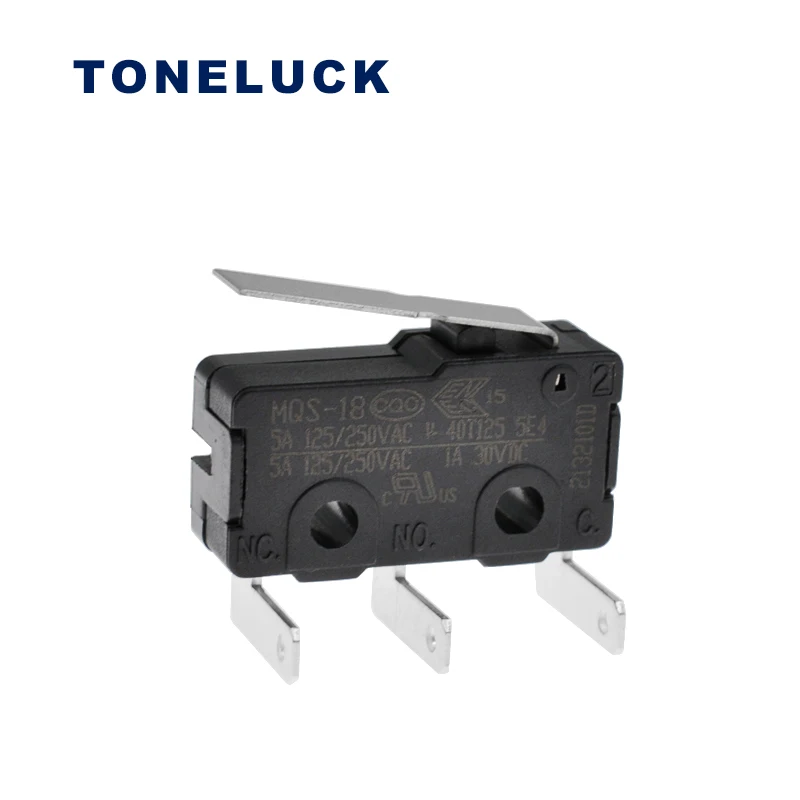

Free Sample Straight Lever Right Bent Quick Connect Terminals Micro Switch T125 5E4
Application scenarios
Electric power tool
EV Charger
Ice crusher
Massage armchair
Vending machine
Electric drive pusher
We develop and produce various precision switch products to meet the needs of consumer electronics, communication equipment,
automotive electrical appliances, medical care, smart equipment and other industries.
They are used in multi-function phones, large mixers, household gas appliances, washing machines, dishwashers, etc. Smart homes,
new energy vehicle charging guns, car air conditioning controllers, car door locks, car sensors and other automotive markets have
won the trust of well-known companies at home and abroad, and have become suppliers that occupy an important position in these
high-end parts markets.
They are used in multi-function phones, large mixers, household gas appliances, washing machines, dishwashers, etc. Smart homes,
new energy vehicle charging guns, car air conditioning controllers, car door locks, car sensors and other automotive markets have
won the trust of well-known companies at home and abroad, and have become suppliers that occupy an important position in these
high-end parts markets.
Product Name | TONELUCK Subminiature Micro Switch |
current and voltage | 0.1A/3A/5A/10A ,125V/250V |
temperature | -40℃ to +85℃ |
Insulation resistance | 100 MΩ min. |
canning material | ULCUL 94V-0 Thermoplastic |
product type | MQS-1 MQS-14 MQS-15 MQS-16 MQS-17 MQS-18 MQS-19 MQS-1D MQS-1F |
operating force | F1=80±20 F2=130±30 F3=160±30 F4=230±40 (The above force only refer to switch without lever.) (for MQS-14, MQS-15, only F4 is available;only MQS-1D MQS-1F F3=160±40 F4=220±50) |
Company Profile
Our Certification
Our Certification
Our products not only have approved by many global safety certifications such as ENEC, UL, CUL, CE,
and CQC but also have approved by RoHS, Reach certification to guarantee product quality.
Cooperative Partner
Cooperative Partner
Toneluck has occupied a position as an asian supplier in the high-end components market meanwhile our micro switch and pressure sensor have become a world-renowned brand. And we supplied for GE, Haier, Whirlpool,Pioneer, Panasonic, Toyota, Ford, Volkswagen,etc world-renowned brand
Packing and shipping
A. Packing:
Generally, there has some inside cartons and an outside carton to protect the switch product of package. Meanwhile, the switch also have the plastic uptake to limit and protect the switches. So the product will be protected well when shipping.
Generally, there has some inside cartons and an outside carton to protect the switch product of package. Meanwhile, the switch also have the plastic uptake to limit and protect the switches. So the product will be protected well when shipping.
Meanwhile, if you have any requirement about the packing, also can let us know.
B. Shipment:
Customer can choose the shipment by air, by sea, by land transportation, or by express delivery with the trade term of EWX, FOB,DDU, DDP, CIF, and so on.
B. Shipment:
Customer can choose the shipment by air, by sea, by land transportation, or by express delivery with the trade term of EWX, FOB,DDU, DDP, CIF, and so on.
FAQ
Q1: Are you a factory or trading company?
A: we are an original manufacturerfactory in micro switches over 45 years.
Q2: Can I get a free sample?
A: yes, Afrer the certain design or items is confirmed,free samples could be provided within 3-7 days.
Q3: What is your MOQ?
A:Normally,We have only accept the MOQ is 1000pcs.
A: we are an original manufacturerfactory in micro switches over 45 years.
Q2: Can I get a free sample?
A: yes, Afrer the certain design or items is confirmed,free samples could be provided within 3-7 days.
Q3: What is your MOQ?
A:Normally,We have only accept the MOQ is 1000pcs.
