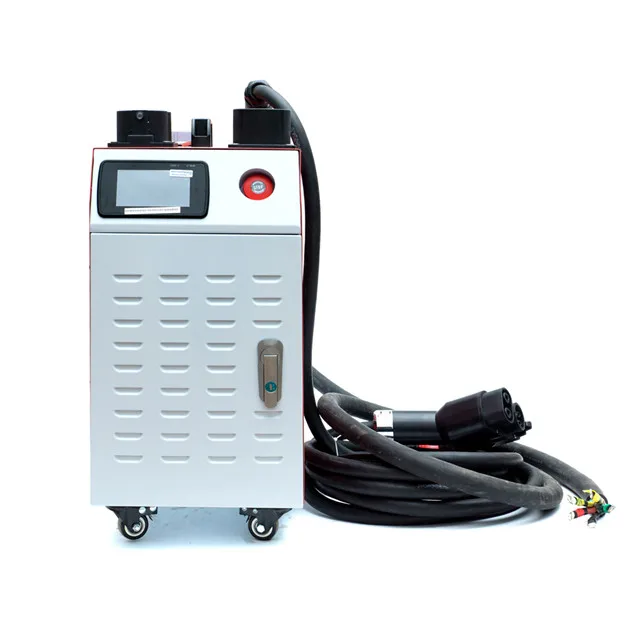

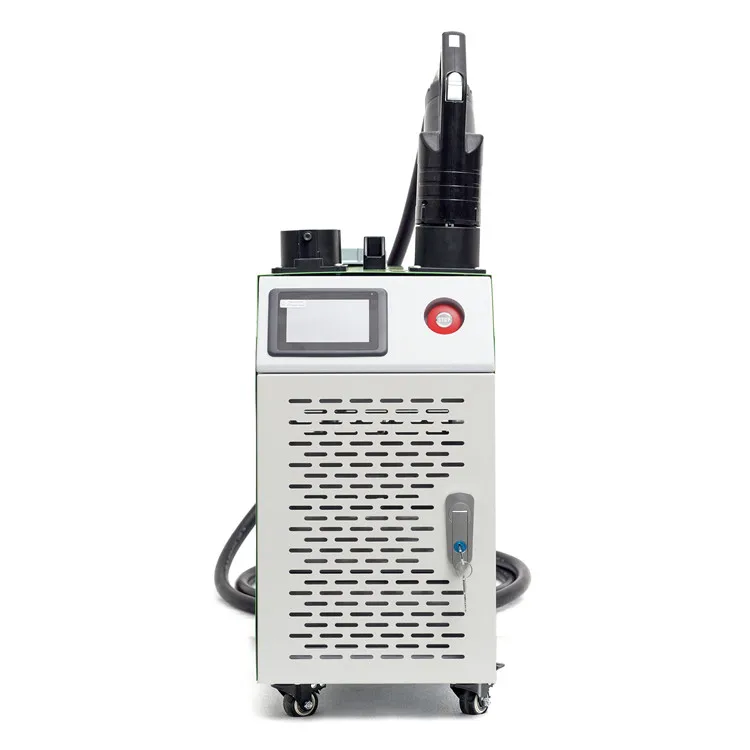

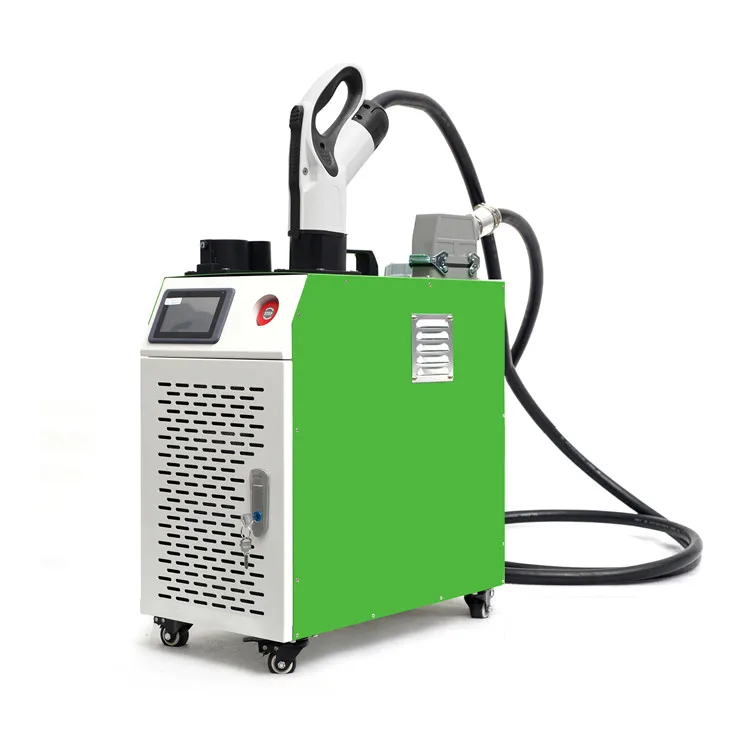

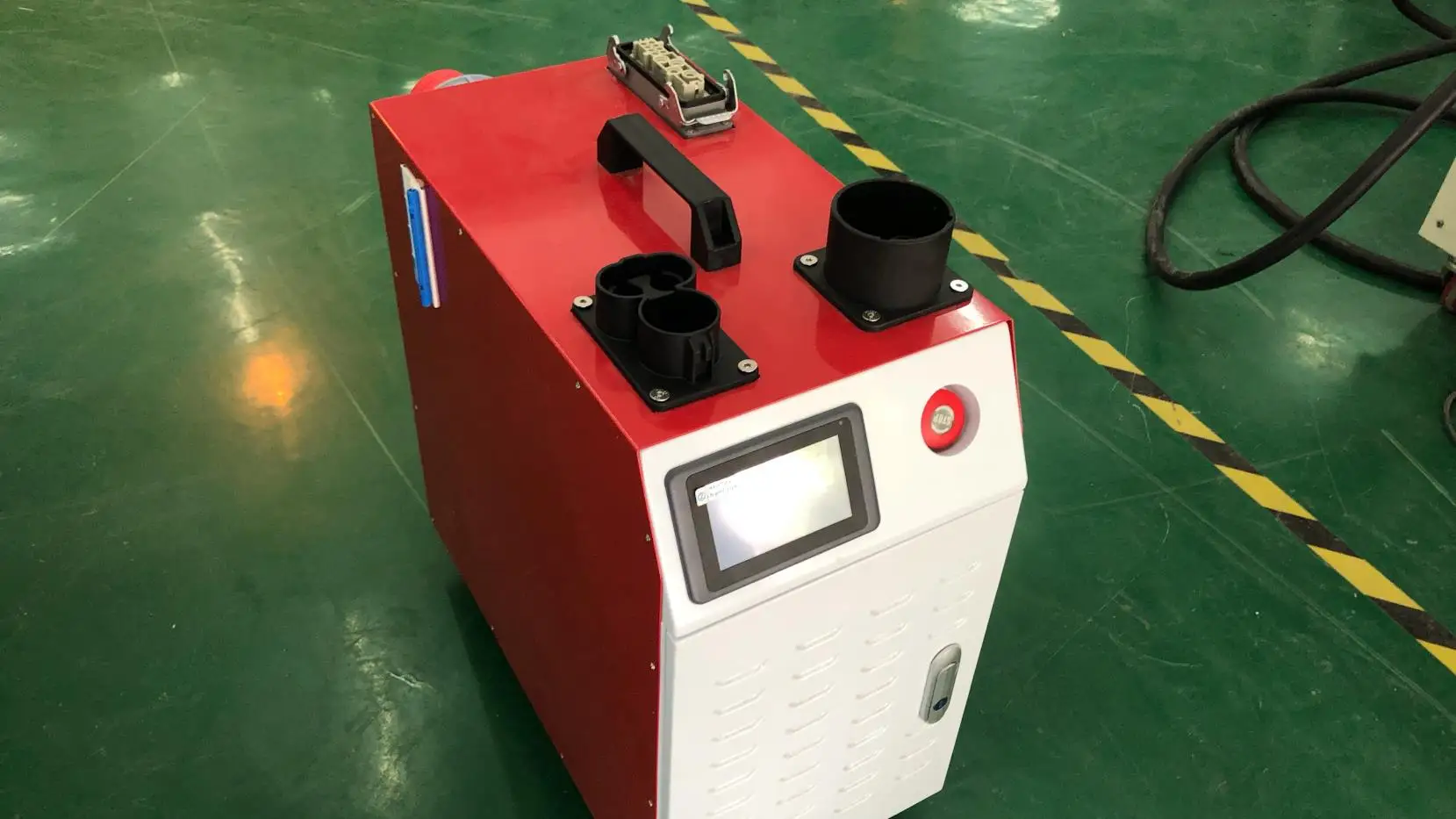

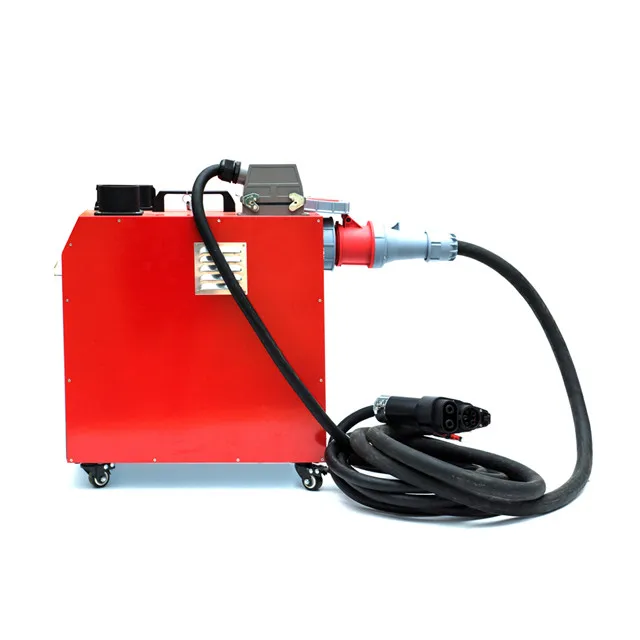

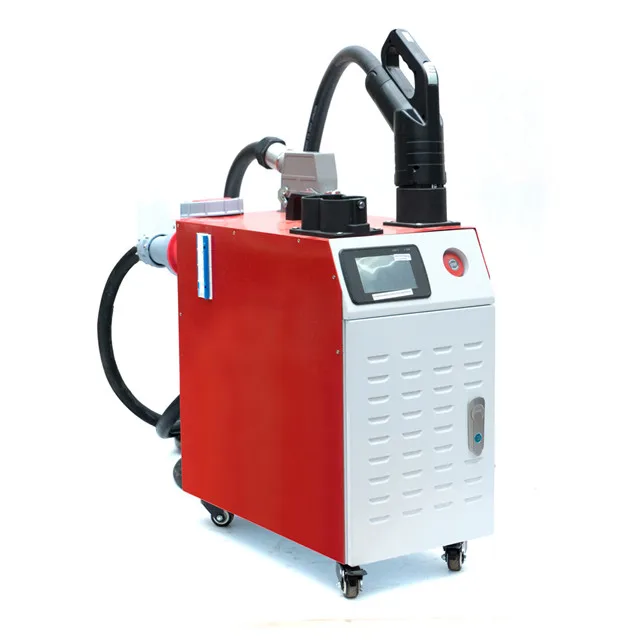

Electway DC Portable ev charger 30KW Portable EV Fast Station
Fast charging station is one type of charging method which can charge battery of electric vehicle (EV) in not over an hour. It can supply rapidly electric power to charge EV like gasoline pump station for internal combustion engine car. So it will be most popular charging station for EV customer in the future.

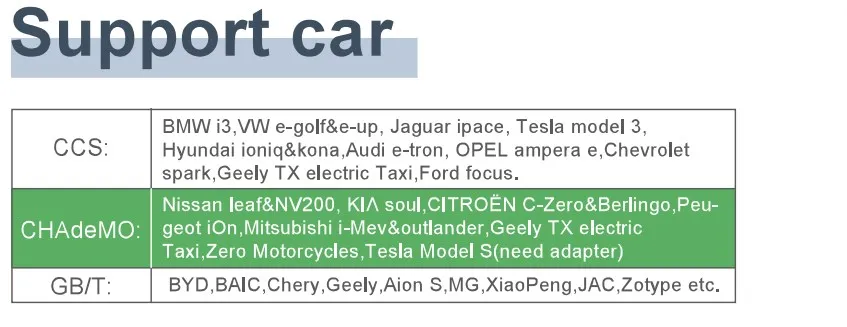

Its flexible multi-protocol design supports CCS, CHAdeMO and AC functionality depending on the individual charging needs of each
customer
customer
Product Description

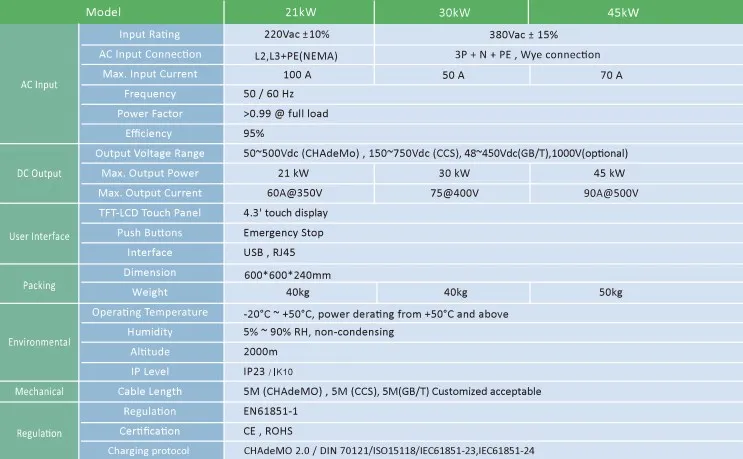

Specification
Features
Operate Condition and requirement for 30KW portable EV charger
Working condition
1) Prevent the rain, water, avoid direct sunlight ,away from the sources of charger,such us fire source, combustible gas,rain,snow smoke,sand-dust ect.
2) Operating temperature:-20℃~45℃
3) Operating humidity:5%~95%
4) Operating altitude:<=2000m
Working condition
1) Prevent the rain, water, avoid direct sunlight ,away from the sources of charger,such us fire source, combustible gas,rain,snow smoke,sand-dust ect.
2) Operating temperature:-20℃~45℃
3) Operating humidity:5%~95%
4) Operating altitude:<=2000m
Function and Features for 30KW portable EV charger
1)The communication board has the high-speed CAN net work can communicate with BMS of the electric car and complete the charger charge control.It used to judge the power battery type of the electric car and obtains the systematic parameter and also obtains the status data of the power battery’s voltage,current and temperature in the course of charging and before charging.
2)4.3 inches LCD touch screen display with indicator function,which can real-time display the remaining battery power,charging voltage charging current,remaining charging time and the charger’s failure state.
3)Two buttons complete charge (on/off)can change and set up the charger’s parameter.Please refer to the seventh part of the manual (Human-computer interaction)
4)The charger equipped with emergency stop system,it can cut off the output current at the first time in an emergency.Please check 2-1for reference.
5)The air switch can cut off the AC input.Please check 2-1 for reference.
6)The connect between AC input charger connector and DC output charger are detachable connector.The user can put the input cable and output cable stored separately.
7)The Charger can filling the electricity 10 ~ 15 kw/H per hour commonly,general cars can be recharged in 1.5~ 2 hours and the bus need 4~5.5 hours.
8)Please notice that the air duct can not toward to ground or be blocked.As the figure 6-1 for reference.
1)The communication board has the high-speed CAN net work can communicate with BMS of the electric car and complete the charger charge control.It used to judge the power battery type of the electric car and obtains the systematic parameter and also obtains the status data of the power battery’s voltage,current and temperature in the course of charging and before charging.
2)4.3 inches LCD touch screen display with indicator function,which can real-time display the remaining battery power,charging voltage charging current,remaining charging time and the charger’s failure state.
3)Two buttons complete charge (on/off)can change and set up the charger’s parameter.Please refer to the seventh part of the manual (Human-computer interaction)
4)The charger equipped with emergency stop system,it can cut off the output current at the first time in an emergency.Please check 2-1for reference.
5)The air switch can cut off the AC input.Please check 2-1 for reference.
6)The connect between AC input charger connector and DC output charger are detachable connector.The user can put the input cable and output cable stored separately.
7)The Charger can filling the electricity 10 ~ 15 kw/H per hour commonly,general cars can be recharged in 1.5~ 2 hours and the bus need 4~5.5 hours.
8)Please notice that the air duct can not toward to ground or be blocked.As the figure 6-1 for reference.
item | value |
Place of Origin | China |
Guangdong | |
Model Number | CHR-30Q |
Brand Name | ELECTWAY |
Product name | Electway DC Portable ev charger 30KW Portable EV Fast Station |
Type | CHAdeMO CCS GB/T PLUG |
Input voltage | 750V |
Application | Electric Car Charging/Electric Vehicle Charging |
Certificate | IEC CE |
Key Words | EV DC Fast Station |
Installation | Floor-standing |
Warranty | 12 Months |
Packing & Delivery
Package: wooden
Mail: amy(at)elect-charger.com
Mail: amy(at)elect-charger.com

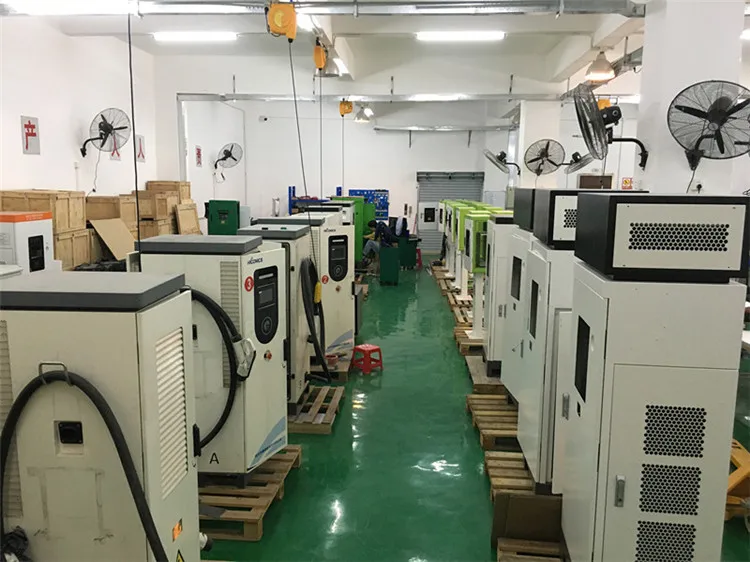

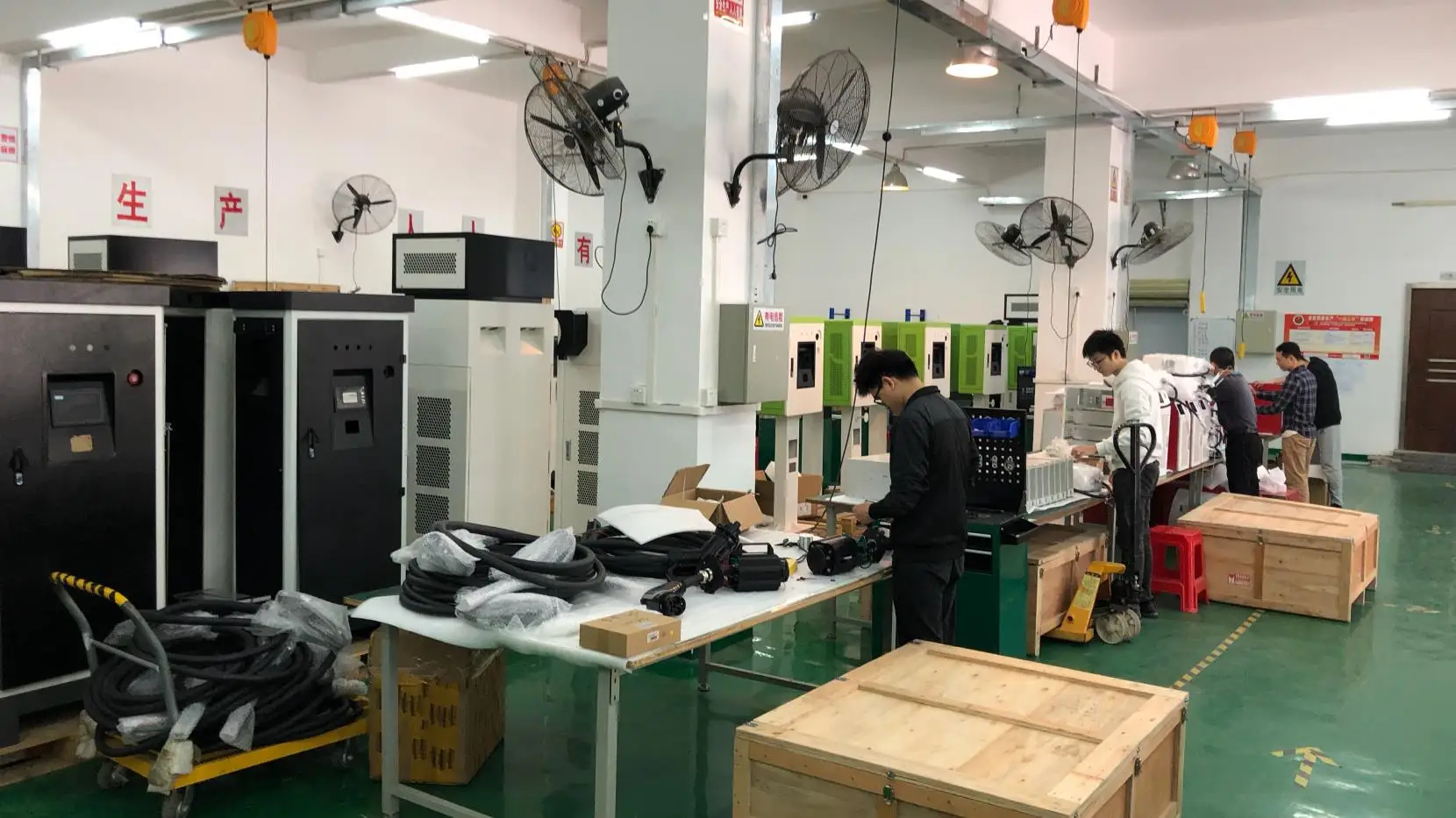

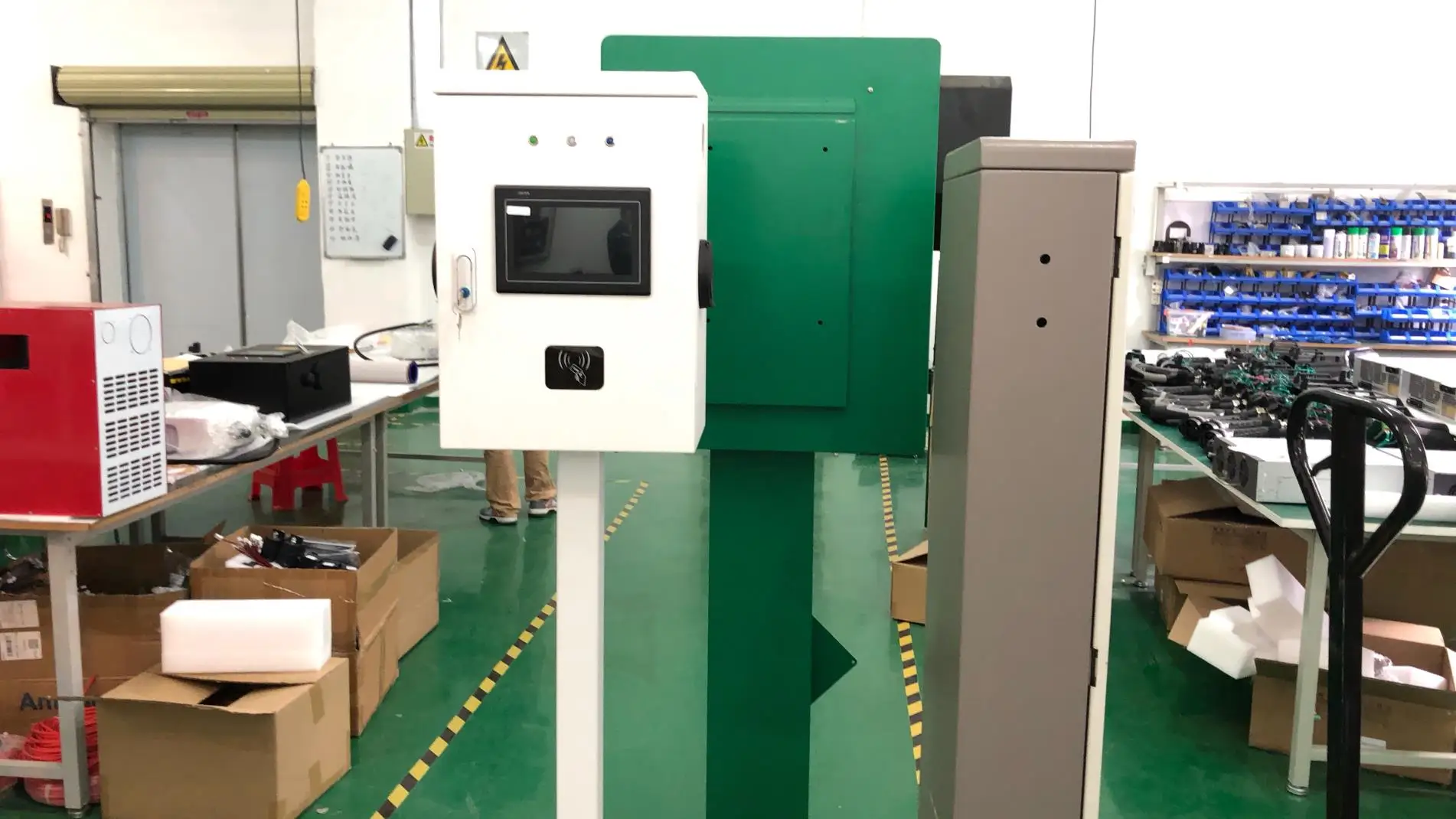

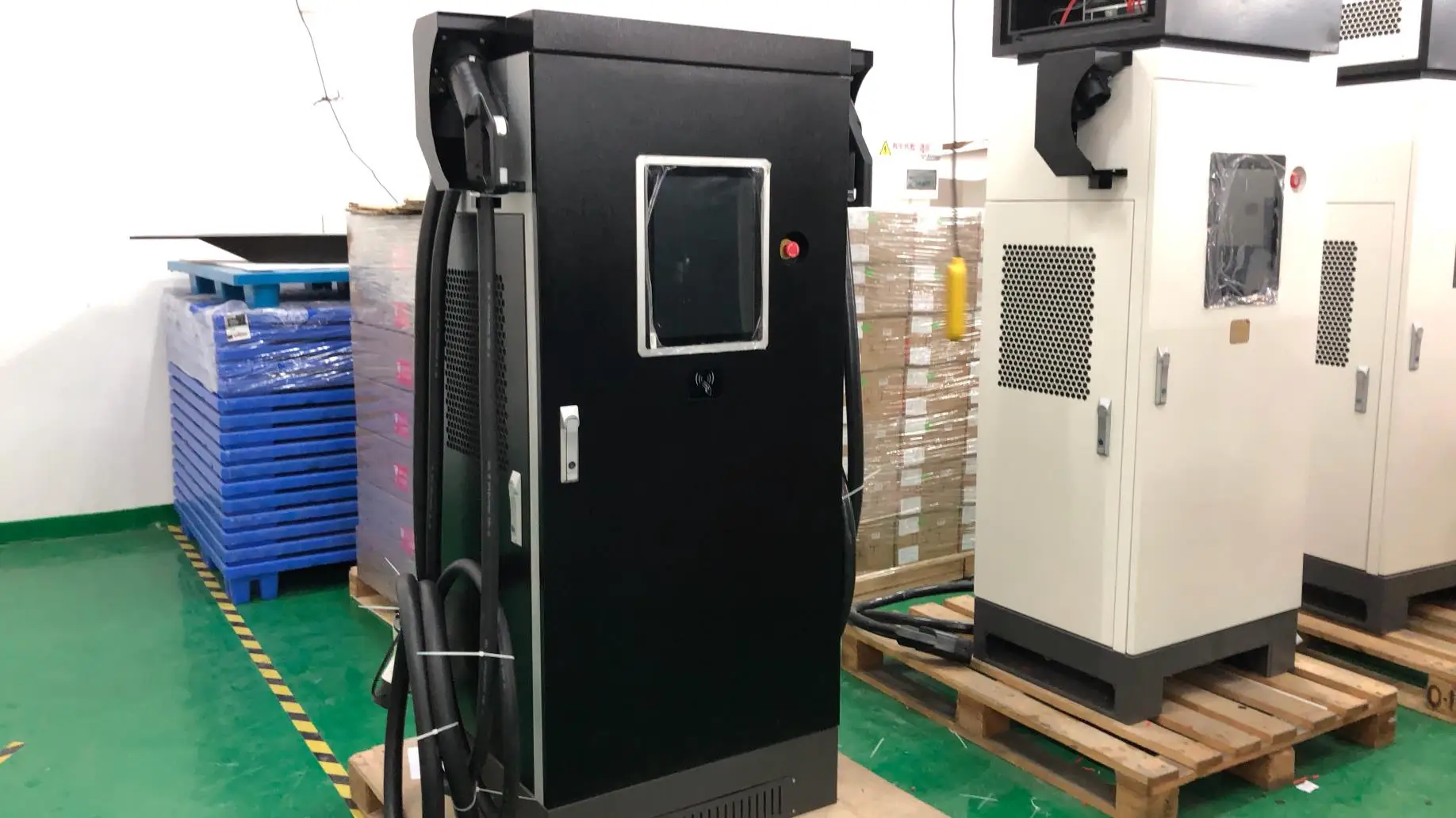

Company Profile
Guangzhou Electway Technology Co.,Ltd was founded on March 20th,2012.It is located in Huangpu District,Guangzhou.Since its establishment,our company has been focusing on R&D,production,sales and other services of hardware&software products of power electronics in the field of new energy.
At present,our company's main products are:a variety of domestic and international standard electric vehicle AC and DC charging station(stationary&wall-mounted),mobile off-board DC charger,portable DC charger,all series of AC charging EVSE,charging connectors,off-grid electric vehicle discharge device V2H,charging power module and its peripheral products.
Our company invest great efforts on the development of technology and the accumulation of hight-quality talents.We have a professional R&D team of more than 10 people.We pay highly attention to the accumulatiion and protection of independent intellectual property rights.Our company has applied for a number of utility model patents and appearance patents,and registered the trademark"ELECTWAY".Our company is a general VAT payer and has the qualification of import and export rights.Our products have been exported to a wide range of domestic and oversea,and have gained a hign reputation in the industry.
At present,our company's main products are:a variety of domestic and international standard electric vehicle AC and DC charging station(stationary&wall-mounted),mobile off-board DC charger,portable DC charger,all series of AC charging EVSE,charging connectors,off-grid electric vehicle discharge device V2H,charging power module and its peripheral products.
Our company invest great efforts on the development of technology and the accumulation of hight-quality talents.We have a professional R&D team of more than 10 people.We pay highly attention to the accumulatiion and protection of independent intellectual property rights.Our company has applied for a number of utility model patents and appearance patents,and registered the trademark"ELECTWAY".Our company is a general VAT payer and has the qualification of import and export rights.Our products have been exported to a wide range of domestic and oversea,and have gained a hign reputation in the industry.
FAQ
1. Do your charger support the OCPP function?
Yes, our charger support the OCPP 1.6, it can be connected to Internet.
Even we also have charger support the Ethernet, 3G,4G function.
2. How about the quality and warranty about the charger?
All of our chargers are CE certificated, and you can find the CE mark on our chargers.
We supply 12 months warranty for the charger, what'more, we supply whole life techinical support.
3.What can you buy from us?
EV AC Charger,EV DC Fast Charger,EV Bus Supercharger,CHAdeMO Plug,V2H
4. Why should you buy from us not from other suppliers?
Professional supplier of Hydroelectric equipments, Diesel generator sets,(Uninterrupted Power Supply)UPS, Synchronous Generator,Motor inverter, Power grid transmission,Power Transformer, Reactor, Frequency sensitive rheostat, Stainless steel resistor etc
5. What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,AUD,HKD,CNY;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese
Yes, our charger support the OCPP 1.6, it can be connected to Internet.
Even we also have charger support the Ethernet, 3G,4G function.
2. How about the quality and warranty about the charger?
All of our chargers are CE certificated, and you can find the CE mark on our chargers.
We supply 12 months warranty for the charger, what'more, we supply whole life techinical support.
3.What can you buy from us?
EV AC Charger,EV DC Fast Charger,EV Bus Supercharger,CHAdeMO Plug,V2H
4. Why should you buy from us not from other suppliers?
Professional supplier of Hydroelectric equipments, Diesel generator sets,(Uninterrupted Power Supply)UPS, Synchronous Generator,Motor inverter, Power grid transmission,Power Transformer, Reactor, Frequency sensitive rheostat, Stainless steel resistor etc
5. What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,AUD,HKD,CNY;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese
Note
1- OEM customer is welcome...
2-Any requirement please contact us to talk about the details.
3-We will reply you for your inquiry in 24 hours.
4-If you have any questions about the charger, please contact us.
5-The above for reference only, final price decide by the charger KW, please contact us to get the quote.
2-Any requirement please contact us to talk about the details.
3-We will reply you for your inquiry in 24 hours.
4-If you have any questions about the charger, please contact us.
5-The above for reference only, final price decide by the charger KW, please contact us to get the quote.
