Product Description

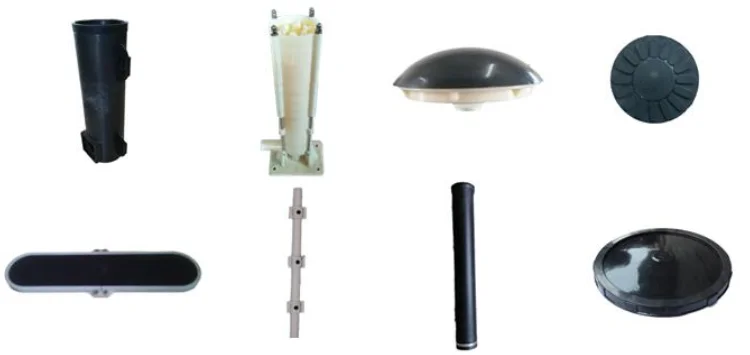

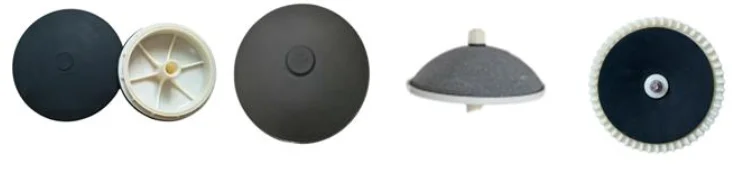

Ewater fine bubble diffuser has been manufactured in the aeration of industrial wastewater, municipal sewage, domestic septic tank, food process like fermentation, fish farm or shrimp farm aeration. The wastewater treatment of activated sludge and contact aeration process and aquarium will all need high Oxygen transfer rate or Oxygen transfer efficiency, OTE. and low pressure loss by the membrane. The reinforced EPDM can continuously create fine bubble from slots on the EPDM membrane of disc type or tube type diffuser. The expected duty life may be over 5 years without tearing or bursting. There are other material selections of self-sink silicon rubber membrane, ceramic diffuser, air stone, and coil looking diffuser. There are also course bubble air diffuser for application of liquid mixture. The diffuser can be used for roots blower, ring blower and linear air pump. The fine bubble diffuser also has advantage of much energy reduction.
We offer OEM manufacturing with high reliability and stability of performance, efficient and effective satisfaction of your
client. Let our diffuser be the best choice of your solution.

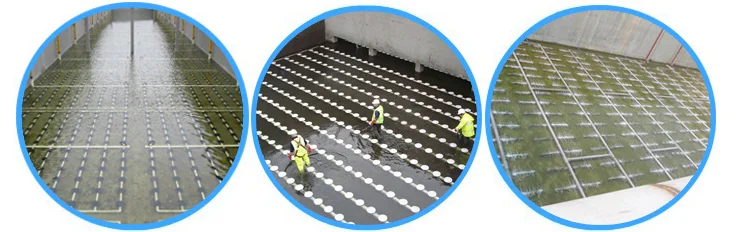

APPLICATIONS
* Municipal wastewater treatment.
* Industrial wastewater treatment.
* Clean water treatment.
* Sludge stabilization.
* Wastewater ozone diffusion.
* Aeration of fish ponds.
* Aeration of streams and lakes.
We offer OEM manufacturing with high reliability and stability of performance, efficient and effective satisfaction of your
client. Let our diffuser be the best choice of your solution.
APPLICATIONS
* Municipal wastewater treatment.
* Industrial wastewater treatment.
* Clean water treatment.
* Sludge stabilization.
* Wastewater ozone diffusion.
* Aeration of fish ponds.
* Aeration of streams and lakes.

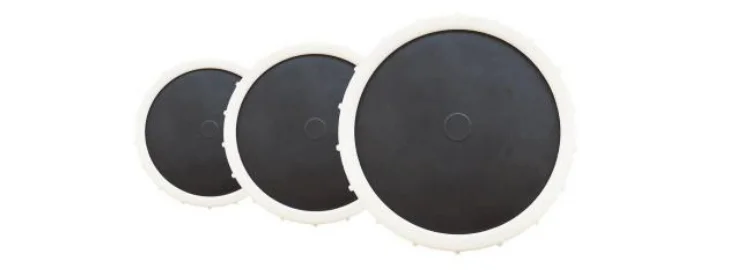

Model | BQ-170 | BQ-215 | BQ-270 | BQ-330 | |||
Bubble Type | Coarse Bubble | Fine Bubble | Fine Bubble | Fine Bubble | |||
Size | 6 inch | 8 inch | 9inch | 12 inch | |||
MOC | EPDM/Silicone/PTFE—ABS/Strengthened PP-GF | ||||||
Connector | 3/4''NPT male thread | ||||||
Membrane Thickness | 2mm | 2mm | 2mm | 2mm | |||
Bubble Size | 4-5mm | 1-2mm | 1-2mm | 1-2mm | |||
Design Flow | 1-5m3/h | 1.5-2.5m3/h | 3-4m3/h | 5-6m3/h | |||
Flow Range | 6-9m3/h | 1-6m3/h | 1-8m3/h | 1-12m3/h | |||
EPDM membrane：
In municipal wastewater and most industrial wastewater, it can retain its physical properties for a long time, resist tearing,
remain in shape after years of use, and produce tiny bubbles.Not suitable for solvent, grease, grease, and high concentration of metal salts.
Silicone membrane：
With stable material, the membrane will not harden or shrink. It has good resistance to organic solvent and grease sewage, but its
physical property is not as good as EPDM. It is suitable for industrial wastewater with high oil content and high temperature.
With stable material, the membrane will not harden or shrink. It has good resistance to organic solvent and grease sewage, but its
physical property is not as good as EPDM. It is suitable for industrial wastewater with high oil content and high temperature.

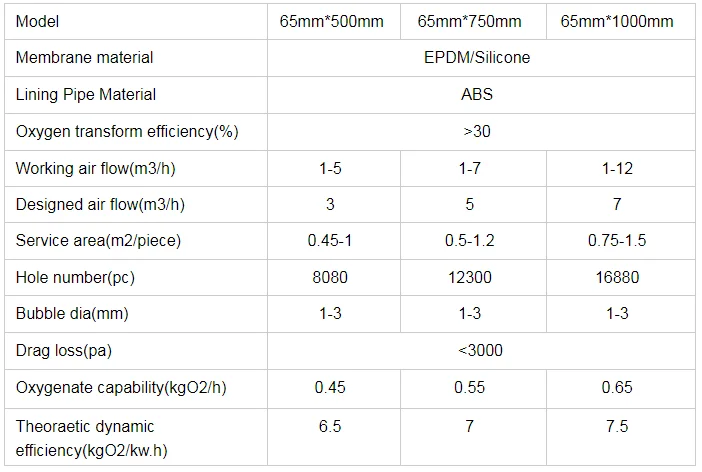

Specification

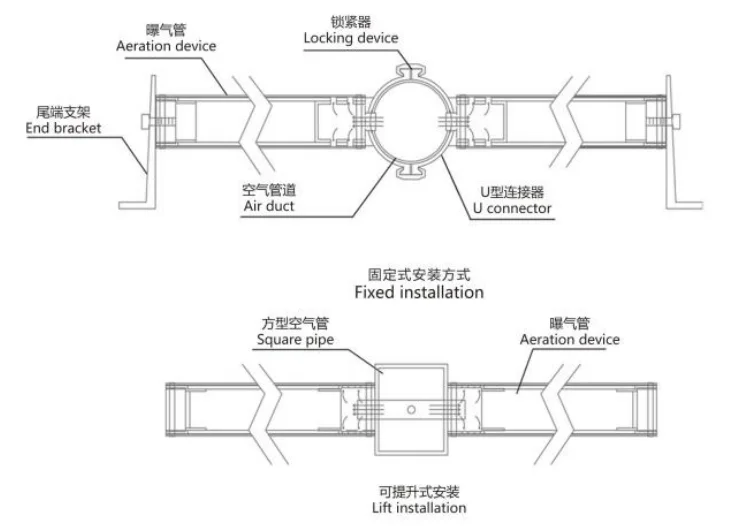

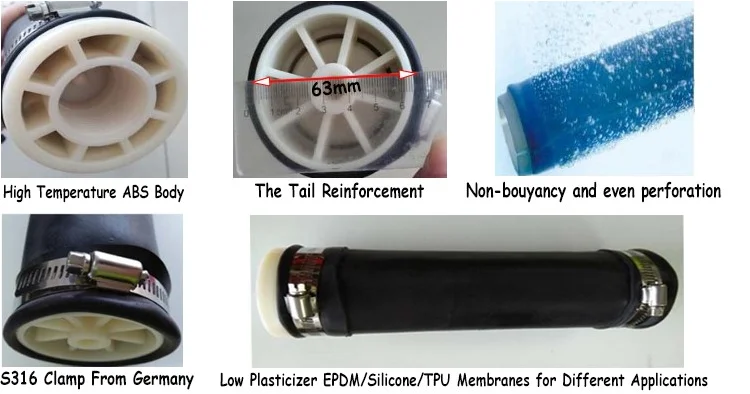

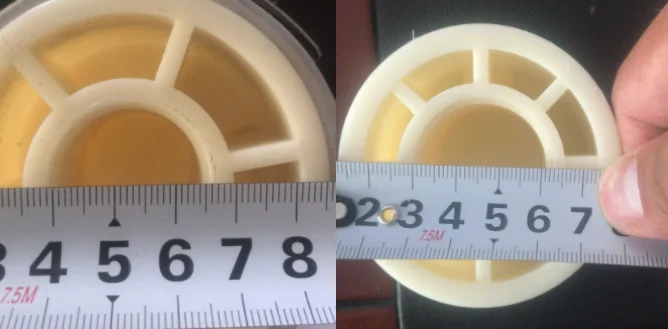

fine aeration bubble air tube diffuser
Membrance fine bubble diffuser features a unique split pattern and slit shapes, which can disperse air bubbles in an extremely fine and uniform pattern for high oxygen transfer efficiency. A much highly effective and integrated check valve enables the aeration zones to be easily shut down for air-on/air-off applications.
EPDM fine bubble membrane diffusers are constructed with premium quality EPDM membranes engineered for superior product life, operational flexibility and maximum oxygen transfer efficiency. The units are ideally suited for continuous or on/off applications and require minimal maintenance for long-term performance
Membrance fine bubble diffuser features a unique split pattern and slit shapes, which can disperse air bubbles in an extremely fine and uniform pattern for high oxygen transfer efficiency. A much highly effective and integrated check valve enables the aeration zones to be easily shut down for air-on/air-off applications.
EPDM fine bubble membrane diffusers are constructed with premium quality EPDM membranes engineered for superior product life, operational flexibility and maximum oxygen transfer efficiency. The units are ideally suited for continuous or on/off applications and require minimal maintenance for long-term performance

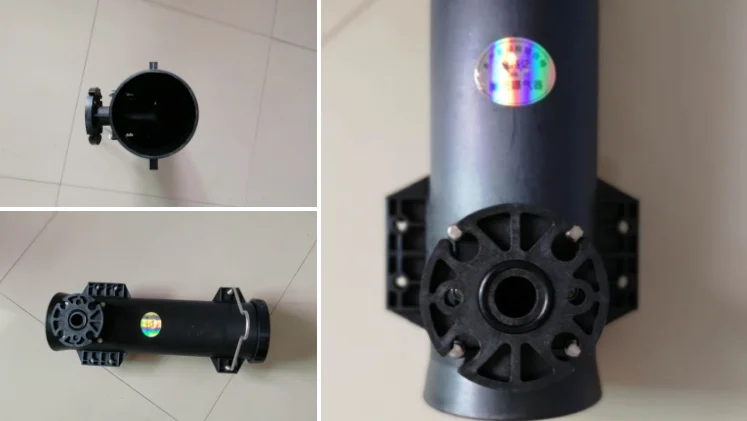

Lifting cyclone aerator
The liftable cyclone aerator is a type of aeration device developed in recent years. It is mainly composed of four parts: outer cylinder, intake pipe, backflow plate and wedge-shaped structure. It is made of nylon 66 + 30% glass fiber (PA66 + 30% GF). It has super mechanical properties and corrosion resistance.
At the same time, the device also has the advantages of high dissolved oxygen efficiency, small pressure loss, strong mixing force, no blockage, no sludge accumulation at the bottom of the tank, no maintenance, intermittent operation, long life, etc. it is designed by Environmental Engineering College of Tokyo University and Seoul University of Korea According to the application effect of thousands of enterprise users at home and abroad for many years, the energy consumption of lifting cyclone aerator is reduced by more than 25% compared with conventional fixed spiral aerator, free flow aerator and perforated tube aerator. It is especially suitable for the new expansion projects of printing and dyeing, papermaking, chemical and other enterprises and industrial wastewater treatment plants and the transformation of old aeration tanks Objective.
At the same time, the device also has the advantages of high dissolved oxygen efficiency, small pressure loss, strong mixing force, no blockage, no sludge accumulation at the bottom of the tank, no maintenance, intermittent operation, long life, etc. it is designed by Environmental Engineering College of Tokyo University and Seoul University of Korea According to the application effect of thousands of enterprise users at home and abroad for many years, the energy consumption of lifting cyclone aerator is reduced by more than 25% compared with conventional fixed spiral aerator, free flow aerator and perforated tube aerator. It is especially suitable for the new expansion projects of printing and dyeing, papermaking, chemical and other enterprises and industrial wastewater treatment plants and the transformation of old aeration tanks Objective.

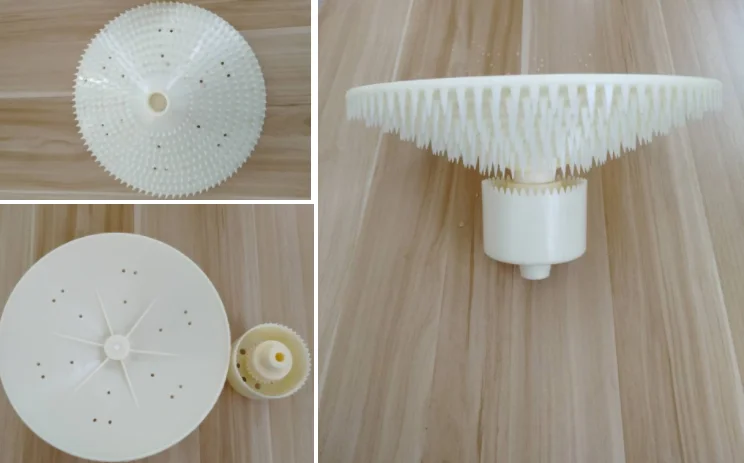

Rotating mixing aerator
The multi-layer spiral cutting is adopted in the rotating mixing aerator for oxygen aeration. When the air enters the aerator, the air first passes through the two-layer spiral cutting system, and then enters the multi-layer zigzag air distribution head at the lower layer after cutting. The multi-layer cutting makes the air bubbles cut into micro bubbles, greatly improving the utilization rate of oxygen, with the characteristics of uniform air distribution and high oxygen charging efficiency.
The multi-layer spiral cutting is adopted in the rotating mixing aerator for oxygen aeration. When the air enters the aerator, the air first passes through the two-layer spiral cutting system, and then enters the multi-layer zigzag air distribution head at the lower layer after cutting. The multi-layer cutting makes the air bubbles cut into micro bubbles, greatly improving the utilization rate of oxygen, with the characteristics of uniform air distribution and high oxygen charging efficiency.

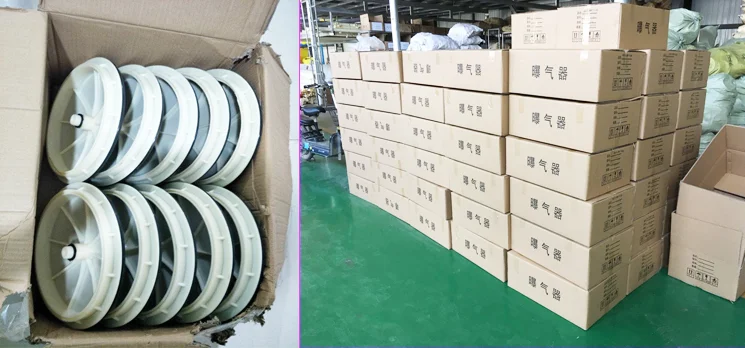

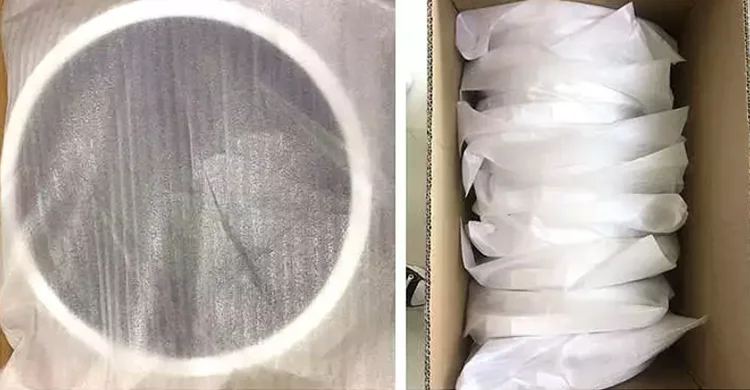

Packing & Delivery
