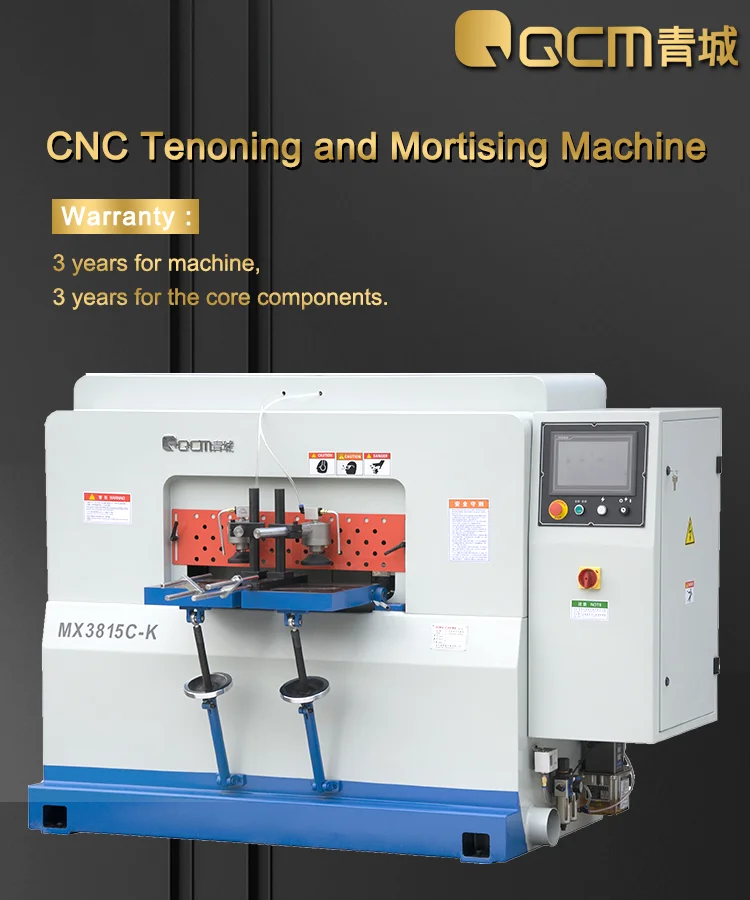

QCM MX3815C-K Mortising Woodworking Machinery Used Mortising And Tenon Joint Mortise Drill Machine











Product Description


























































































QCM Smart Panther Woodworking Machinery Mortising and Tenoning Machine


Wood Tenoner NC Tenoning Machine




Technical Parameter

Wood Planer Moulder Four Side Moulder


Specifications


Unit


MX3815C-K


Max. working size of square tenon (horizontal)


mm


140*80


Max. working width of vertical tenon


mm


80


Max. working dia. of circle tenon


mm


80


Max. depth of tenon


mm


70


Spindle dia.


mm


30


Spindle speed


mm


8500


Main motor power


kW/HP


3/4


Motor power of X-axis


kW/HP


1/1.5


Motor power of Y-axis


kW/HP


1/1.5


Air supply pressure


kW/HP


0.6


Suction hood dia.


mm


120


Overall dimensions


mm


2150*1300*1780


Weight


kg


1000









































Our Advantages

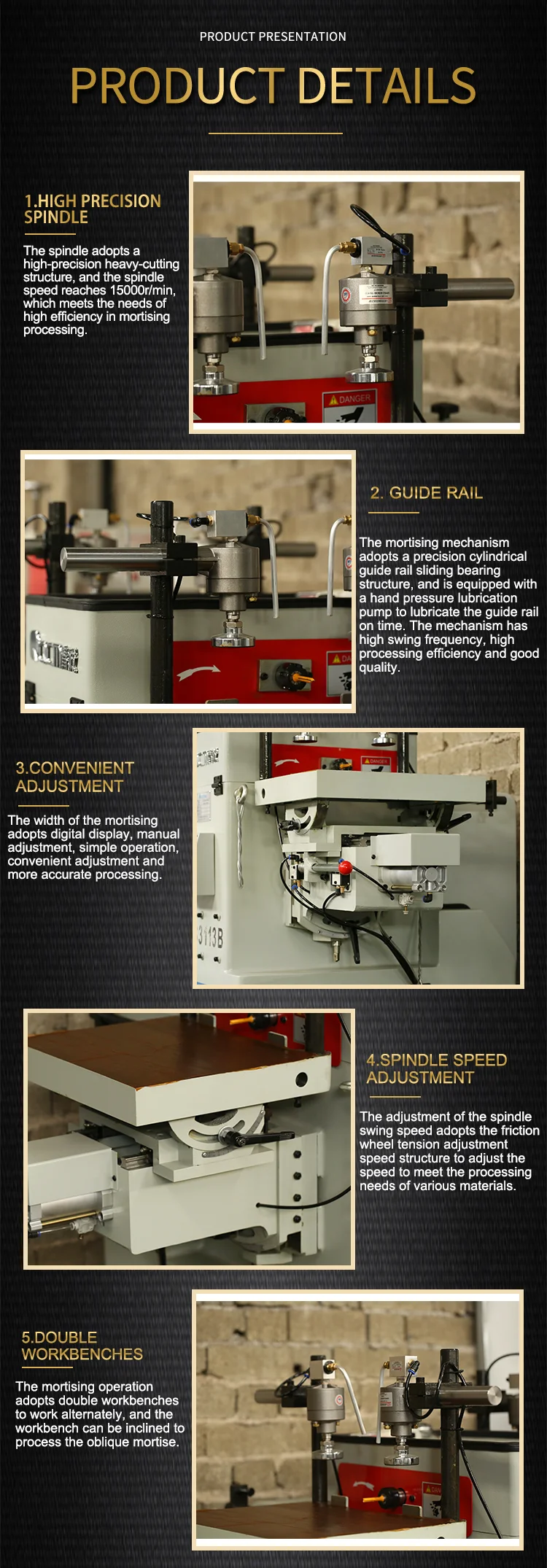

Product Main Features









1.
The X,Y axis adopts imported linear guide, ball screw transmission structure, which has flexible movement, stable performance and good precision.


2. The X,Y axis adopts Delta's high-efficiency full-servo drive system. It runs smoothly and has stable performance.


3. Adopt the international brand Delta motion controller and touch screen control, to achieve man-machine interface, easy to learn the operation, without special training. Through the touch screen can easily enter and modify parameters, tool wear can be compensated. The operation is simple, convenient and quick.


4. Pressing system is equipped with 4 pressing cylinders in each group to ensure stable pressing and good processing quality.


5. Additional functions: replacing the tool and setting the program again, it can process different shapes of tenons such as round tenon, waist round tenon, square tenon, etc.











Related Products








Company Information

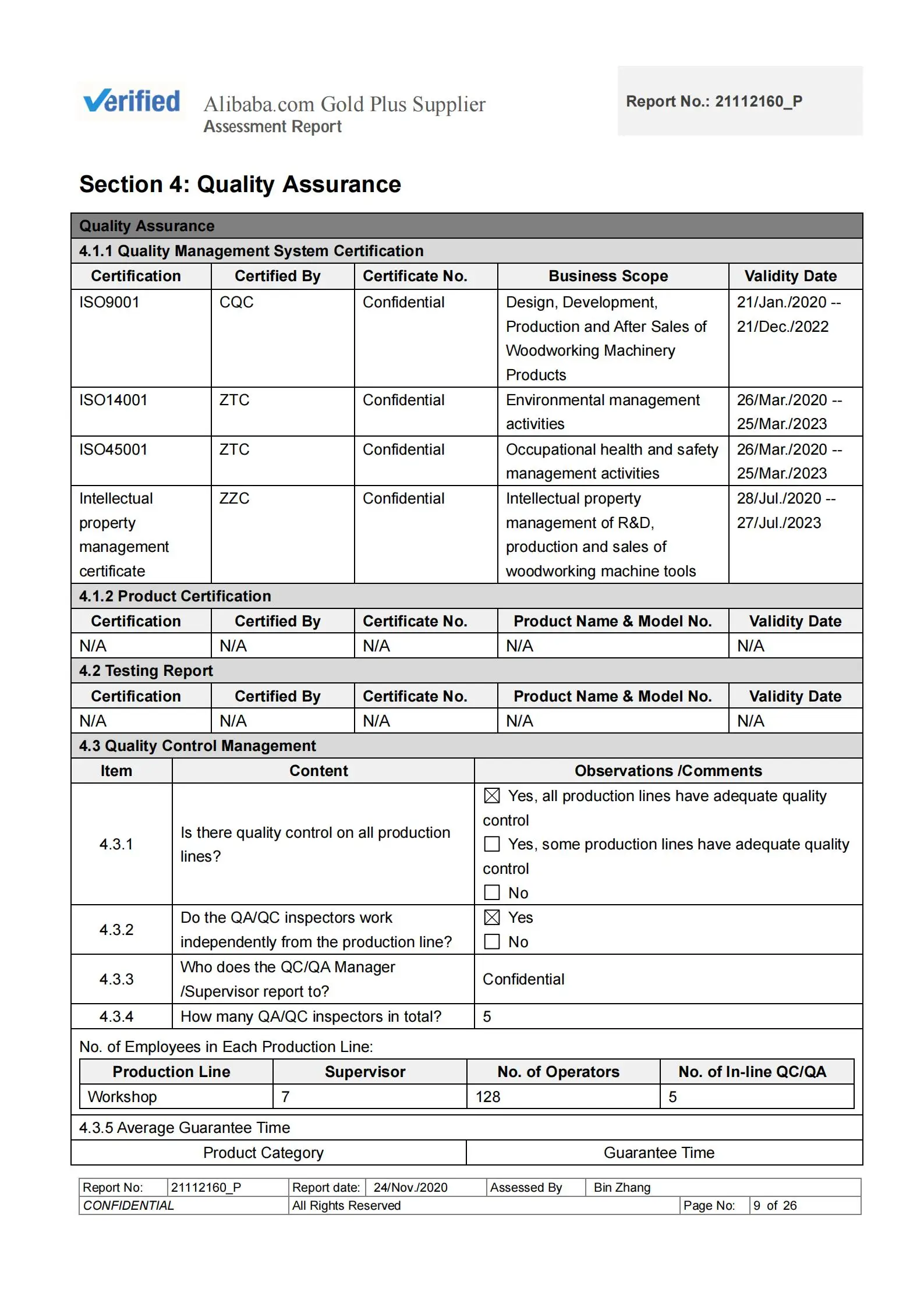

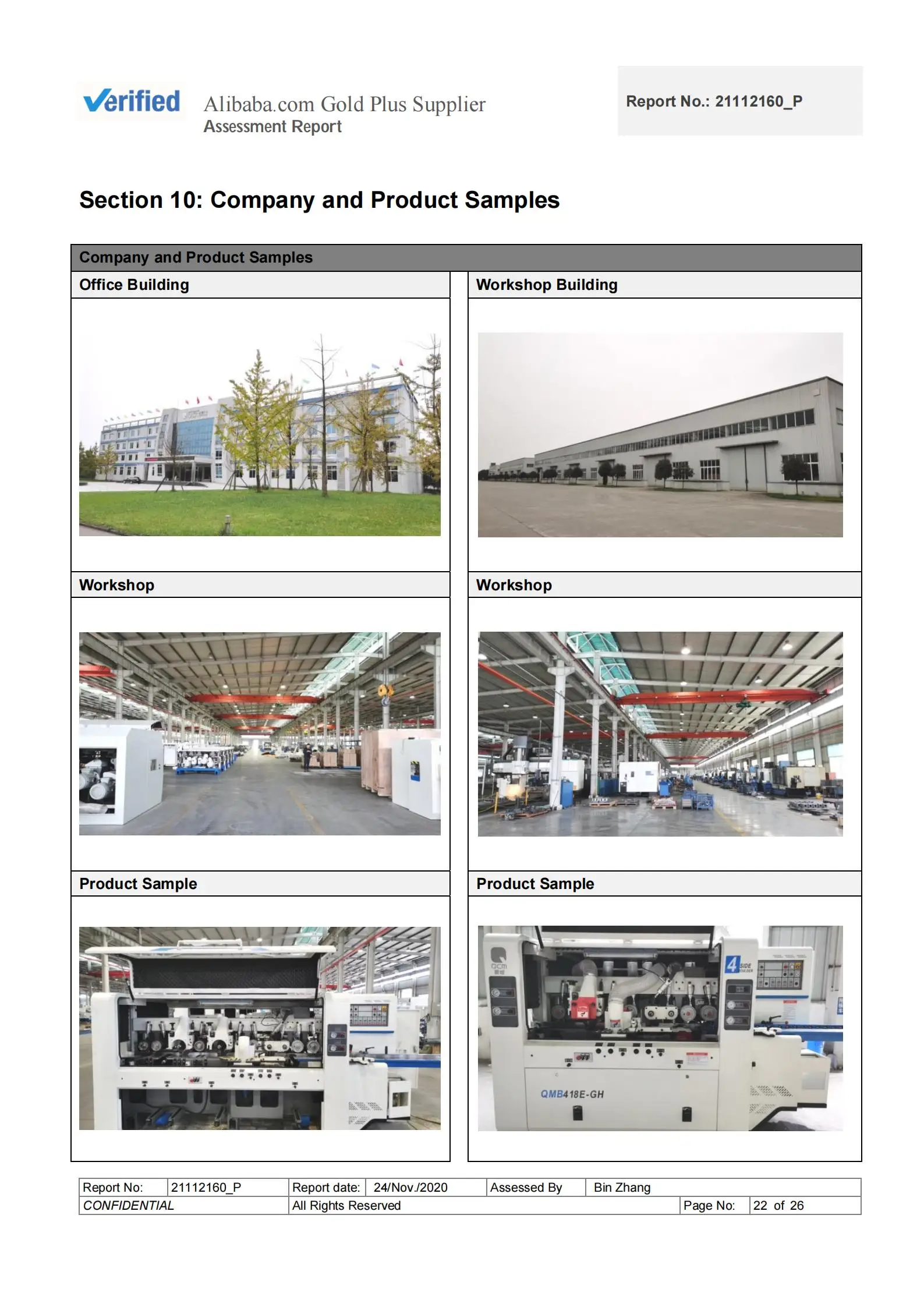

Certificate & Delivery

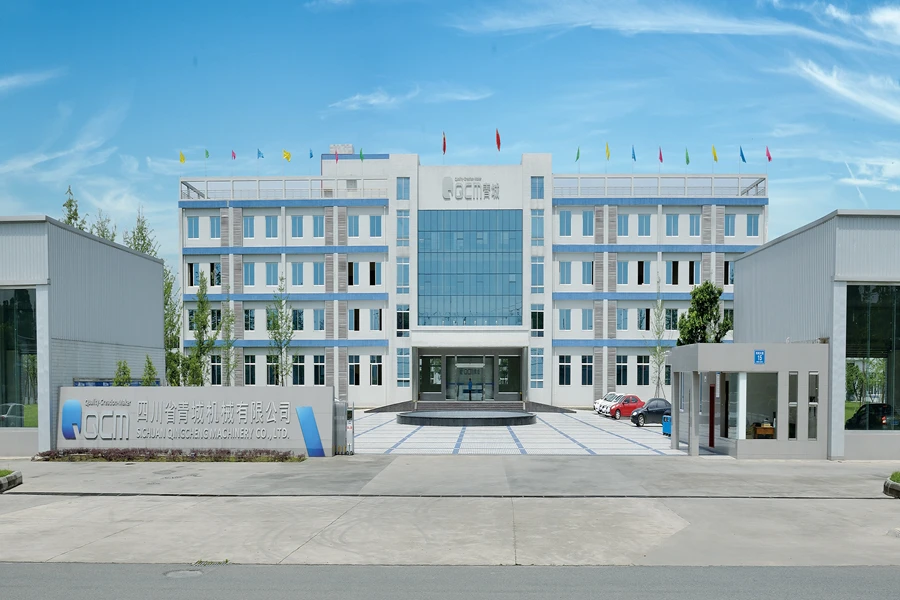

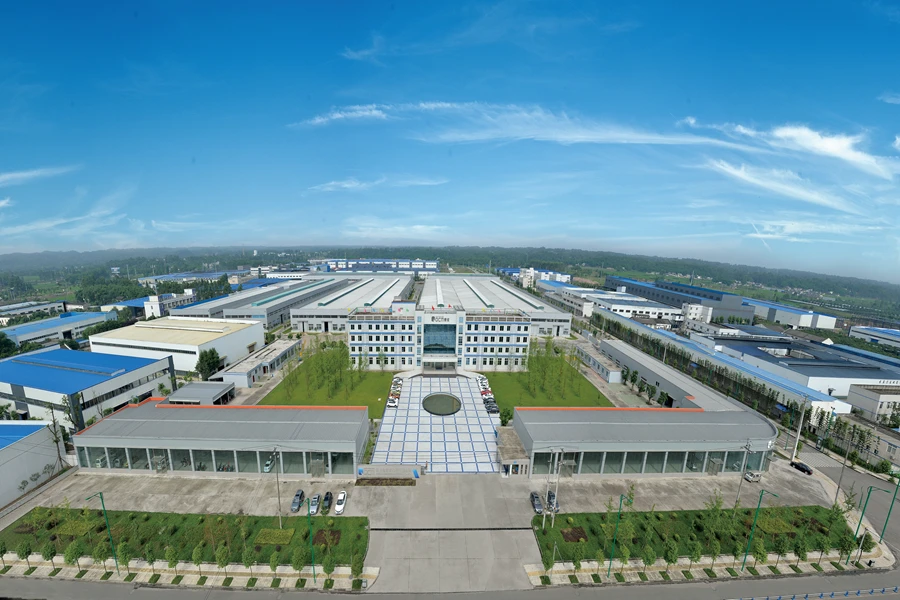

HUZHOU QINGCHENG MACHINERY CO., LTD





QCM Machinery was established in 1970 and have been specializing in production of woodworking machinery for more than 50 years now.

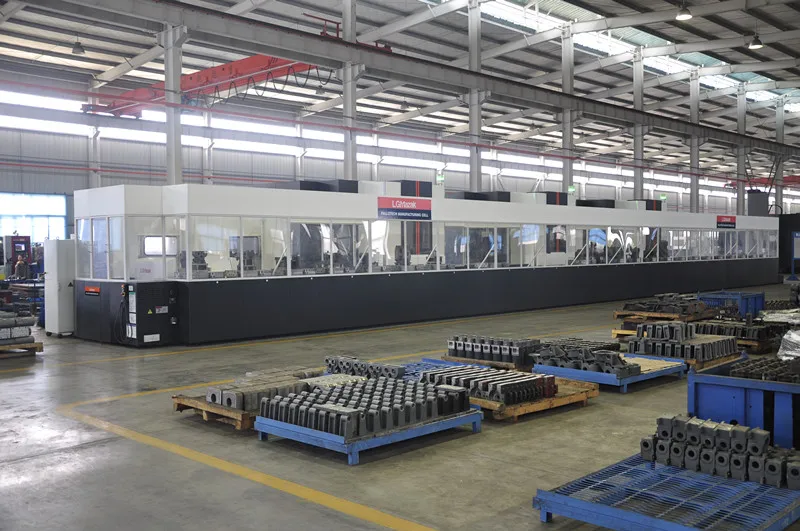

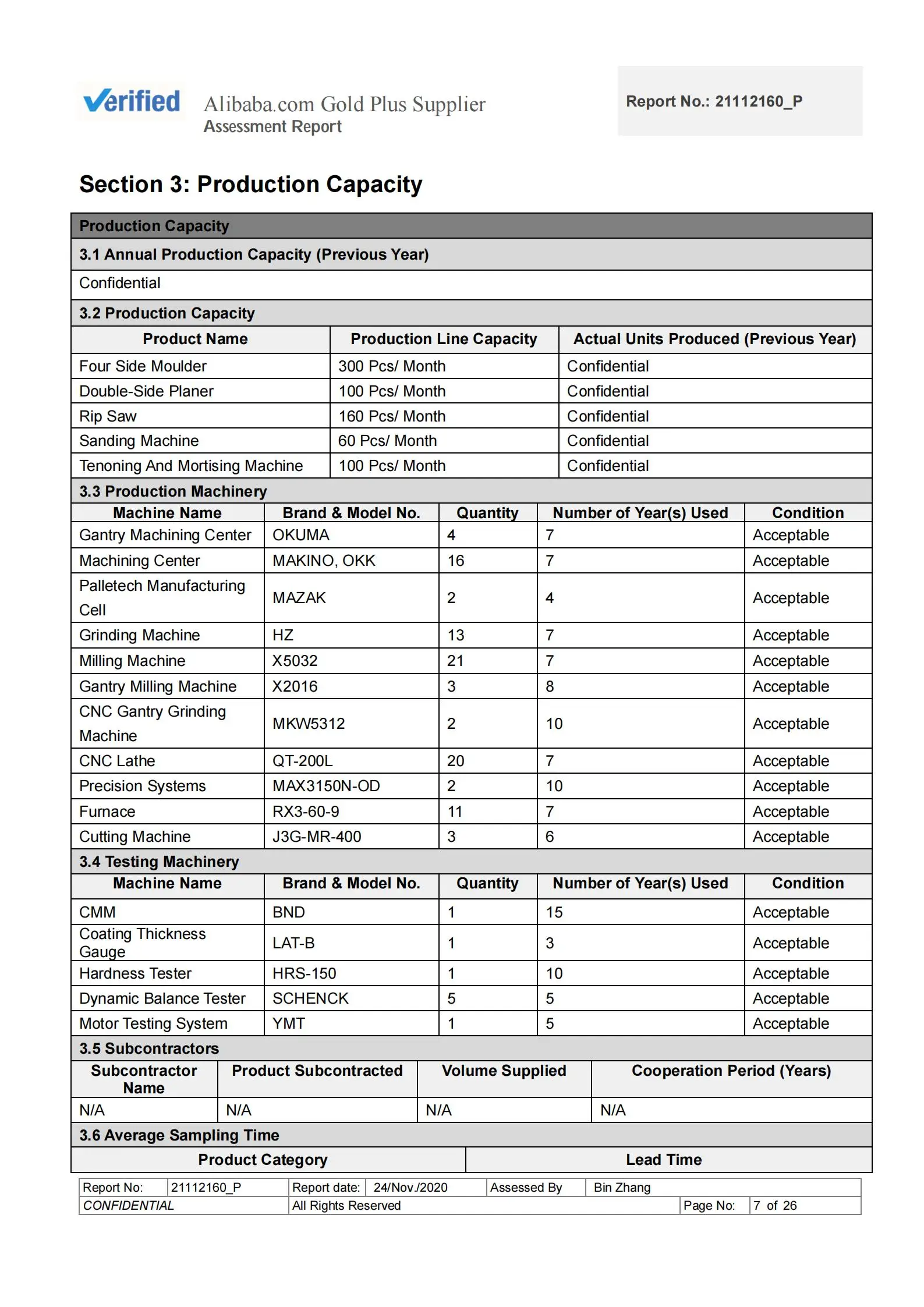

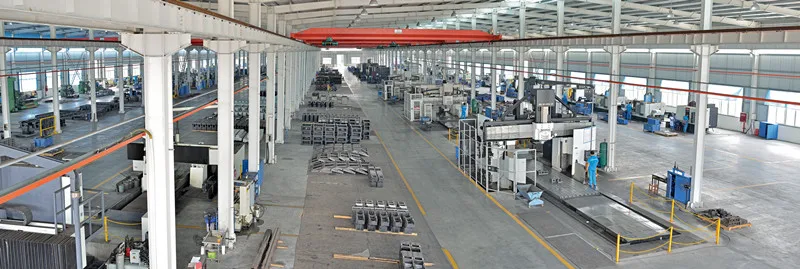

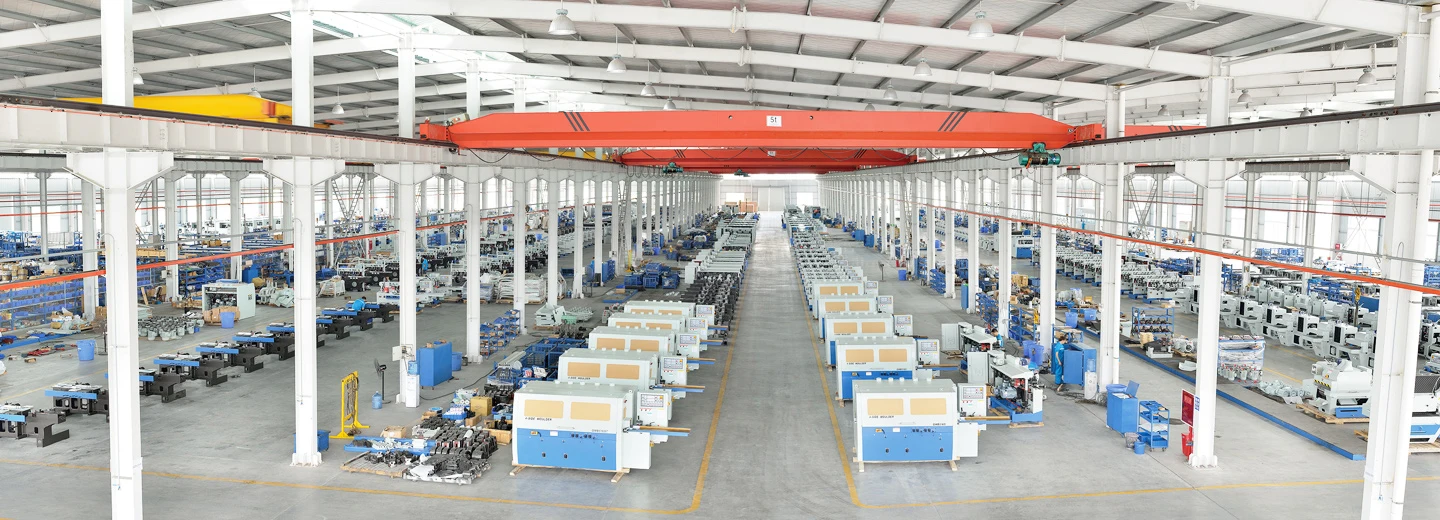

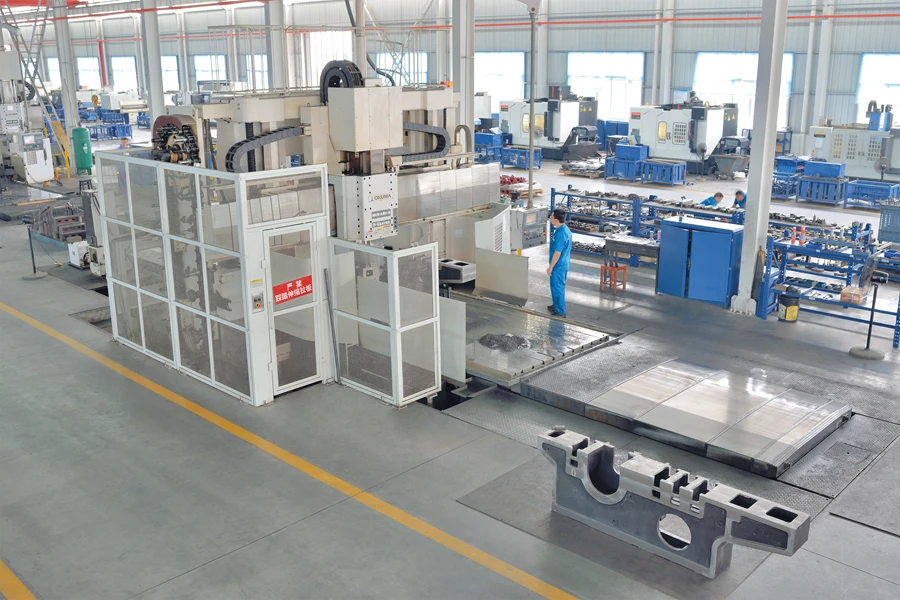

We have our own casting workshop and more than 300 sets of modern CNC machining equipment and testing equipment. Strong R&D team with 55 people can provide our customers with the biggest professional technical support.


Choose our machinery, to help you improve productivity, processing quality, and profit.



View more on home page










FAQ

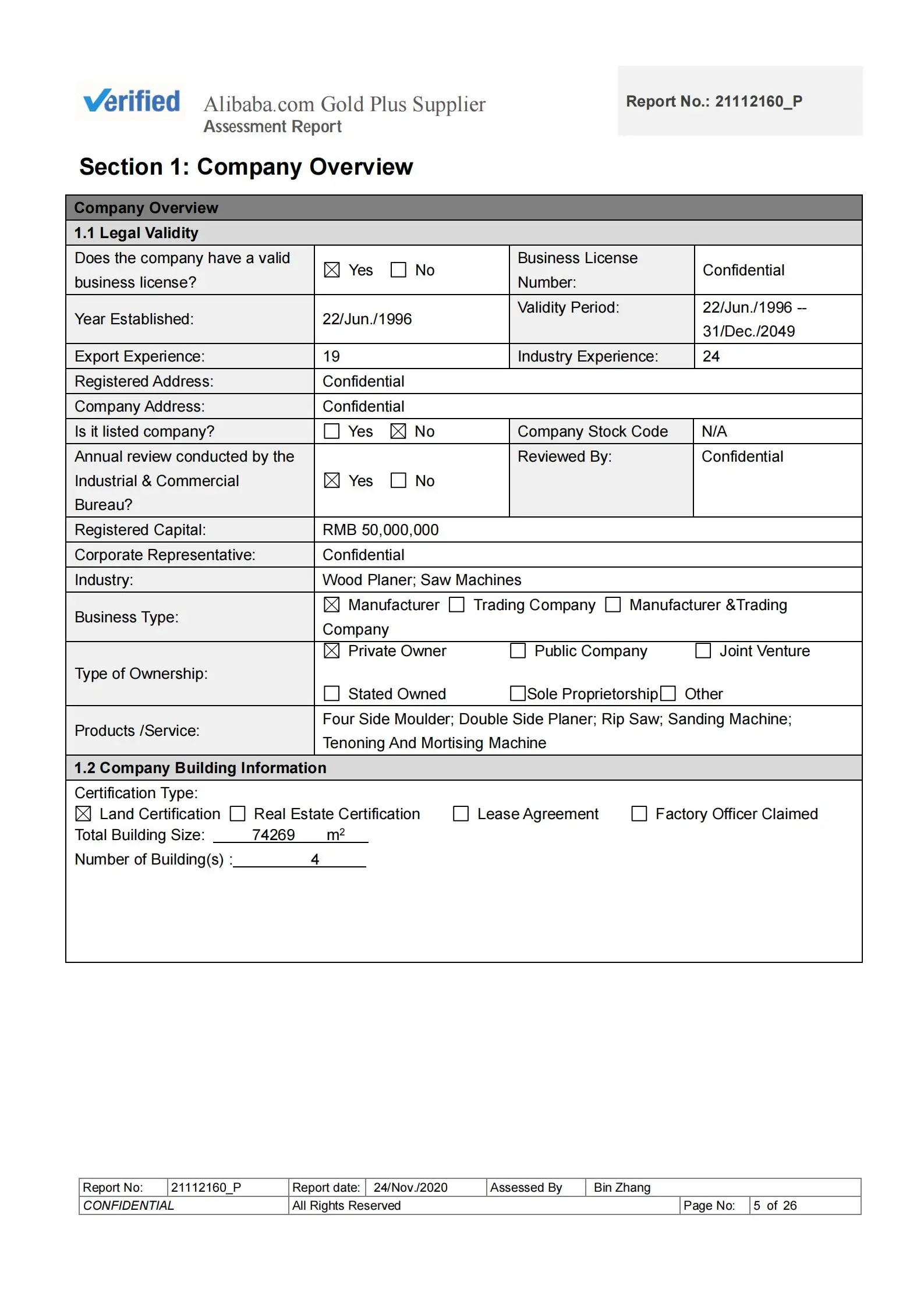

1. Manufacturer or Trading company? QCM (Qingcheng Machinery) is a professional manufacturer of woodworking machinery since 1970. With more than 50 years experience, we have developed to be the top and most powerful manufacturer of woodworking machinery in China. 2. Payment Term? TT , 50% advance payment and 50% balance before delivery. 3. Lead Time? Within 15 days for regular stock machine after receiving advance payment. 45-60 days for customized machines. 4. Warranty ?


3 years for machine, 3 years for the core components. 5. Spare Parts? Unified standards spare parts are available anytime. It will not be a problem if you want to replace spare parts of the machine you bought anytime. 6. Pre-sale Service? As a leader in woodworking machinery field for more than 50 years, professional and efficient proposals can be provided anytime. Our strong R&D team with more than 50 persons are also your team. 7. After-sale Service? Professional after-sales service team, 24 hours technical support by email, call and video. If remote support is not workable, our engineer is available to visit at your expenses of accommodation and round tickets.




8. Why us? 1). 50 years experience in wood working machinery since 1970. 2). Our own casting workshop to insure extra heavy one-piece cast iron machine body for maximum stability and rigidity by standard configuration. 3). All spindles are precision constructed and specially heat treated to provide maximum cutting stability and permanent accuracy. Spindle is processed in constant temperature workshop to insure high precision and stability, +-0.1mm high accuracy.


4). Warranty: 3 years for machine, 3 years for the core3 years for machine, 3 years for the core
components.














QCM MX3815C-K Mortising Woodworking Machinery Used Mortising And Tenon Joint Mortise Drill Machine
