Шэньчжэнь PCB служба изготовления на заказ RGB 60 процентов Teclado Usbc механическая клавиатура Hotswap 65% pcb с
- Категории: PCB & PCBA >>>
- Поставщик: Topfast(Guangdong),Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
Please note: In order to avoid damage to the Keyboard PCB hot-swappable socket and PCB, please make sure that the pins of your switch are vertical, and it is best not to use old switches with tin on the pins.
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
This link only sells Keyboard PCB, no other accessories, compatible with standard GH60 housing and positioning.

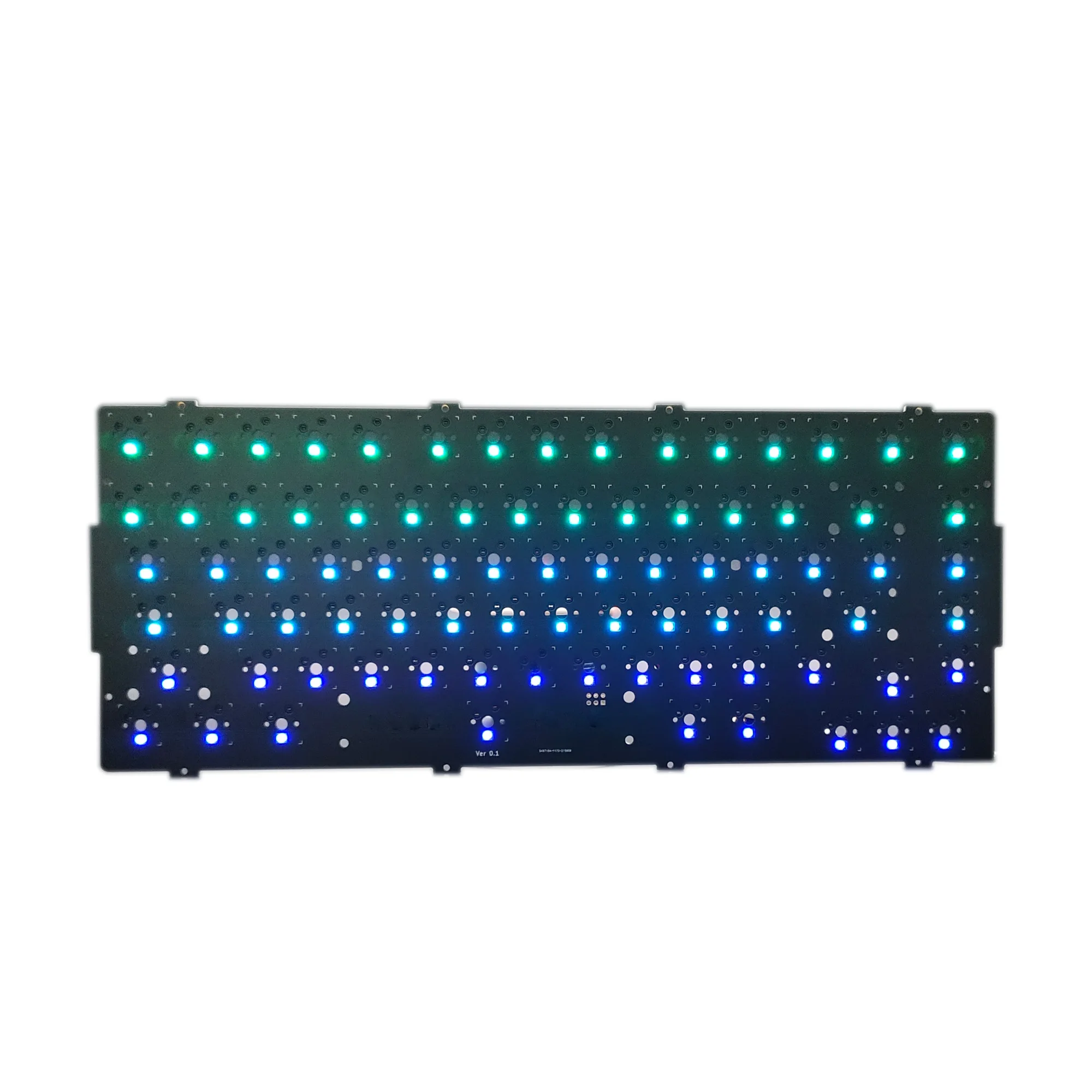

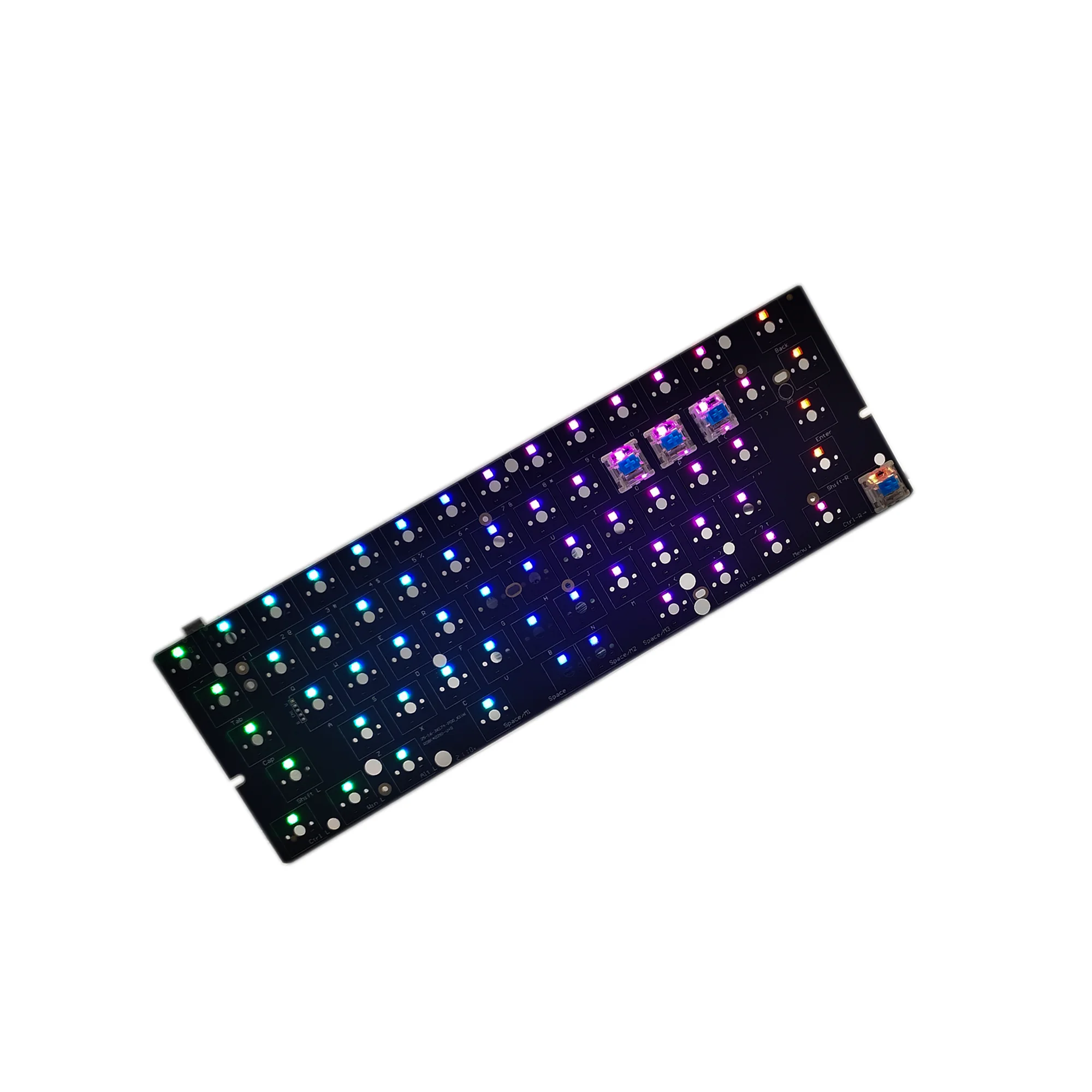

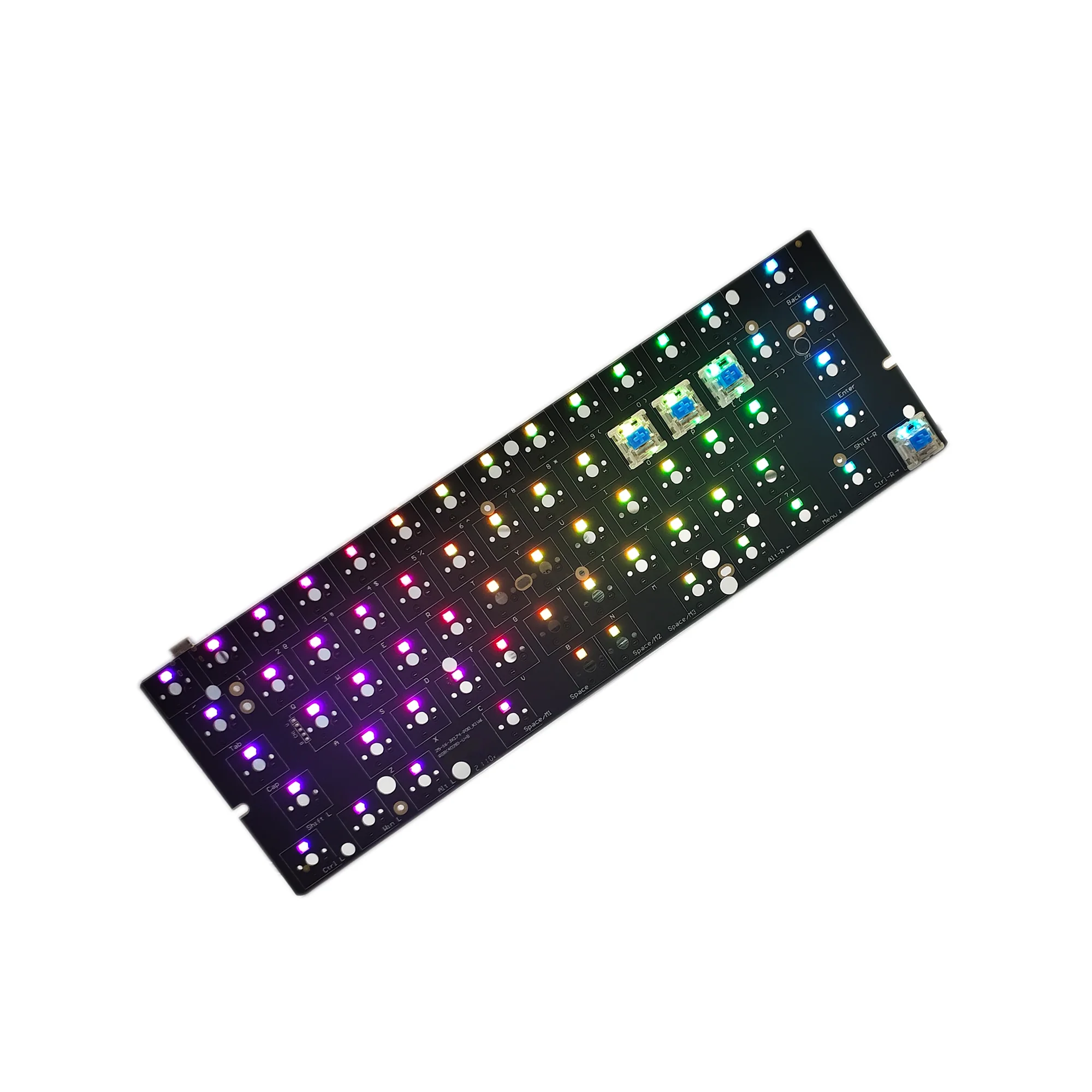

Keyboard PCB.
·Hot swap switch
·QMK program
·RGB backlight
·Compatible with TF60 specification shell and positioning board, without BT
·Hot swap switch
·QMK program
·RGB backlight
·Compatible with TF60 specification shell and positioning board, without BT
Product Paramenters
PCB | 40% | 50% | 60% | 65% | 75% | 80%/TKL | 95% | 100% | |||||||
Standard | / | / | ISO、ANSI | ||||||||||||
Keys | 41 | 51 | 61/64 | 68 | 80 | 87 | 95/96 | 104 | |||||||
Color | Green、Black 、Orange、Blue、White、Purple、Customized | ||||||||||||||
Connector | Type C、Wifi、BT、Micro USB | ||||||||||||||
Material | FR4、Customized | ||||||||||||||
Function | Hot swapple、BT、Wireless/Wired、RGB、Customized | ||||||||||||||
Switch | 3 pin、5 pin | ||||||||||||||
Program | QMK、VIA support、Custom | ||||||||||||||
LOGO | TOPFAST、Custom | ||||||||||||||
Assembly | PCB assembly | ||||||||||||||
Gerber file | Customized | ||||||||||||||
Bom List | Customized | ||||||||||||||
Contact us
Application
How to use QMK/VIA
Company Profile
Certification
Product Packaging and FAQ
