Полностью медный термостатический смесительный клапан DN 15/20/25 для
- Категории: Solar Water Heater Parts >>>
- Поставщик: Zhejiang,Jiajiare,New,Energy,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

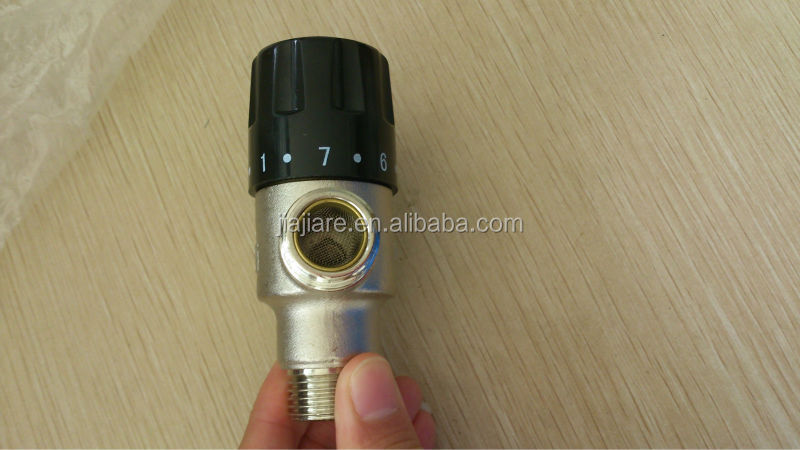

Thermostatic brass mixing valve for solar water heater
Working principle
1.A heat sensor is installed at the water-outlet of valve,the valve core in the valve body is moved by the temperature sensor to block or open the cold,hot water-inlet.
2.The hot water opening is increased while the cold water opening is decreased.
3.When the temperature adjusting knob sets a certain temperature, the cold and hot water atio at the water-out-let will be changed as well,regardless of the change of the inlet cold water or hot water temperature,therefore,the constant outlet watertemperature is ensured.
Main technical data
| Max. working pressure | 1MPa |
| Ideal working pressure | 0.1-0.6MPa |
| Max. water temperature | 100°c |
| Hot water temperature | 50-80°c |
| Adusting scope | 30-55°c/35-60°c |
| Temperature control accuracy | ±2°c |
| Through-hole diameter | G1/2",G3/4" |
| Flow | 1-20m3/h |
Installation and notes

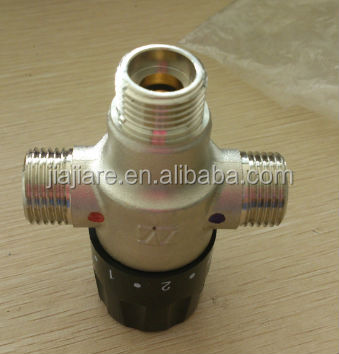

1.Red mark means hot water,blue mark means cold water.
2.After temperature is set,if there is anr change of inlet water temperature and pressure,the change of outlet water is ±2°c .
3.If the pressure of hot and cold water is not the same,it will install a retaining valve at the water-inlet to prevent cold anf hot water to flow cross.
4.The proportion of cold water and hot water is over 8:1,a pressure release valve shouled be installed at the side with higher pressure,to ensure proper adjusting of mixed water.
5.Pls check if the range of nominal pressure and temperature of mixing water conform to the product parameters or not.
Packaging and delivery
LCL( Less than Container Load ):Wooden case
FCL( Full Container Load ):Export carton
Delivery time: 15 Wroking days (For larger quantity, it maybe longer) after receiving deposit or original L/C
Our services
1-Can you provide FREE SAMPLES?
Sorry,you have to pay it first,but we'll cut the costs in your next order.
2-Can you accept OED/ODM?
Yes,we can print the logo on the product and package if you need,it is free for containers.
3-What is your GUARANTEE TIME?
10 years for vacuum tubes,5 years for frame,3 years for water tank,1 year for other parts.
4-What is your PAYMENT TERM?
T/T,L/C,Western Uion.
5-Do you have other ADDITIONAL SERVICE?
YES.
We provide free spares according to your oder,such as vacuum tubes,tube holders,dust rings,
seal rings,screws etc.Also,we can provid logo design.
About JIAJIARE
Our company found in 1995 and specializes in solar application technology, we develops with the researching, production and industrialization enterprise distribution for more than 18 years.
The Jiajiare solar water heater is the leading product of our company,it is green and safe.And this is also a type of product that our country do its utmost to recommend.
The company regards best quality as the vitality,so that our products are sold well in our country,they are also exported to Europe,America, Southeast Asia,Middle East etc.
So far, JIAJIARE has applied multiple national patents and owned its unique intellectual property.Our company also receive many certifications,such as CE,CCC,SOLAR KEYMARK,ROHS,SRCC,EN12976,ISO9001-2000 etc.
